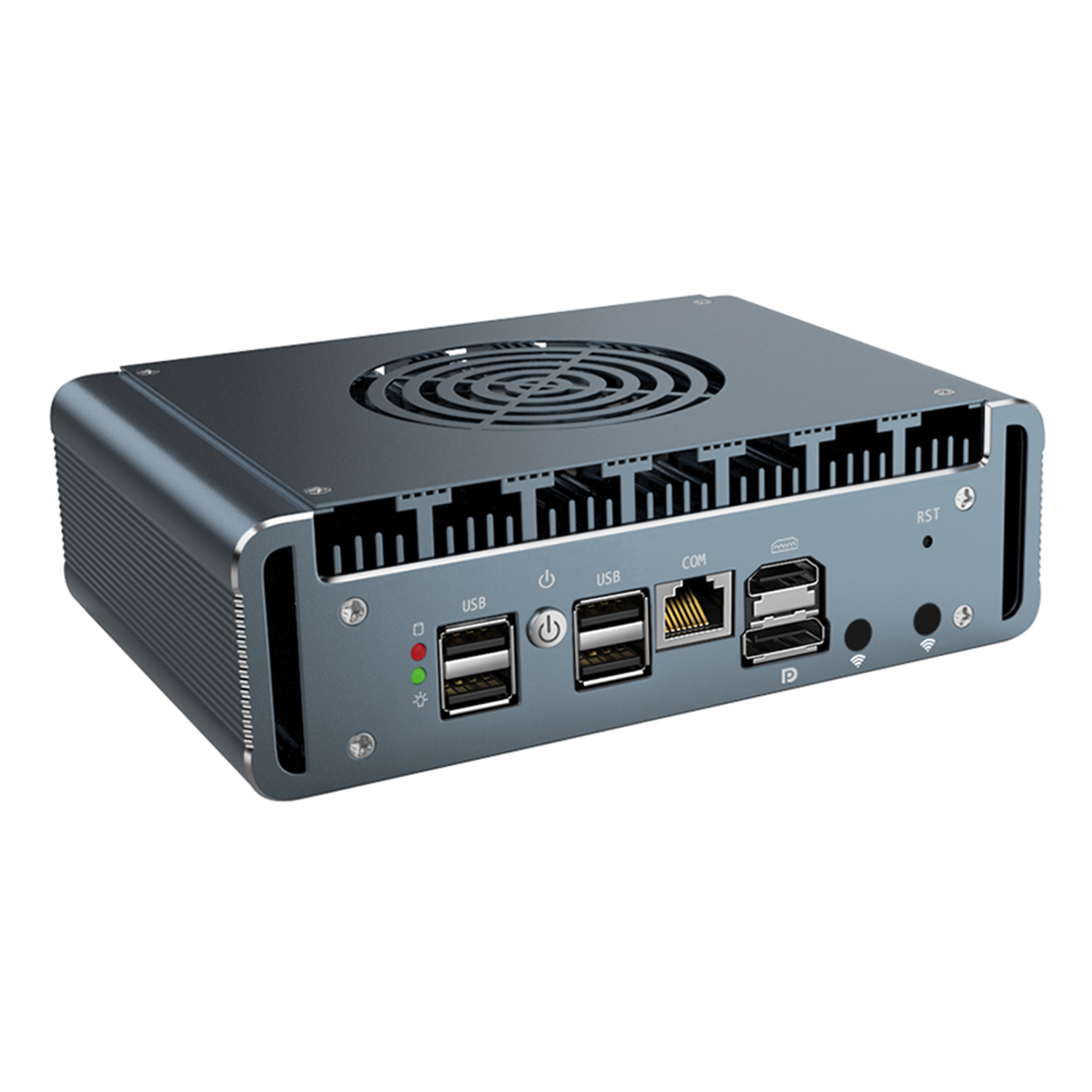

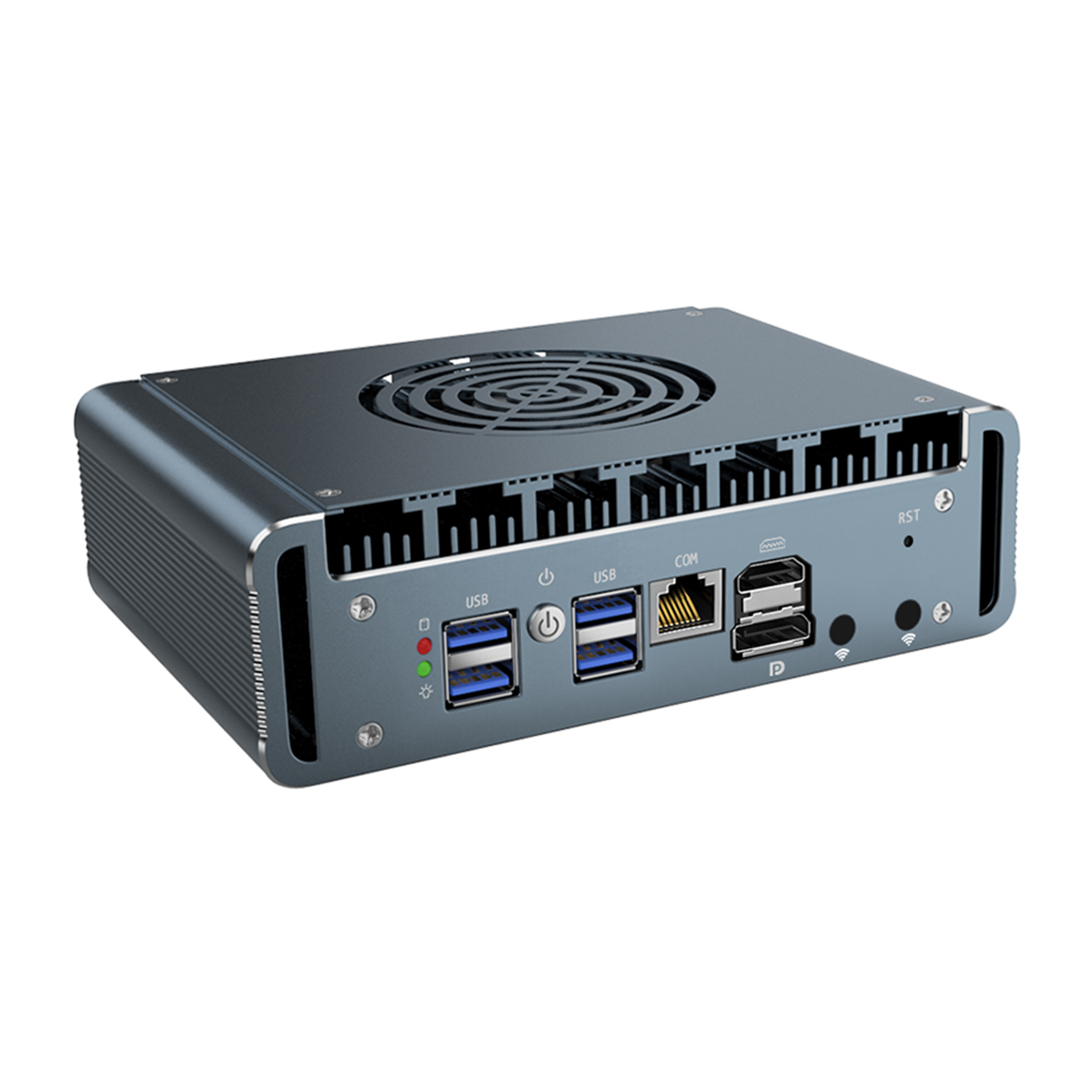

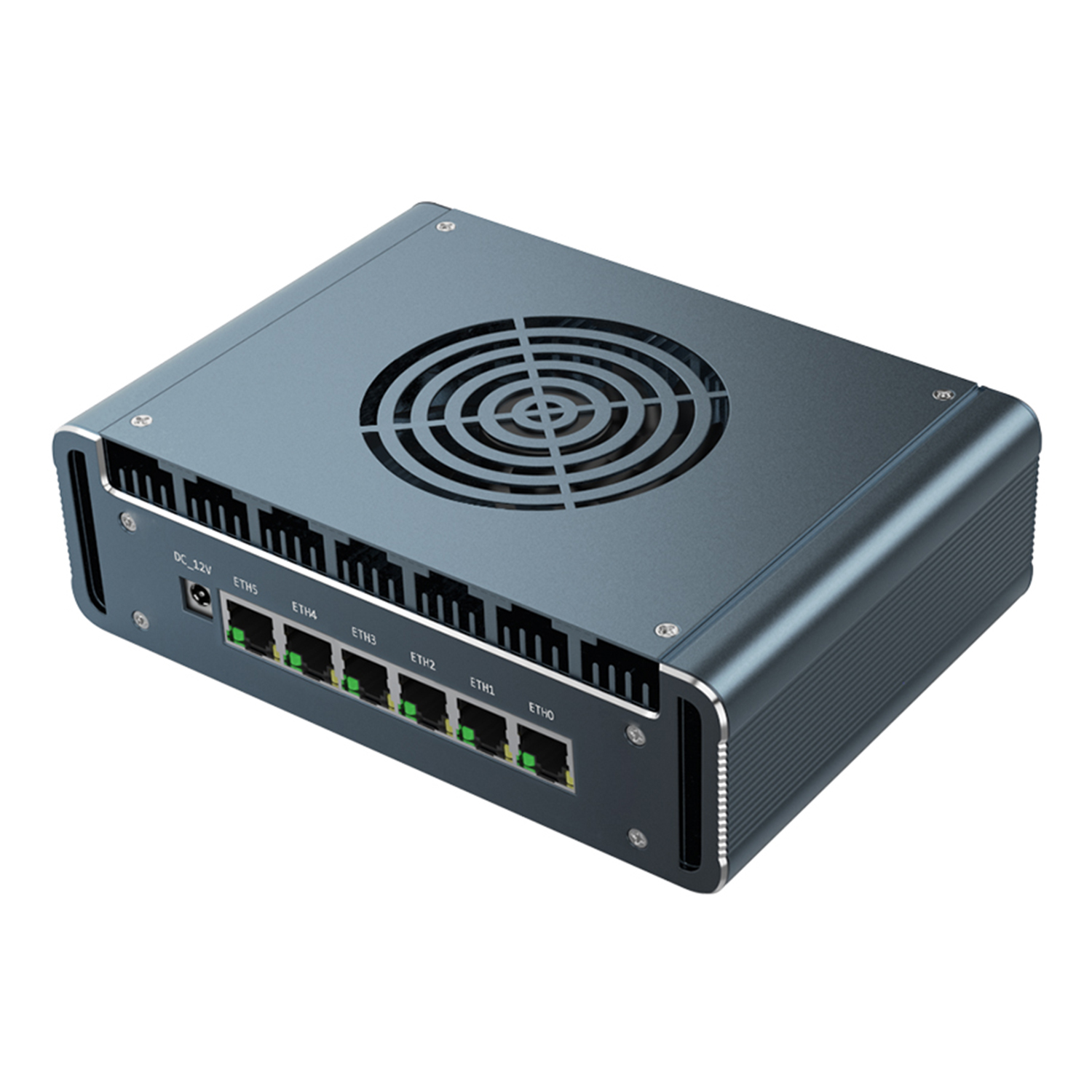

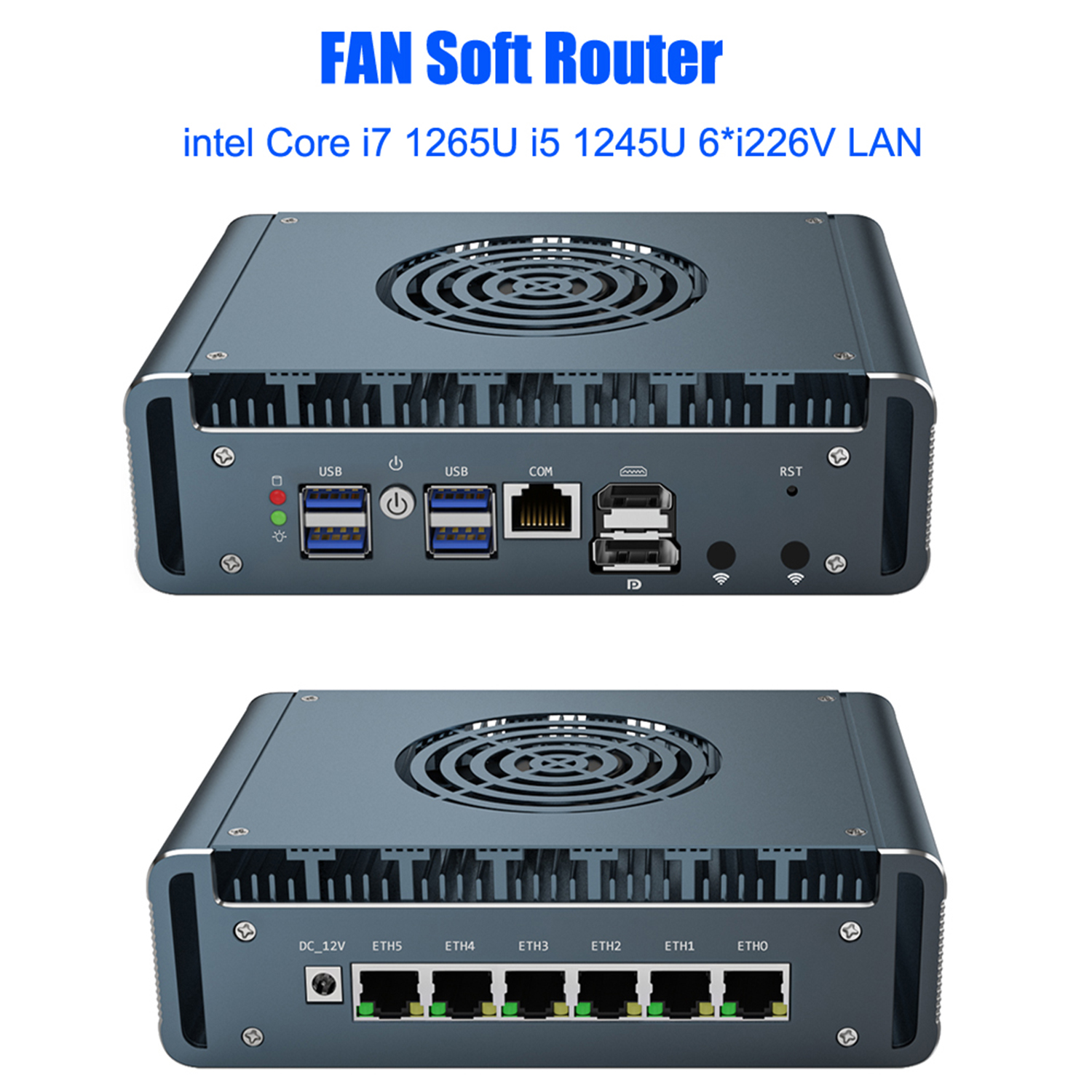

X12 6LAN
Product Information
Description CPU 4K Dual Display
Model Number: X12 6LAN
Type: Cooling Fan, Industrial
Case Material: Aluminum Alloy Structure
1. Intel N100
2. Intel Core i5-1245U
3. Intel Core i7-1265U
DP(7680 x 4320@60Hz),
HDMI(4096 x 2304@60Hz).
(N100: (HDMI/DP): 4096 x 2160@60Hz)
RAM Memory SSD Storage Network
N100:
1 x DDR5 4800MHz SODIMM Memory Slot, Up to 16GB
i5-1245U/i7-1265U:
2 x DDR5 4800MHz SODIMM Memory Slots, Up to 64GB
1 x M.2 2280 NVME, 1 x 2.5 INCH SATA, 1 x mSATA
(N100 only supported 1 x M.2 2280 NVMe SSD, 1 x SATA3.0)

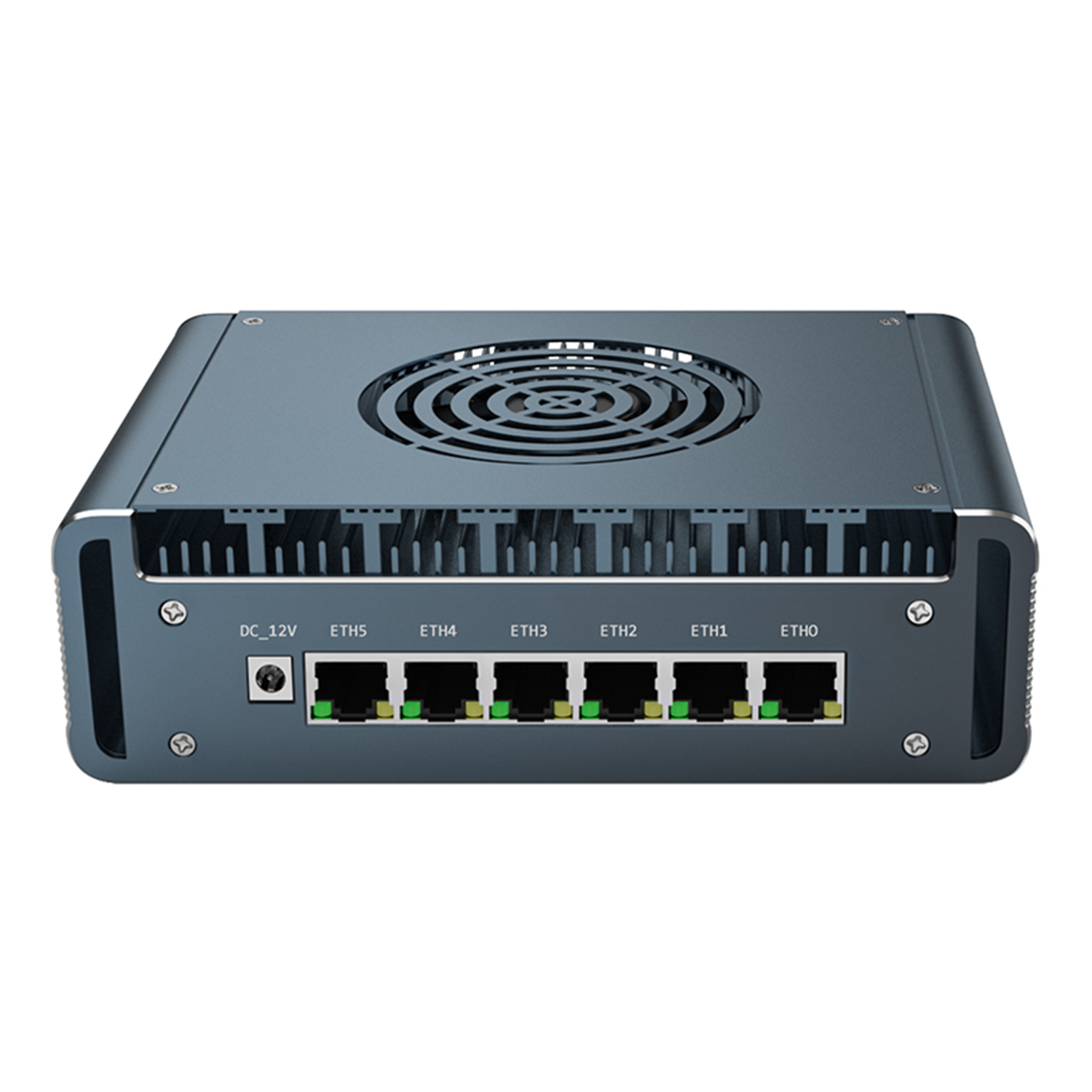

6 x Intel i226/i225 2.5G LAN Ports
Input/output port Power & Working Environment Expansion Slot
Switch: 1 x Power On/Off
Power: 1 x DC IN; LED: 1 x Instruction Lights

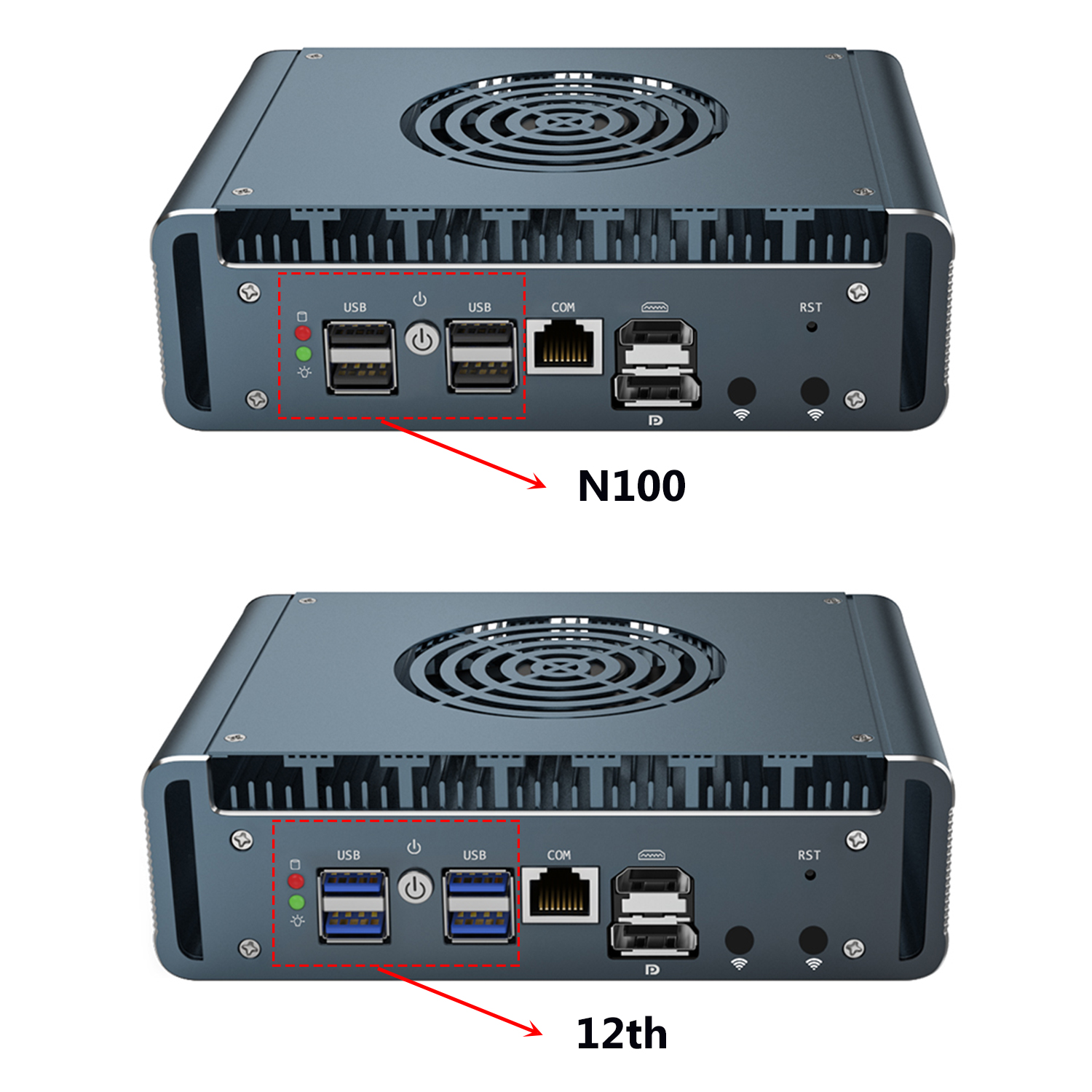

USB: 4 x USB3.0
(N100 supported 4 x USB2.0)
Display: 1 x HDMI, 1 x DP
LAN: 6 x 2.5G LAN
COM: 1 x RJ45 COM
Input: DC100-240V AC/50-60Hz
Output: DC 12V/4A
Work Temperature:
-0°C~+50°C(Commercial HDD);
-20°C~+50°C (Industrial SSD).
Work Humidity: 5~90RH, Non-condensing.
1 x M.2 slot for WIFI/Bluetooth/4G
Product Dimension Other Features What's in Box

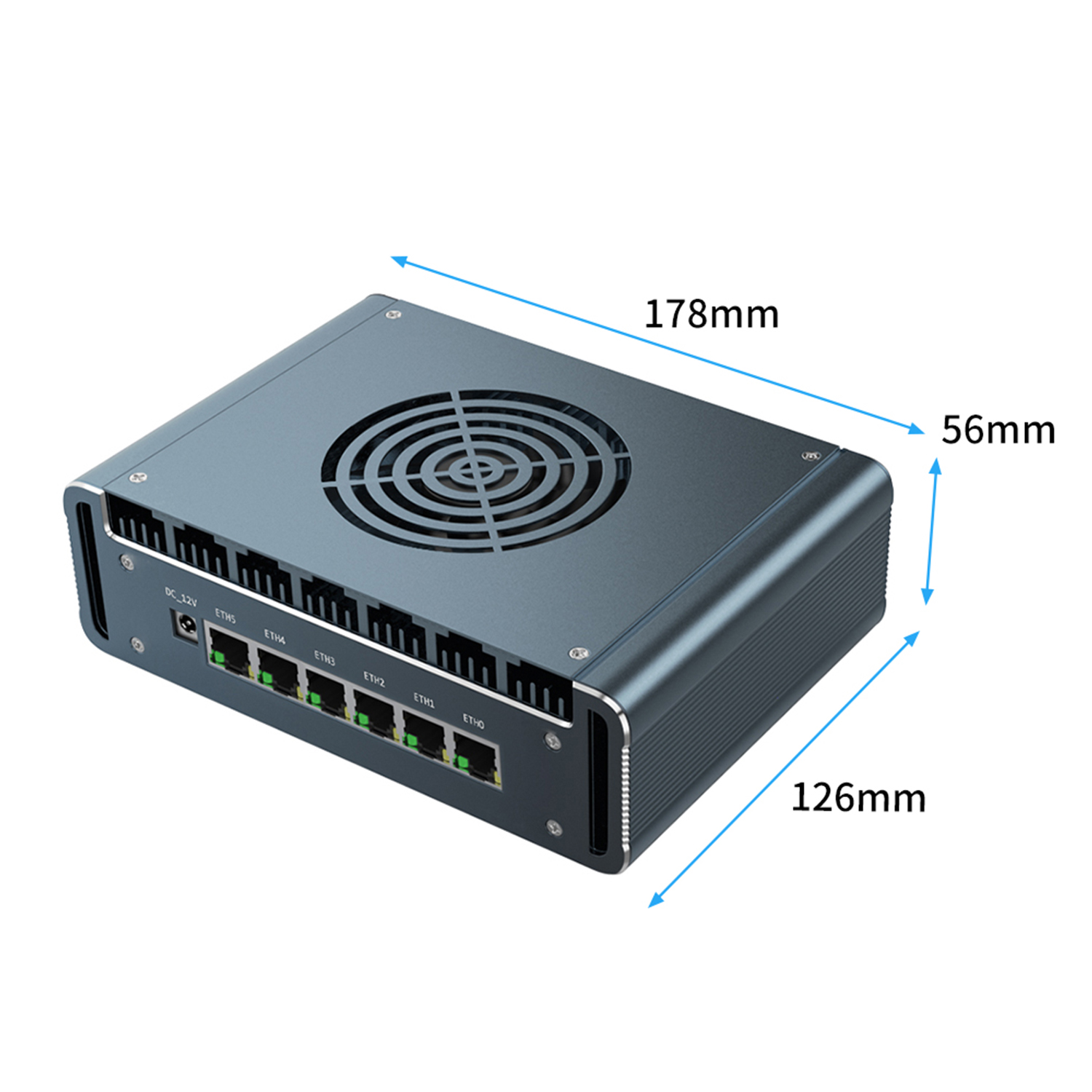

Size: 178mm x 126mm x 56mm
Weight: 1.15kg
1. System Support: Windows/Linux/Ubuntu/pfSense.
2. Support Power-on boot; Scheduled boot; Wake-up on LAN; PXE boot; Watchdog.
1 x Mini PC, 1 x Power Adapter,
1 x Power Cord, 1 x HDMI Cable, 1 x Screws Bag
Product Application
Desktop Computer Business Mini PC Office Mini PC School Mini PC Mini PC
