| Description | CPU | GPU |

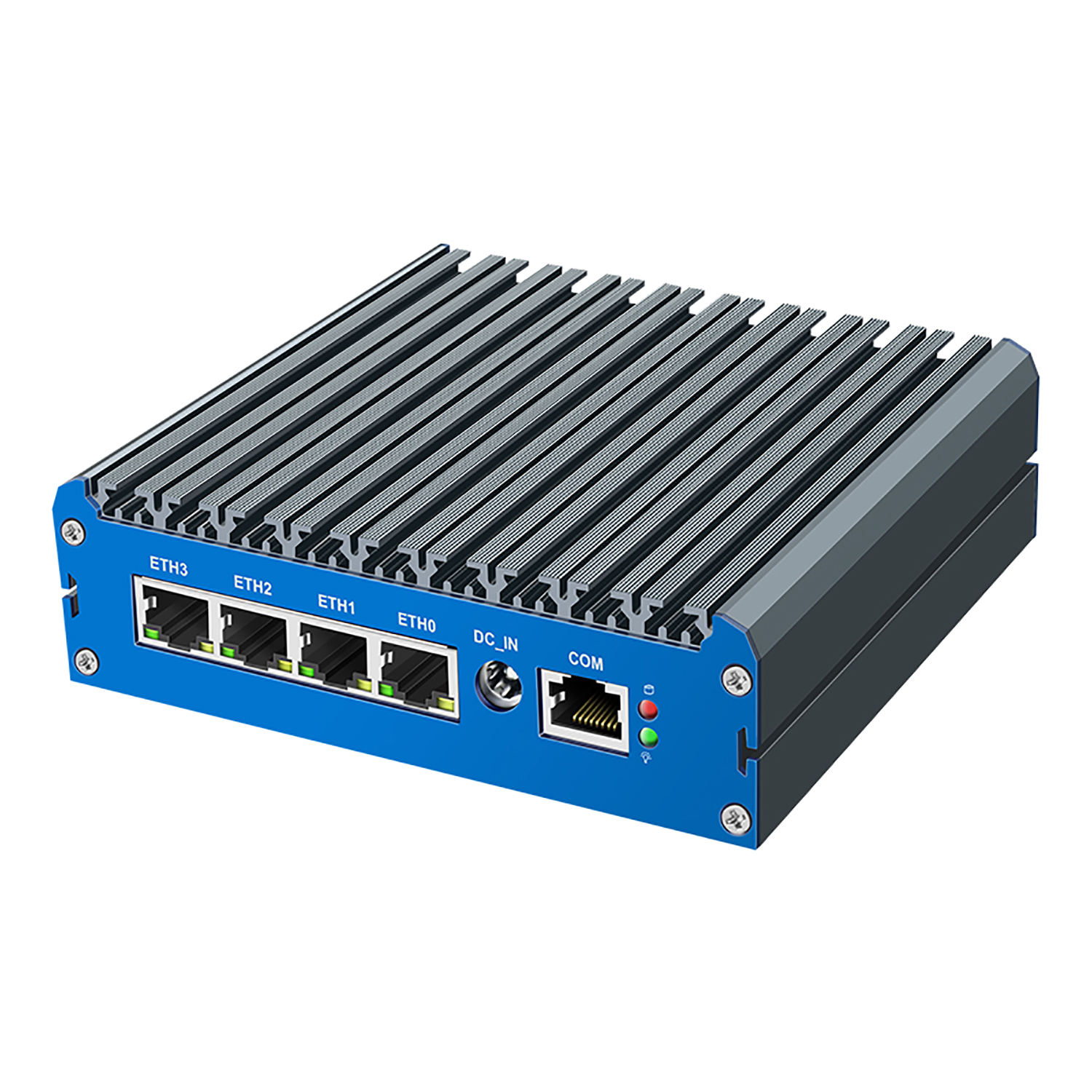

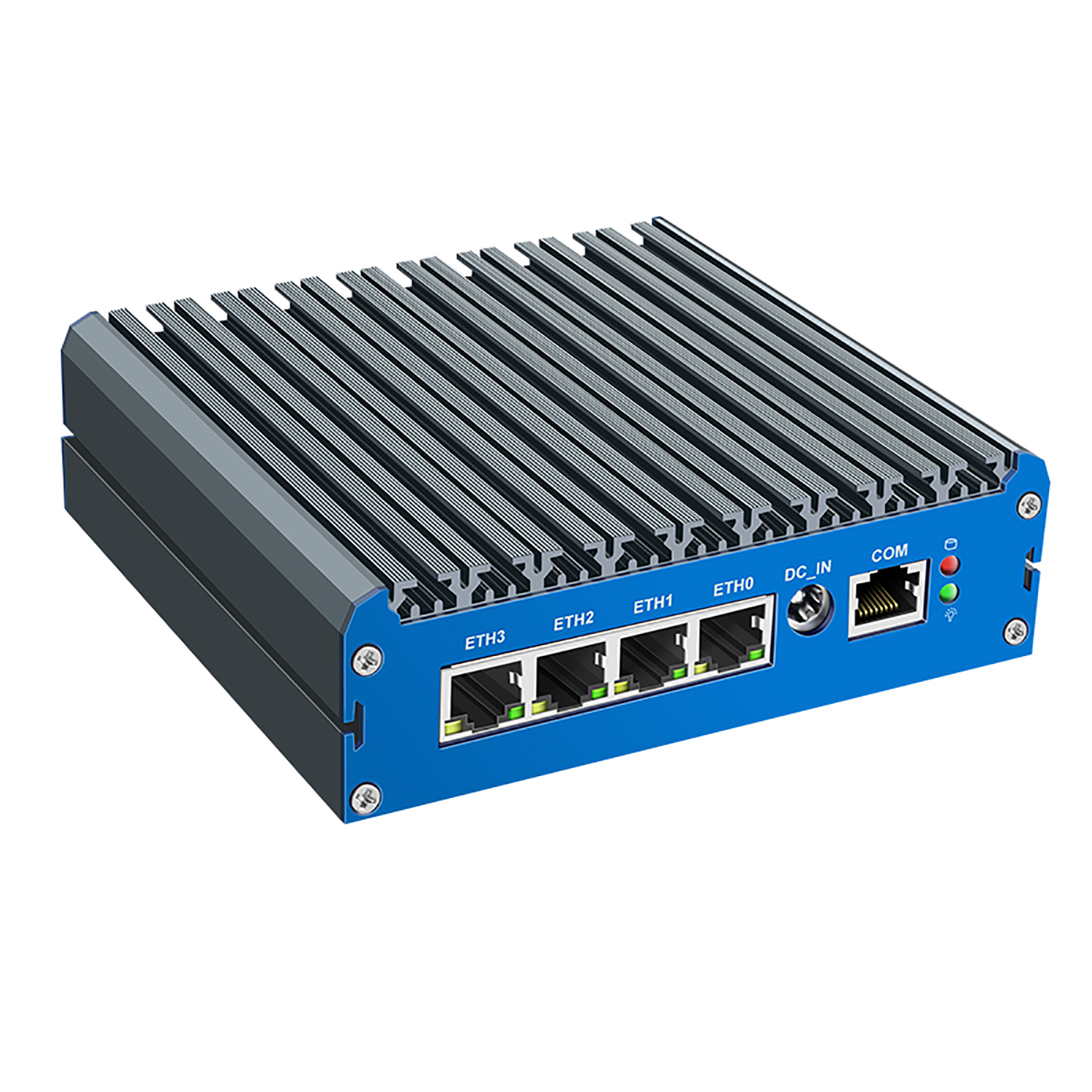

| Model Number: X12 Type: Fanless, Silent Working Material: Aluminum Alloy Structure Case |
Intel Alder Lake N100, 4 Cores/4 Threads, 6MB Cache, Base Frequency: 0.8GHz, Max. Turbo Frequency: 3.4GHz, 6W TDP. |
Intel UHD Graphics 730, Graphics Base Frequency: 300MHz; Graphics Burst Frequency: 750MHz; 4K Support: Yes, at 60Hz; Max Resolution (HD): 4096x2160@60Hz; Max Resolution (DP): 4096x2160@60Hz. |
| RAM Memory | SSD Storage | Network |
| 2 x DDR5 4800MHz SO-DIMM (Single up to 16GB) | 1 x M.2 2280 SSD, Support 2.5 inches HDD Extension |
4 x i226-V 2.5G network LAN Ports |
| Input/output port | Power & Working Environment | Expansion Slot |

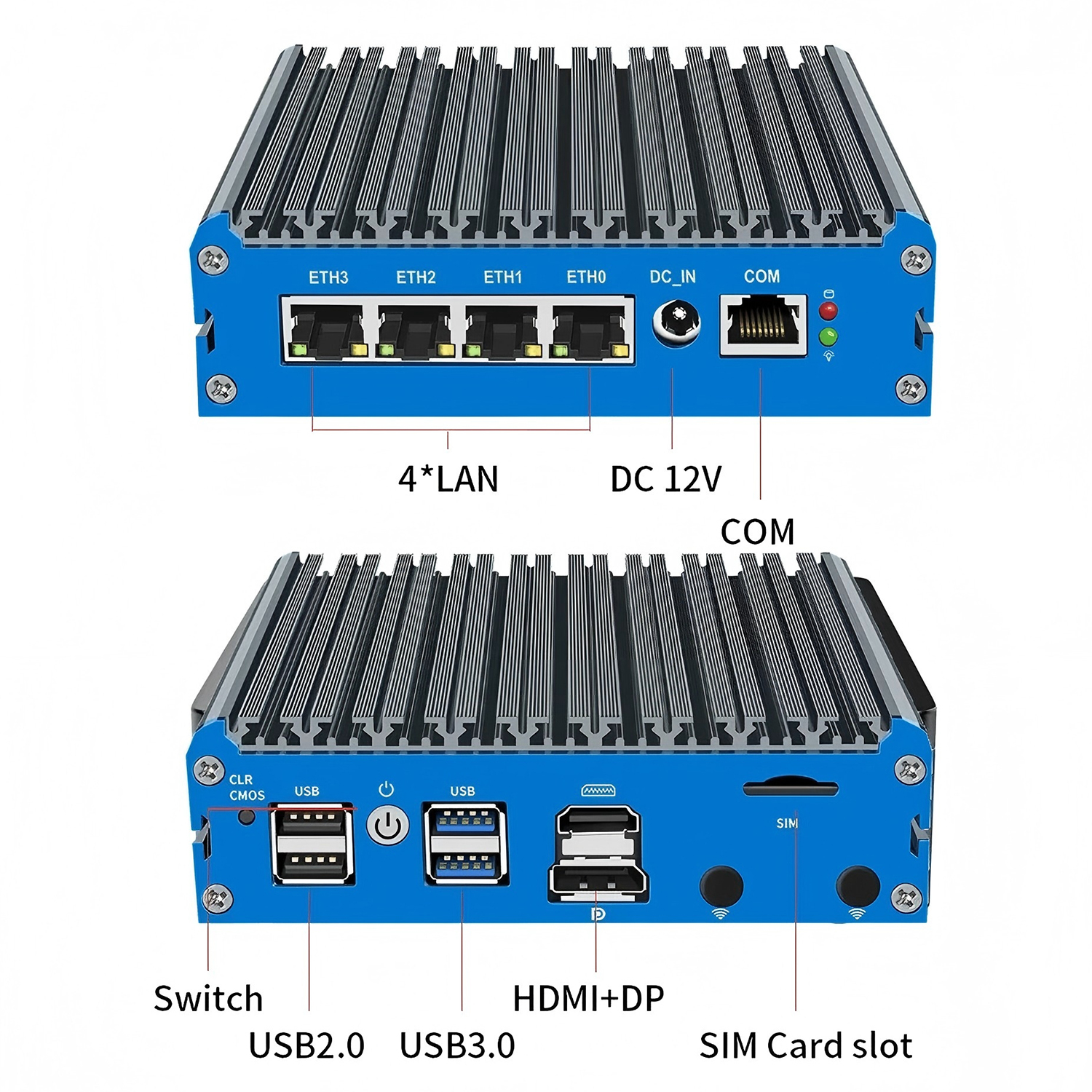

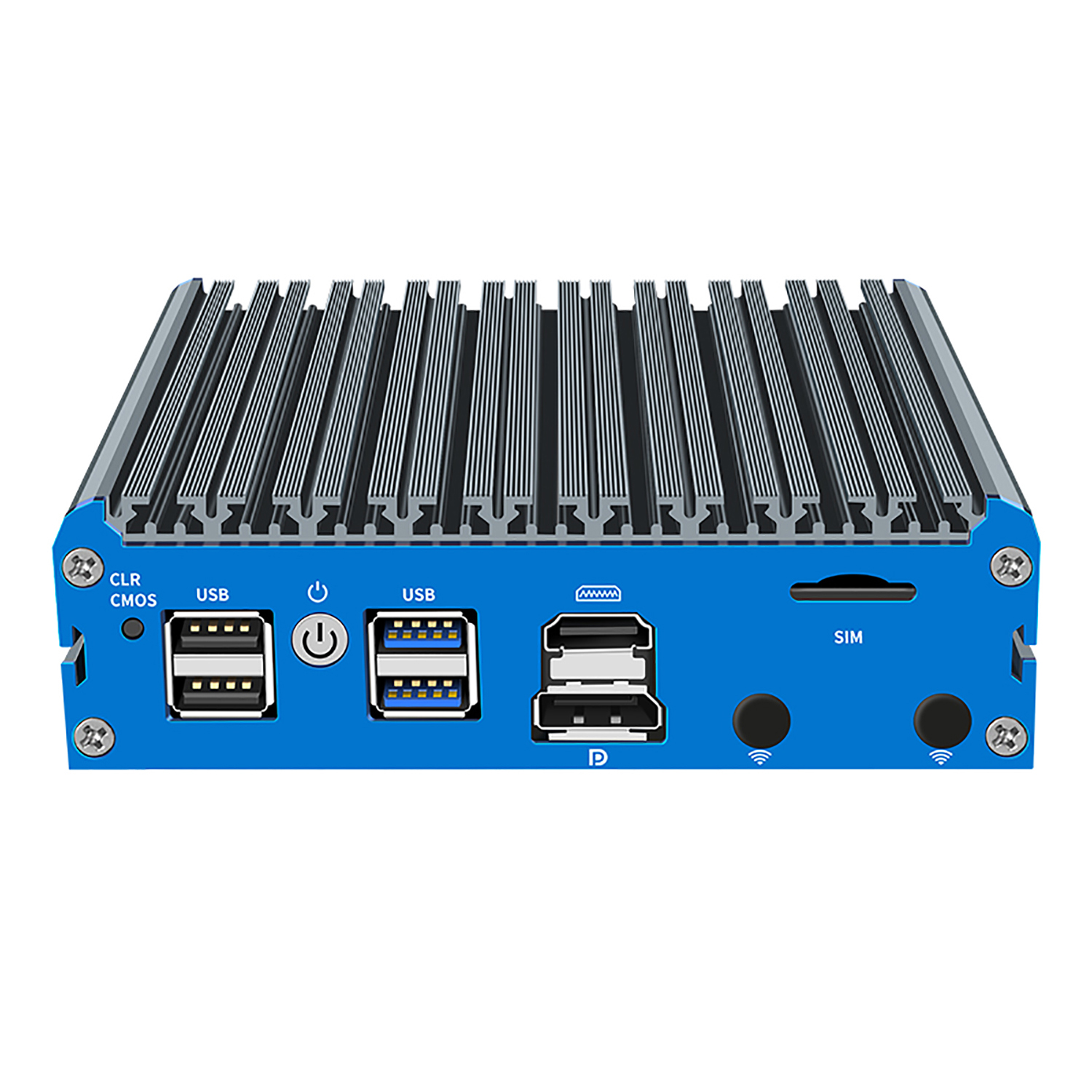

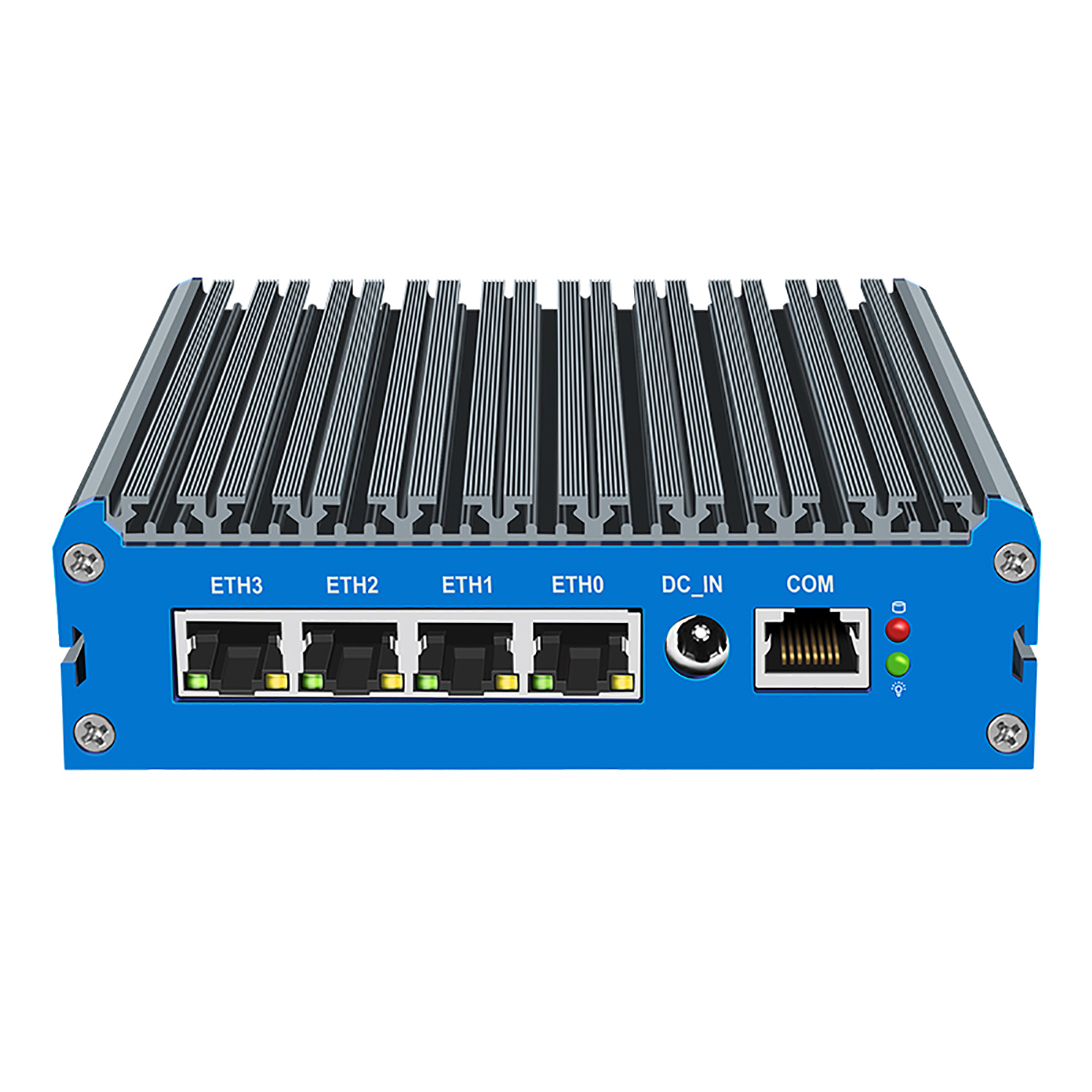

| Switch: 1 x Power On/Off Power: 1 x DC IN; LED: 1 x LED USB: 2 x USB2.0, 2 x USB3.0 Display: 1 x HDMI, 1 x DP LAN: 4 x 2.5G LAN COM: 1 x RJ45 COM Other: 1 x SIM Slot |
Input: DC100-240V AC/50-60Hz Output: DC 12V/5A Operating Temperature: 0°C-70°C(32°F~140°F) Storage Temperature: -20°C-80°C(-68°F~176°F) Relative Humidity: 10%~90%(non-condensing) |
1 x Mini PCIE Channel |
| Product Dimension | Other Features | What's in Box |

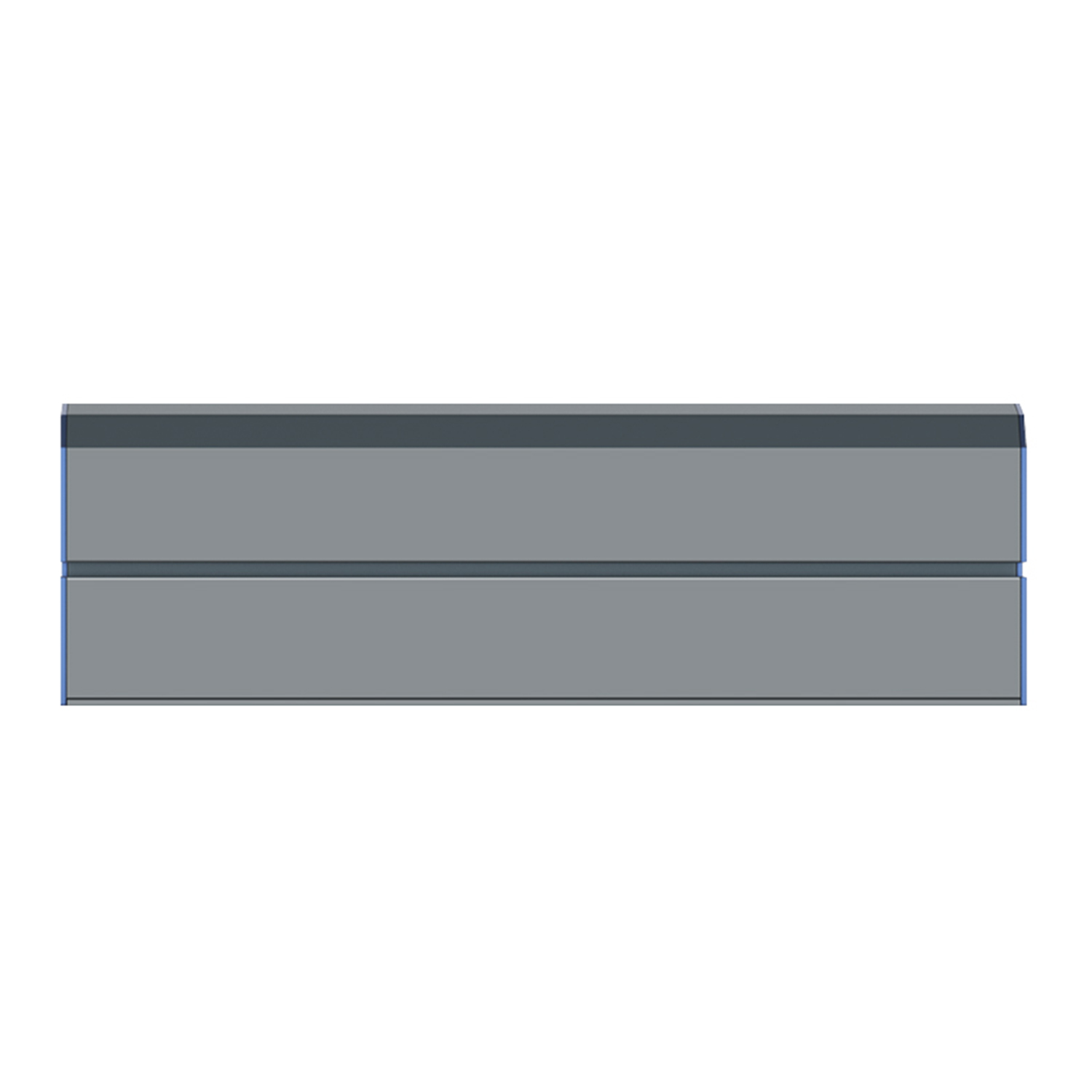

| Size: 134mm x 125mm x 40mm Weight: 1.0kg |
Support Firewall, VPN, Network Server, Network Security, Router and other fields. System Support: Windows / Linux / Centos / Ubuntu / pfSense / OPNsense. Support Power on, Scheduled boot, Wake on LAN, PXE boot, Watchdog. |
1 x Mini PC, 1 x Power
Adapter, 1 x Power Cord, 1 x HDMI Cable, 1 x Vesa Mount, 1 x Screws Bag |
