| Description | CPU | GPU |
| Model Number: X12-J4125 Type: Fanless, Silent Working Material: Aluminum Alloy Structure Case |
Intel Celeron J4125, 4 Cores/4 Threads, 4MB Cache, Base Frequency: 2.0GHz, Max. Turbo Frequency: 2.7GHz, 10W TDP. |
Intel UHD Graphics 600, Graphics Base Frequency: 250MHz; Graphics Burst Frequency: 750MHz; 4K Support: Yes, at 60Hz; Max Resolution (HD): 4096x2160@30Hz; Max Resolution (DP): 4096x2160@60Hz. |
| RAM Memory | SSD Storage | Network |
| 1 x DDR4 3200MHz SO-DIMM (up to 8GB) | 1 x M.2 2280 SATA SSD Slot, Support 2.5 inches HDD Extension | 2 x Gigabit LAN Ports, 10M/100M/1000M |
| Input/output port | Power & Working Environment | System Supported |
| Switch: 1 x Power On/Off Power: 1 x DC IN USB: 2 x USB2.0, 4 x USB3.0 Display: 1 x HDMI, 2 x DP LAN: 2 x Gigabit LAN COM: 1 x COM Audio: 1 x MIC/SPK Other: 1 x SIM Slot |
Input: DC100-240V AC/50-60Hz Output: DC 12V/4A Operating Temperature: 0°C-70°C(32°F~140°F) Storage Temperature: -20°C-80°C(-68°F~176°F) Relative Humidity: 10%~90%(non-condensing) |
Windows / Linux / Centos / Ubuntu / pfSense / OPNsense. |
| Product Dimension | Other Features | What's in Box |

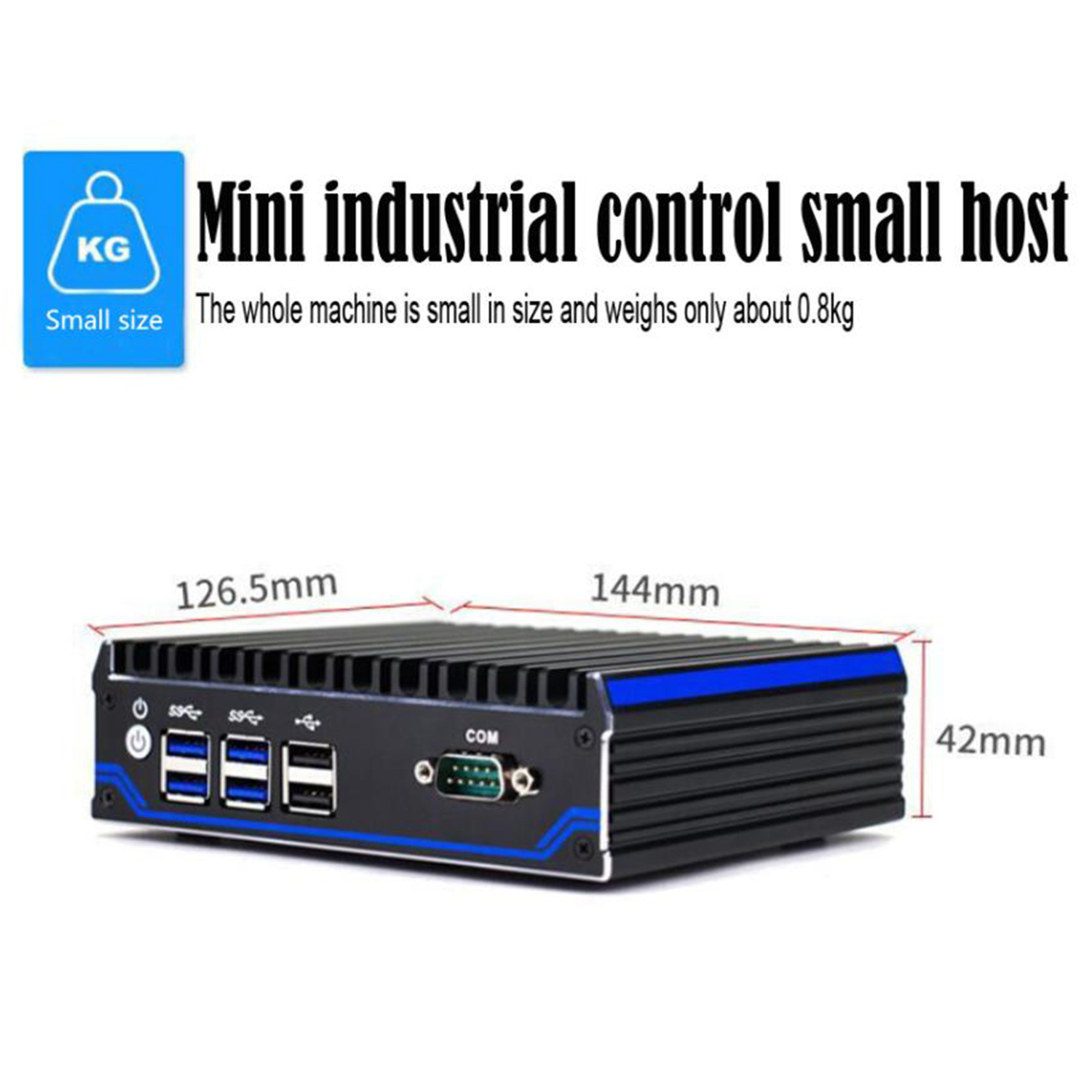

| Size: 144mm x 126.5mm x 42mm Weight: 0.8kg |
Support Firewall, VPN, Network Server, Network Security, Router and other fields. | 1 x Mini PC, 1 x Power
Adapter, 1 x Power Cord, 1 x HDMI Cable, 2 x Antennas, 1 x Screws Bag |
