| Description | CPU | GPU |
| Model Number: X12-2 Type: Fanless, Silent Working Material: Aluminum Alloy Structure Case |
Intel Celeron J6412/J6413, 4 Cores/4 Threads, 1.5MB L2 Cache, Base Frequency: 2.0GHz, Max. Turbo Frequency: 2.6GHz, 10W TDP. |
Intel HD Graphiacs 600, Graphics Base Frequency: 400MHz; Graphics Burst Frequency: 800MHz; 4K Support: Yes, at 60Hz; Max Resolution (HD): 4096x2160@60Hz; Max Resolution (DP): 4096x2160@60Hz. |
| RAM Memory | SSD Storage | Network |
| 2 x DDR4 3200MHz SO-DIMM (Single up to 32GB) | 1 x M.2 2280 SSD, 1 x SATA3.0 supports 2.5 inches HDD Extension | 4 x i226-V 2.5G network LAN Ports, support diskless startup and wake-on-LAN |
| Input/output port | Power & Working Environment | System Supported |

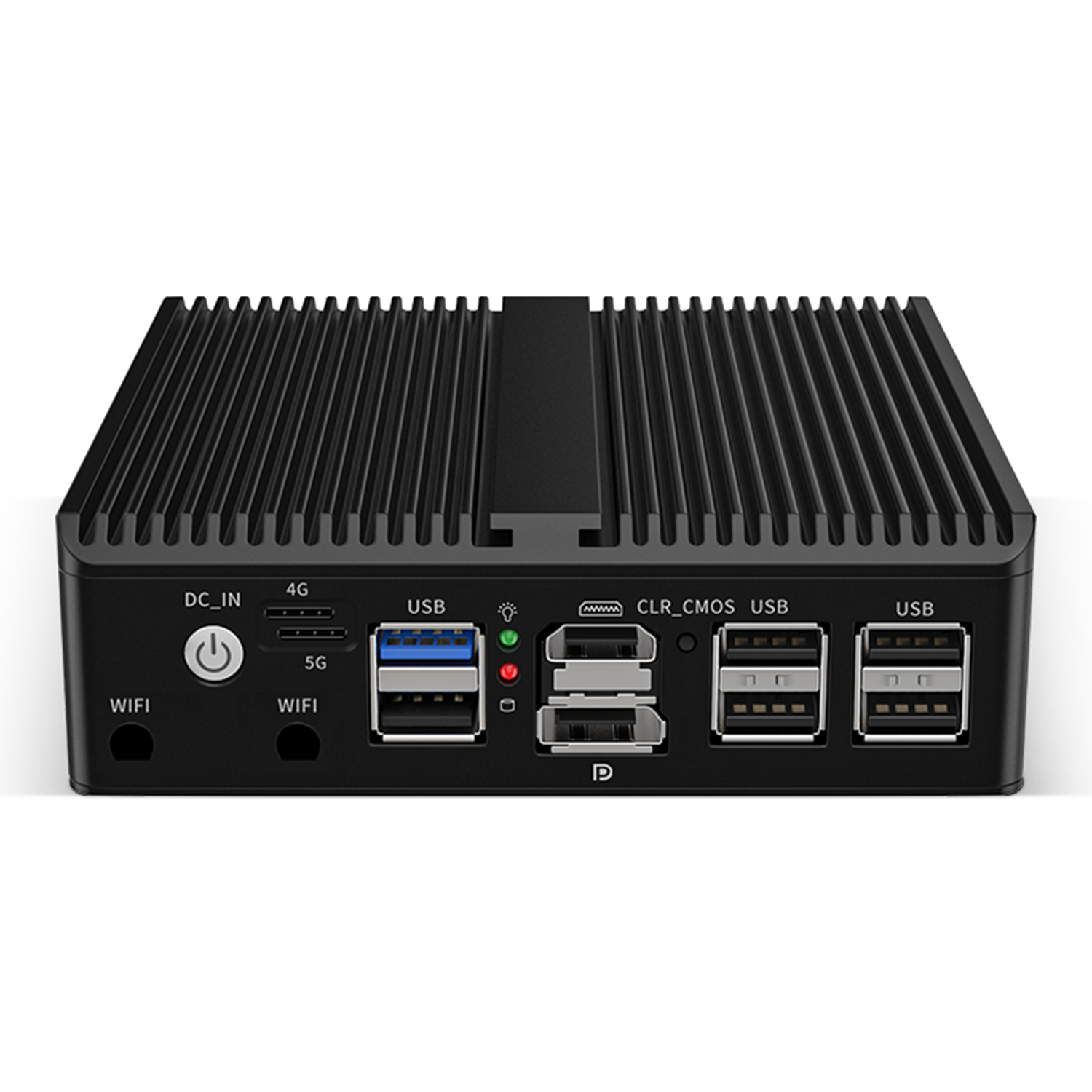

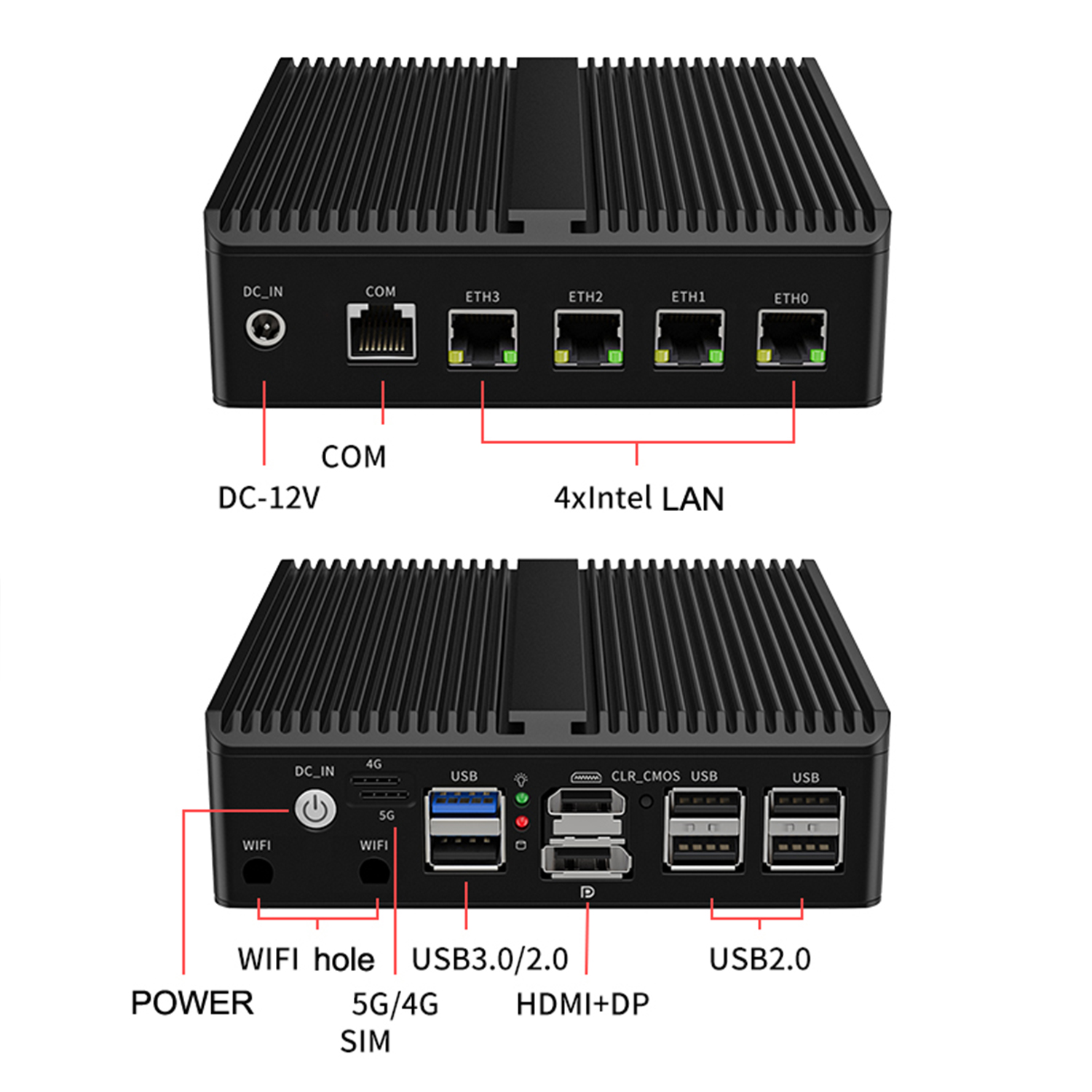

| Switch: 1 x Power On/Off Power: 1 x DC IN; LED: 1 x LED USB: 5 x USB2.0, 1 x USB3.0 Display: 1 x HDMI, 1 x DP LAN: 4 x 2.5G LAN COM: 1 x RJ45 COM Others: 1 x 4G/5G SIM Slot, 1 x CLR-CMOS |
Input: DC100-240V AC/50-60Hz Output: DC 12V/4A Operating Temperature: -0°C~+50°C(Commercial HDD), -20°C~+50°C(Industrial SSD) Storage Temperature: -20°C-80°C(-68°F~176°F) Relative Humidity: 10%~90%(non-condensing) |
Windows / Linux / Centos / Ubuntu / pfSense / OPNsense. |
| Product Dimension | Other Features | What's in Box |

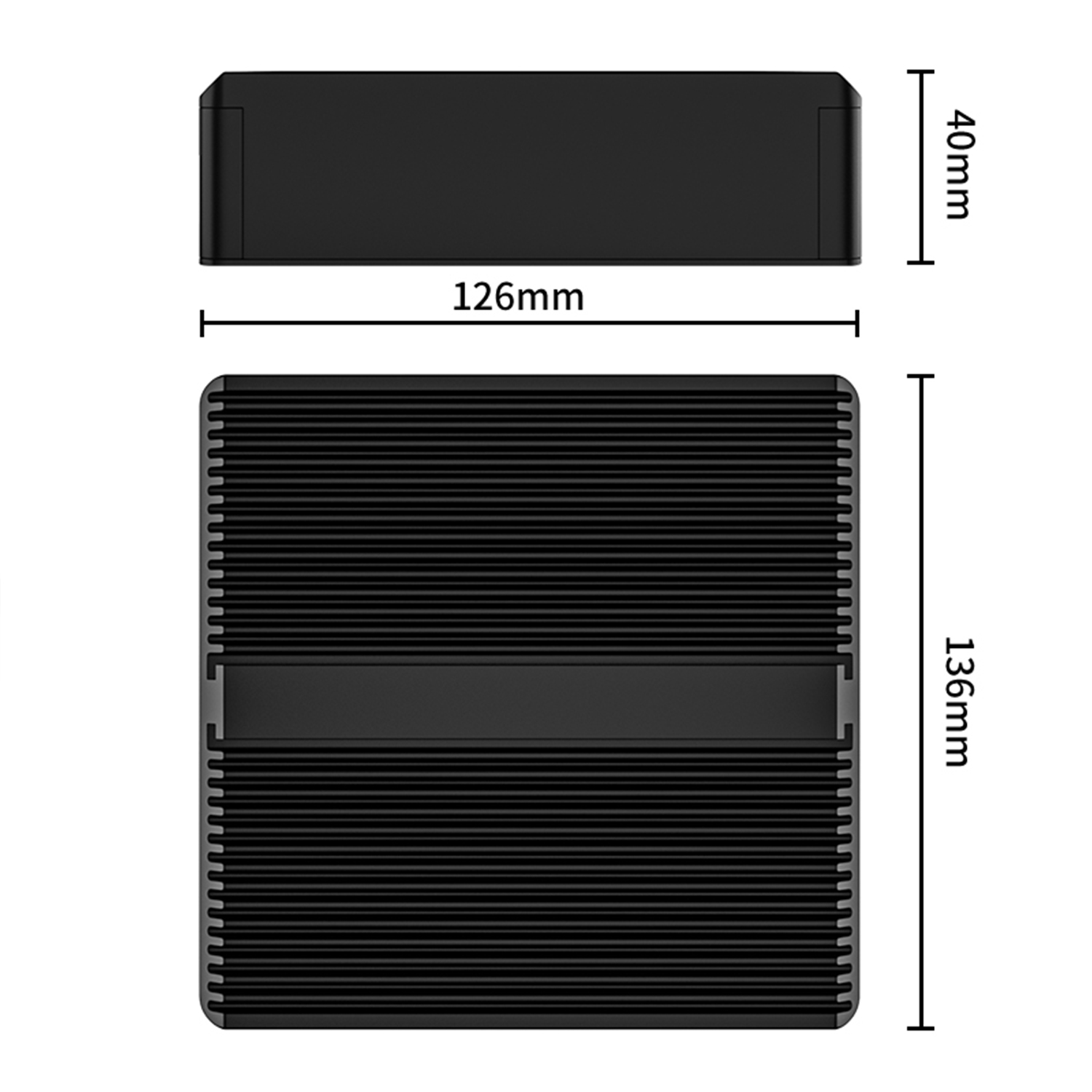

| Size: 136mm x 126mm x 40mm Weight: 1.0kg |
Support Firewall, VPN, Network Server, Network Security, Router and other fields. | 1 x Mini PC, 1 x Power
Adapter, 1 x Power Cord, 1 x HDMI Cable, 1 x Screws Bag |
