| Description | CPU | GPU |
| Model Number: X12-2-3 Type: Fanless, Silent Working Material: Brushed Aluminum Alloy Case |
Intel Alder Lake N100, 4 Cores/4 Threads, 6MB L3 Cache, Base Frequency: 0.8GHz, Max. Turbo Frequency: 3.4GHz, 6W TDP. |
Intel UHD Graphiacs, Graphics Base Frequency: 300MHz; Graphics Burst Frequency: 750MHz; 4K Support: Yes, at 60Hz; Max Resolution (HD): 4096x2160@60Hz; Max Resolution (DP): 4096x2160@60Hz. |
| RAM Memory | SSD Storage | Network |
| 1 x SODIMM non-ECC DDR4 Slot. | 1 x M.2 NVMe/PCIe3.0x2 2280 SSD, 1 x 2.5''SATA3.0 7mm SSD/HDD. |
1 x SIM slot, 1 x MPCIE wireless slot, Support WiFi/5G/4G/3G(USB protocol) connection. |
| Input/output port | Power & Working Environment | System Supported |

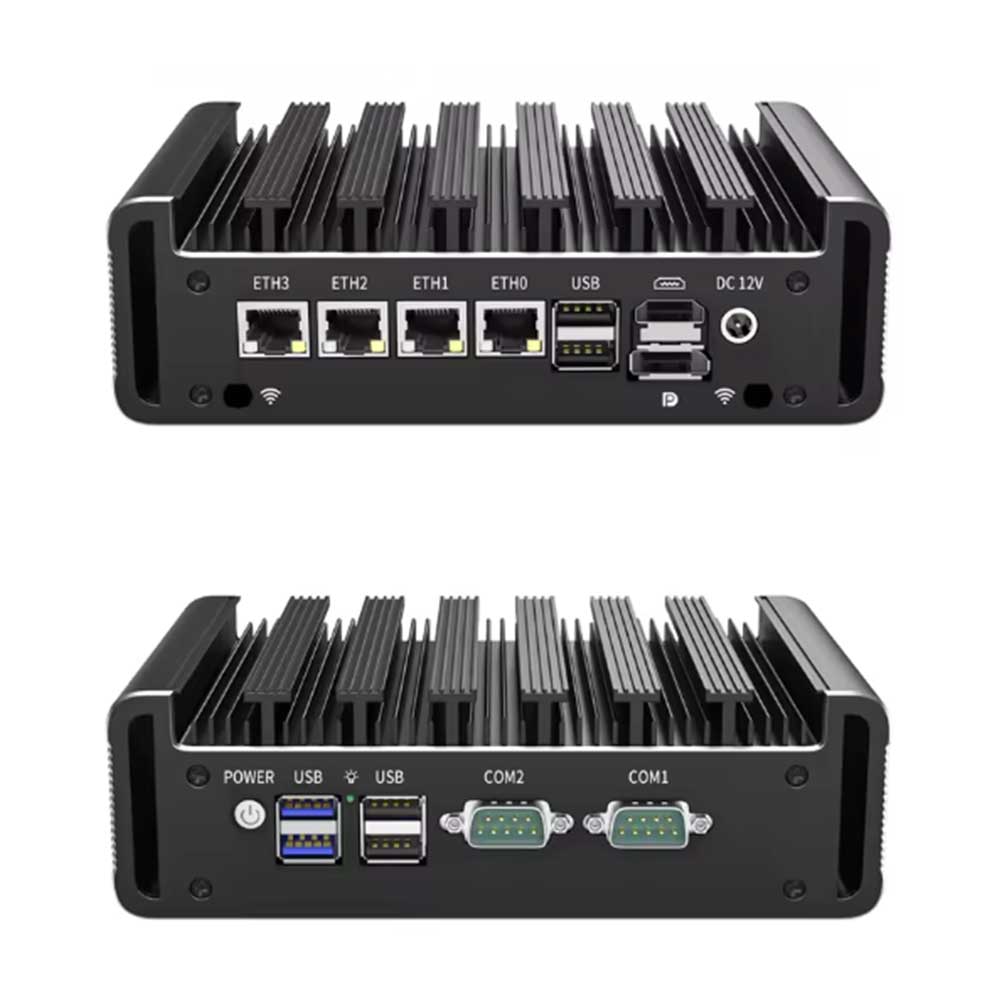

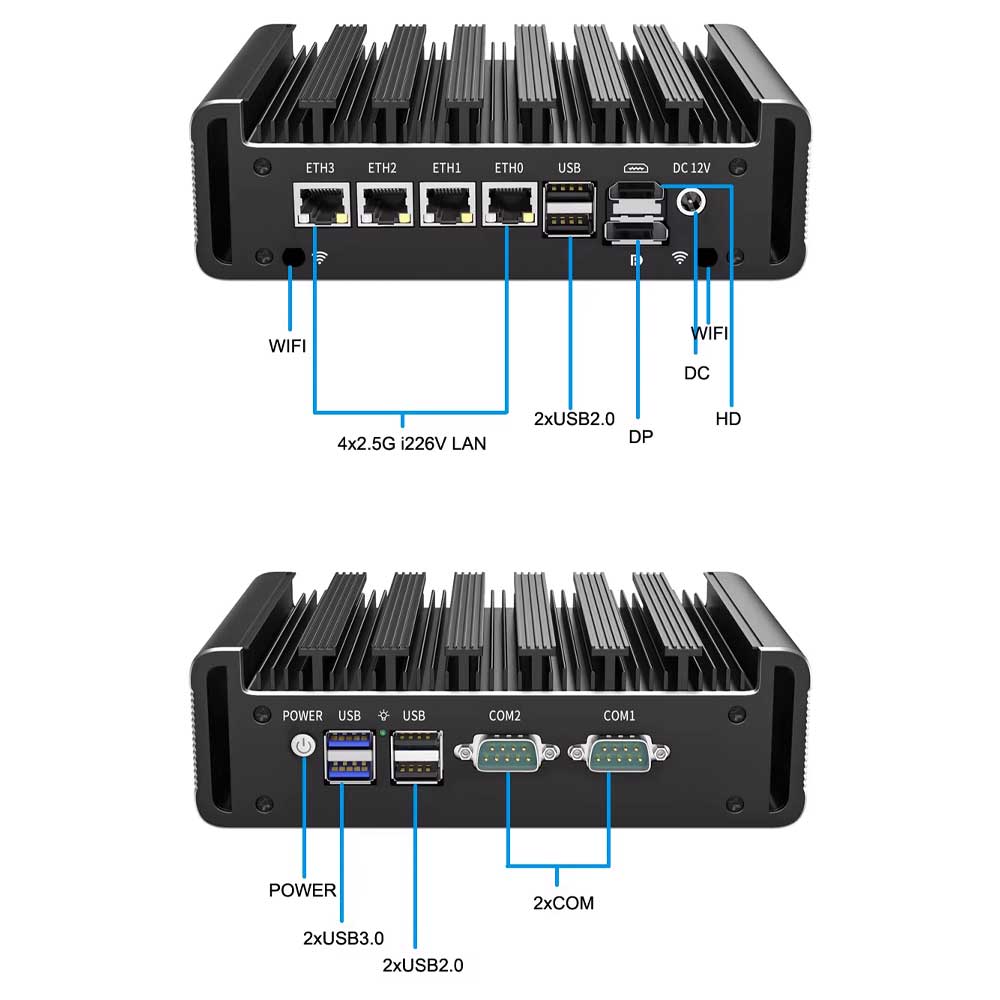

| Switch: 1 x Power On/Off; Power: 1 x DC IN USB: 4 x USB2.0, 2 x USB3.0 Display: 1 x HDMI, 1 x DP LAN: 4 x Intel i226-V 2.5G RJ45 LAN COM: 2 x COM, DB9 COM RS232 or RS485 |
Input: 100-240V AC/50-24Hz Output: DC 12V Working Temperature: -10°C-60°C(Operating); -20°C-70°C(Storage); Surface Air Flow. Work Humidity: 5%~95%(non-condensing) |
Windows / Linux / Centos / Ubuntu / pfSense / OPNsense. |
| Product Dimension | Other Features | What's in Box |

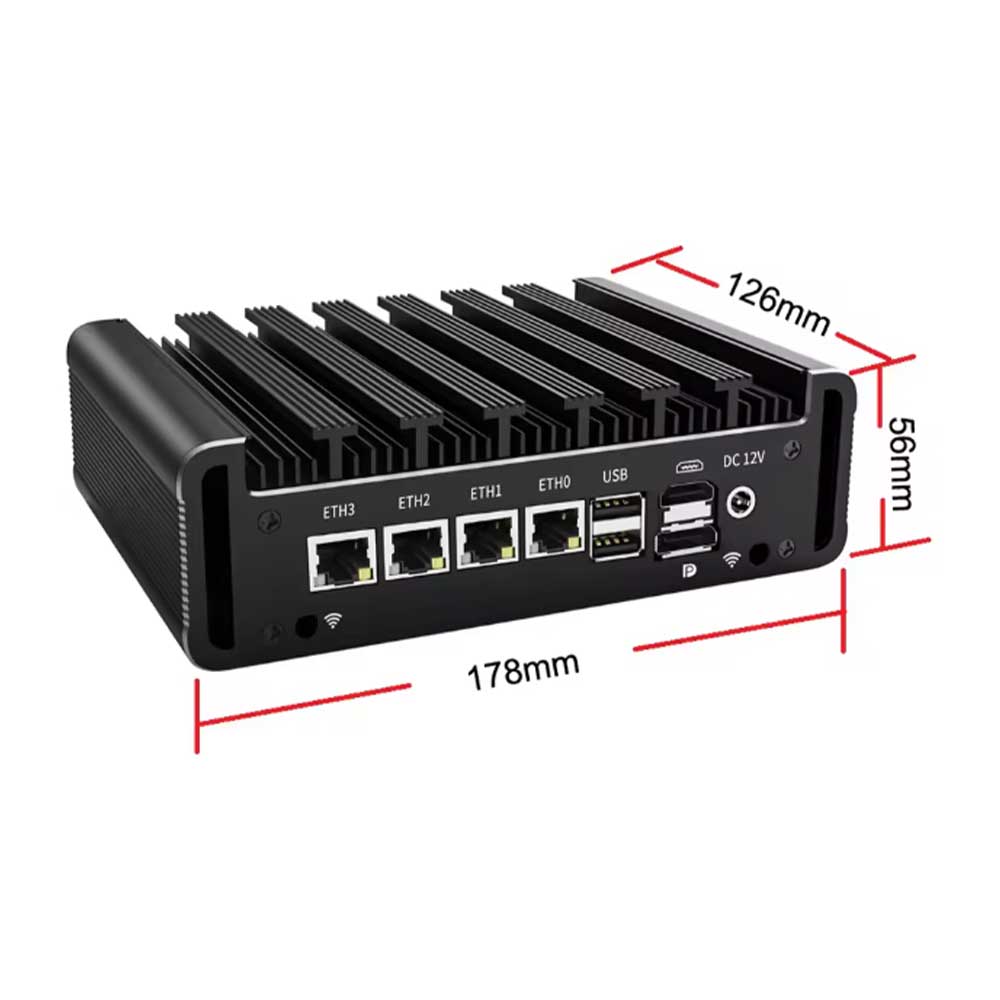

| Size: 178mm x 126mm x 56mm Weight: 1.5kg |
Wake-up on LAN; PXE; Watchdog. | 1 x Mini PC, 1 x Power Adapter, 1 x Power Cord, 1 x HDMI Cable, 1 x Screws Bag |
