| Description | CPU | Application |
| Model Number: X12-2-2 Type: Fanless, Silent Working Material: Aluminum Alloy Structure Case |
1. Intel Core i3-7100U 2. Intel Core i5-8250U 3. Intel Core i7-8550U |
Home, Office, School, Digital signage, Advertising machine, Elctronic whiteboard, ATM etc. |
| RAM Memory | SSD Storage | Network |
| 2 x SODIMM DDR4 Slots, Max 32GB. | 1 x M.2 KEY-M SATA/NVMe SSD(Adaptive), 1 x 7-pin SATA3.0 HDD Interface. |
4 x RJ-45 LAN(4 x Intel I210 NIC) |
| Input/output port | Power & Working Environment | System Supported |

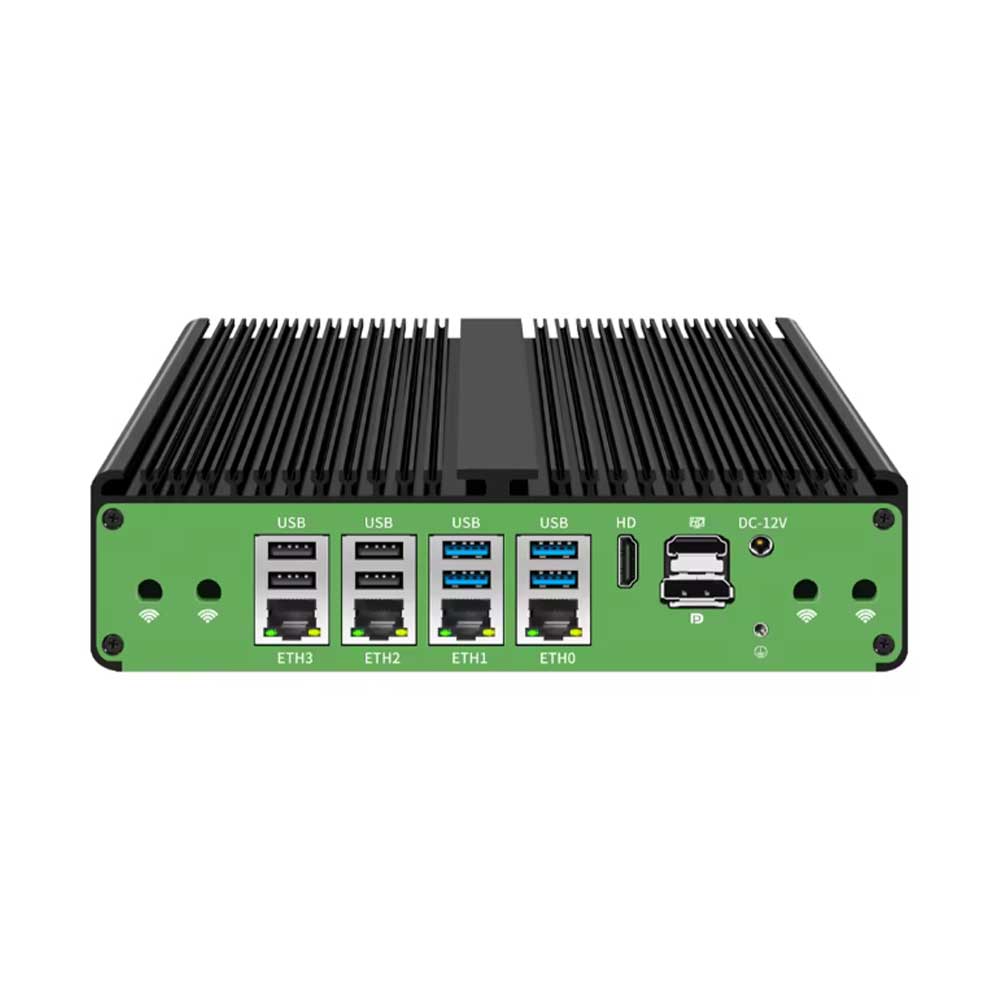

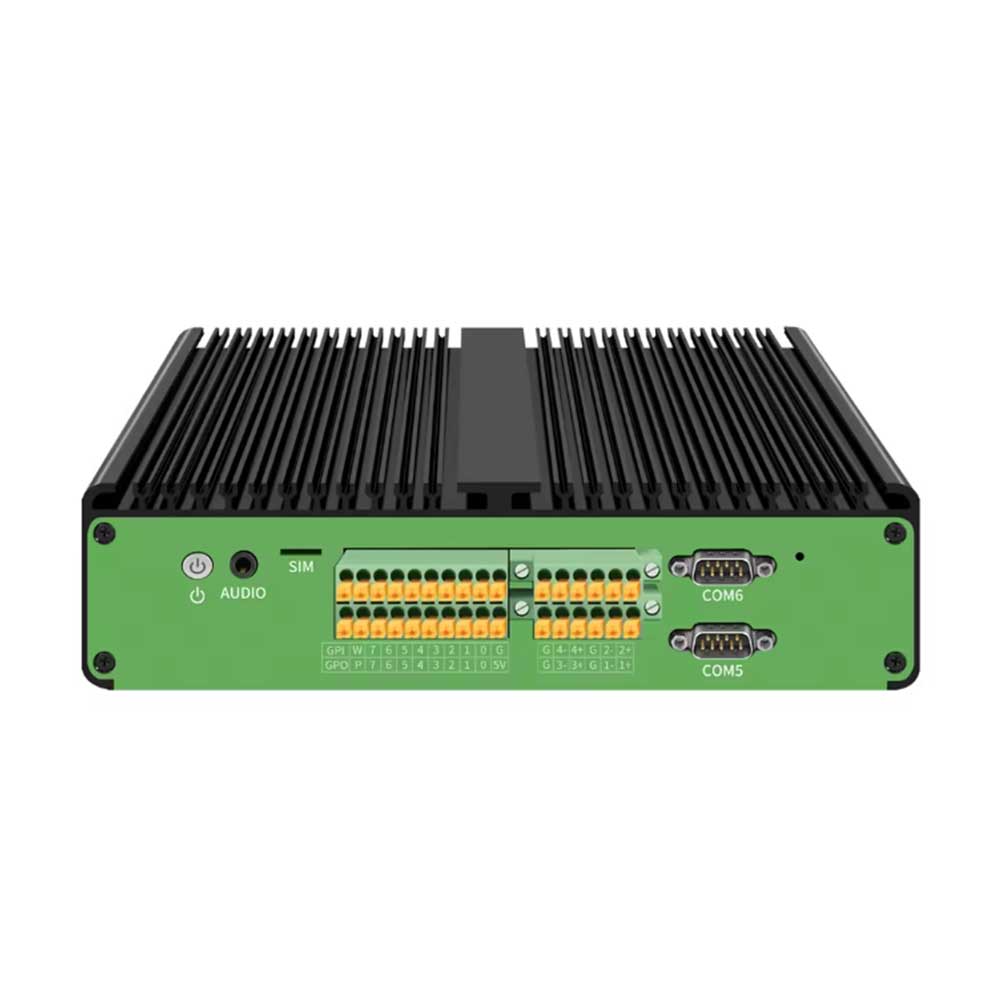

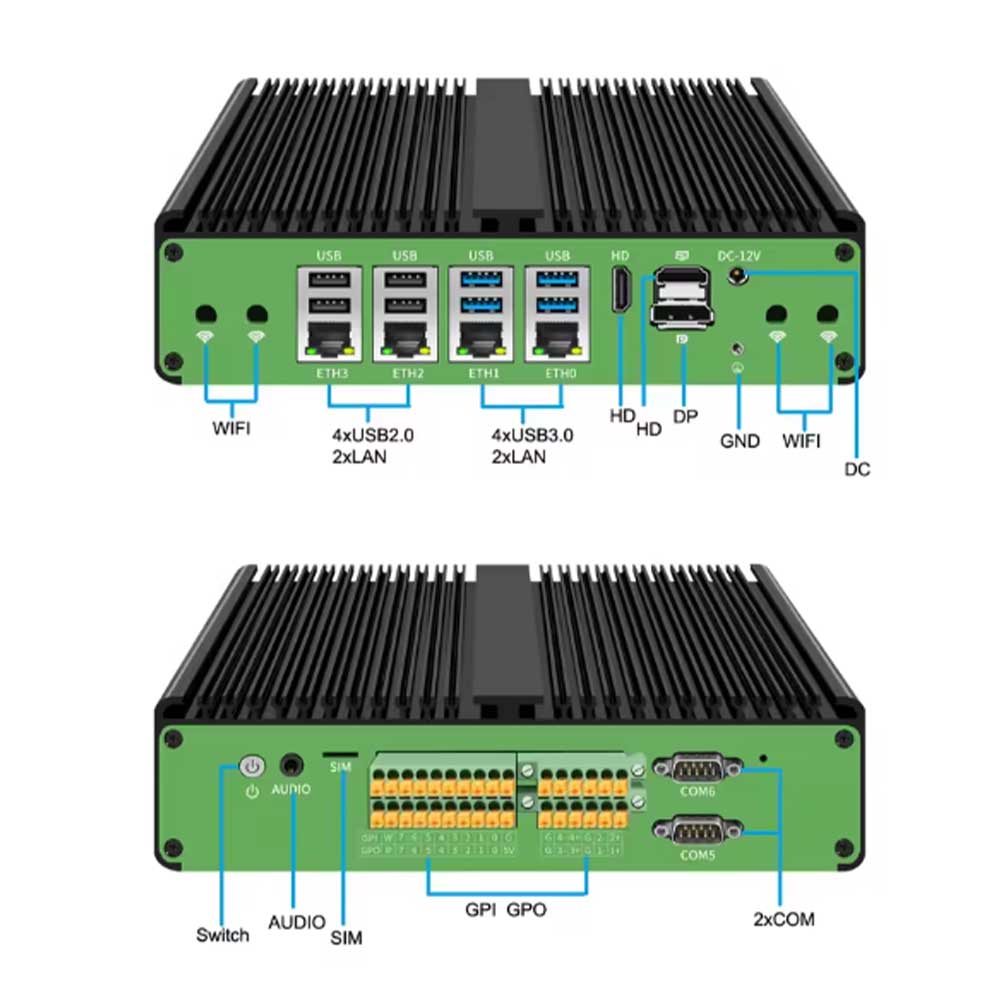

| Switch: 1 x Power On/Off; Power: 1 x DC IN USB: 4 x USB2.0, 4 x USB3.0 Display: 2 x HDMI(4K@30Hz), 1 x DP(4K@60Hz) LAN: 4 x LAN COM: 2 x COM RS232 (COM5/6, Pin 9 supports hot-swappable via jumper) Phoenix Terminal: 1 x 2x10-Pin, 1 x 2x6-Pin Audio: 1 x MIC/SPK(3.5mm) |
Input: 100-240V AC/50-24Hz Output: DC 12V Working Temperature: 0°C-50°C(Commercial HDD); -20°C-50°C(Industrial SSD); Surface Air Flow. Work Humidity: 5%~90%(non-condensing) |
Windows / Linux / Centos / Ubuntu / pfSense / OPNsense. |
| Product Dimension | Other Features | What's in Box |

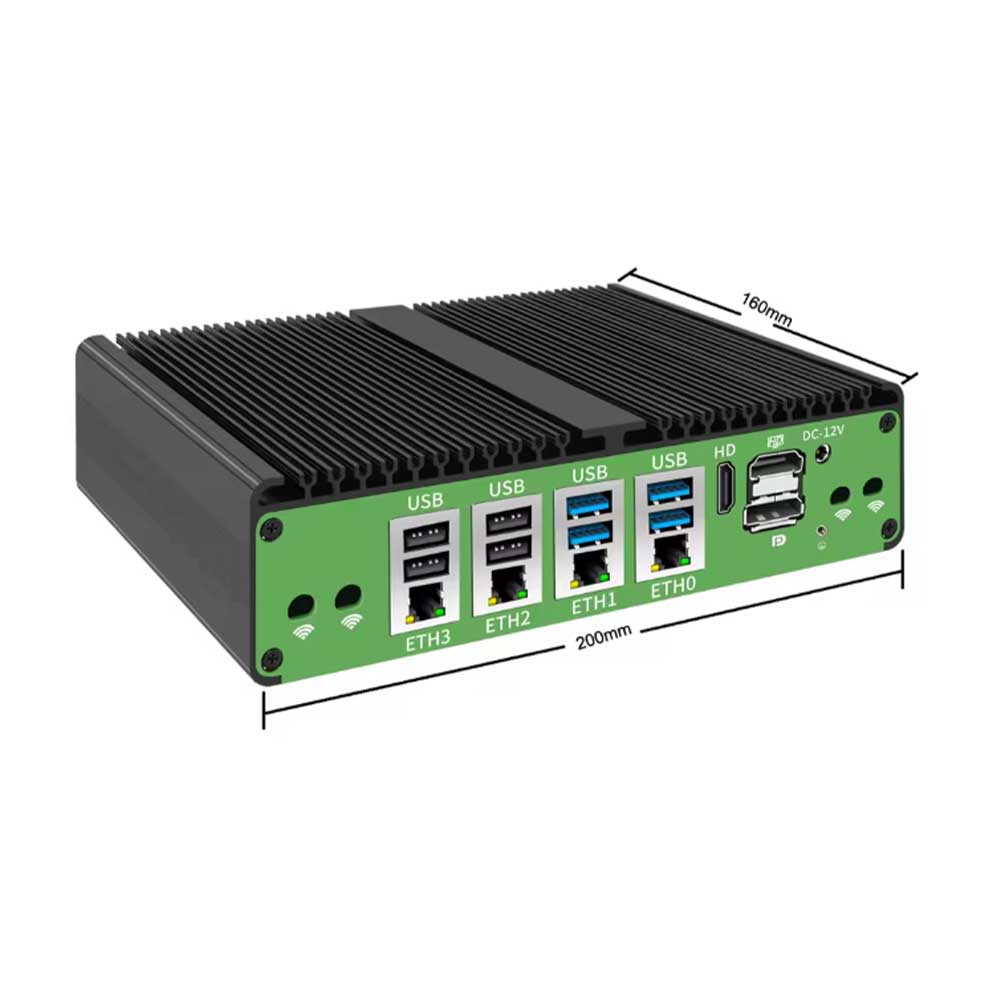

| Size: 200mm x 160mm x 54mm Weight: 1.9kg |
Start auto after power restored; Wake-up on LAN; PXE; Watchdog. | 1 x Mini PC, 1 x Power Adapter, 1 x Power Cord, 1 x HDMI Cable, 1 x Screws Bag |
