| Description | CPU | GPU |
| Model Number: X12-2-1 Type: Fanless, Silent Working Material: Aluminum Alloy Structure Case |
Intel 12th Gen Alder Lake N100, 4 Cores, 4 Threads; Base Frequency: 0.8GHz, Max. Turbo Frequency: 3.4GHz, 6MB Smart Cache, 6W TDP. |
Intel UHD Graphics, Base Frequency: 300MHz; Max Dynamic Frequency: 750MHz); 4K Support: Yes, at 60Hz. |
| RAM Memory | SSD Storage | Network |
| 1 x DDR5 SO-DIMM RAM Slot, support 4800MHz | 1 x M.2 NVMe/PCIe3.0 2280 SSD, 1 x 2.5''SATA3.0 SSD/HDD. |
4 x i226-V 2.5G network LAN Ports |
| Input/output port | Power & Working Environment | System Supported |

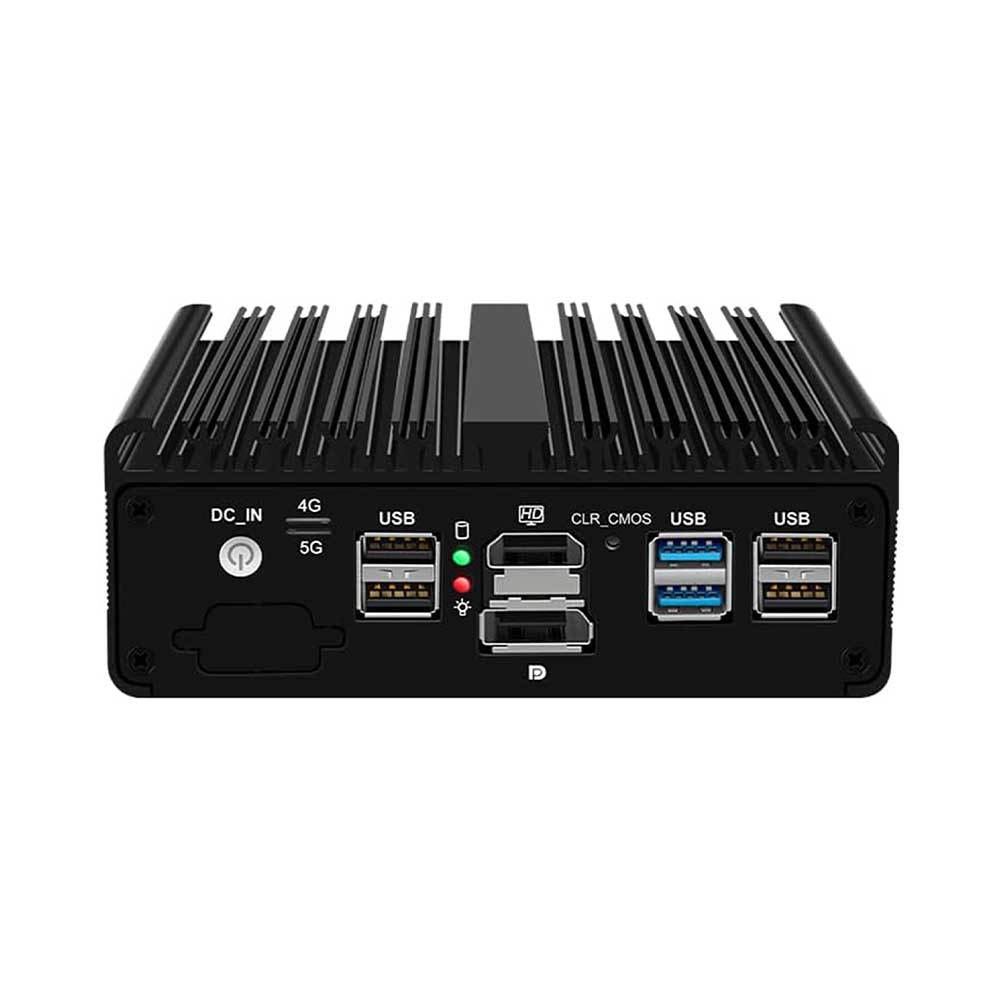

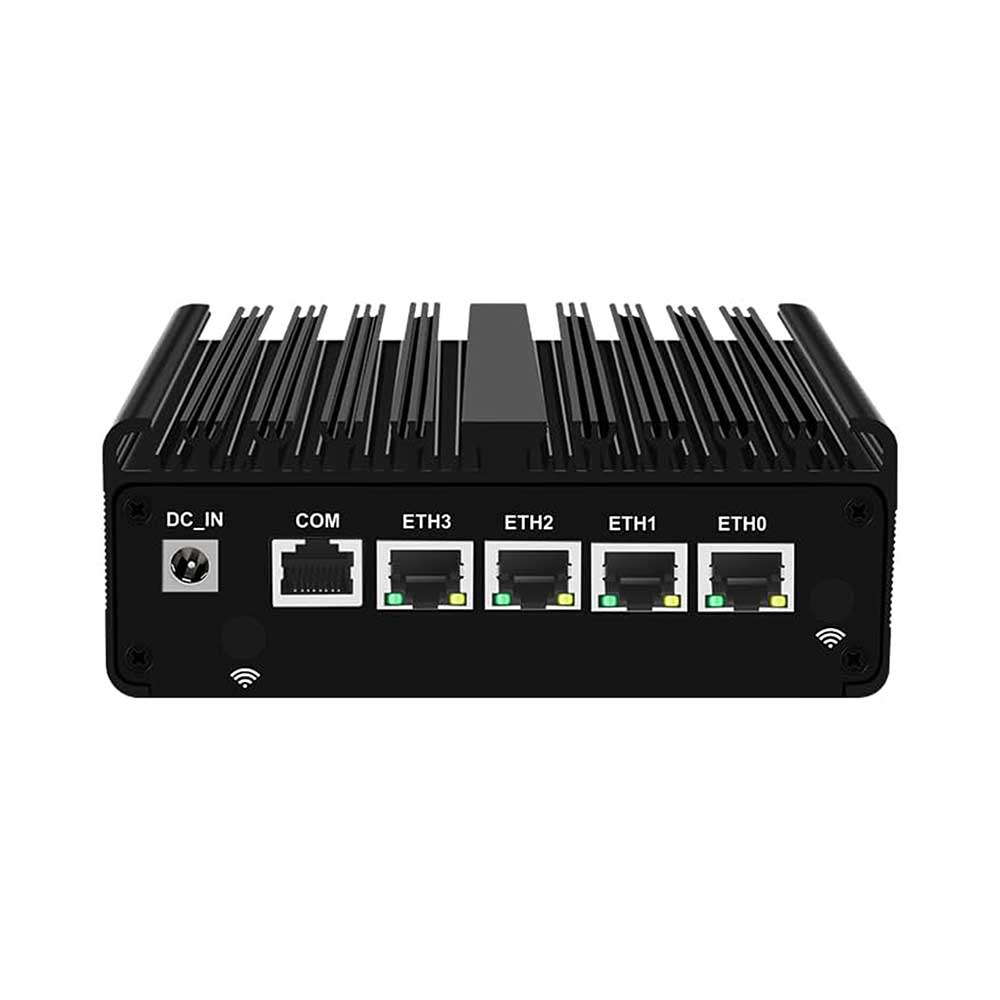

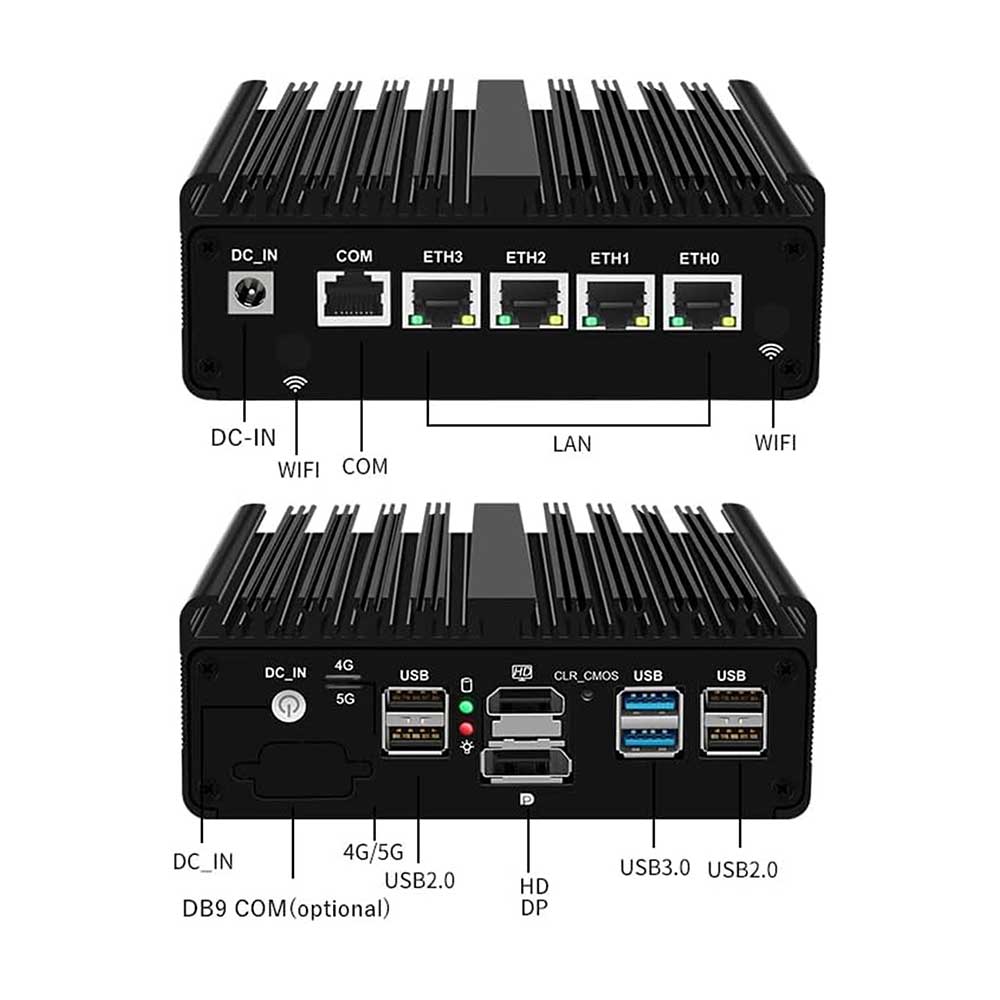

| Switch: 1 x Power On/Off Power: 1 x DC IN; LED: 1 x LED USB: 5 x USB2.0, 1 x USB3.0 Display: 1 x HDMI, 1 x DP LAN: 4 x 2.5G LAN COM: 1 x RJ45 COM Others: 1 x 4G/5G SIM Slot, 1 x CLR-CMOS |
Input: DC100-240V AC/50-60Hz Output: DC 12V/3-5A Working Temperature: -20°C~+55°C Ambient Temperature: 5°C~+90°C Relative Humidity: non Condensing |
Windows / Linux / Centos / Ubuntu / pfSense / OPNsense. |
| Product Dimension | Other Features | What's in Box |
| Size: 136mm x 126mm x 40mm Weight: 1.5kg |
Support Firewall, VPN, Network Server, Network Security, Router and other fields. | 1 x Mini PC, 1 x Power Adapter, 1 x Power Cord, 1 x HDMI Cable, 1 x Screws Bag |
