| Description | CPU | Application |
| Model Number: X12-1 Type: Fanless, Silent Working Material: Aluminum Alloy Structure Case |
1. Intel Celeron J6412 2. Intel N100 3. Intel N97 |
Home, Office, School, Digital signage, Advertising machine, Elctronic whiteboard, ATM etc. |
| RAM Memory | SSD Storage | Network |
| 2 x DDR4 3200MHz SO-DIMM Slots(Support 32GB Max.) | 1 x M.2 Key-M 2280/2242 NVMe/SATA, 1 x SATA3.0 | 4 x Lan 2.5GBps i225V/i226V, support wake on lan |
| Input/output port | Power & Working Environment | System Supported |

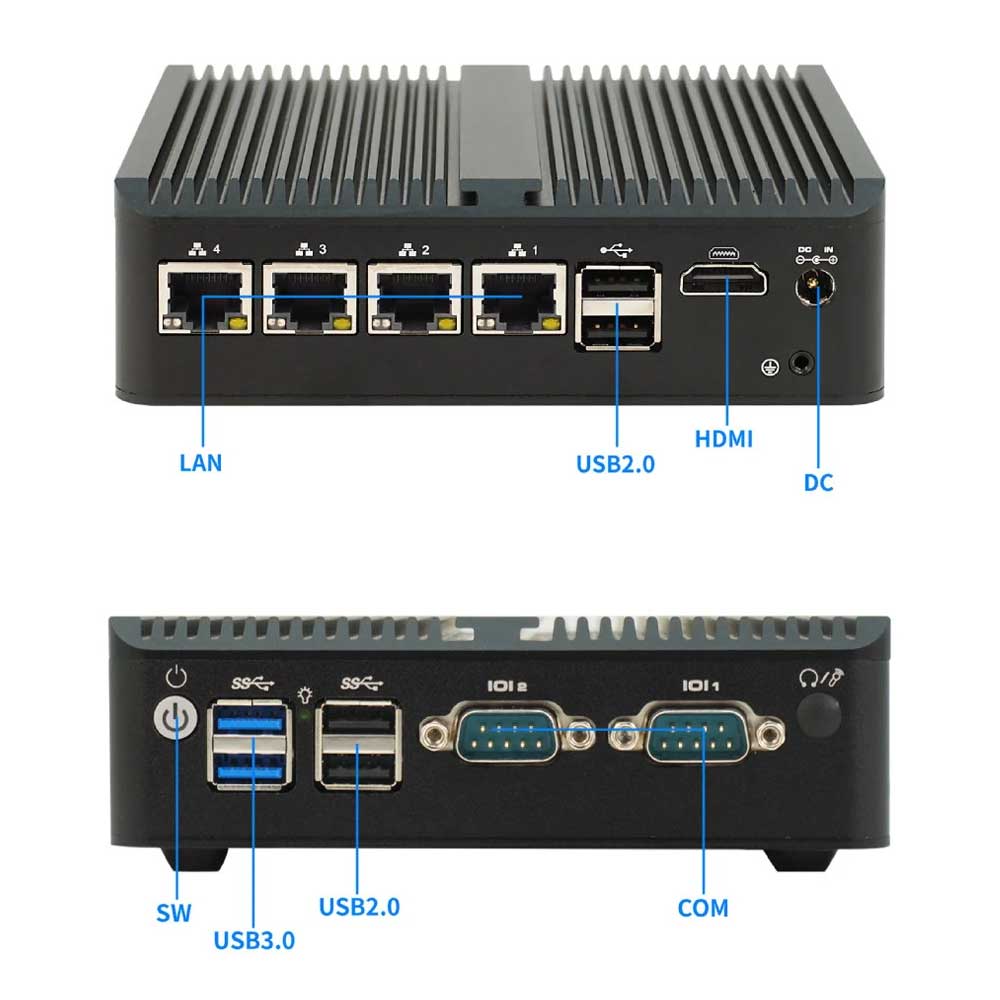

| Switch: 1 x Power On/Off; Power: 1 x DC IN USB: 2 x USB2.0, 4 x USB3.0 Display: 1 x HDMI(4K@60Hz) LAN: 4 x RJ45 LAN COM: 2 x COM RS232/485 Audio: 1 x MIC/SPK Others: 1 x MiniPCIE WIFI/4G Moudle(optional) |
DC 12V-IN power supply and AC power adapter(5.5*2.5mm) Operating Temperature: -10°C-60°C Storage Temperature: -20°C-70°C Work Humidity: 0%~90%(non-condensing) |
Windows / Linux / Centos / Ubuntu / pfSense / OPNsense. |
| Product Dimension | Other Features | What's in Box |

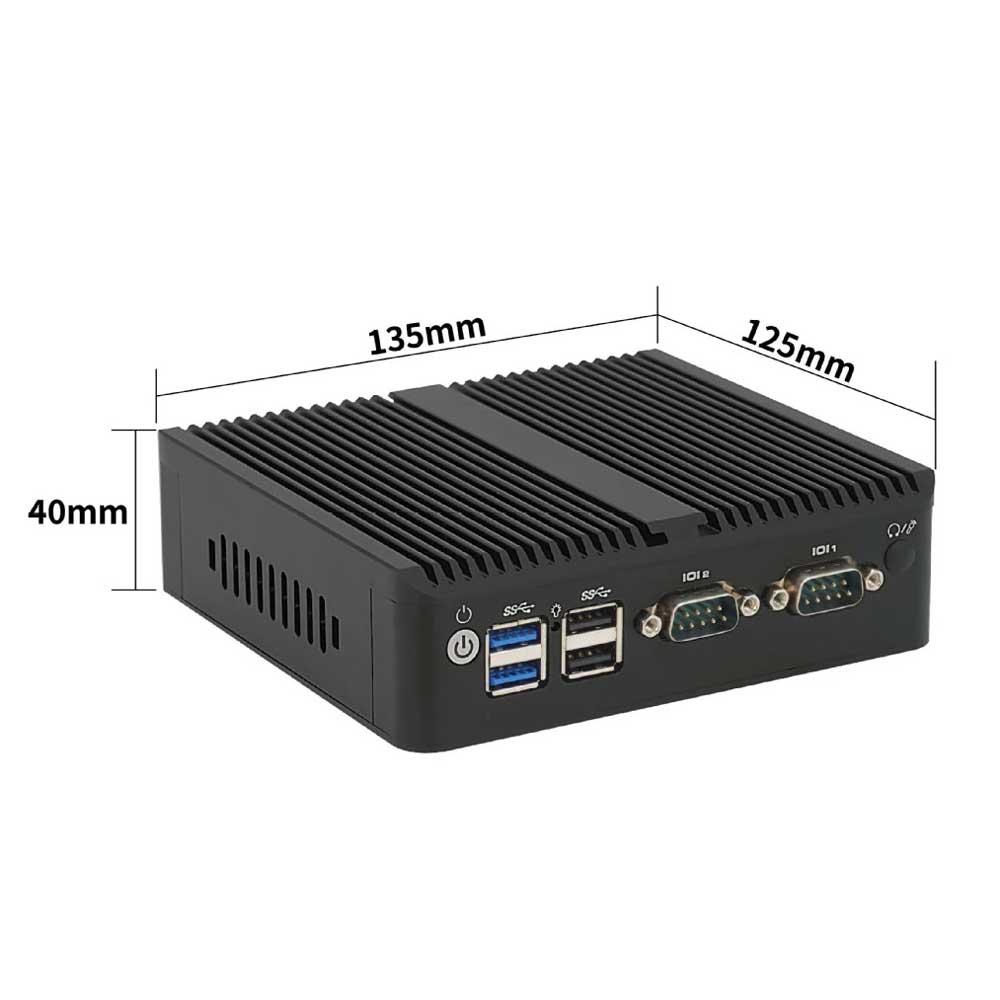

| Size: 135mm x 125mm x 40mm Weight: 1.0kg |
COM1: RS232/485 COM2: RS232 Support WIFI/3G/4G LTE. |
1 x Mini PC, 1 x Power
Adapter, 1 x Power Cord, 1 x HDMI Cable, 1 x Screws Bag |
