| Description | CPU | GPU |
| Model Number: PHX18 Type: Cooling Fan |
Ryzen 5 6600U, 6 C/12 T, 16 MB L3 Smart Cache, Frequency: 2.90GHz-4.40GHz; Ryzen 7 7840U, 8 C/16 T, 16 MB L3 Smart Cache, Frequency: 3.30GHz-5.10GHz. |
Ryzen 5 6600U: AMD Radeon RX 660M Graphics, Frequency: 1.90GHz; Ryzen 7 7840U: AMD Radeon 780M Graphics, Frequency: 1.2GHz-2.7GHz. |
| RAM Memory | SSD Storage | Network |
| 2 x LPDDR5 6400MHz | 1 x M.2 2242, Max 2TB(PCIe4.0*4); 1 x M.2 2280, Max 2TB(PCIe3.0*4/sata). |
Dual RJ45 2.5G network ports |
| Input/output port | Power Supply | Wi-Fi |

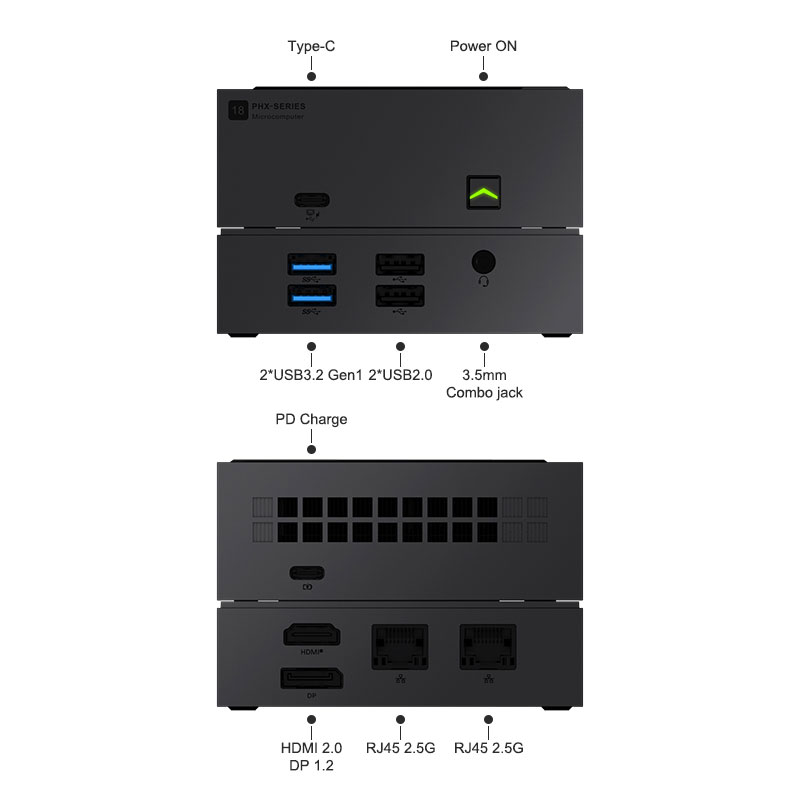

Switch: 1 x Power On/Off Power: 1 x Type-C PD Charge USB: 2 x USB3.2, 2 x USB2.0 Display: 1 x HDMI2.0(4K@60Hz), 1 x DP1.2(4K@60Hz) LAN: 2 x 2.5G LAN Type-C: 1 x Type-C(4K@60Hz) Audio: 1 x 3.5mm Combo Jack |
Input: 100W Type-C Output: 20V/5A |
WIFI 6E 802.11ax; Bluetooth Version: 5.2. |
| Product Dimension | Notice | What's in Box |
| Size: 99mm x 99mm x 62mm Weight: 0.5kg |
1 x Type-C Full Function(USB3.2 Gen2), 1 x Type-C USB2.0+PD Charge. |
1 x Mini PC, 1 x Power Adapter, 1 x HDMI Cable, 1 x Screws Bag |
