| Description | CPU | Triple Display |

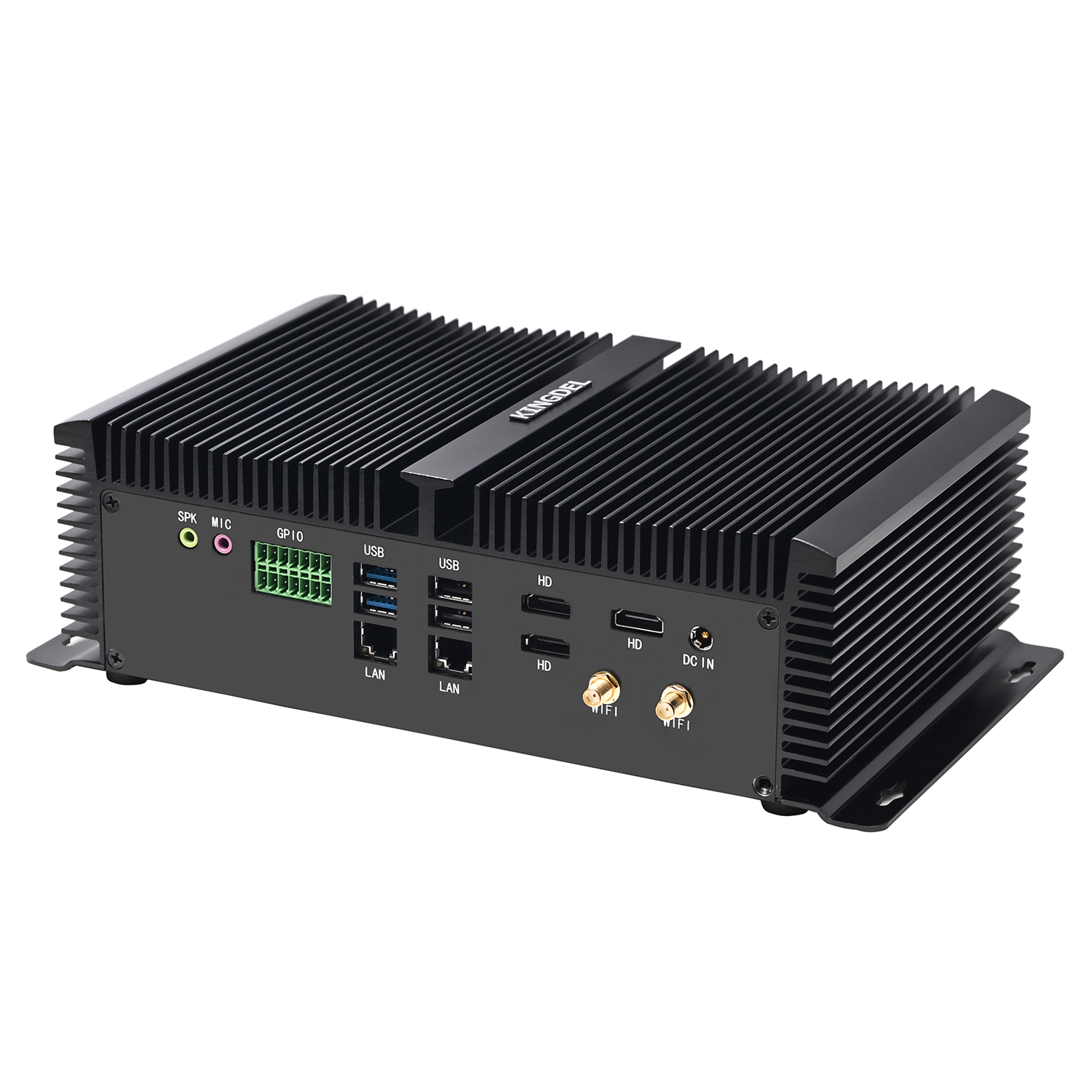

| Model Number: NC9000 Type: Fanless, Industrial Material: Metal Case |
1. Intel i5-10200H 2. Intel i7-9750H, i7-10870H 3. Intel i7-1255U |
i5-10200H/i7-9750H/i7-10870H: 3 x HDMI (4096x2304@30Hz); i7-1255U: 2 x HDMI(4096x2304@60Hz) & 1 x DP(7680x4320@60Hz). |
| RAM Memory | SSD Storage | Network |
| i5-10200H/i7-9750H/i7-10870H: 1 x SODIMM DDR4 Slot, Max to 32G; i7-1255U: 2 x DDR5 4800MHz RAM Slots, Max to 64G. |
i5-10200H/i7-9750H/i7-10870H: 1 x mSATA3.0 port, 1 x M.2 2280 NVME/SATA port, 1 x 2.5 inches HDD; i7-1255U: 2 x M.2 2280 NVME SSD slots support PCIE4.0x4, 1 x 2.5 inches HDD. |
Network Card: 2xi211+i219 10/100/1000 BaseT LAN 4G Network Module: 1 x SIM Slot WLAN Card: 1 x MINI PCIE Slot (i7-1255U: WIFI6e+BT5.2.) |
| Input/output port | Power & Working Environment | COM Serial Port |

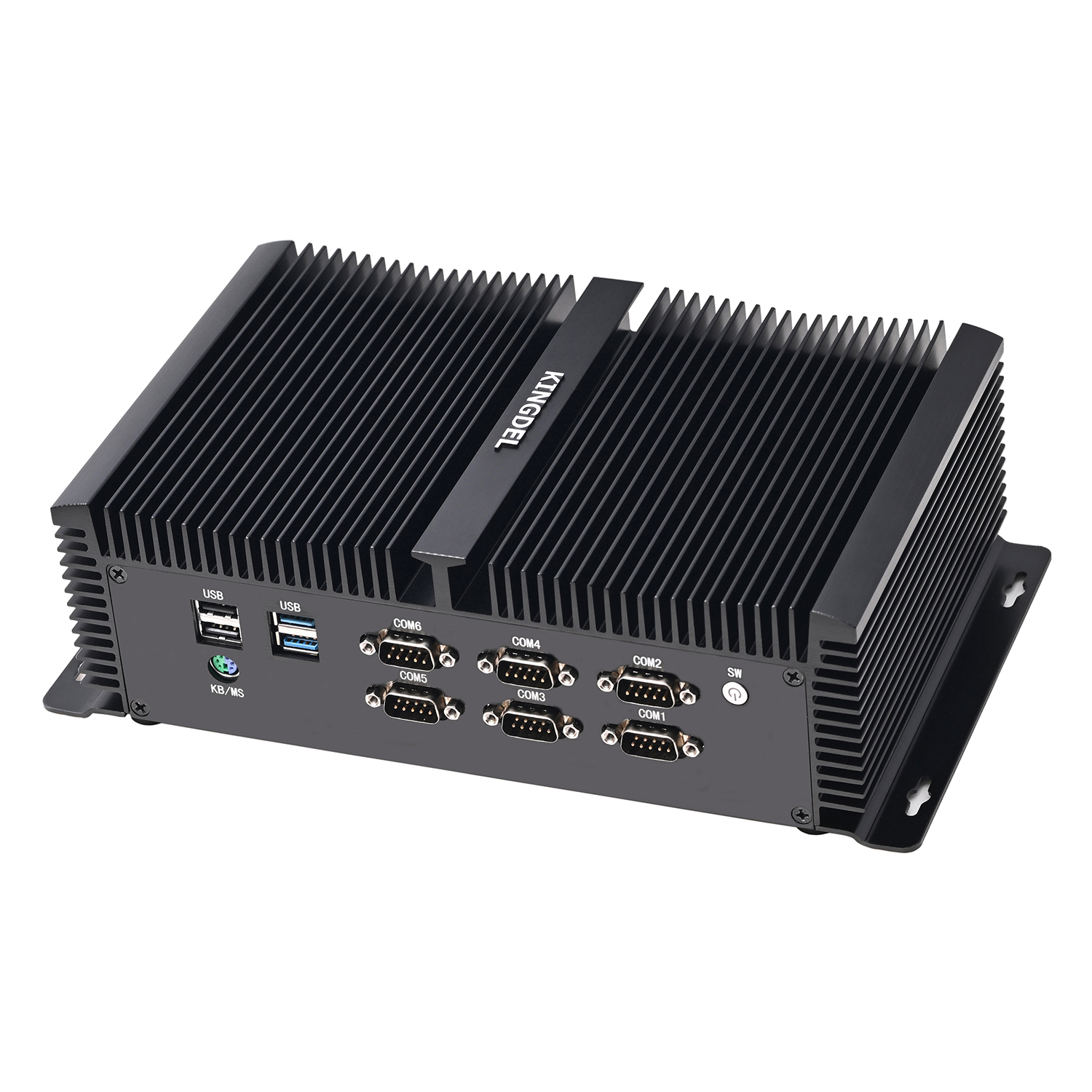

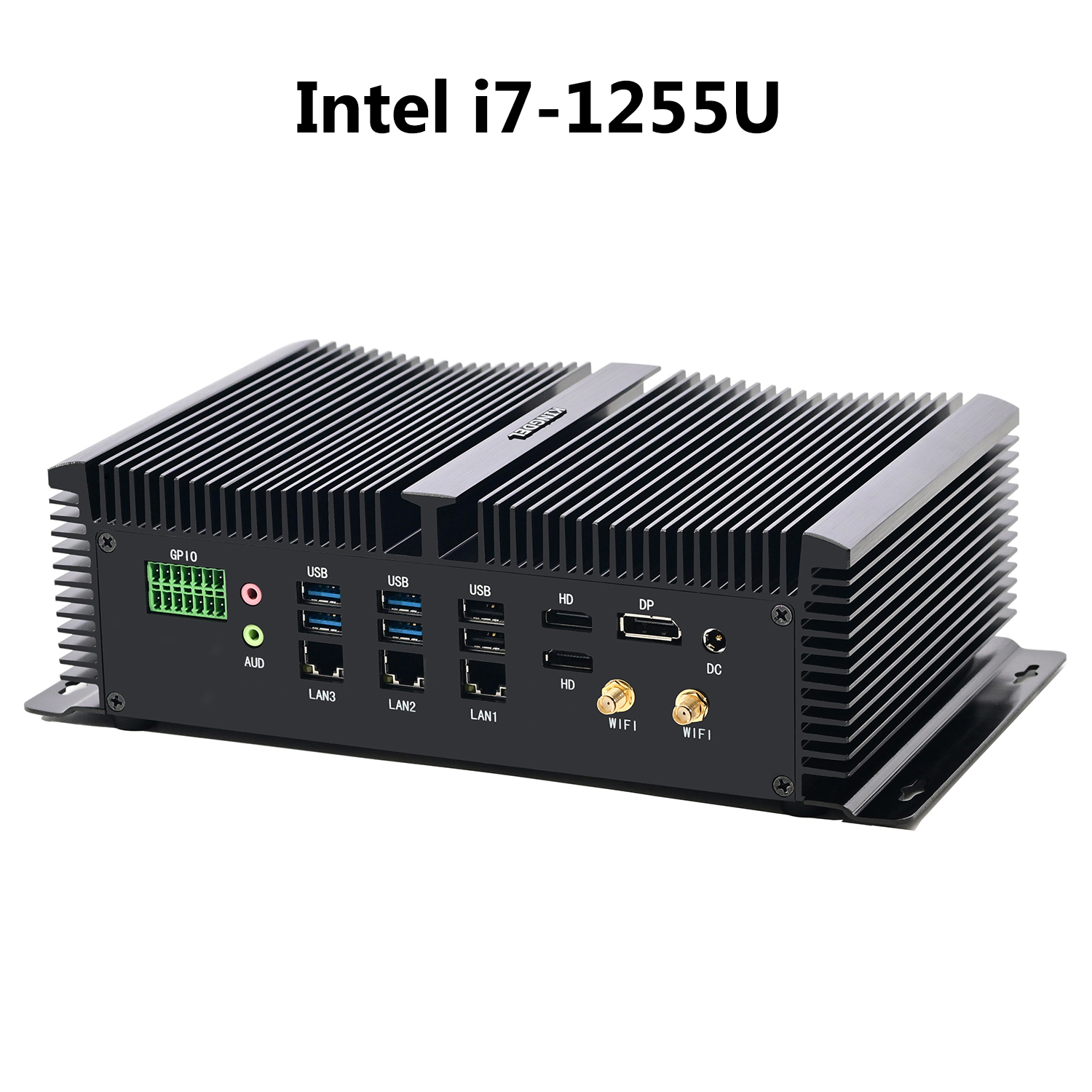

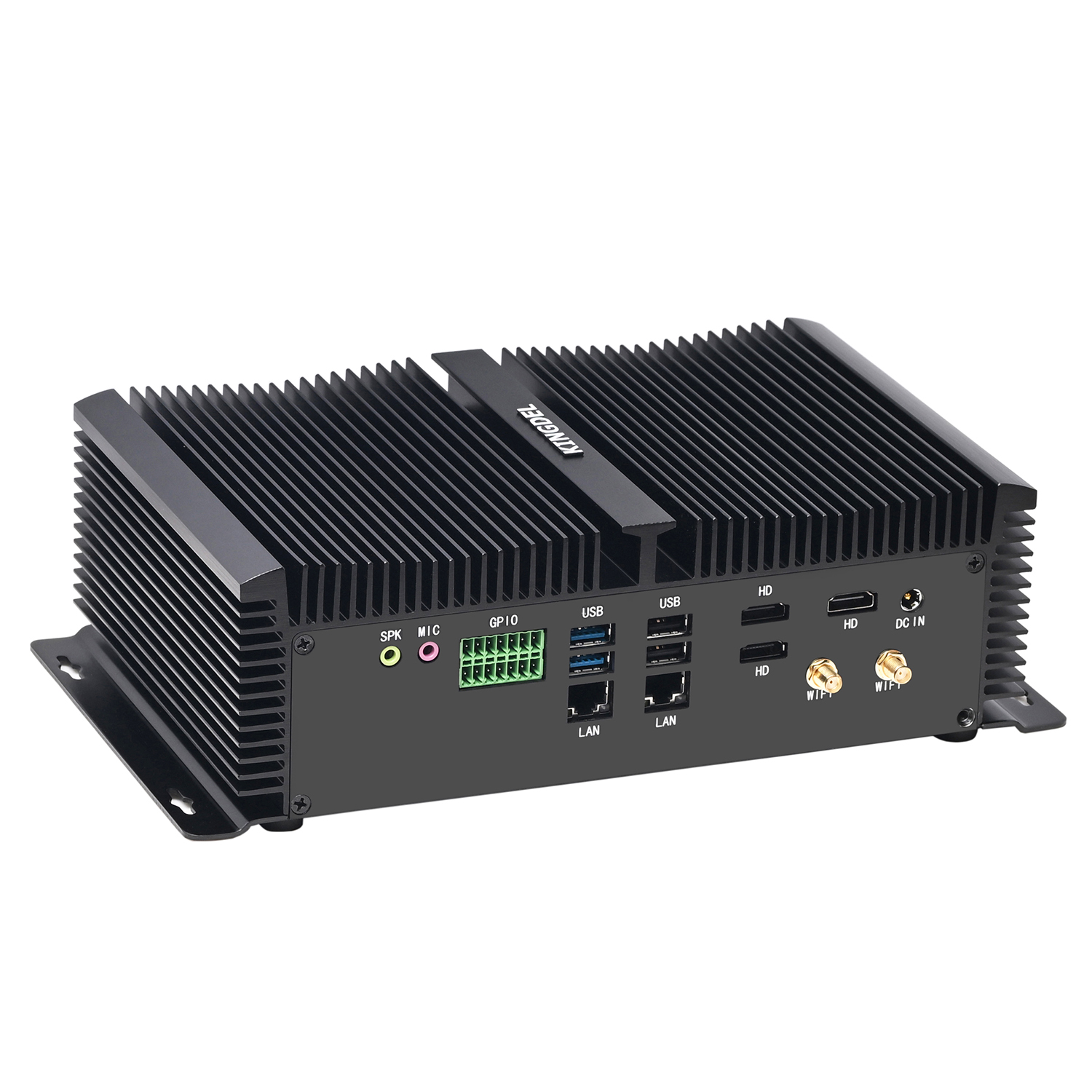

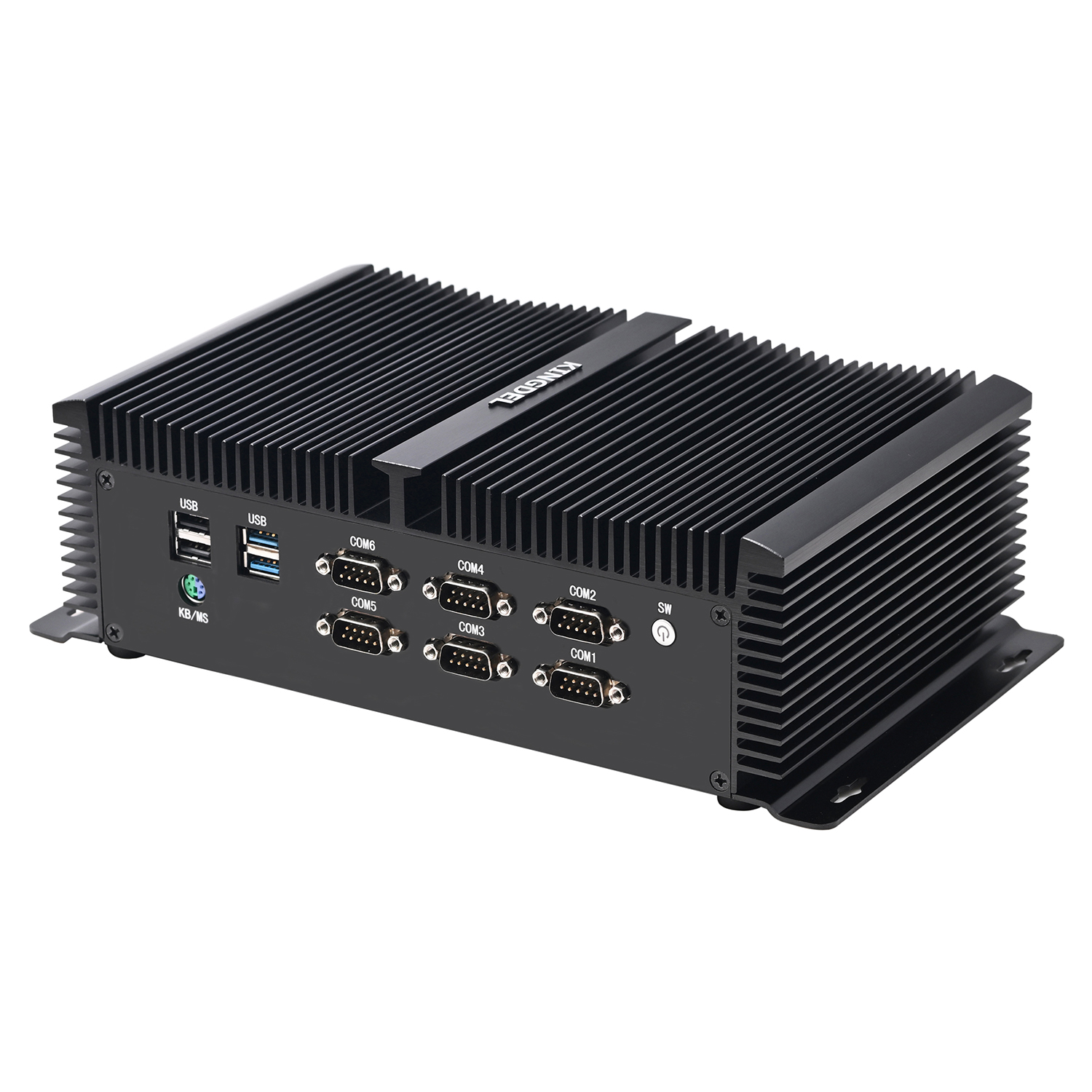

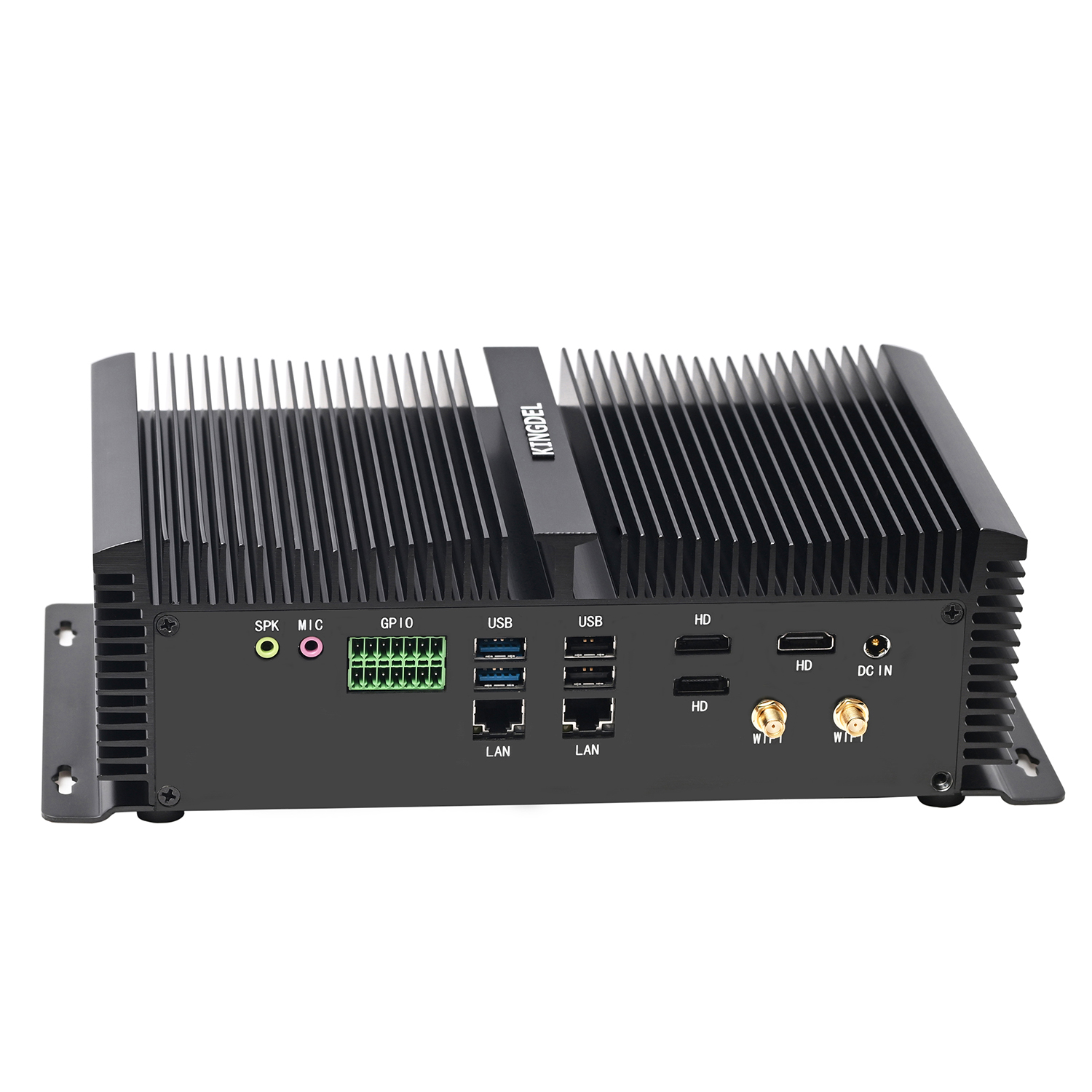

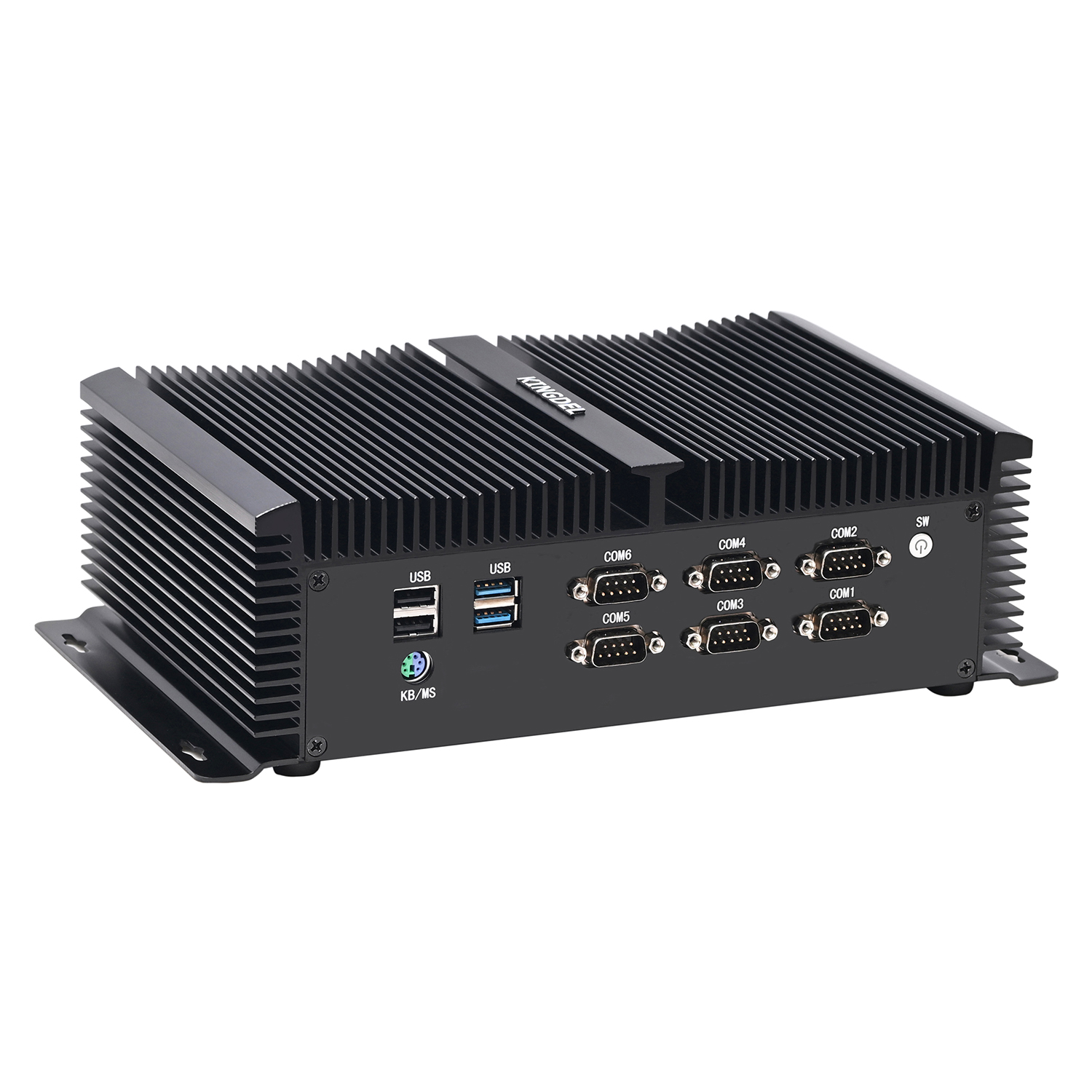

| Switch: 1 x Power On/Off Power: 1 x DC IN; LED: 1 x LED USB: 4 x USB2.0, 4 x USB3.0 Display: 3 x HDMI; (i7-1255U: 2 x HD+1 x DP) COM: 6 x COM, (i7-1255U: 8 x COM) LAN: 2 x RJ45 LAN, (i7-1255U: 3 x i226V 2.5G LAN) Audio: 1 x MIC, 1 x SPK Others: 1 x GPIO, 1 x KB/MS |
Input: DC100-240V AC/50-60Hz Output: DC 12V~19V/5A-10A Operating Temperature: 0°C-70°C(32°F~140°F) Storage Temperature: -20°C-80°C(-68°F~176°F) Relative Humidity: 10%~90%(non-condensing) |

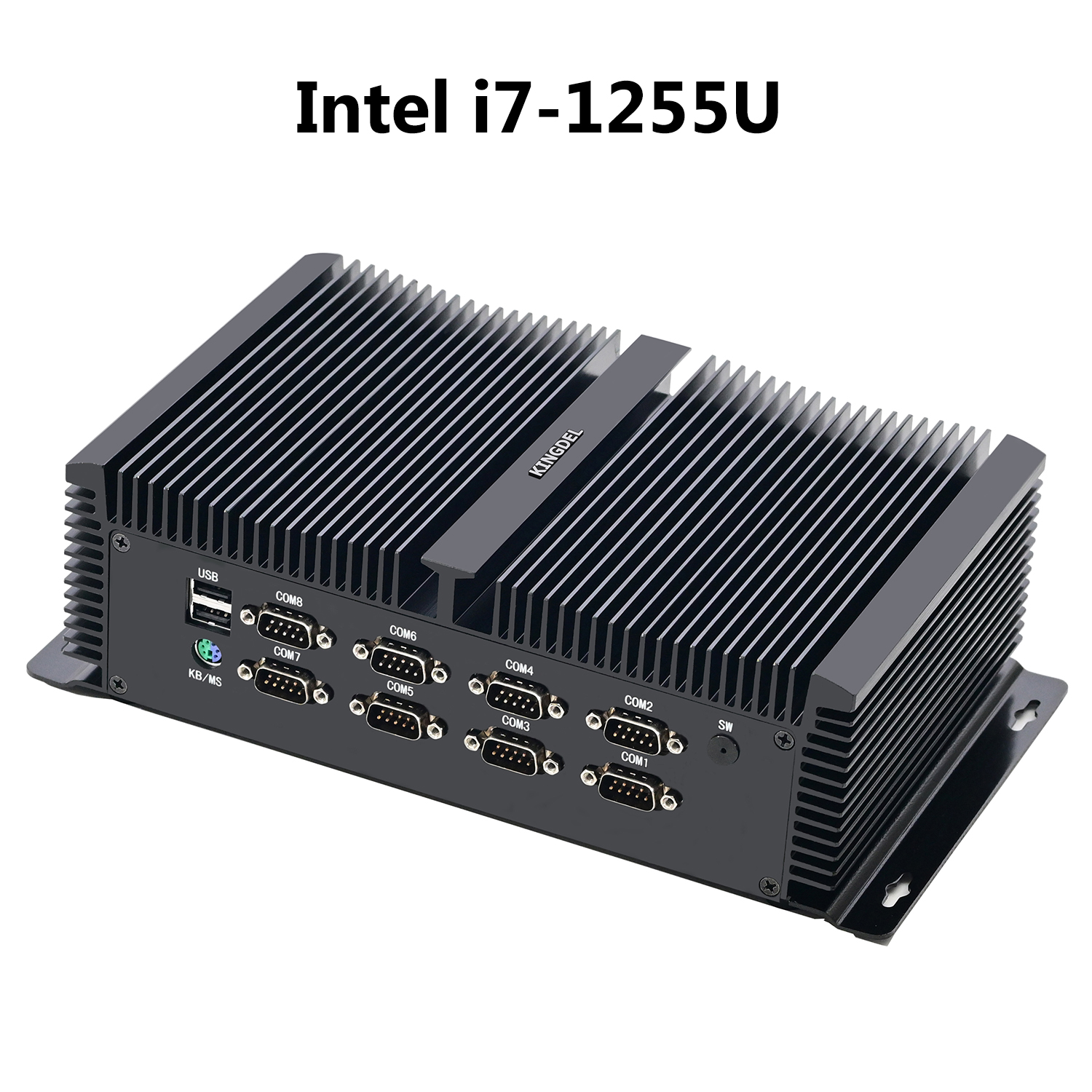

i5-10200H/i7-9750H/i7-10870H: 6 x COM Ports; i7-1255U: 8 x COM Ports; COM1&COM2 support RS232 RS422 RS485 soft handoff. |
| Product Dimension | Other Features | What's in Box |
| Size: 255mm x 155mm x 80mm Weight: 2.0kg |
Support Restore AC Power Loss Power-on by alarm Wake On Lan and PXE |
1 x Mini PC, 1 x Power
Adapter, 1 x Power Cord, Wi-Fi Antennas, 1 x HDMI Cable, 1 x Screws Bag |
