| Description | CPU | Multimedia Instruction Set |

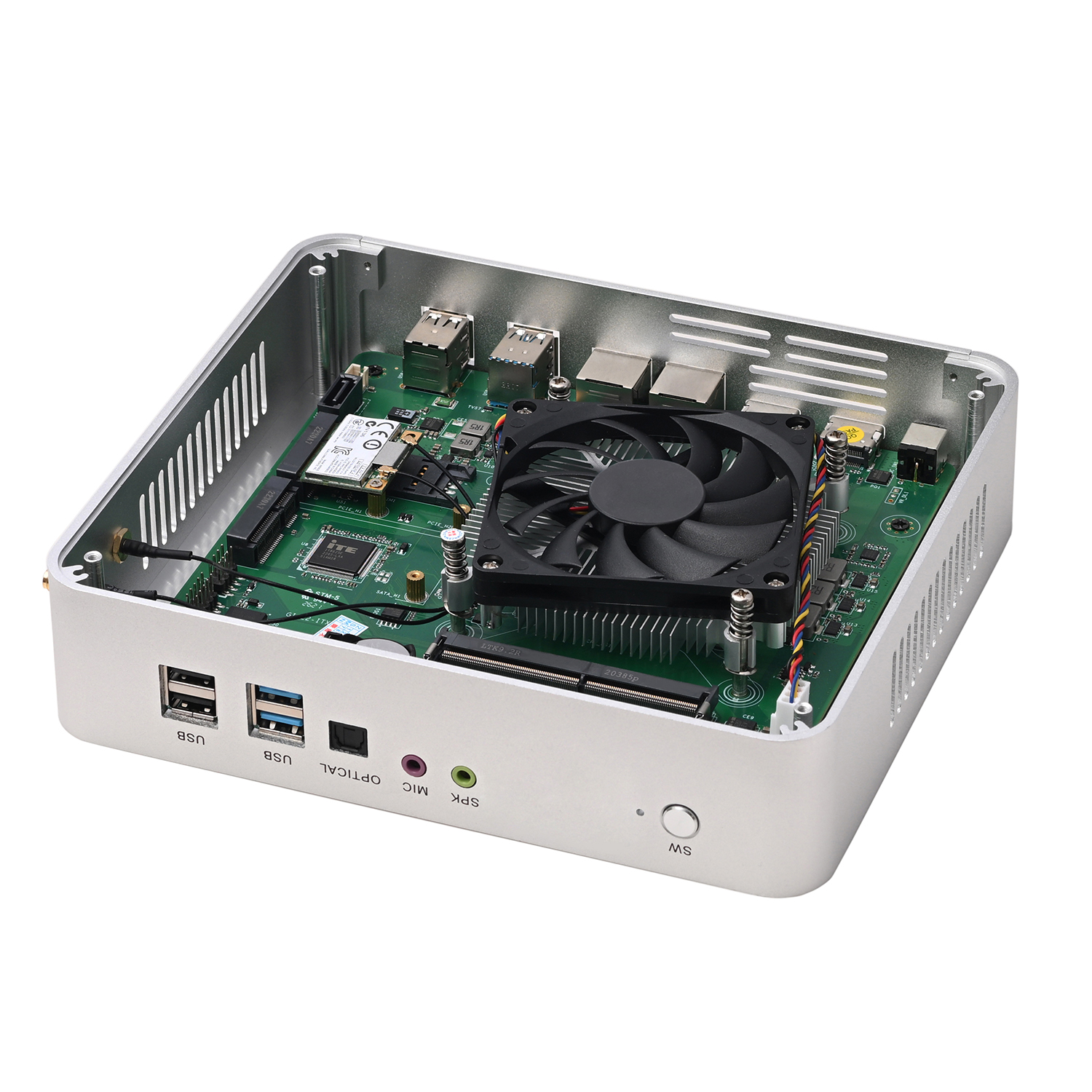

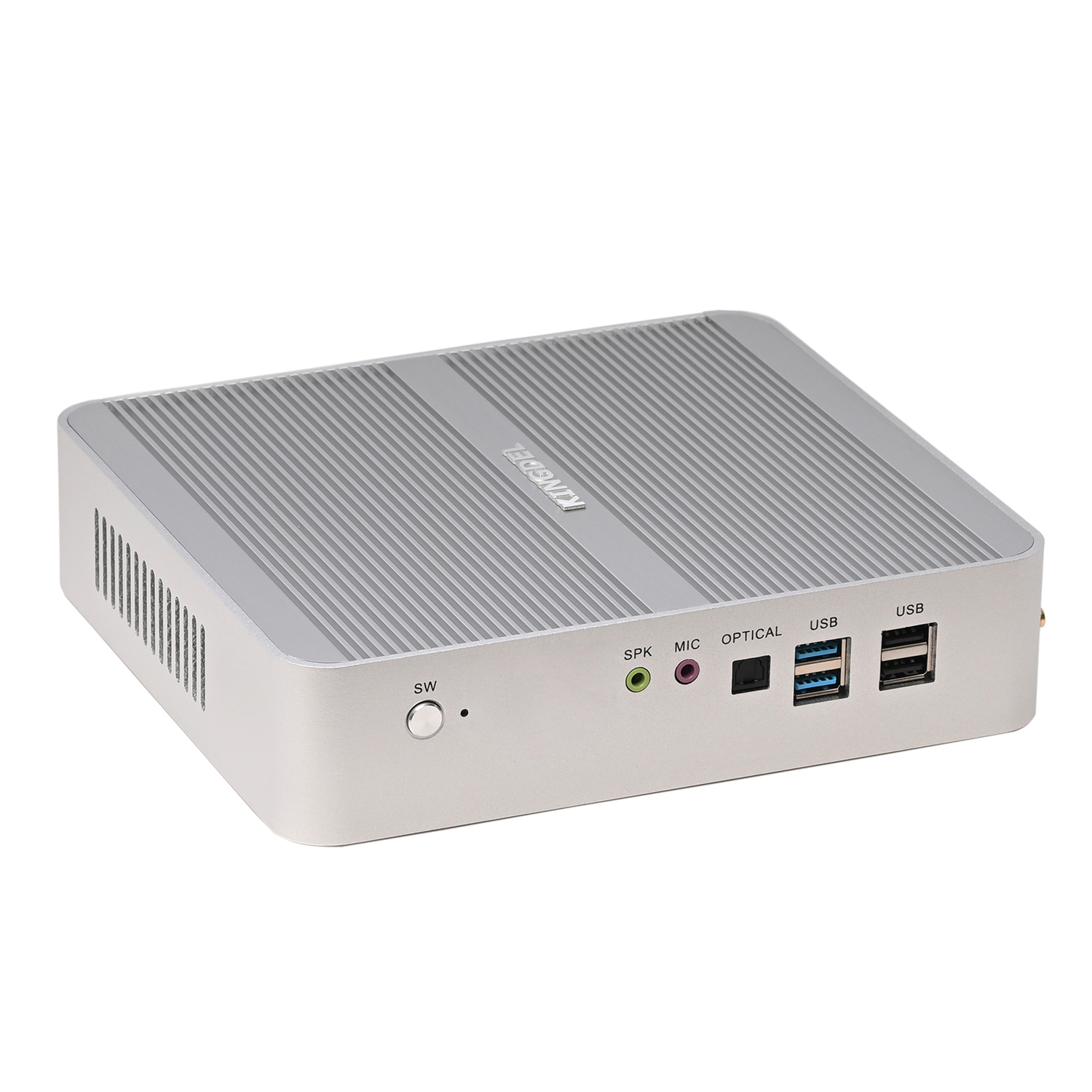

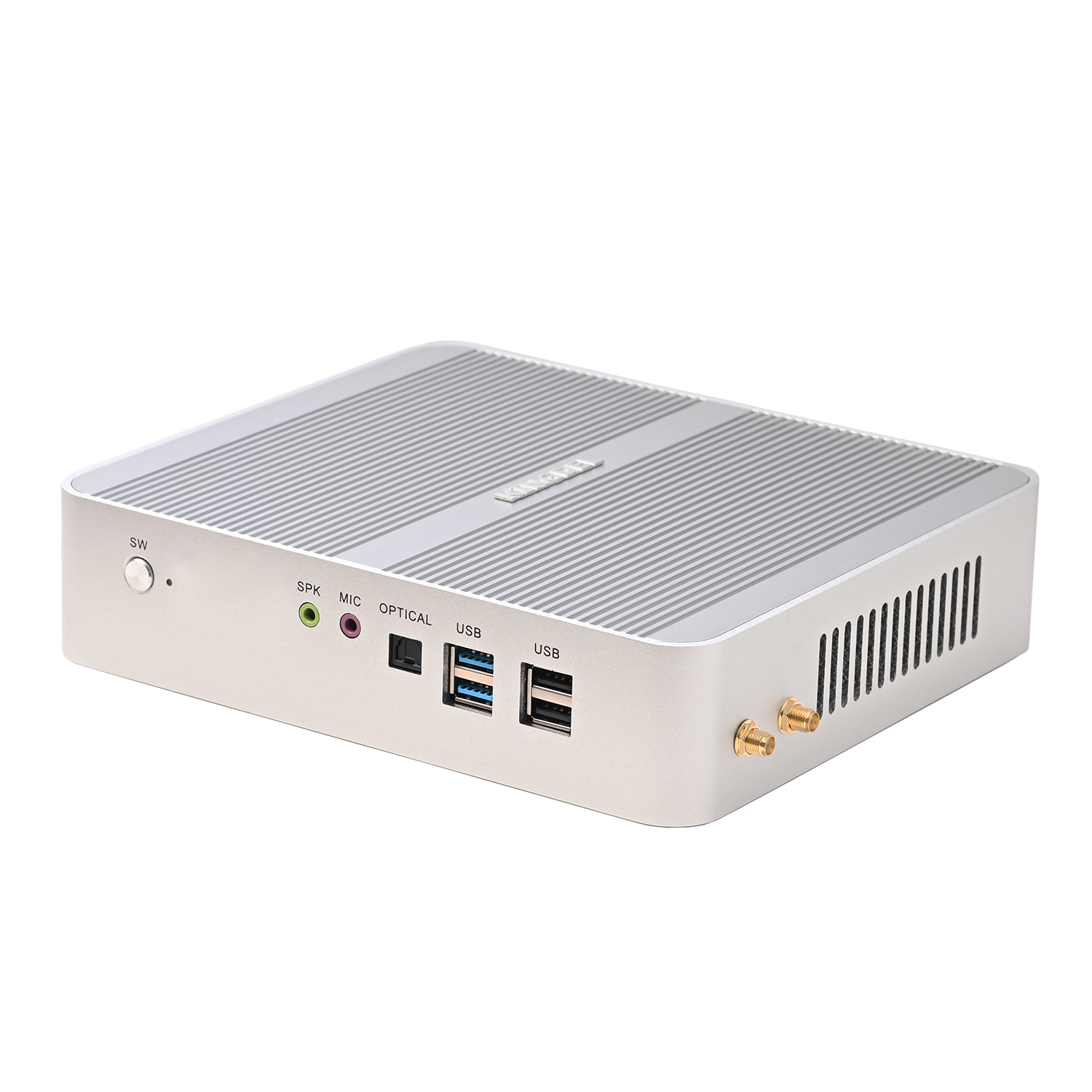

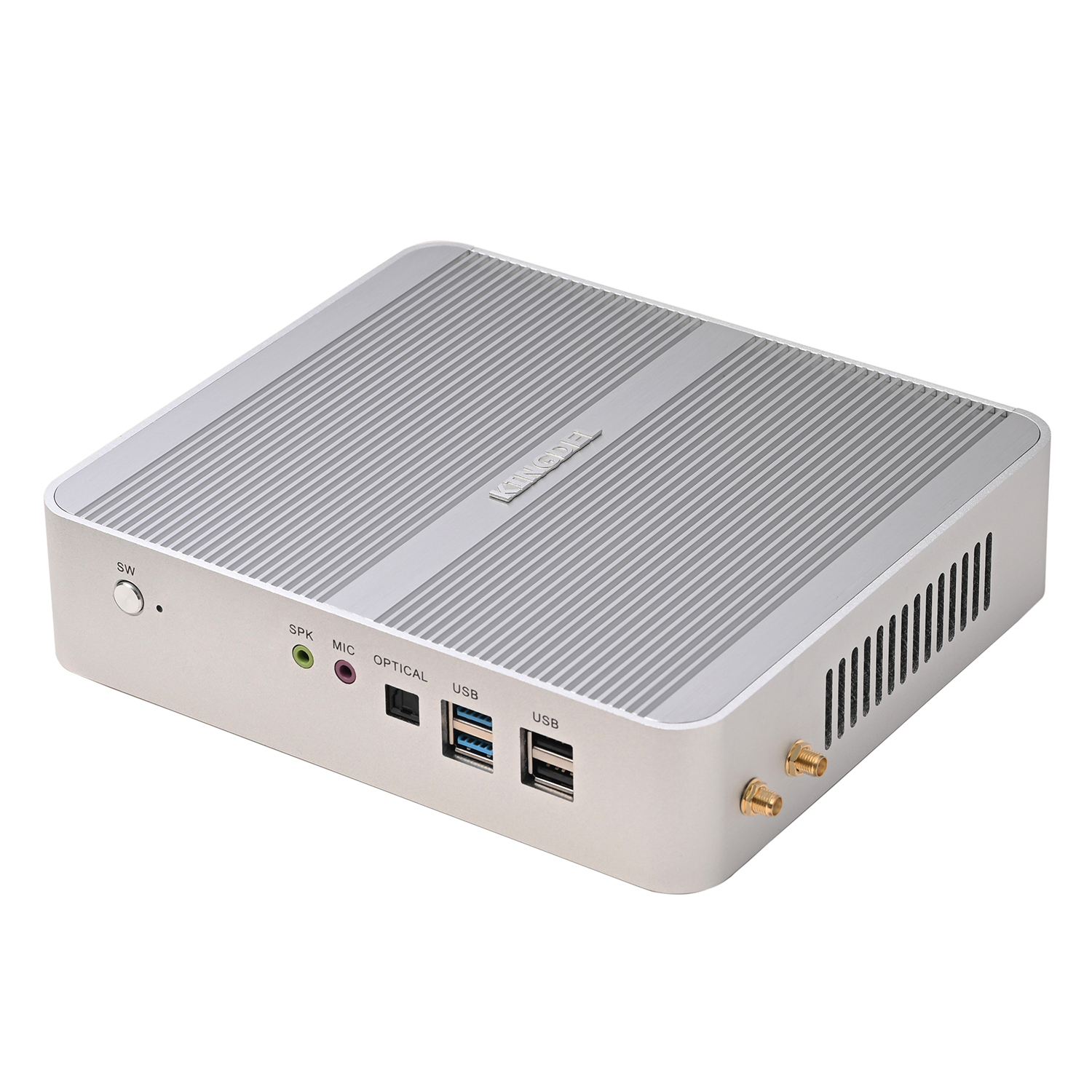

| Model Number: NC780-A Type: Cooling Fan Material: Silver-white Metal Case |
1. Intel Core i5-1035G4 2. Intel Core i7-1065G7 |
MMX, SSE, SSE2, SSE3, SSE4.1, SSE4.2, AVX |
| RAM Memory | SSD Storage | Network |
| 2 x DDR4 SO-DIMM Slots, Max to 64G. | 1 x M.2(2280) NVMe Slot 1 x MSATA SSD Slot 1 x SATA3.0 slot, support 6Gb/s |
RTL 8111E 10/100/1000 BaseT LAN |
| Input/output port | Power & Working Environment | Wi-Fi |

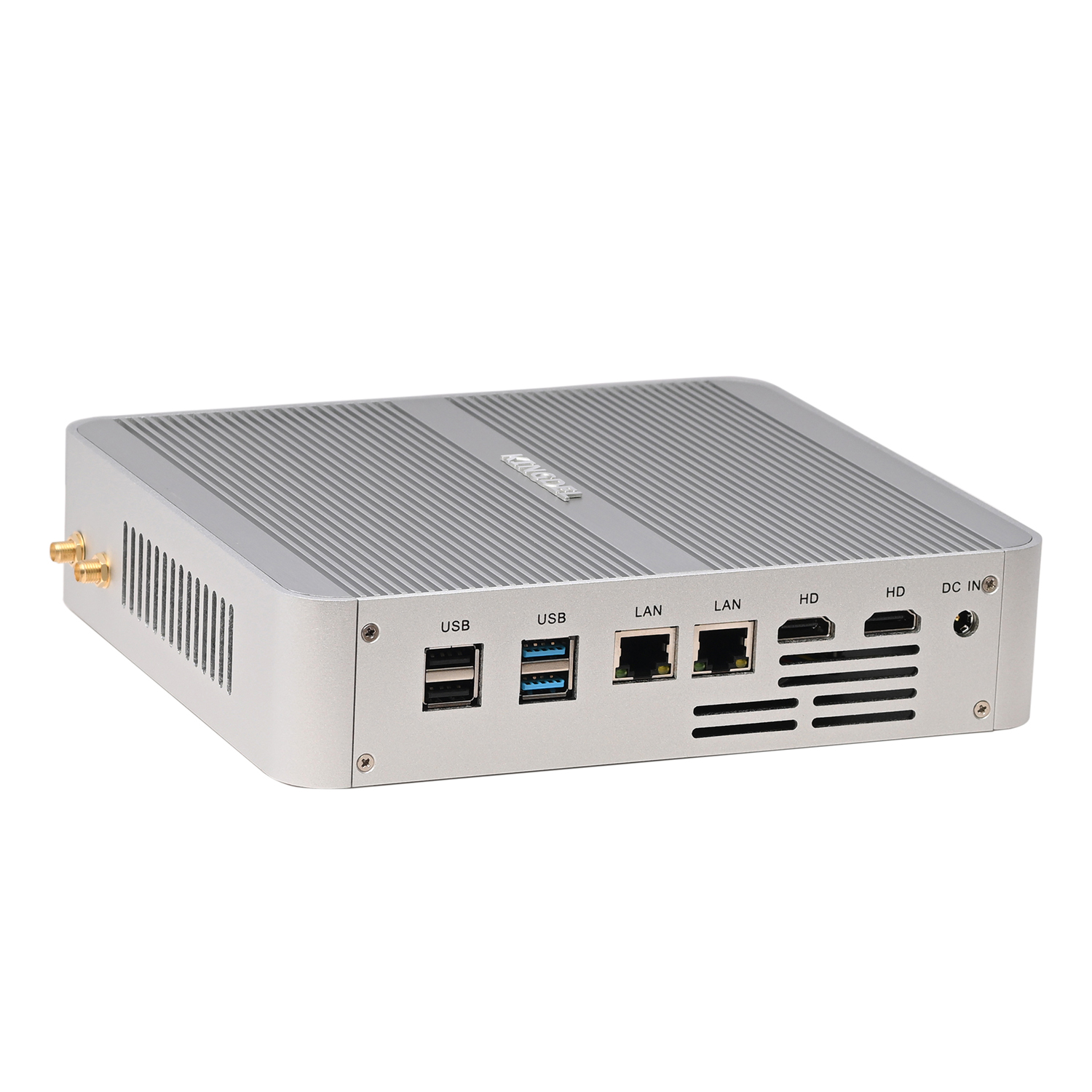

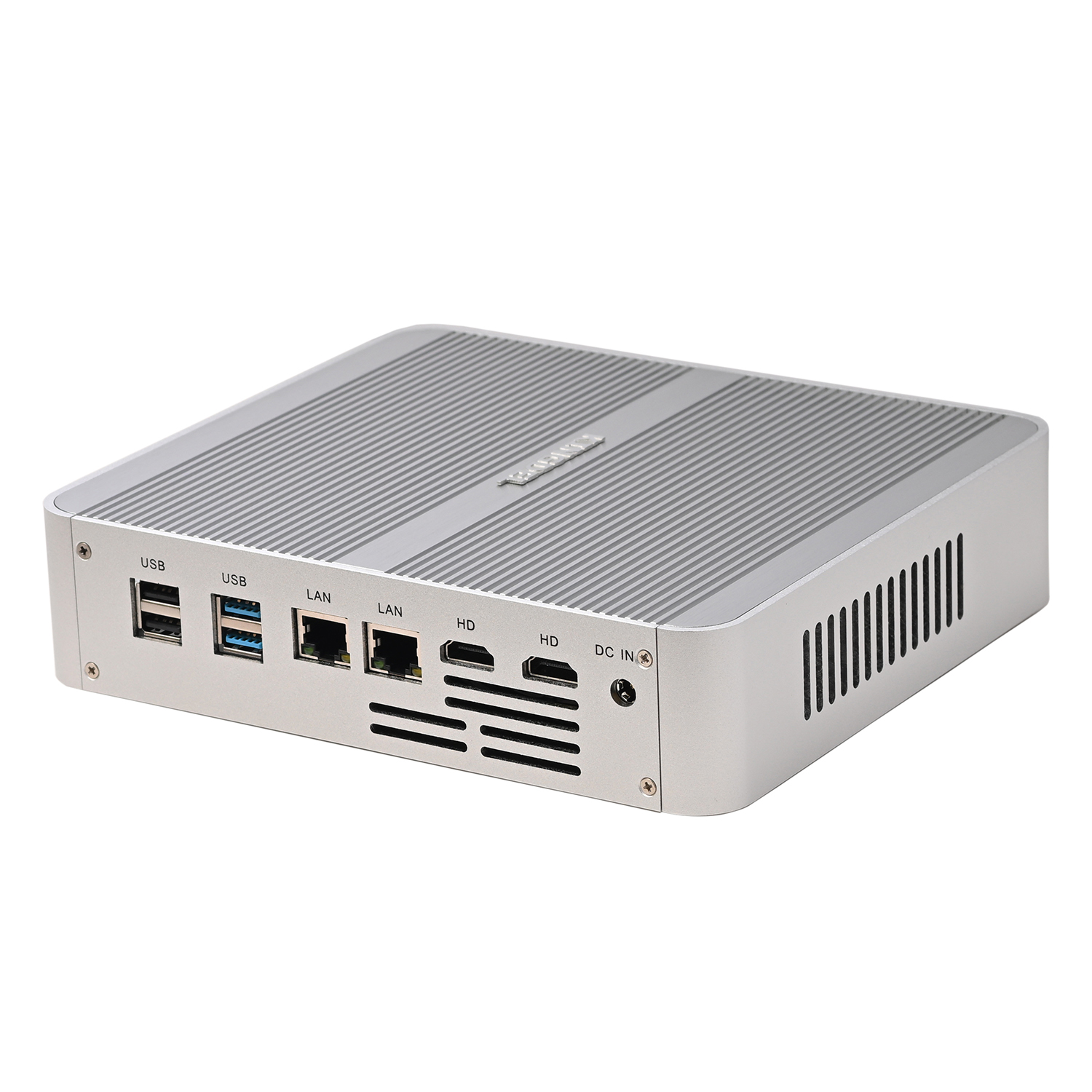

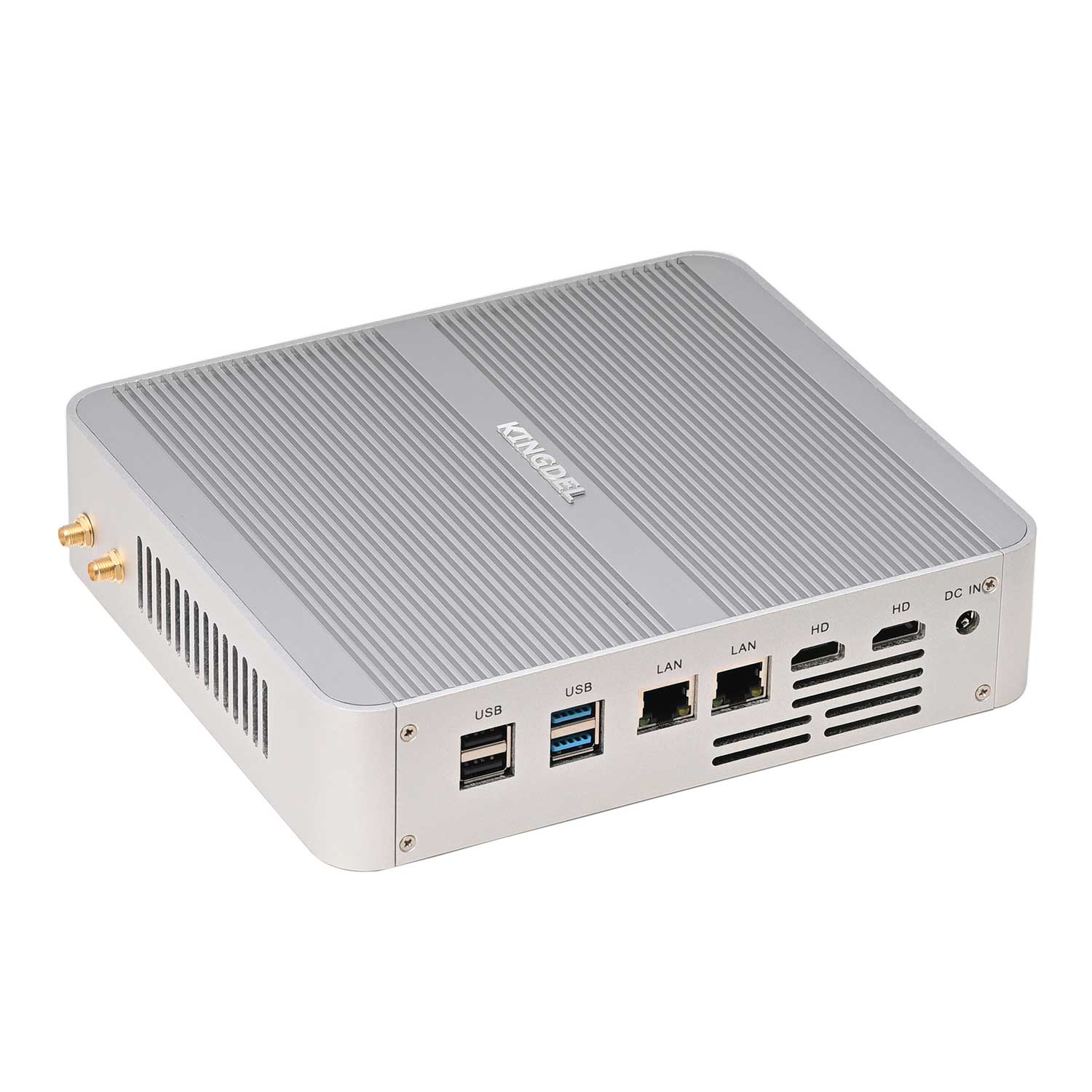

| Switch: 1 x Power On/Off Power: 1 x DC IN; LED: 1 x LED USB: 4 x USB2.0, 4 x USB3.0 Display: 2 x HDMI LAN: 2 x RJ45 Gigabit LAN Audio: 1 x MIC, 1 x SPK Other: 1 x Optical SPDIF Port |
Input: DC100-240V AC/50-60Hz Output: DC 12V~19V/5A Operating Temperature: 0°C-70°C(32°F~140°F) Storage Temperature: -20°C-80°C(-68°F~176°F) Relative Humidity: 10%~90%(non-condensing) |
1 x MINI PCIE Slot for Wifi Module Dual Antennas Bluetooth 3.0/4.0 optional |
| Product Dimension | Other Features | What's in Box |
| Size: 205mm x 180mm x 45mm Weight: 1.3kg |
BIOS: AMI BIOS, ACPI supported Audio Card: ALC892 sound chip, 6-channel |
1 x Mini PC, 1 x Power
Adapter, 1 x Power Cord, 1 x HDMI Cable, 1 x Desktop Bracket, Wi-Fi Antennas, 1 x Screws Bag |
