| Description | CPU | GPU |

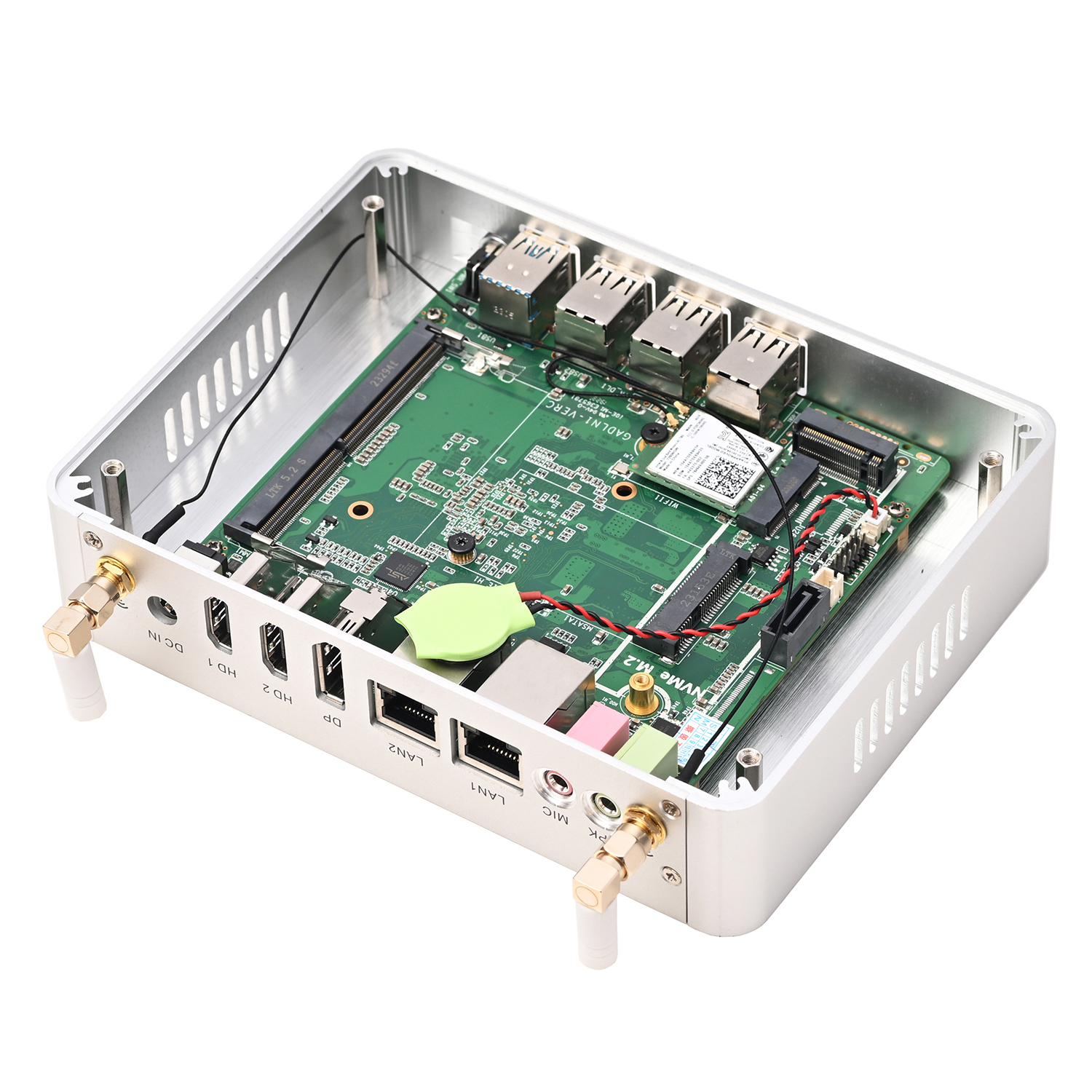

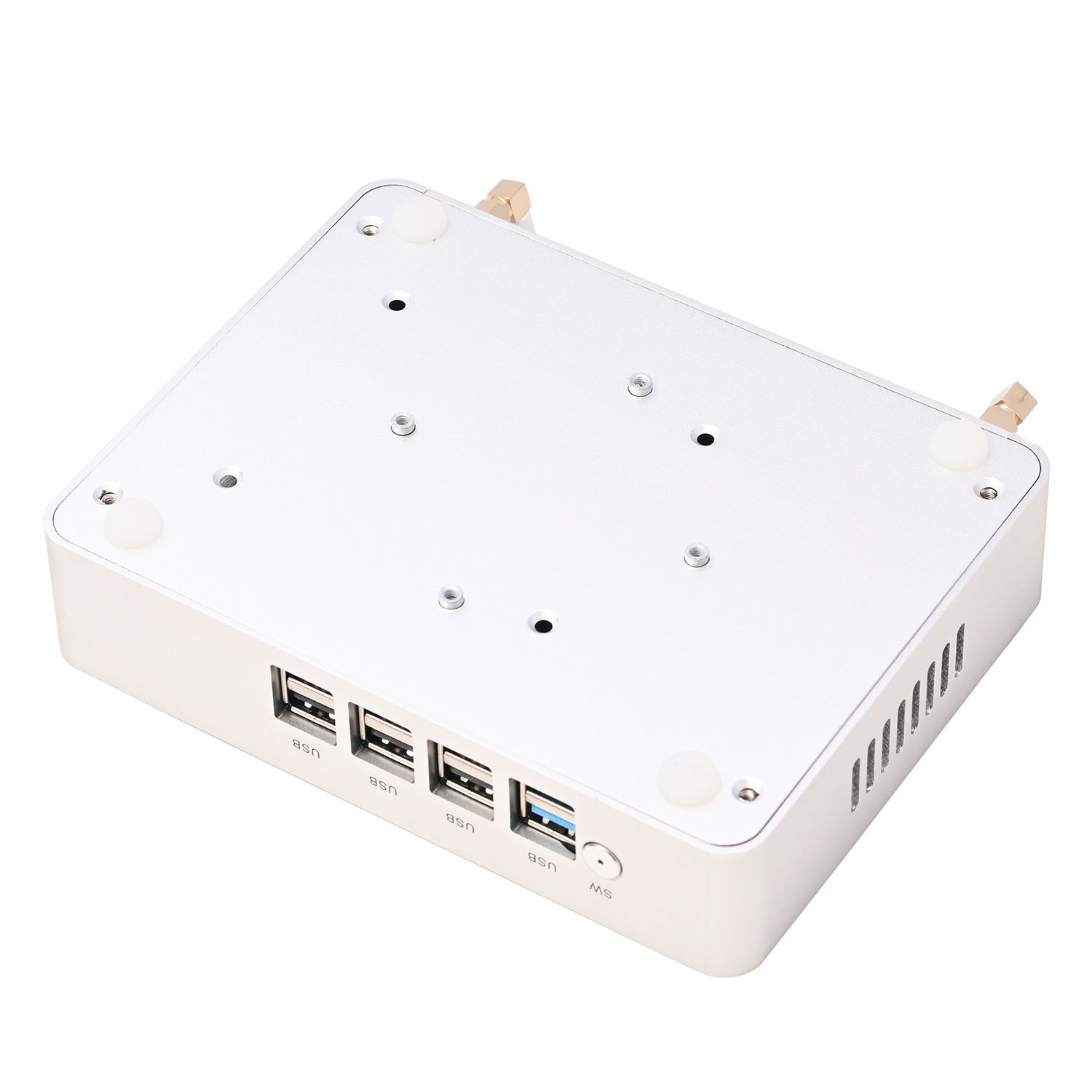

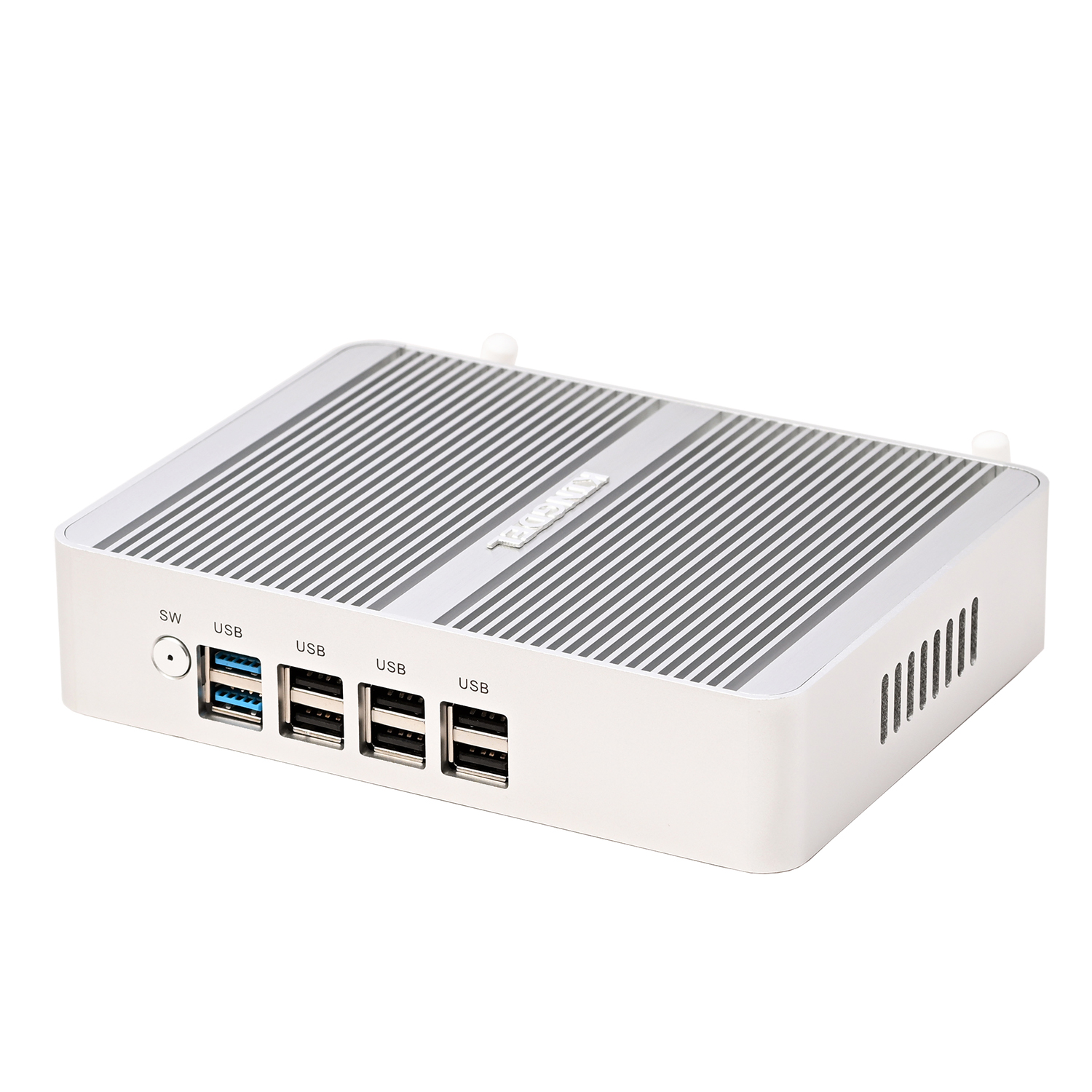

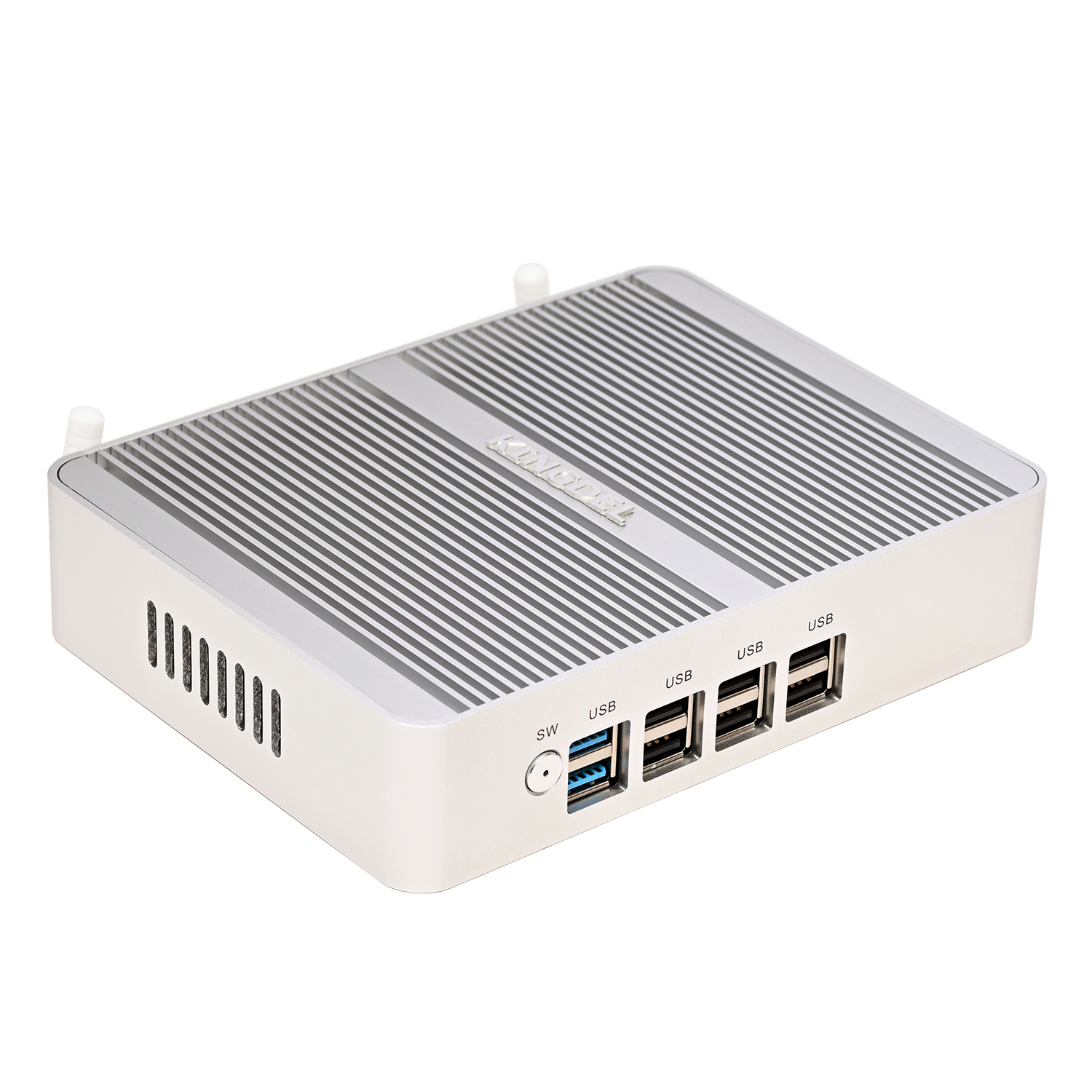

| Model Number: NC690 Type: Fanless, Silent Working Material: Metal Case |
Intel Alder Lake-N100 Processor, 4 Cores/4 Threads, 6MB Cache, 6W TDP, up to 3.4GHz |
Intel UHD Graphics 730, Graphics Base Frequency: 300MHz; Graphics Burst Frequency: 750MHz; Supports 4K @60Hz. |
| RAM Memory | SSD Storage | Network |
| 1 x DDR4 3200MHz RAM slot, Up to 16GB | 1 x M.2(2280) NVMe Slot 1 x MSATA SSD Slot 1 x SATA3.0 slot |
2 x MINI PCIE interfaces. Full height support MSATA SSD; Half height support wireless network card. 2 x Realtek 10/100/1000 Base-T LAN |
| Input/output port | Power & Working Environment | Wi-Fi |

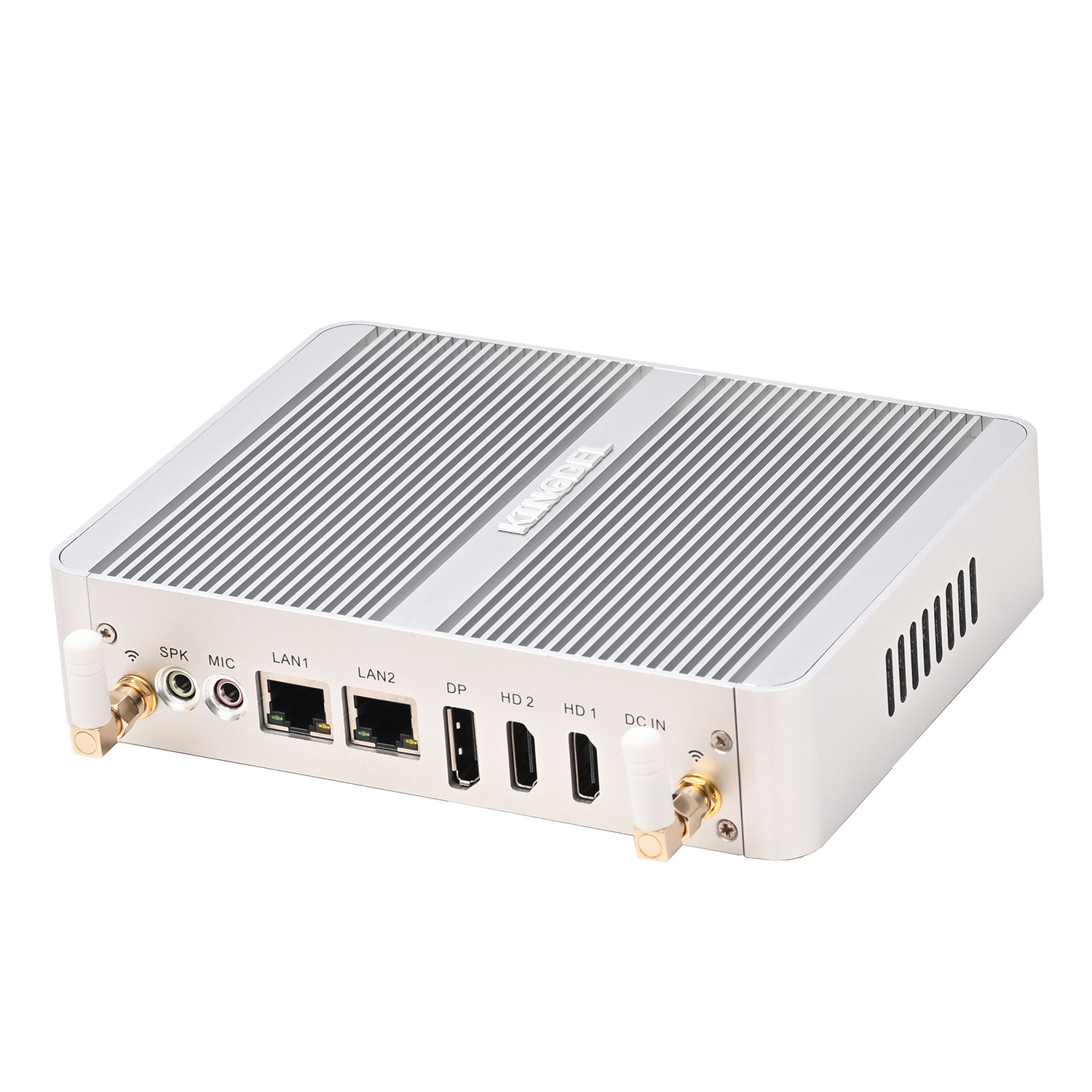

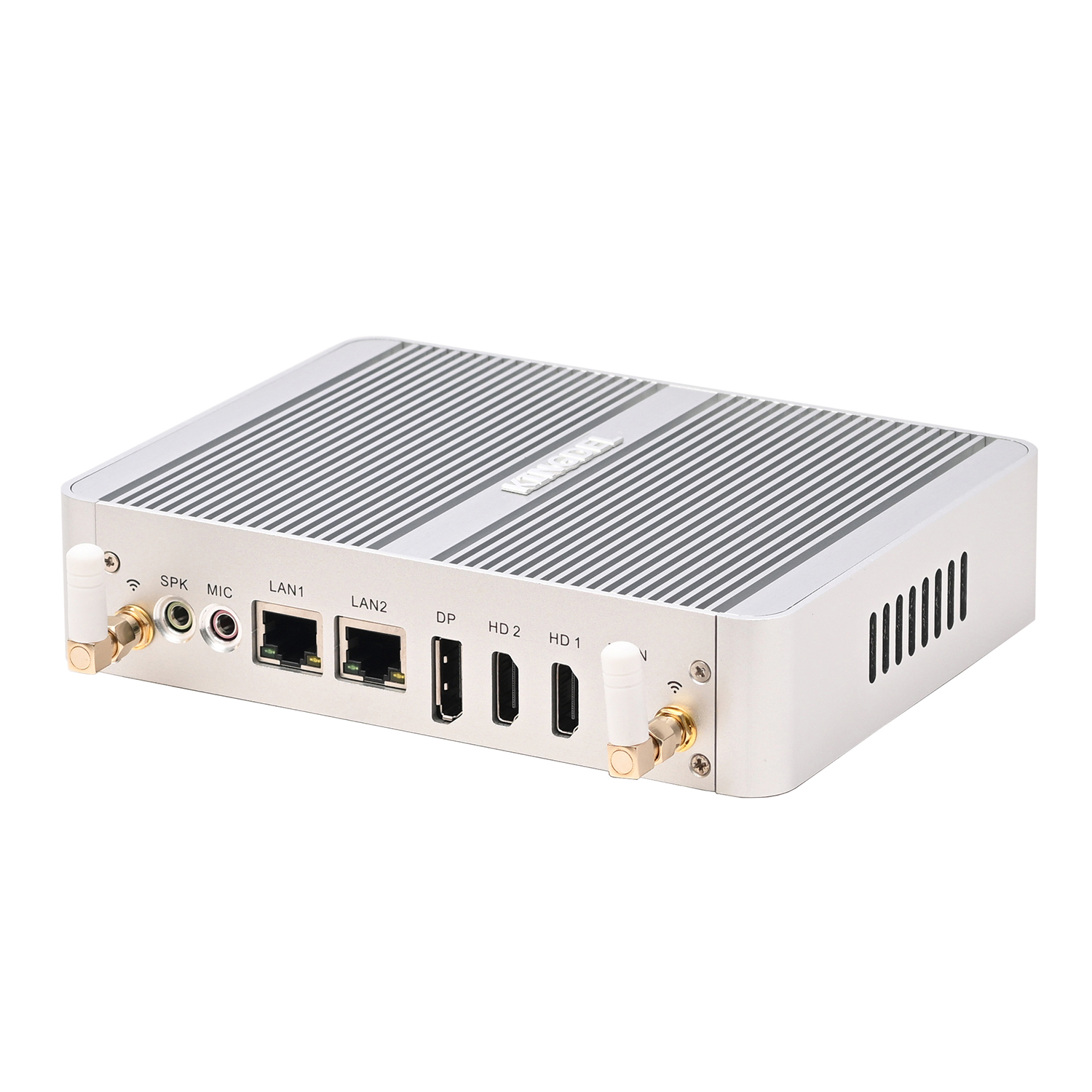

| Switch: 1 x Power On/Off Power: 1 x DC IN; LED: 1 x LED USB: 2 x USB2.0, 6 x USB3.0 Display: 1 x DP, 2 x HDMI LAN: 2 x RJ45 LAN Audio: 1 x MIC, 1 x SPK |
Input: DC100-240V AC/50-60Hz Output: DC 12V/3A Operating Temperature: 0°C-70°C(32°F~140°F) Storage Temperature: -20°C-80°C(-68°F~176°F) Relative Humidity: 10%~90%(non-condensing) |
Dual Antennas Bluetooth 4.0 optional |
| Product Dimension | Other Features | What's in Box |
| Size: 170mm x 125mm x 50mm Weight: 0.65kg |
AMI EFI BIOS Supports Power-on Startup, PXE and Network Wake-up |
1 x Mini PC, 1 x Power
Adapter, 1 x Power Cord, 1 x HDMI Cable, 1 x Stand Bracket, Wi-Fi Antennas, 1 x Screws Bag |
