| Description | CPU | Product Dimension |

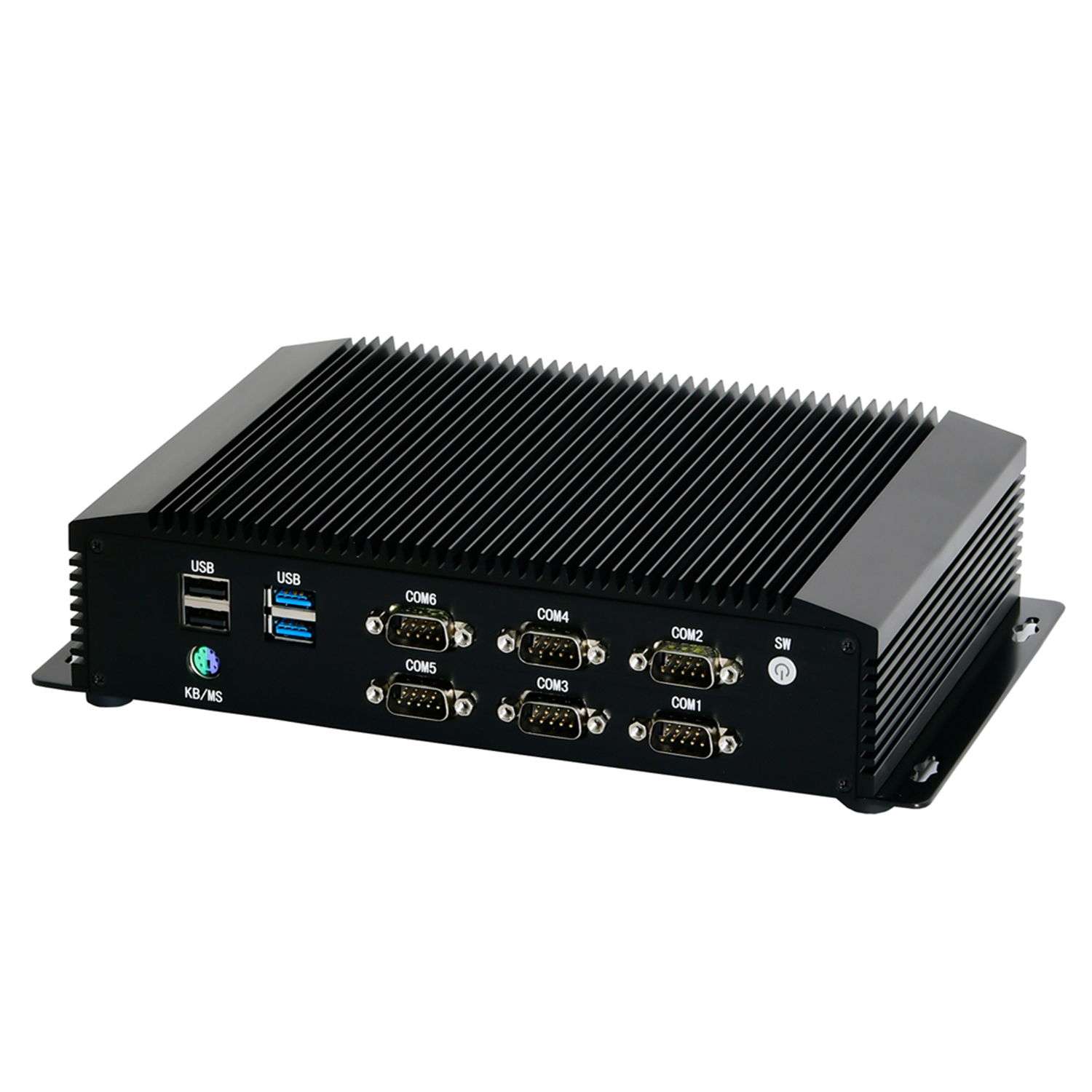

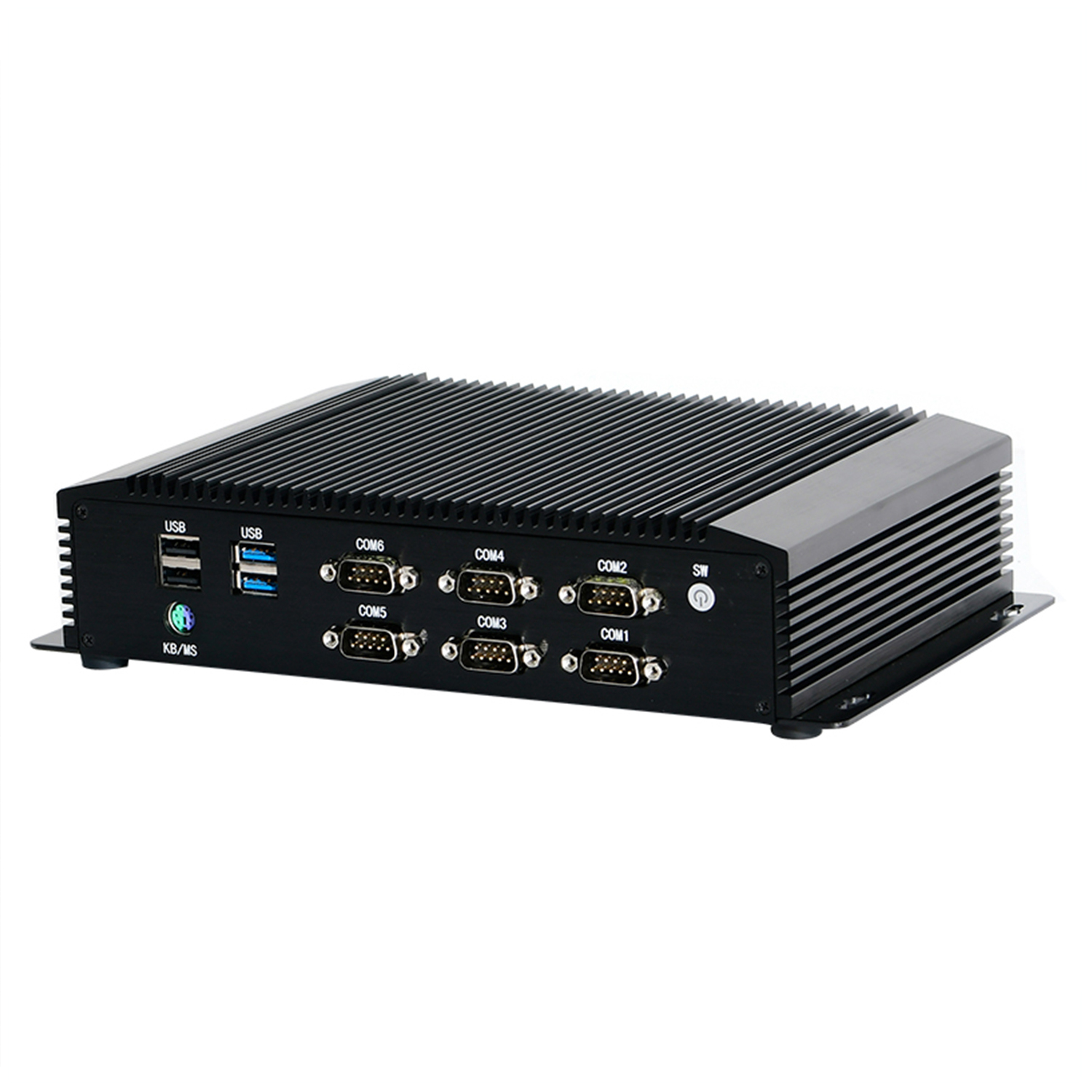

| Model Number: NC6000 Type: Fanless, Industrial Material: Metal Case |
1. Intel i3-6006U/i3-7020U 2. Intel i5-7200U, i5-8250U 3. Intel i7-8550U, i7-10510U |
Size: 230*175*50mm Weight: 2.0kg |
| RAM Memory | SSD Storage | Network |
| 1 x SO-DIMM DDR4 Slot, up to 32GB | 1 x NVMe slot; 1 x M-SATA3.0 slot for MSATA SSD; 1 x SATA3.0 slot for SATA HDD or SSD. |
802.11b/g/n, Dual Antennas |
| Input/output port | Power & Working Environment | What's in Box |

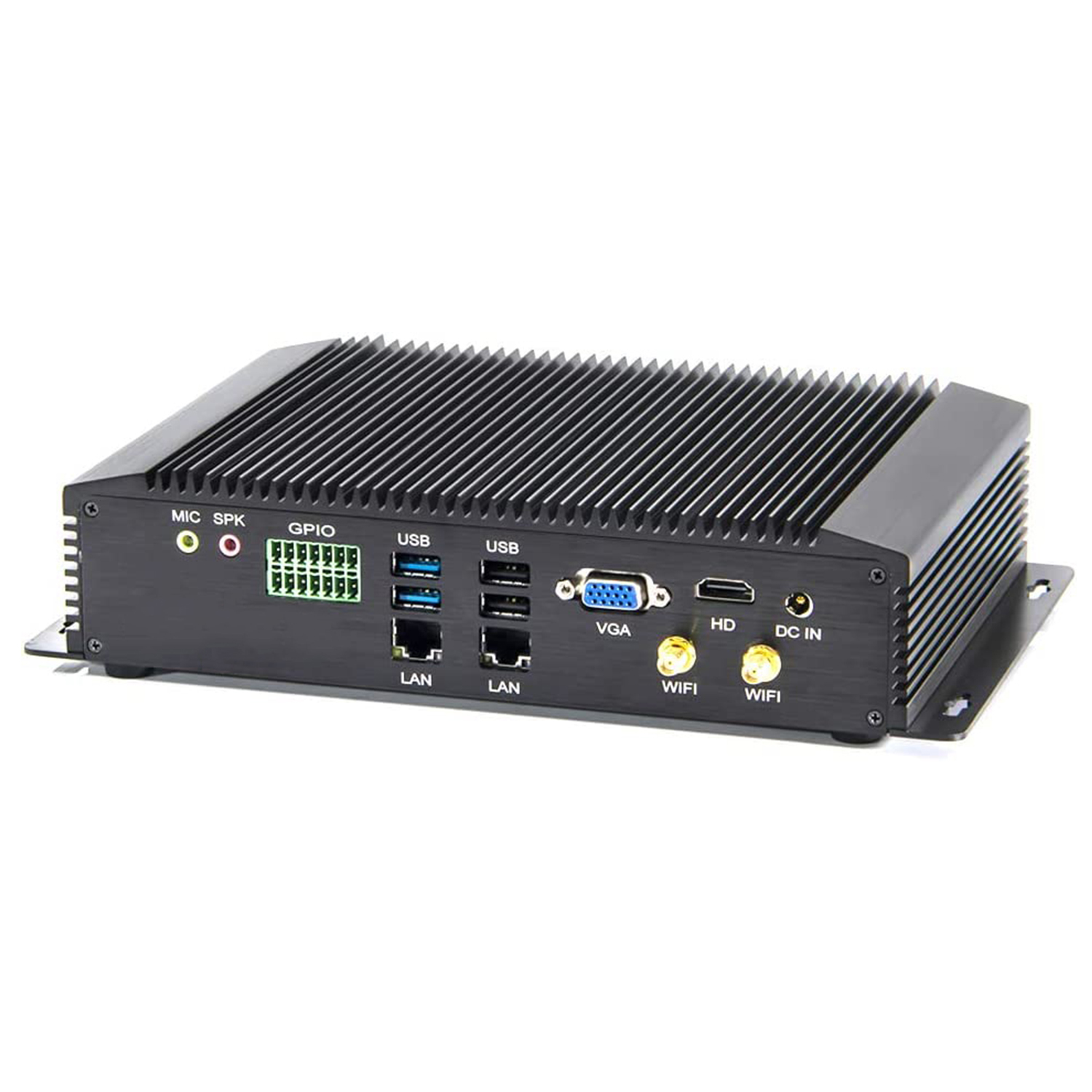

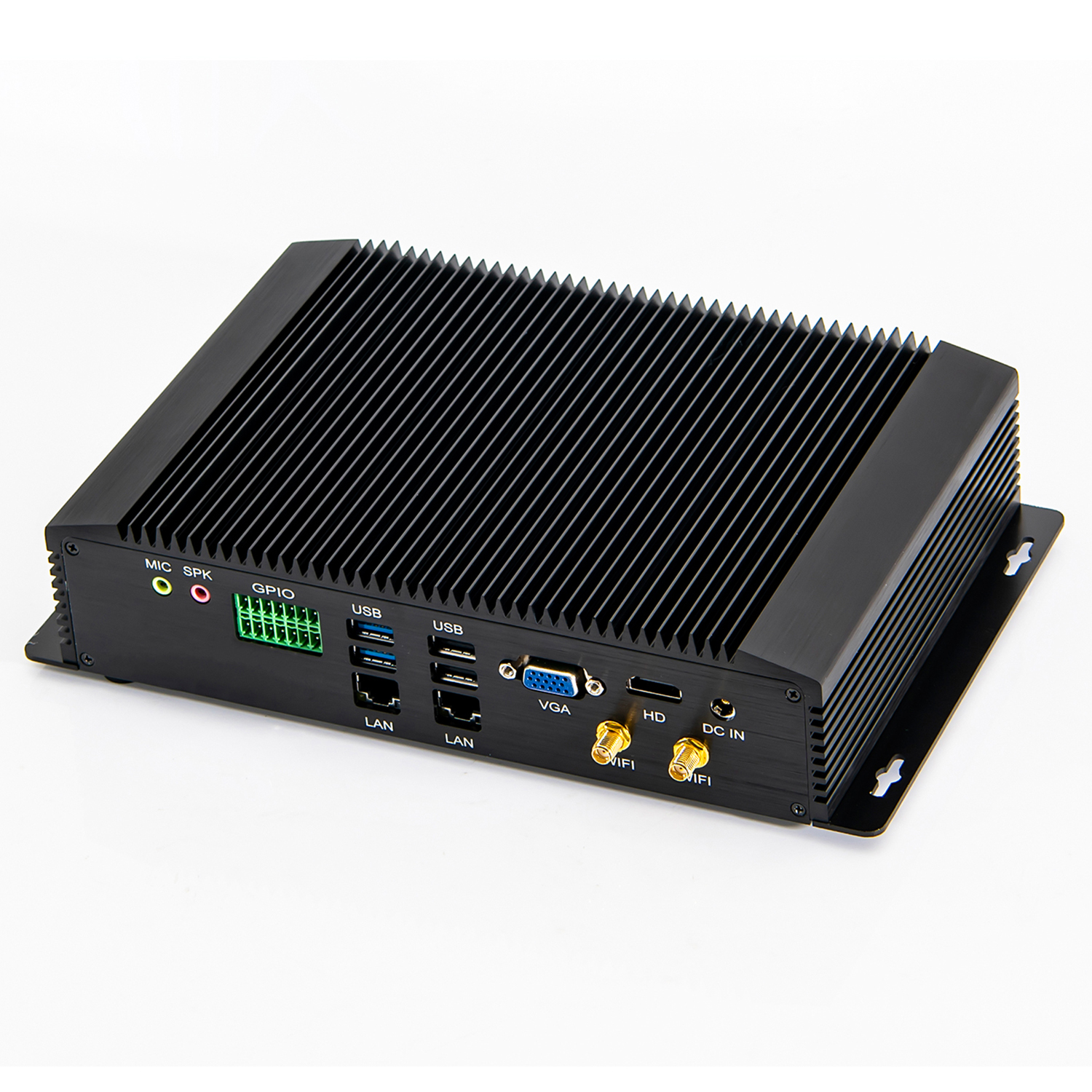

| Switch: 1 x Power On/Off Power: 1 x DC IN; LED: 1 x LED USB: 4 x USB2.0, 4 x USB3.0 Display: 1 x HDMI, 1 x VGA LAN: 2 x RJ45 LAN COM: 6 x RS232 COM Audio: 1 x MIC, 1 x SPK Others: 1 x 8-bit GPIO Port, 1 x KB/MS |
Input: DC100-240V AC/50-60Hz Output: DC 12V/5A Operating Temperature: 0°C-70°C(32°F~140°F) Storage Temperature: -20°C-60°C Relative Humidity: 10%~85%(non-condensing) |
1 x Mini PC, 1 x Power
Adapter, 1 x Power Cord, Wi-Fi Antennas, 1 x HDMI Cable, 1 x Screws Bag |
