| Description | CPU | Triple Display |

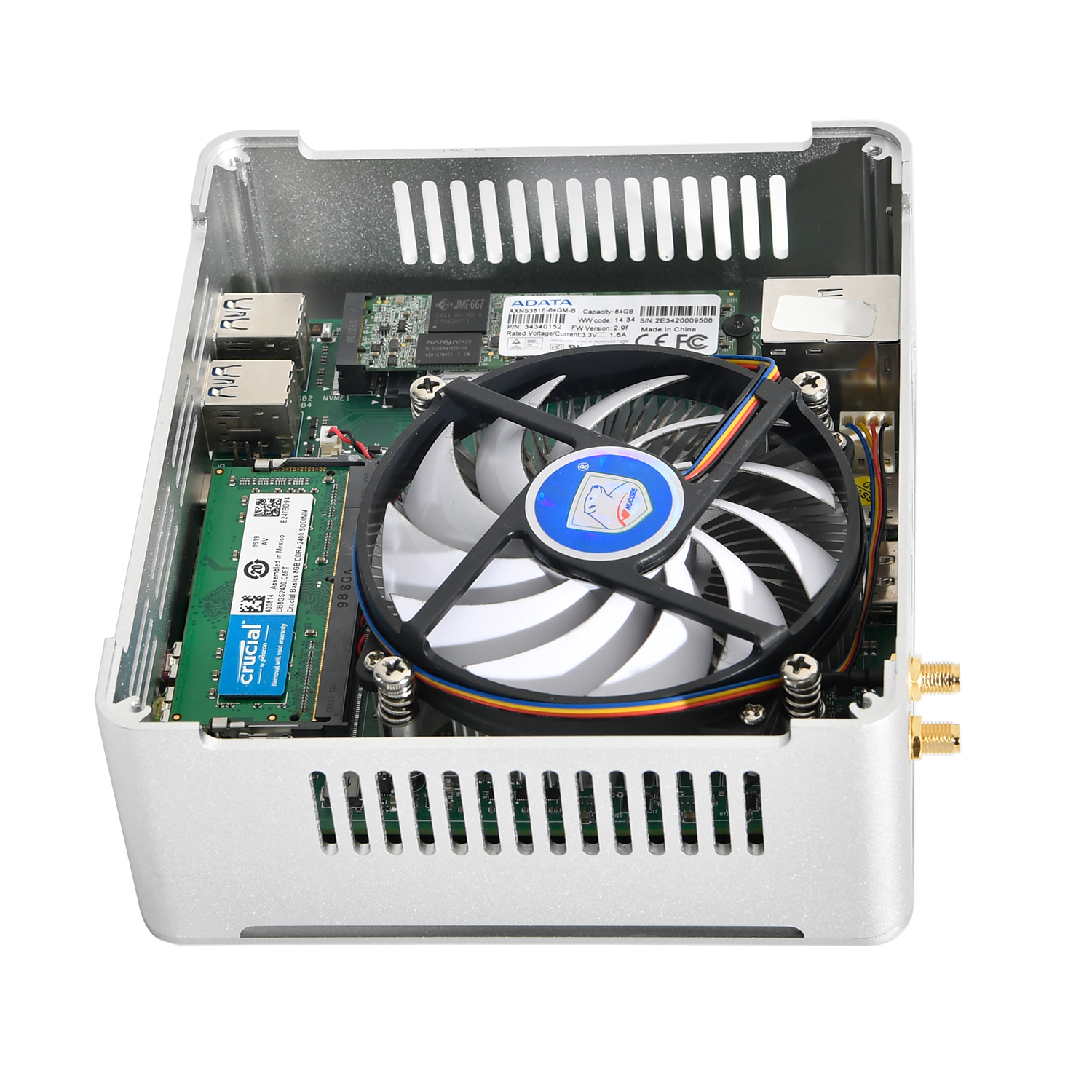

| Model Number: NC590 Type: Cooling Fan |
1. Intel Core i5-1340P 2. Intel Core i7-1360P |
HD 2.1: 4K(4096 x 2304@60Hz), DP 1.4a: 8K(7680 x 4320@60Hz), Full Feature Type-C (Video & Data) |
| RAM Memory | SSD Storage | Network |
| 2 x SO-DDR5 SDRAM Memory Slots, Up to DDR5 4800 MHz, Up to 64GB |
1 x NGFF/NVMe M.2 Size, support 6Gb/s SATA bus | 1 x M.2 PCIE wireless network card built-in |
| Input/output port | Power Supply | Wi-Fi |
| Switch: 1 x Power On/Off Power: 1 x DC IN; LED: 1 x LED USB: 2 x USB2.0, 4 x USB3.0 Display: 1 x HDMI, 1 x DP, 1 x Type-C LAN: 1 x RJ45 Gigabit LAN Audio: 1 x MIC, 1 x SPK |
Input: DC100-240V AC/50-60Hz Output: DC 12V/10A |
WIFI 6E 802.11ax 2.4+5+6Ghz Triple Band + BT 5.2. |
| Product Dimension | Other Features | What's in Box |

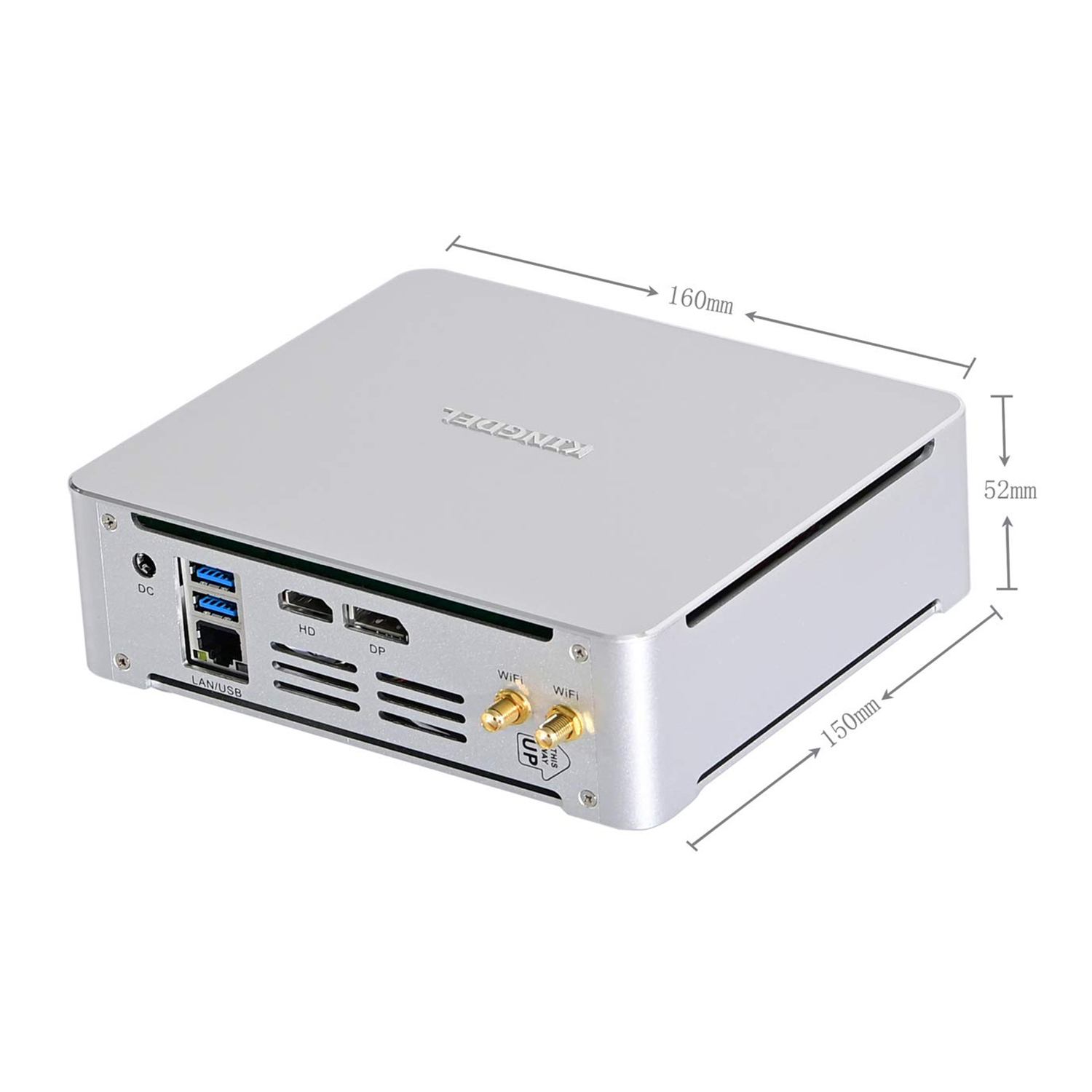

| Size: 160mm x 150mm x 62mm Weight: 1.0kg |
Audio Card: ALC892 sound chip, 6-channel |
1 x Mini PC, 1 x Power
Adapter, 1 x Power Cord, 1 x HDMI Cable, 1 x Screws Bag |
