NC490
Product Information
Description CPU 4K Dual Display
Model Number: NC490
Type: Cooling Fan
Case Material: Aluminum Alloy Structure
1. Intel N100
2. Intel Core i3-N305
3. Intel Twin Lake N150, N355
2 x HD2.1 support 4096 x 2160@60Hz Display
RAM Memory SSD Storage Network
N100/N150:
1 x DDR5 4800MHz SODIMM Memory Slot, Up to 16GB
i3-N305/N355:
1 x DDR5 4800MHz SODIMM Memory Slot, Up to 32GB
1 x M.2 NVMe (PCIe3.0 x 1) 2280 SSD, 1 x SATA3.0 2 x 82599ES 10GbE SFP+, 2 x i226-V network card 2.5G LAN
M.2 E-Key 2230 Slot, support WiFi6/BT

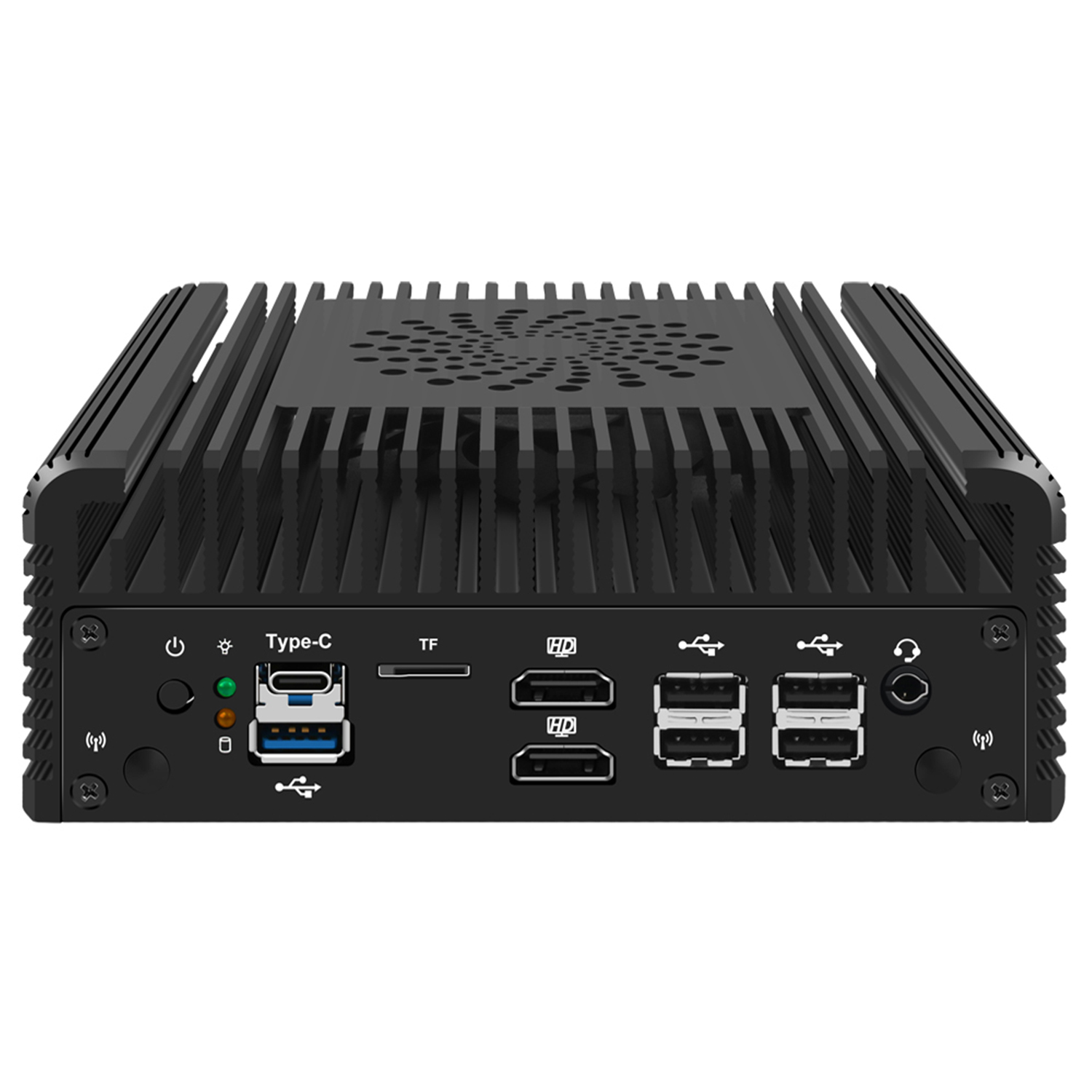

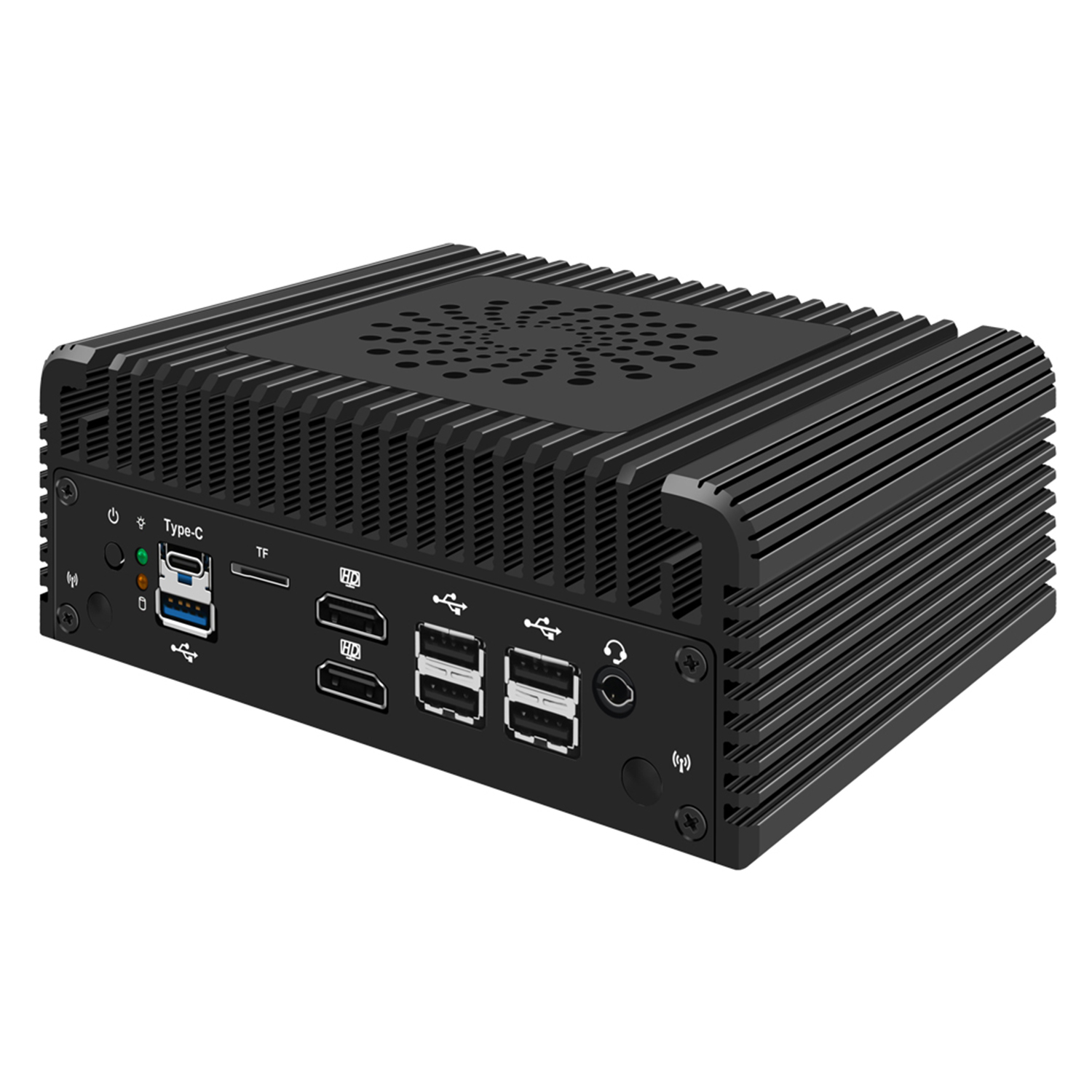

Input/output port Power & Working Environment Expansion
Switch: 1 x Power On/Off
Power: 1 x DC IN; LED: 2 x Instruction Lights
USB: 4 x USB2.0, 1 x USB3.2 Gen1
Display: 2 x HDMI

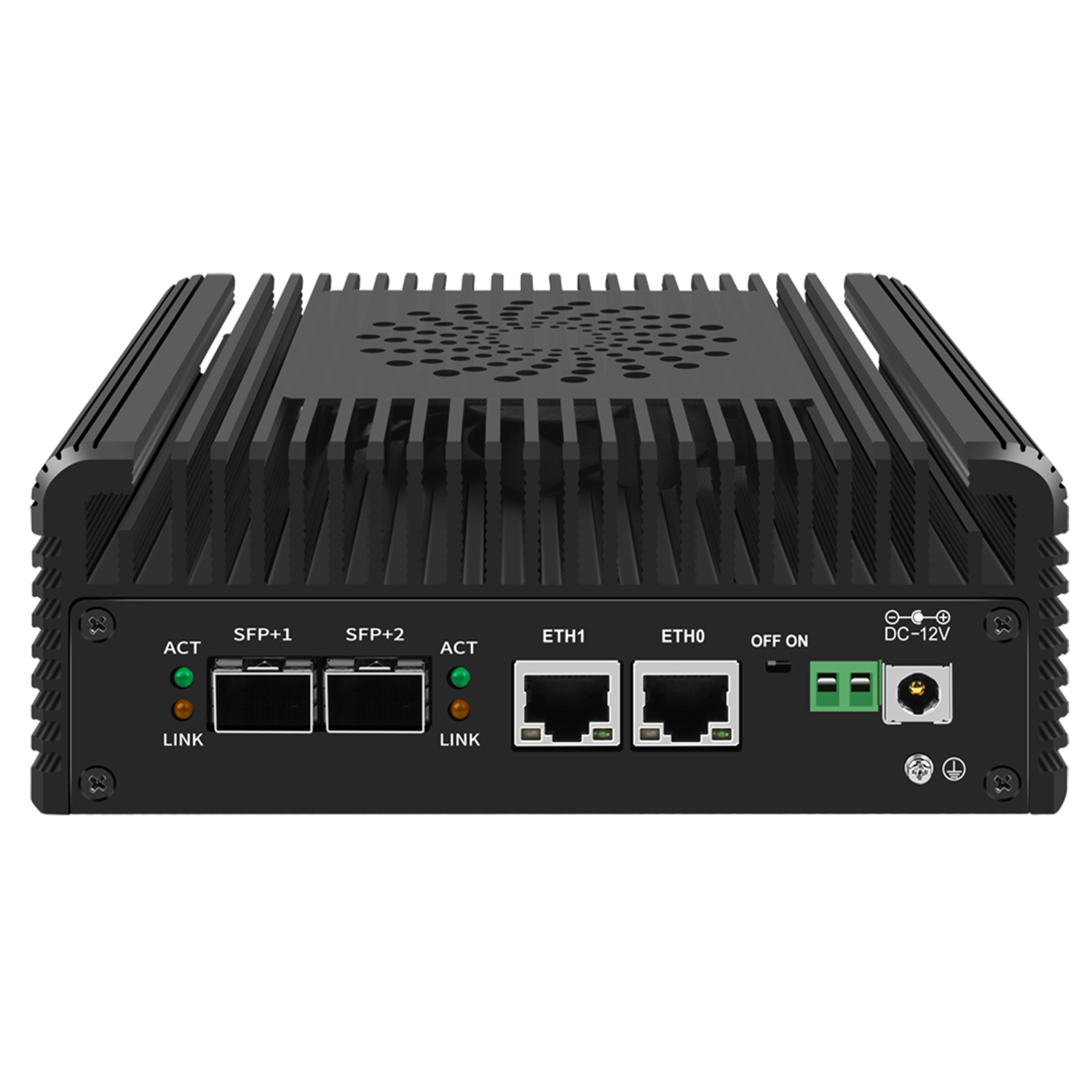

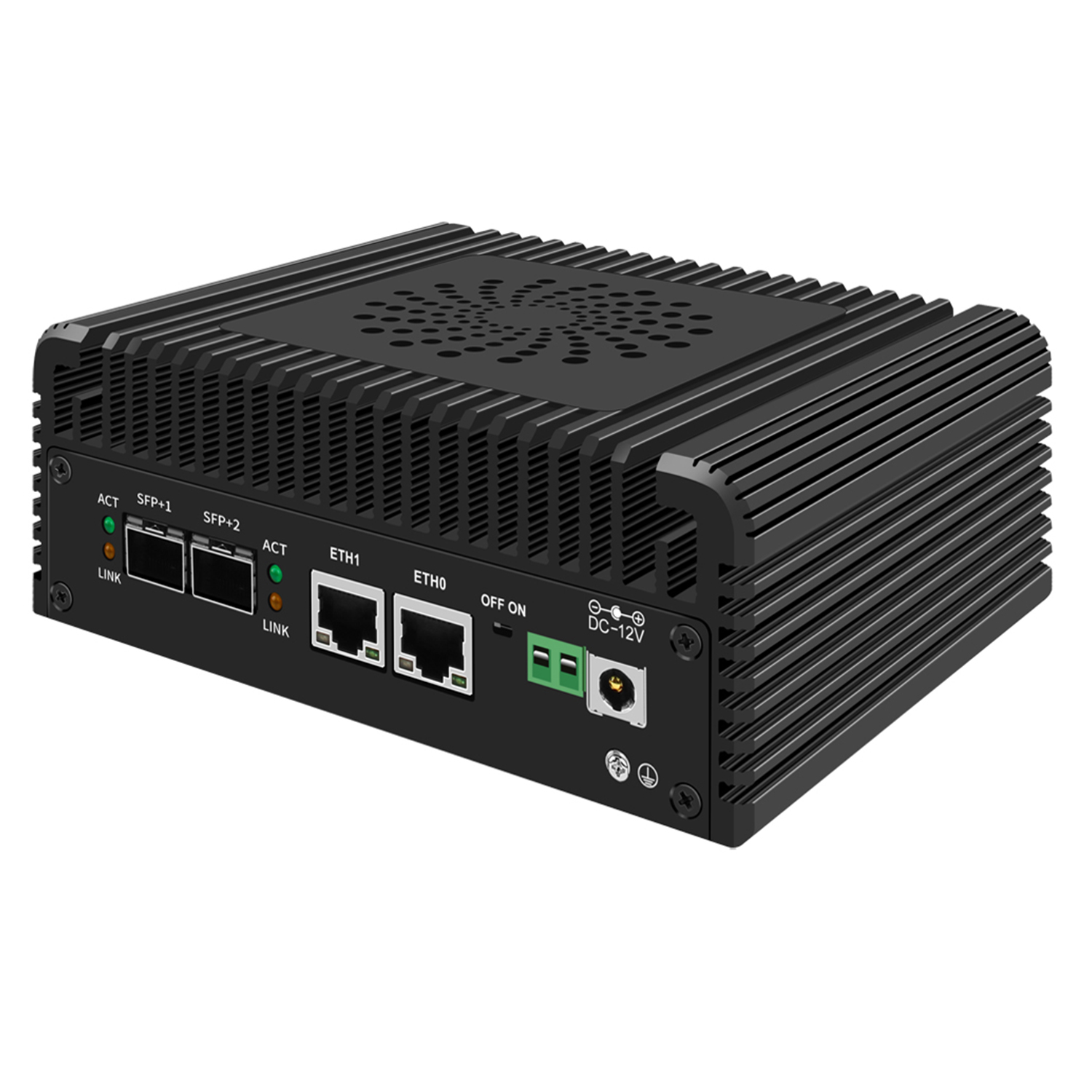

LAN: 2 x 10GB SFP+, 2 x 2.5G i226V-LAN
Audio: 1 x SPK/MIC
Others: 1 x Type-C 3.2 Gen1, 1 x TF, Phoenix Terminal
Input: DC100-240V AC/50-60Hz
Output: DC 12V
Work Temperature:
-0°C~+70°C, relative humidity 5%-85%.
2 x 232/485 COM Switching Jumper Cap,
1 x 20Pin JCOM Pin, 2Pin Phoenix terminal,
1 x SATA3.0(4Pin Standard Socket)
Product Dimension Other Features What's in Box

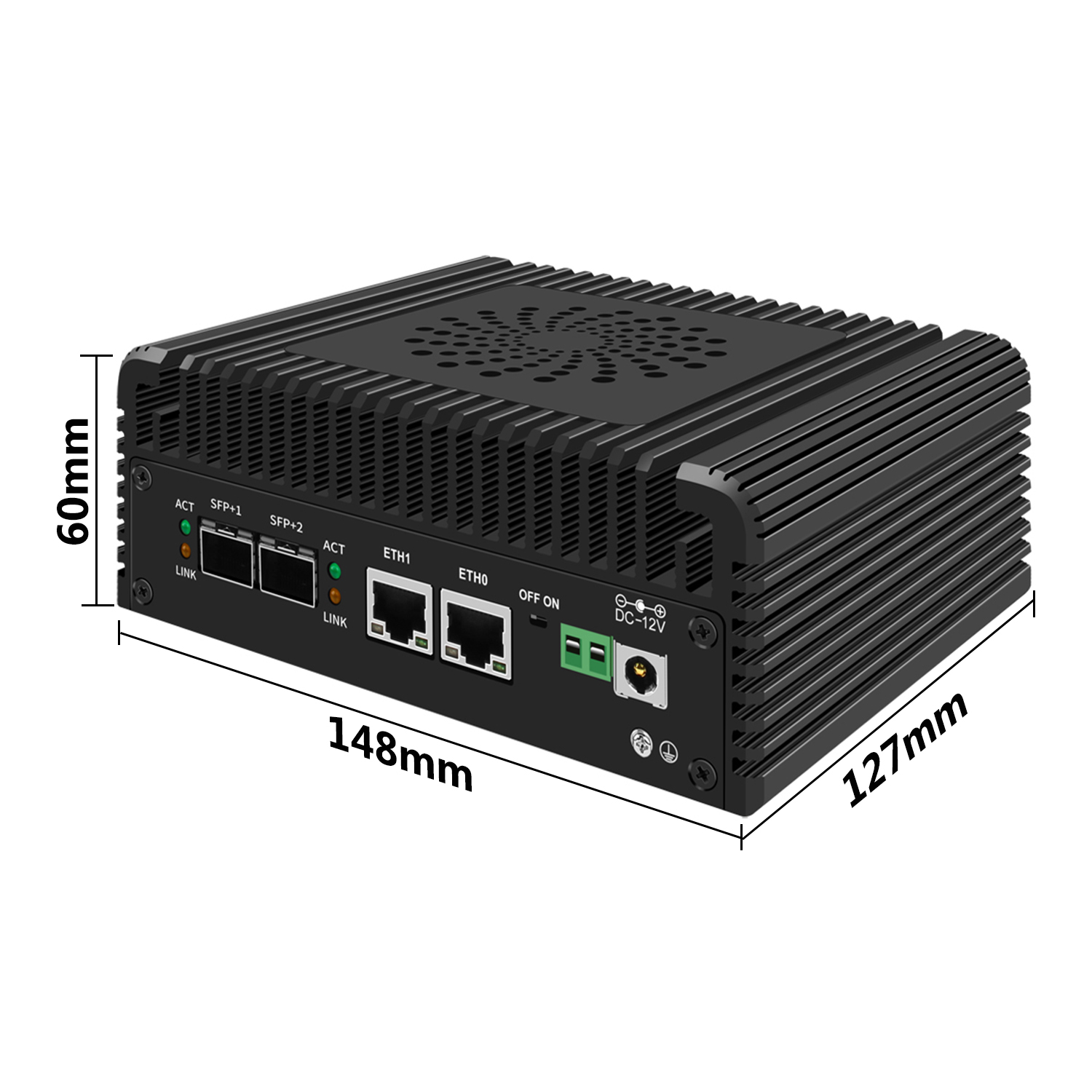

Size: 148mm x 127mm x 60mm
Weight: 1.08kg

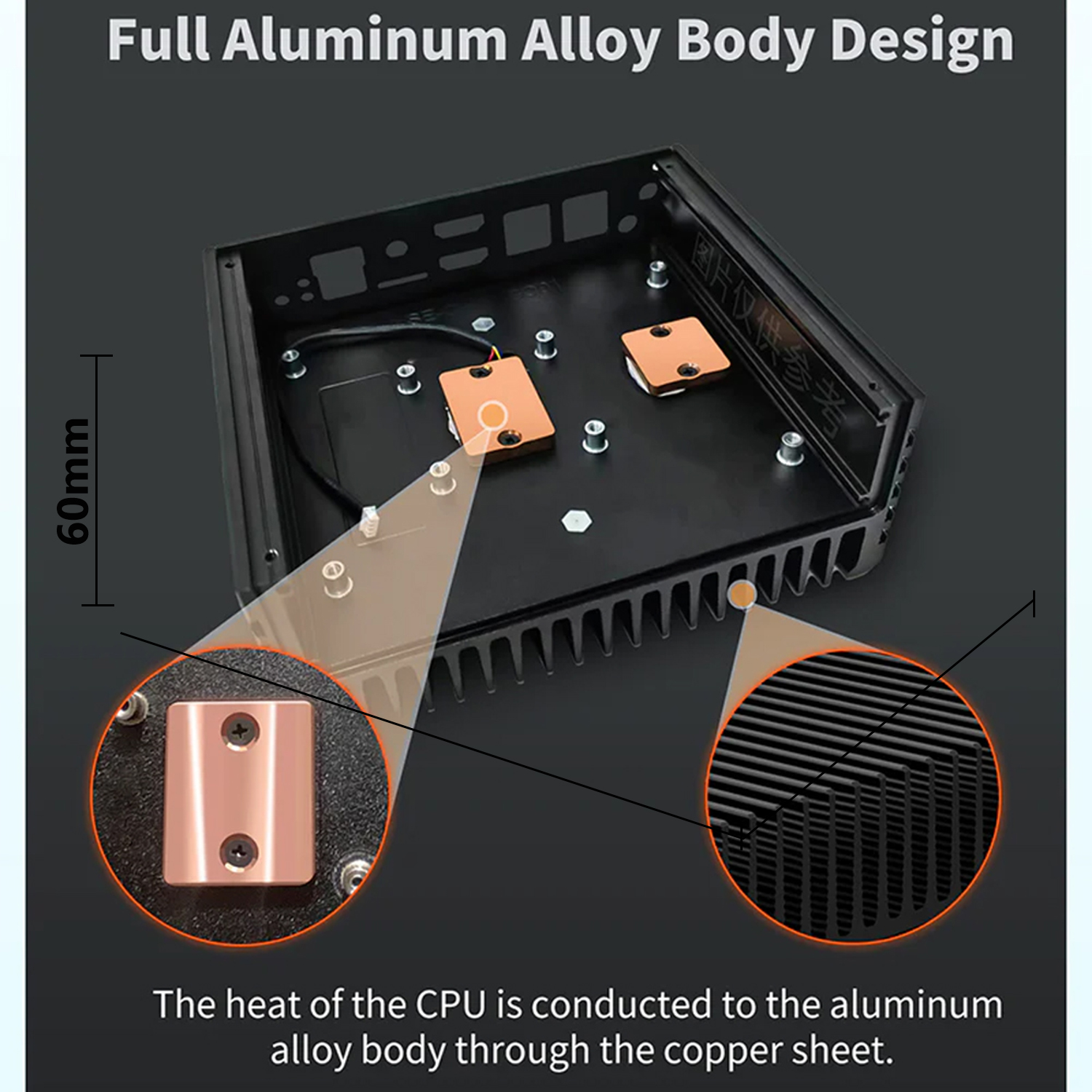

1. Heat Dissipation: Aluminum alloy passive heat dissipation, supplemented by the 8010 hidden fan active heat dissipation
2. BIOS: AMI EFI BIOS support Incoming call self start, GPIO, PXE, Wake On LAN
1 x Mini PC, 1 x Power Adapter,
1 x Power Cord, 1 x HDMI Cable, 1 x Screws Bag
Product Application
Desktop Computer Business Mini PC Office Mini PC School Mini PC Mini PC
