NC3000
Product Information
Description CPU Multimedia Instruction Set
Model Number: NC3000
Type: Fanless, Industrial
Material: Metal Case
1. Intel i3-4005U/i3-5005U, i3-8145U
2. Intel i5-4200U, i5-8250U, i5-1235U, i5-1335U
3. Intel i7-8559U/8565U, i7-10510U, i7-1165G7, i7-1255U, i7-1355U
MMX, SSE, SSE2, SSE3, SSE4.1, SSE4.2, AVX
RAM Memory SSD Storage Network
i3-4010U/i3-5005U/i5-4200U:
2 x DDR3L SDRAM Memory Slots, Max to 16G;
i3-8145U/i5-8250U/i7-8559U/8565U/i7-10510U:
2 x DDR4 SDRAM Slots, Max to 32G;
i7-1165G7/i5-1235U/i7-1255U/i5-1335U/i7-1355U:
2 x DDR4 260PIN SO-DIMM Slots, Max to 64G.
1 x M.2(2280) NVMe Slot
1 x MSATA SSD Slot
(i3-4010U/i3-5005U/i5-4200U only 2 x MSATA SSD Slot)
1 x SATA3.0 slot for SATA HDD or SSD, support 6Gb/s
RTL 8111E 10/100/1000 BaseT LAN

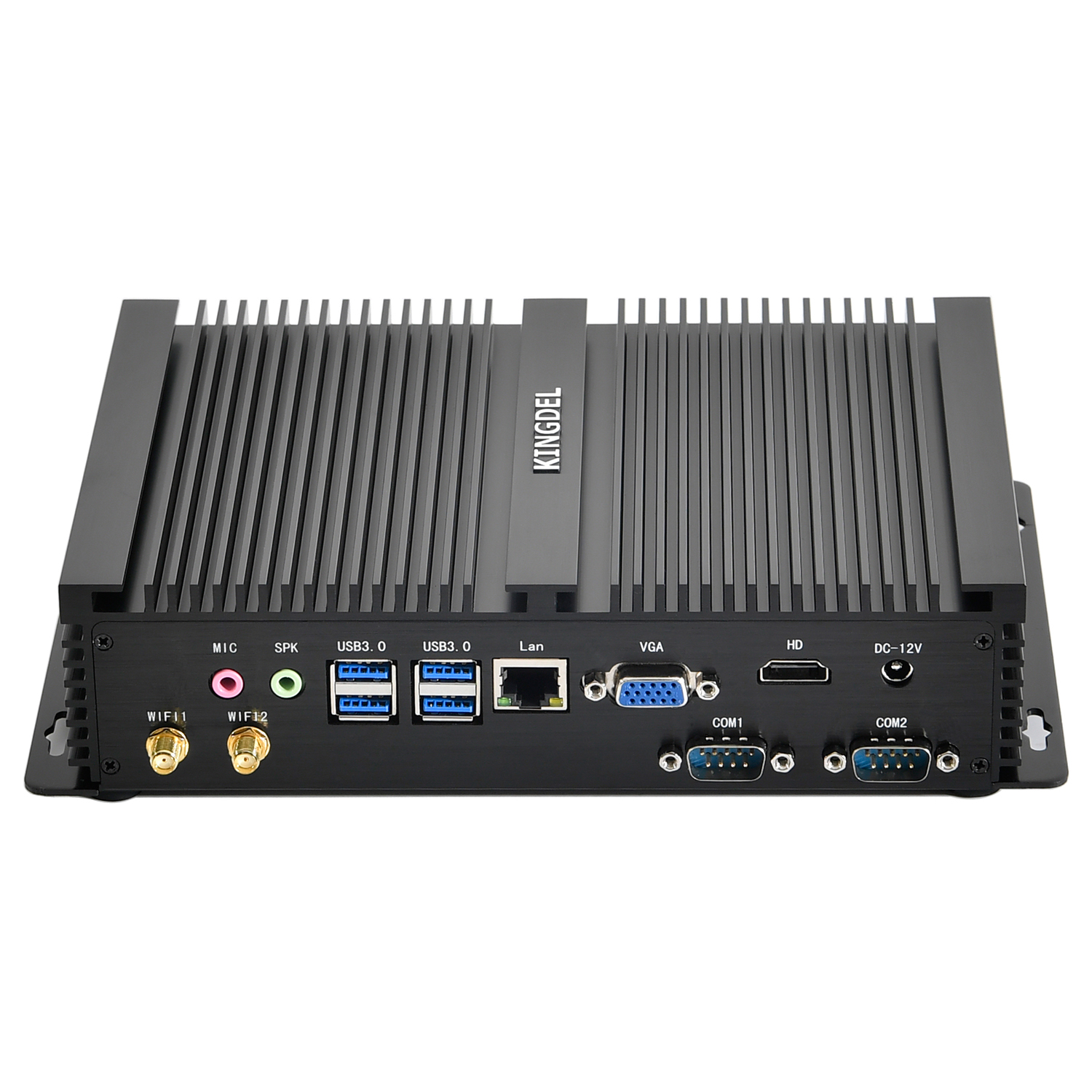

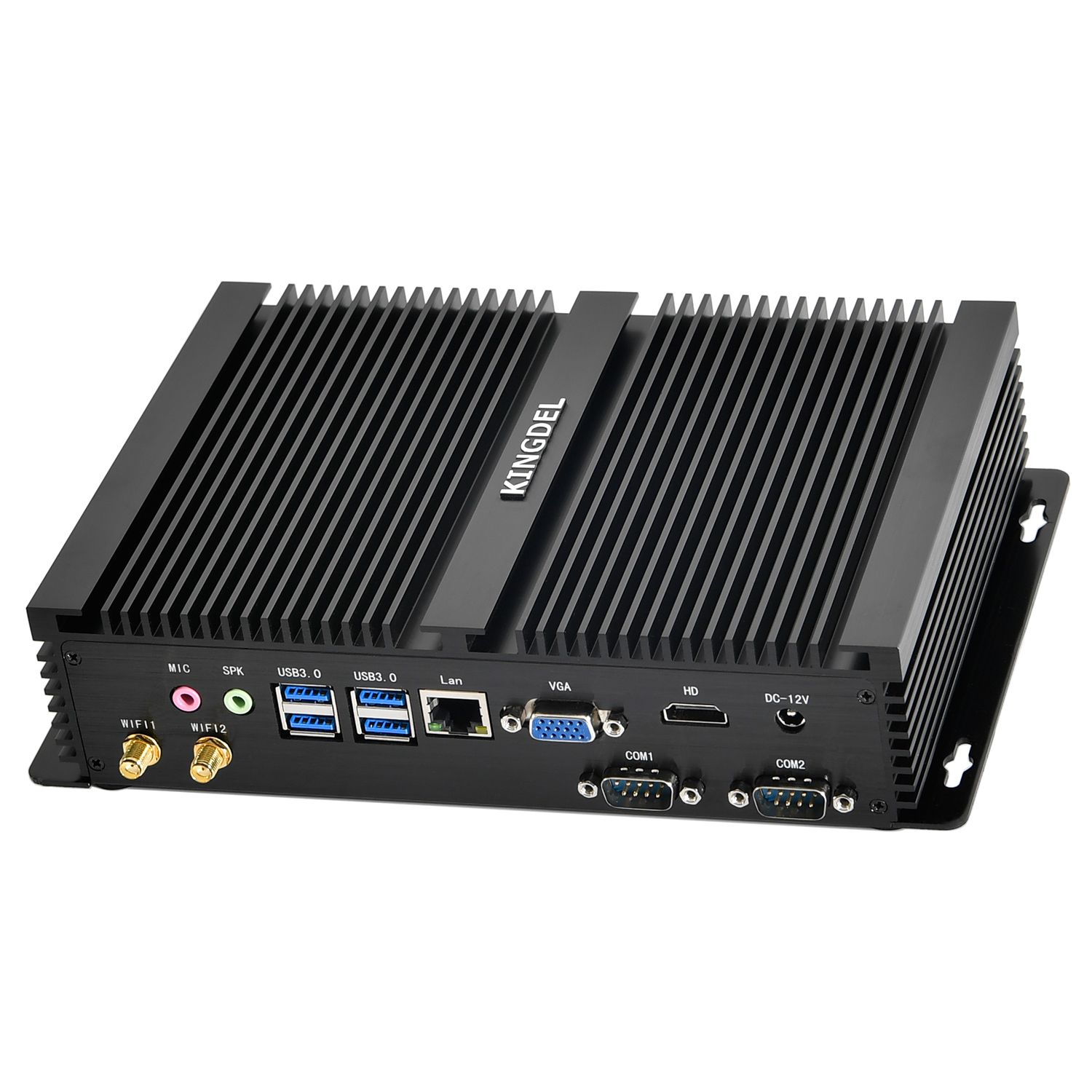

Input/output port Power & Working Environment Wi-Fi
Switch: 1 x Power On/Off
Power: 1 x DC IN; LED: 1 x LED
USB: 3 x USB2.0, 4 x USB3.0

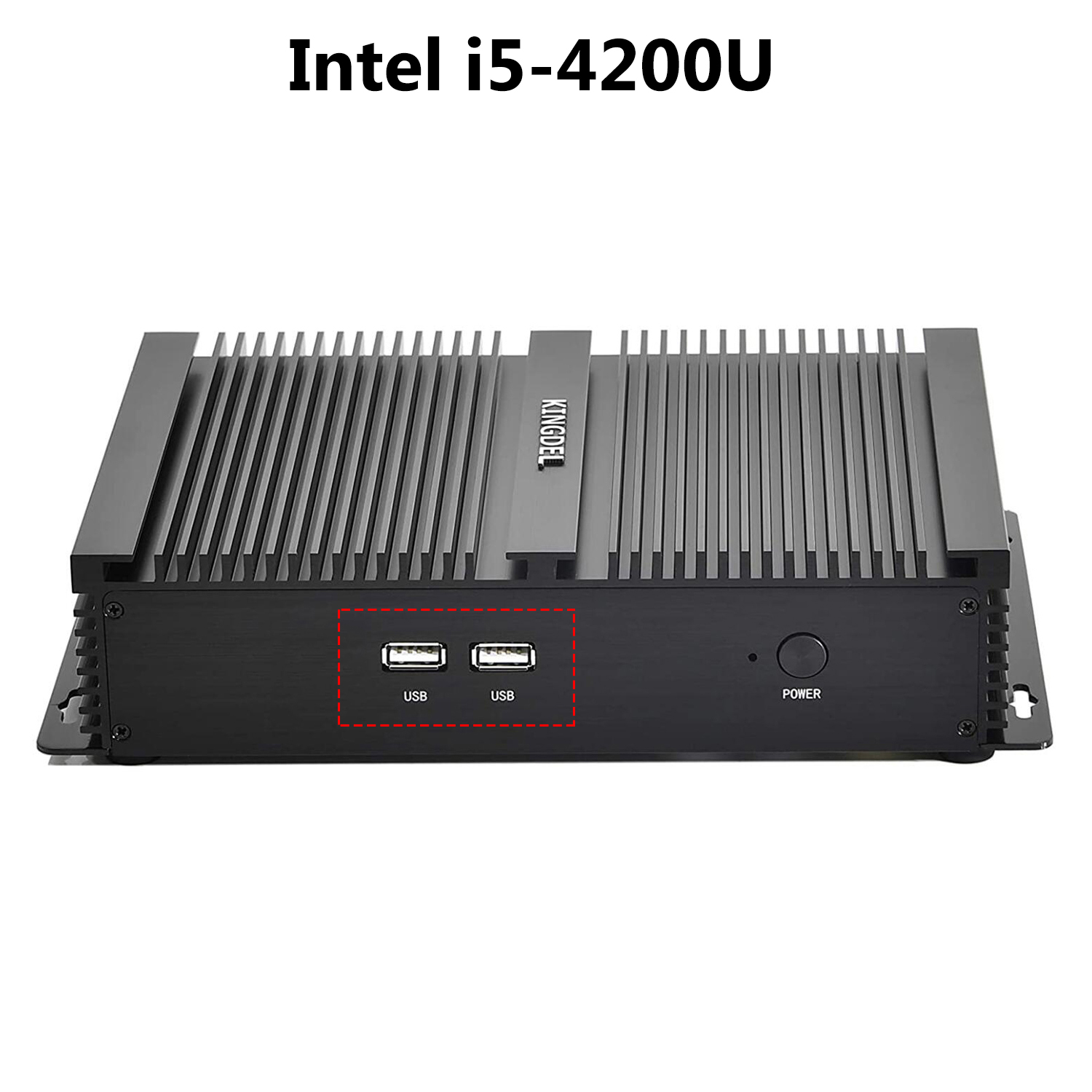

(i5-4200U: 2 x USB2.0, 4 x USB3.0;

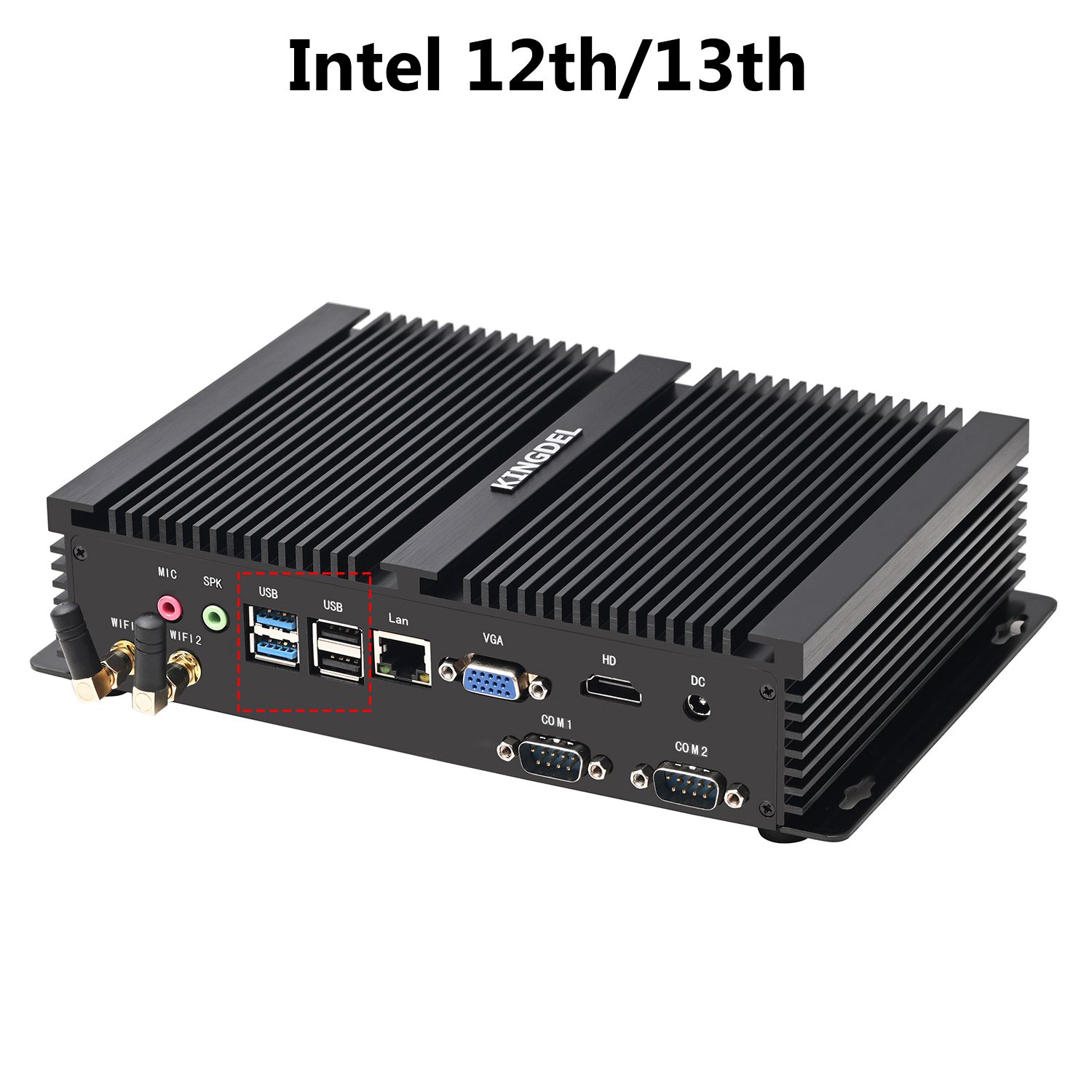

12th&13th: 5 x USB2.0, 2 x USB3.0.)

Display: 1 x VGA, 1 x HDMI
COM: 2 x RS232 COM; LAN: 1 x RJ45 LAN
Audio: 1 x MIC, 1 x SPK
Input: DC100-240V AC/50-60Hz
Output: DC 12V~19V/5A
Operating Temperature: 0°C-70°C(32°F~140°F)
Storage Temperature: -20°C-80°C(-68°F~176°F)
Relative Humidity: 10%~90%(non-condensing)
1 x MINI PCIE Slot for Wifi Module
Dual Antennas
Bluetooth 4.0 optional
Product Dimension Other Features What's in Box
Size: 220mm x 170mm x 45mm
Weight: 1.5~1.65kg
AMI BIOS, ACPI Supported
Support calls on function automatically
Support Wake-On-LAN
1 x Mini PC, 1 x Power Adapter, 1 x Power Cord,
Wi-Fi Antennas, 1 x HDMI Cable, 1 x Screws Bag
Product Application
Industrial Mini PC Business Mini PC Office Mini PC School Mini PC Mini PC
