| Description | CPU | Wireless |

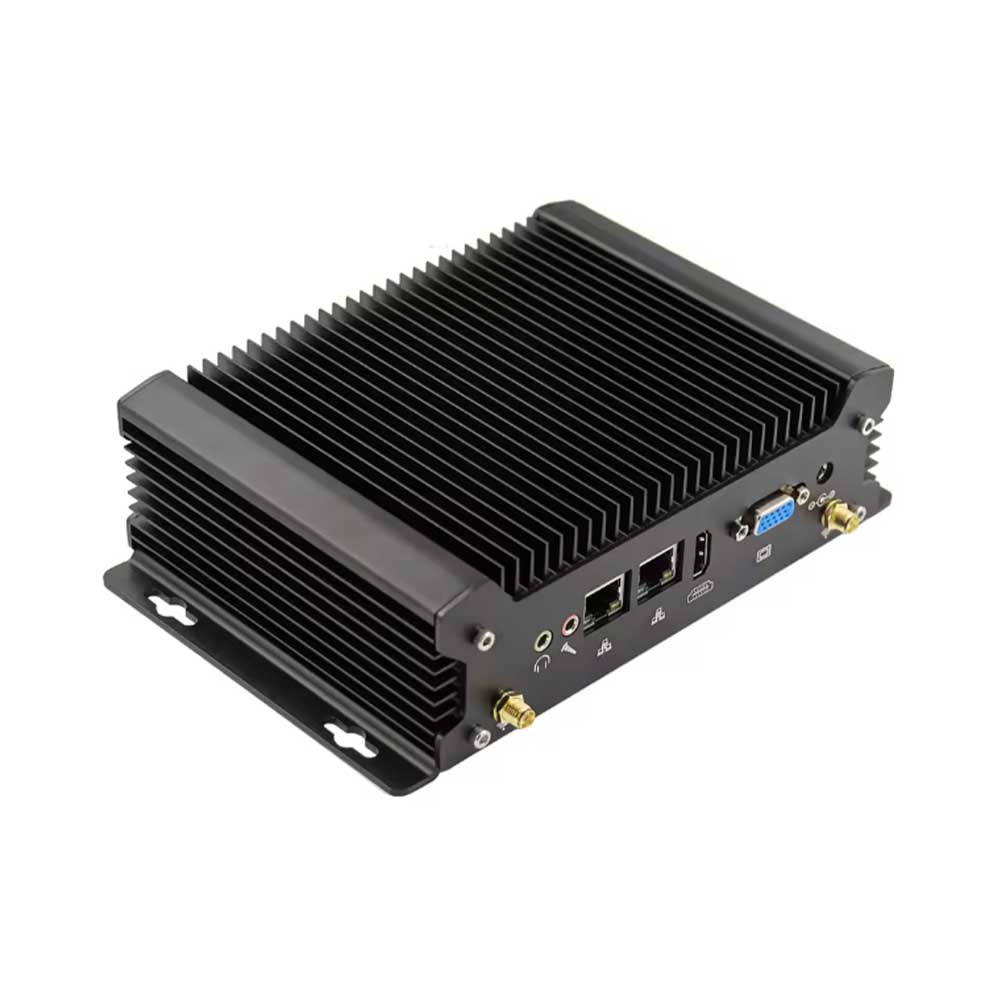

| Model Number: NC3000-2 Type: Fanless, Industrial Material: Metal Case |
1. i3-6167U, i3-1215U 2. i5-7287U, i5-8350U/8365U, i5-1235U, i5-1335U 3. i7-4578U, i7-10710U |

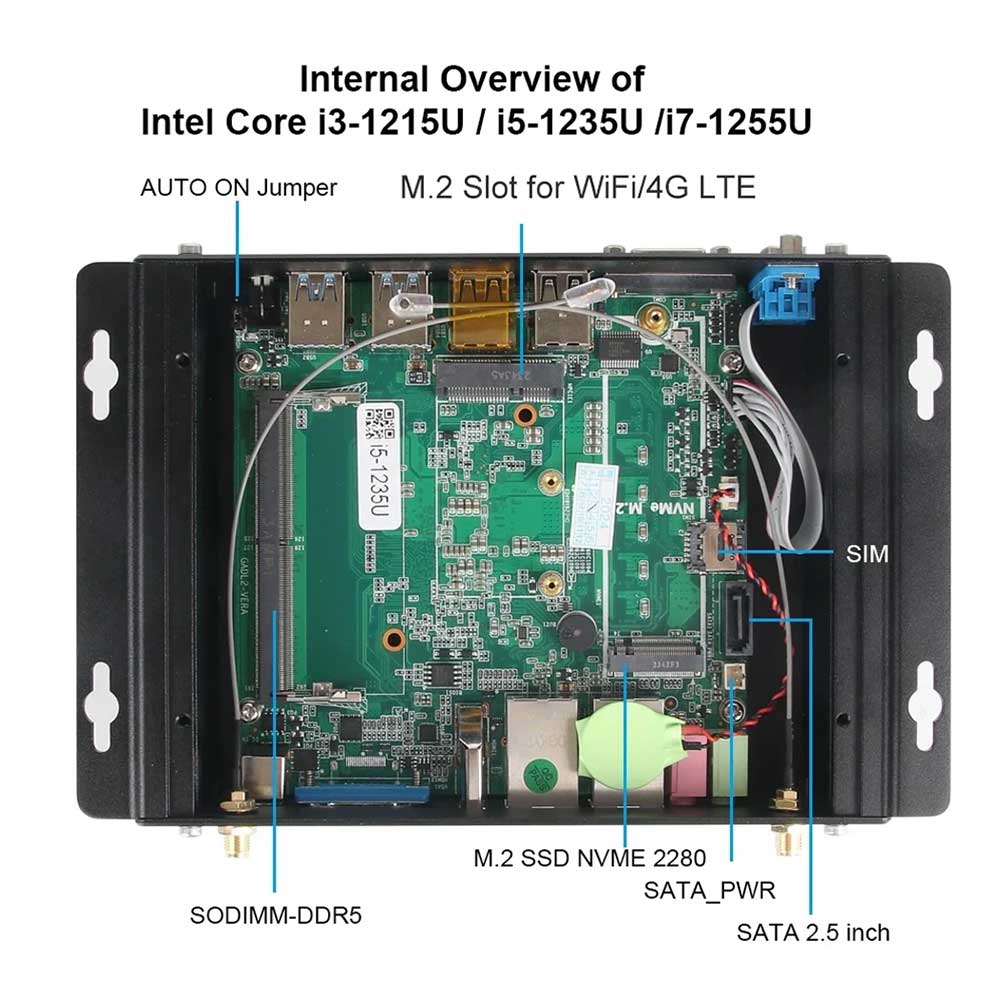

1 x Mini PCIe slot for Wifi/BT/4G/5G LTE; 12th/13th Gen: 1 x M.2 slot for Wifi/BT/4G/5G LTE; 1 x SIM card slot on-board. |
| RAM Memory | SSD Storage | Network |

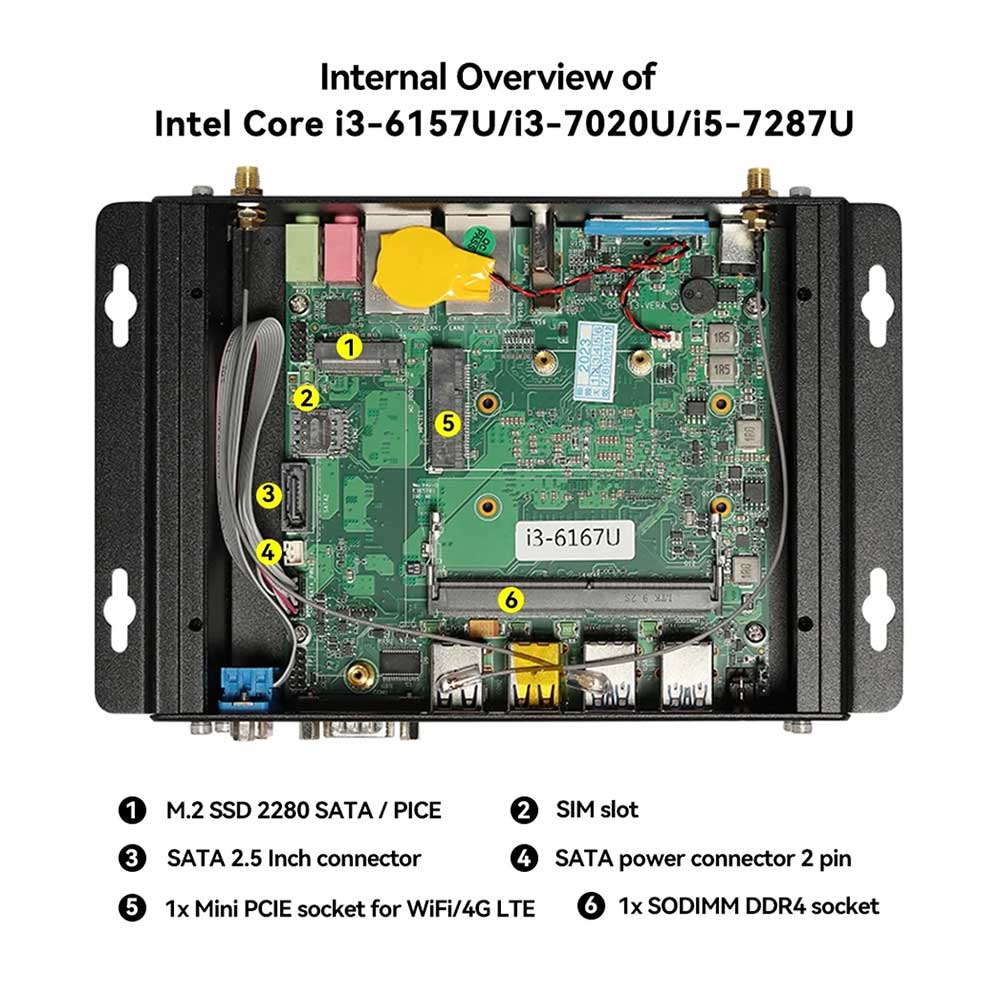

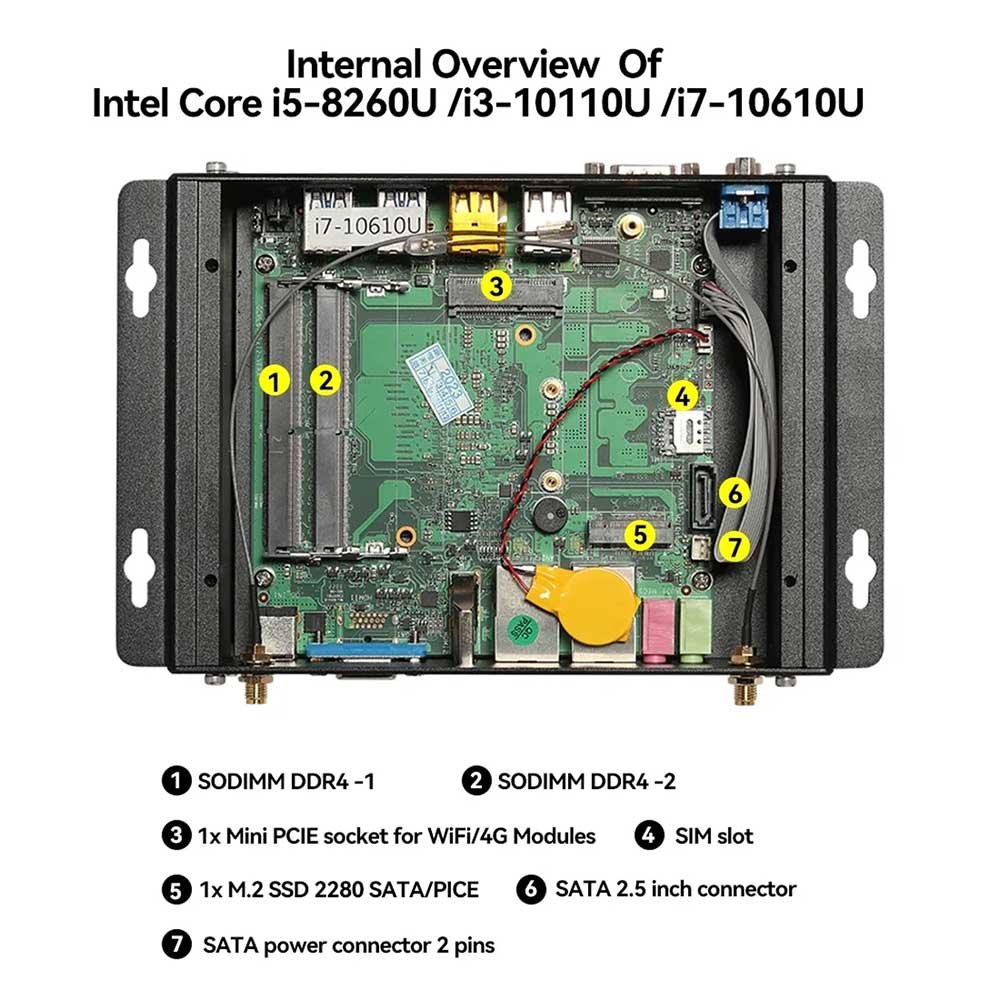

| i7-4578U: 2 x DDR3 SDRAM Memory Slots; i3-6167U/i5-7287U: 1 x DDR4 SO-DIMM Slot; i5-8350U/8365U/i7-10710U: 2 x DDR4 SO-DIMM Slots; i3-1215U/i5-1235U/i5-1335U: 1 x DDR5 SO-DIMM Slot. |
1 x M.2(2280) NVMe Slot 1 x 2.5 inch SATA |
2 x GbE RJ45 Realtek 8111H, Support Wake on LAN, PXE |
| Input/output port | Power & Working Environment | Supported Systems |

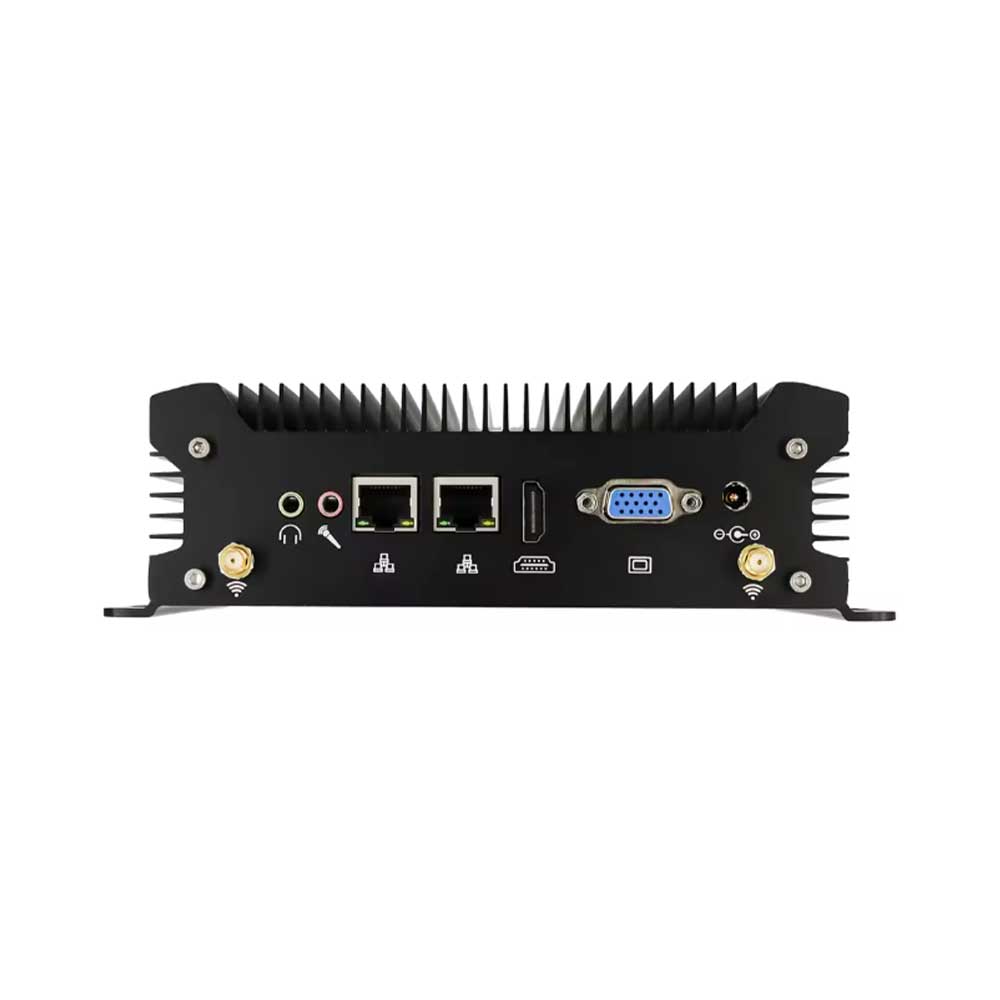

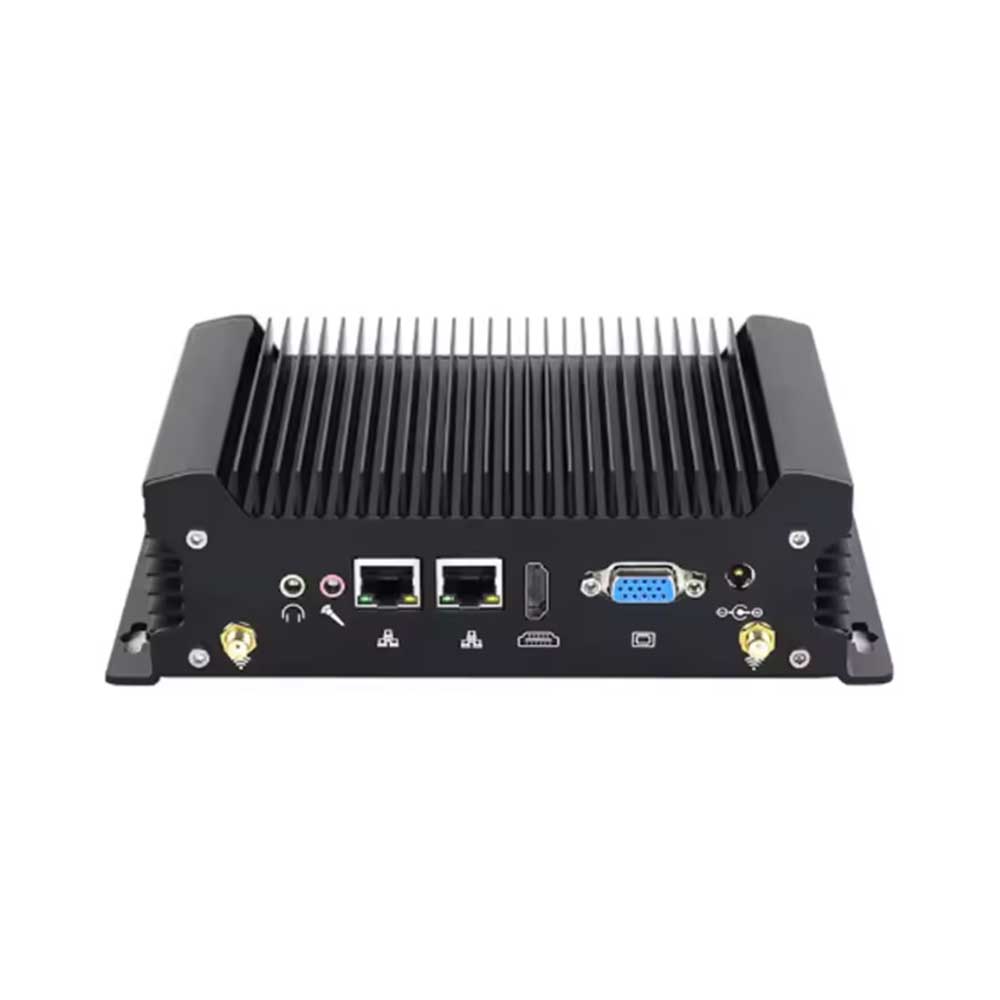

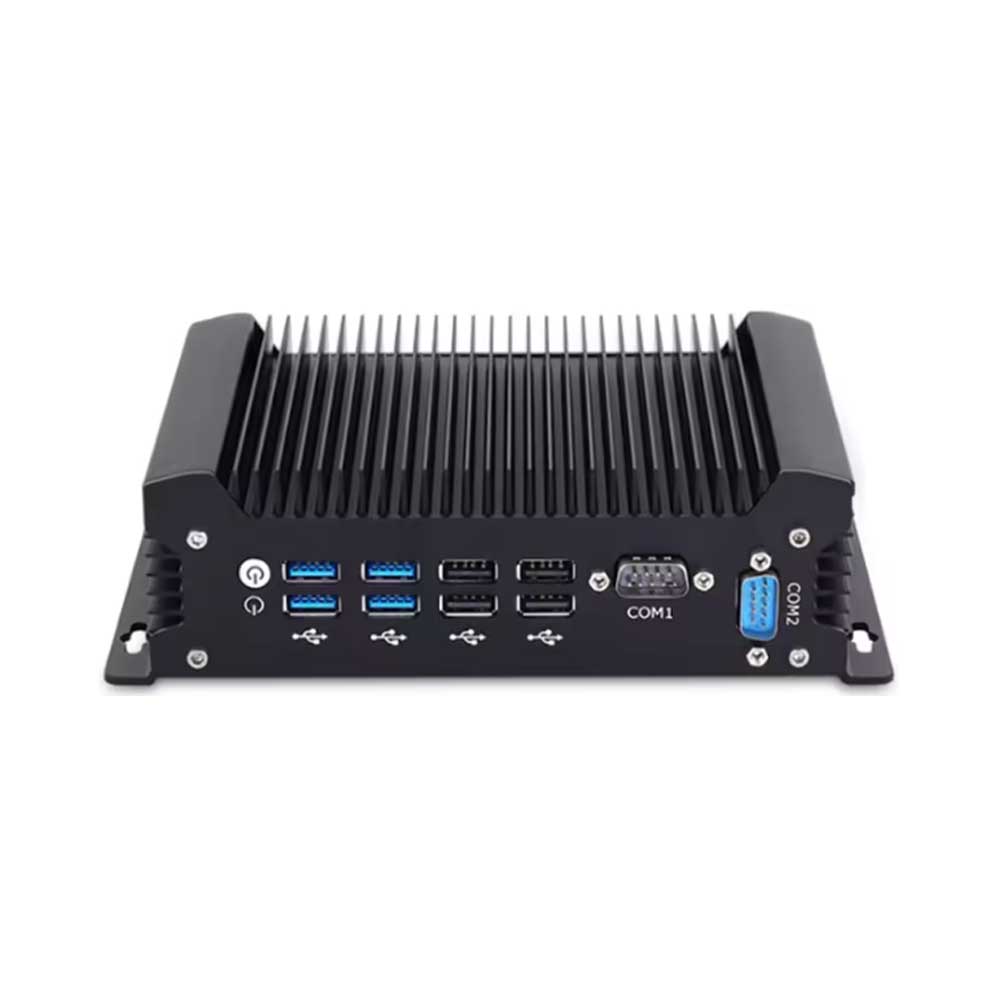

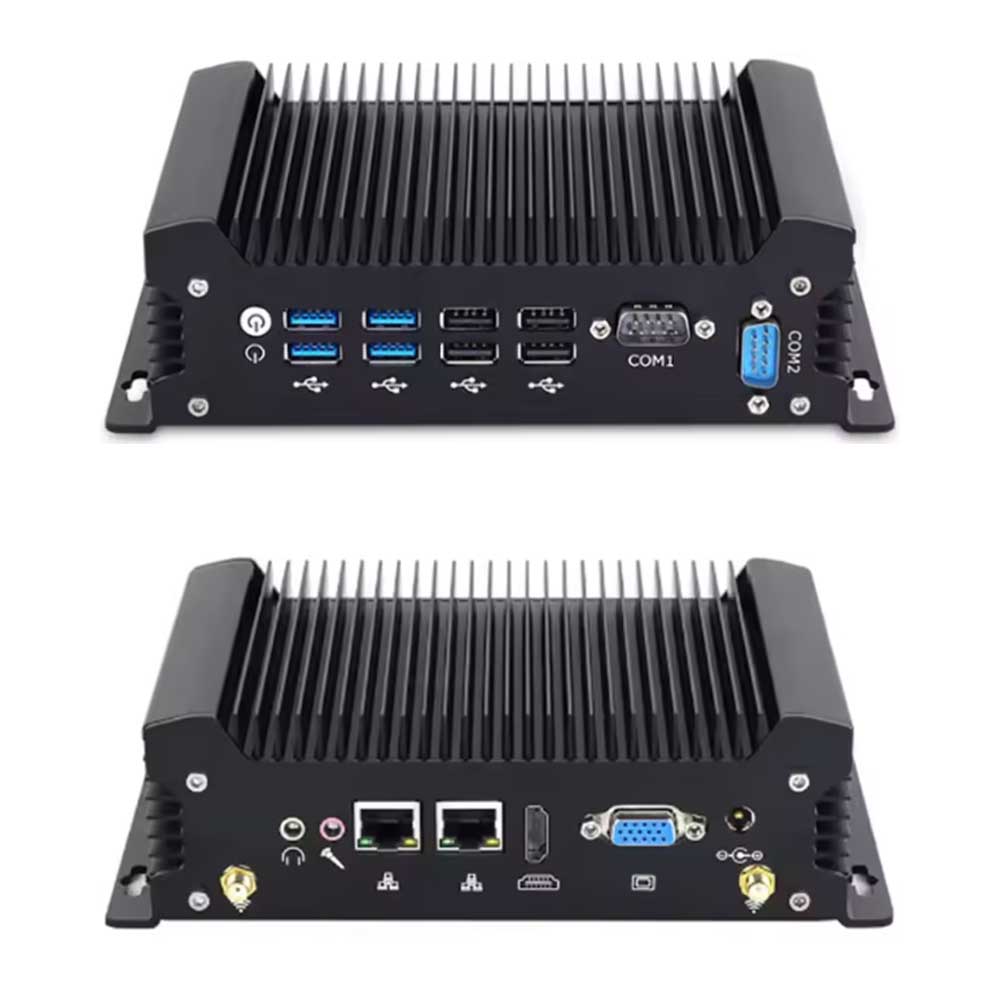

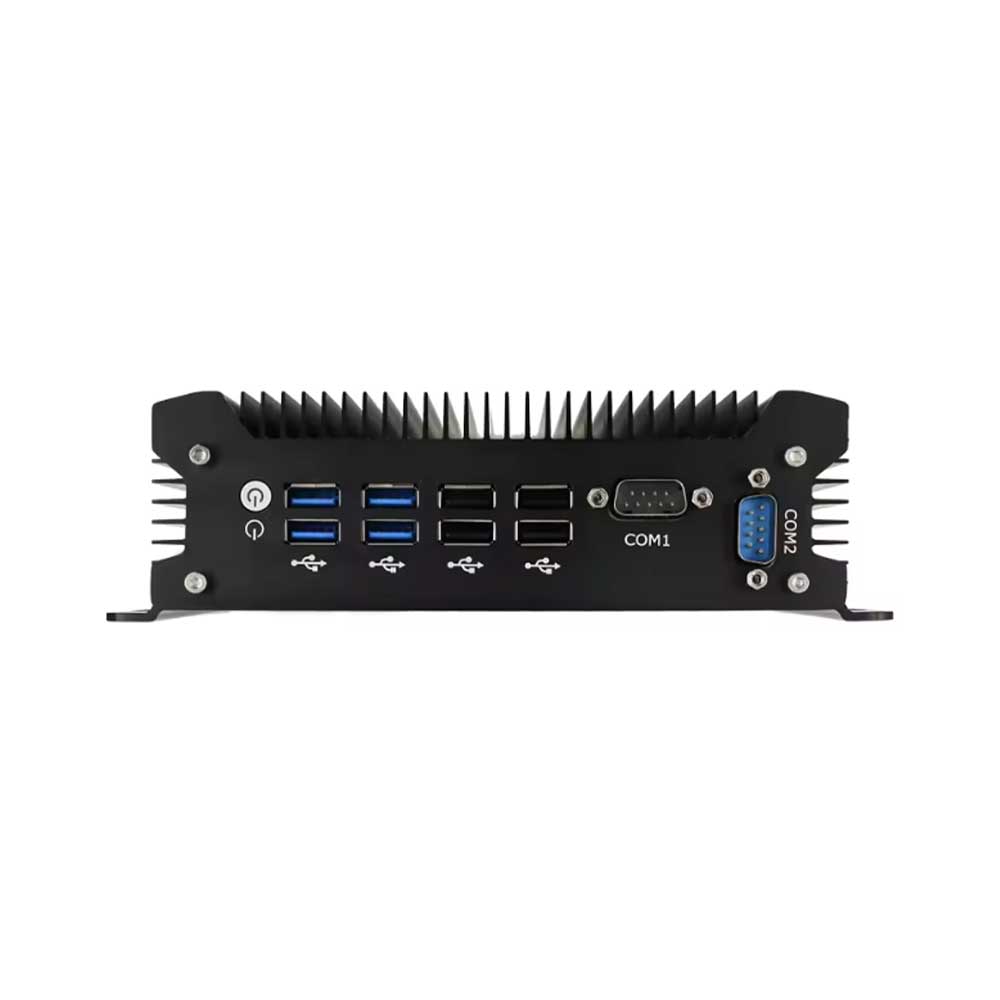

| Switch: 1 x Power On/Off Power: 1 x DC IN USB: 4 x USB2.0, 4 x USB3.0 Display: 1 x VGA, 1 x HDMI COM: 2 x DB9 RS232 COM LAN: 2 x RJ45 LAN Audio: 1 x MIC, 1 x SPK |
Input: DC100-240V AC/50-60Hz Output: DC 12V~19V/5A Operating Temperature: -20°C-60°C Storage Temperature: -30°C-70°C Relative Humidity: 10%~90%(non-condensing) |
Support Windows 10/11/Ubuntu/LINUX |
| Product Dimension | Other Features | What's in Box |
| Size: 193.9mm x 127mm x 57.2mm Weight: 1.0kg |
Support Wake on LAN, PXE, Watchdog, Auto power on after power loss |
1 x Mini PC, 1 x Power Adapter, 1 x Power Cord, Wi-Fi Antennas, 1 x HDMI Cable, 1 x Screws Bag |
