| Description | CPU | GPU |
| Model Number: NC3000-1 Type: Fanless, Industrial Material: Brushed Aluminum Alloy Case |
1. Intel Ultra 5 135U 2. Intel Ultra 7 155U |
1. Intel Ultra 5 135U: 12 cores 14 threads, 12M Cache, up to 4.40GHz. 2. Intel Ultra 7 155U: 12 cores 14 threads, 12M Cache, up to 4.80GHz. |
| RAM Memory | SSD Storage | Network |
| 1 x SO-DIMM DDR5 4800MHz Slot, Max to 32G. | 1 x M.2(2280) NVMe Slot, 1 x SATA3.0 Slot. |
2 x RJ45 Realtek 8111H Gigabit Ethernet |
| Input/output port | Power & Working Environment | Wi-Fi |

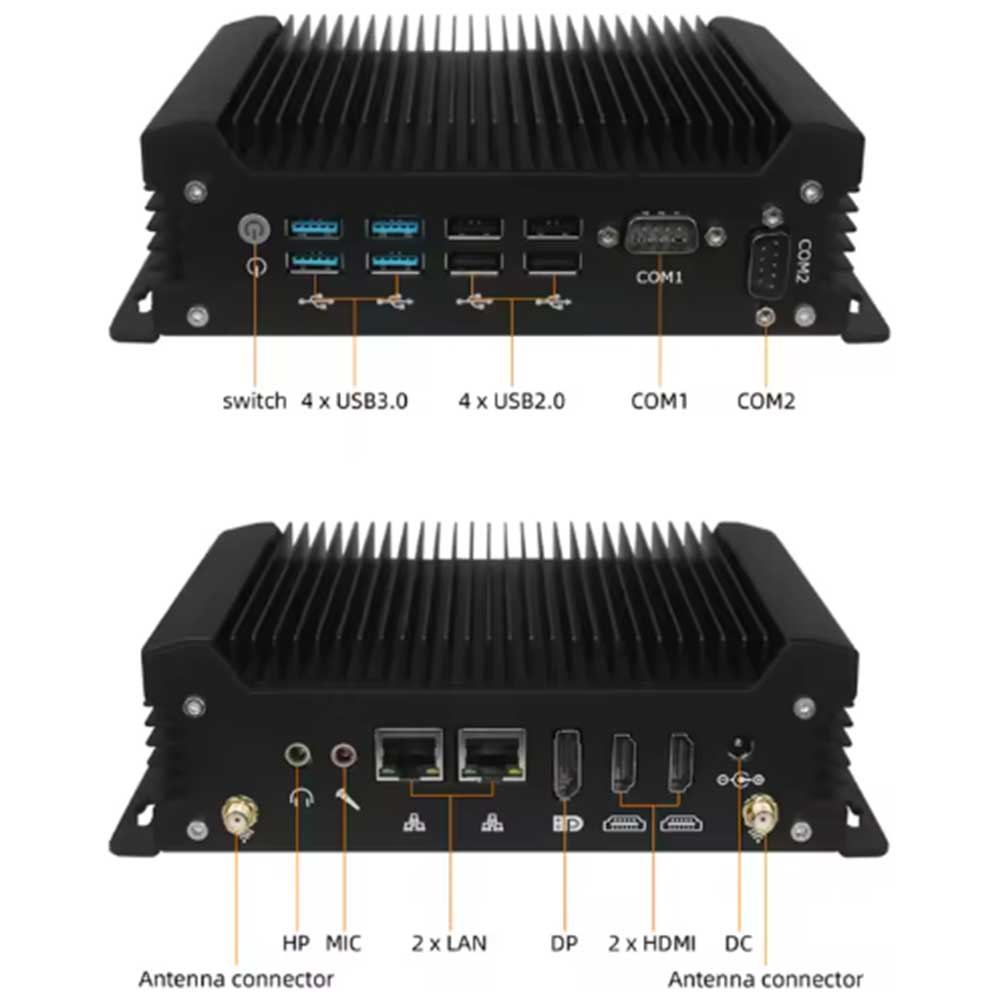

Switch: 1 x Power On/Off Power: 1 x DC IN USB: 4 x USB2.0, 4 x USB3.0 Display: 1 x DP, 2 x HDMI COM: 2 x DB9 RS232 COM LAN: 2 x RJ45 LAN Audio: 1 x MIC, 1 x SPK |
Input: DC100-240V AC/50-60Hz Output: DC 12V~19V/5A Operating Temperature: -20°C-60°C Storage Temperature: -30°C-70°C Relative Humidity: 10%~90%(non-condensing) |
1 x M.2 2230 E Key slot for WiFi/BT module, 1 x M.2 3042/3052 B Key slot for 4G/5G module. |
| Product Dimension | Other Features | What's in Box |

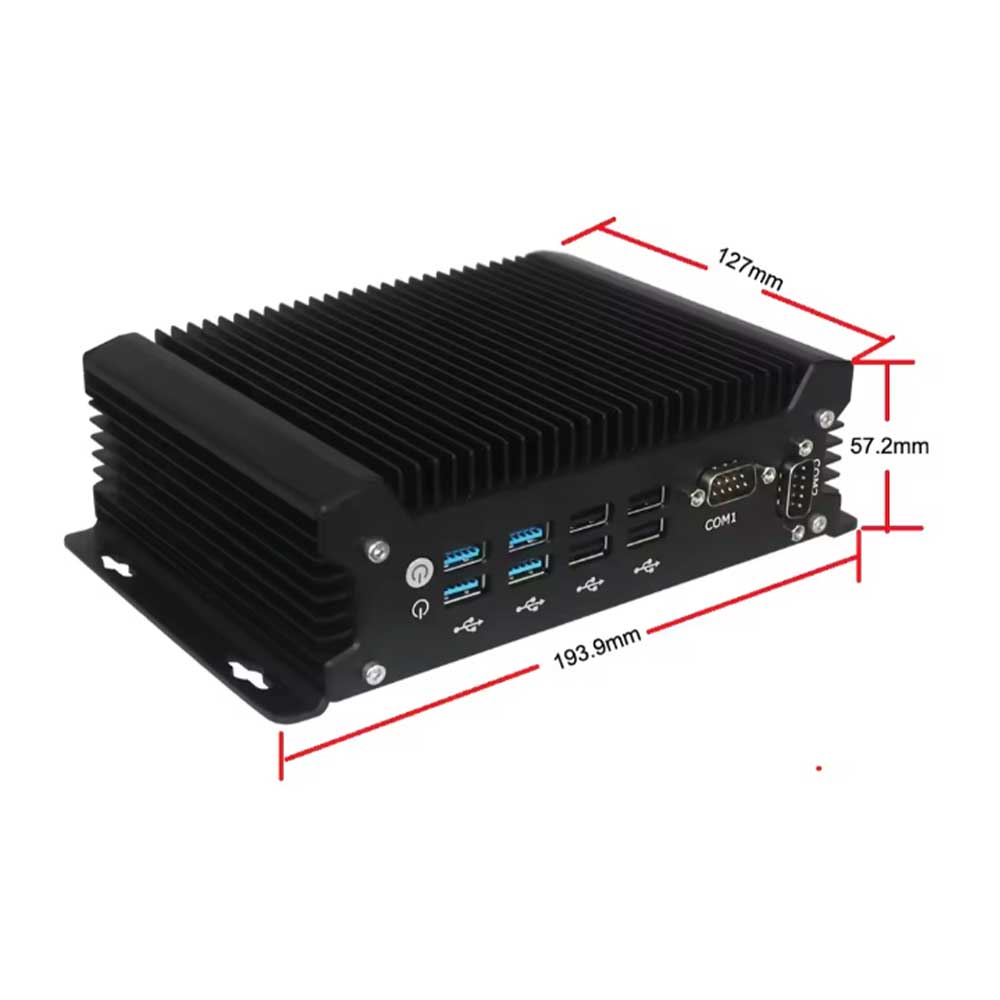

| Size: 193.9mm x 120mm x 57.2mm Weight: 1.0kg |
Support Wake on LAN, PXE boot, Watchdog, Auto power on after power loss automatically. |
1 x Mini PC, 1 x Power
Adapter, 1 x Power Cord, Wi-Fi Antennas, 1 x HDMI Cable, 1 x Screws Bag |
