| Description | CPU | Multimedia Instruction Set |

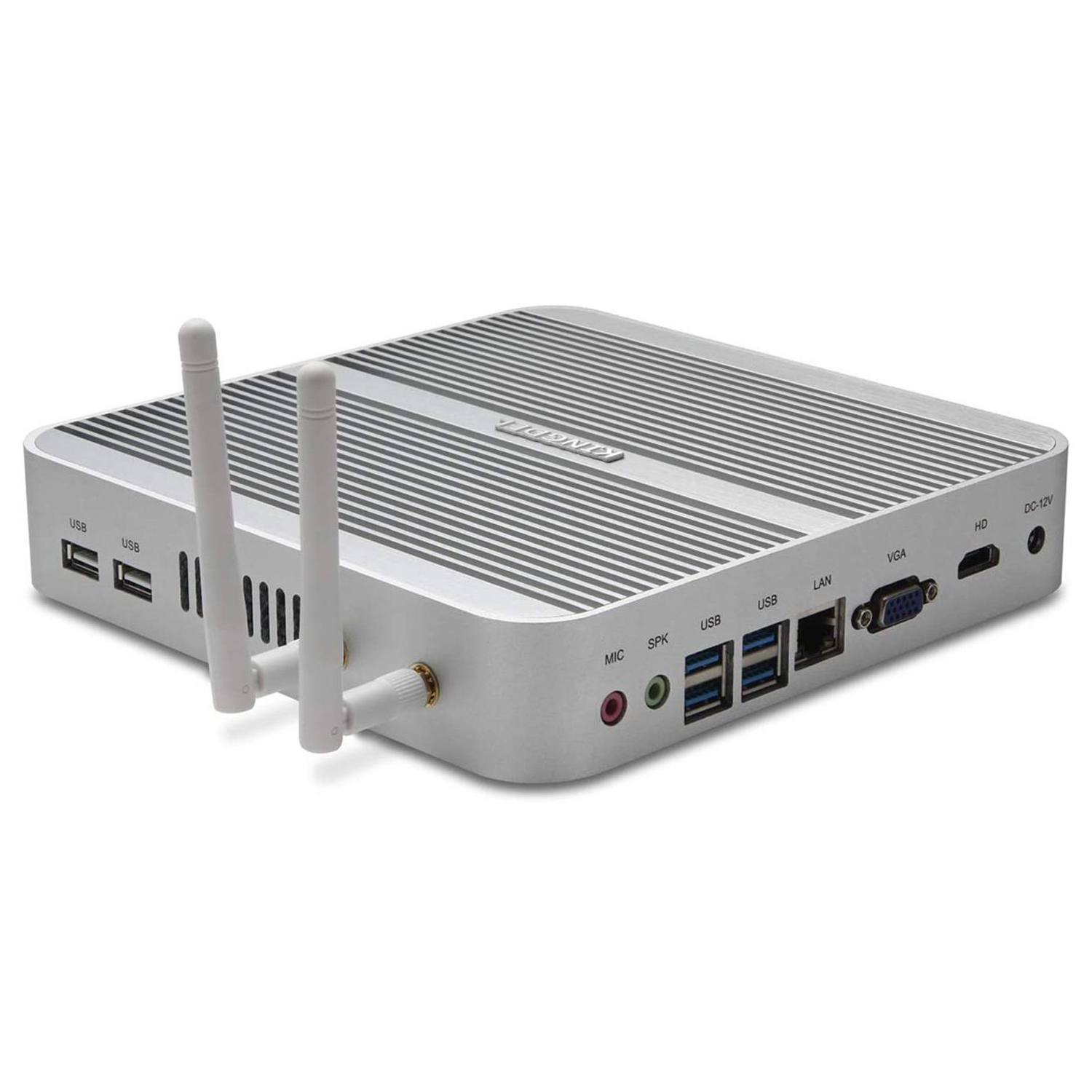

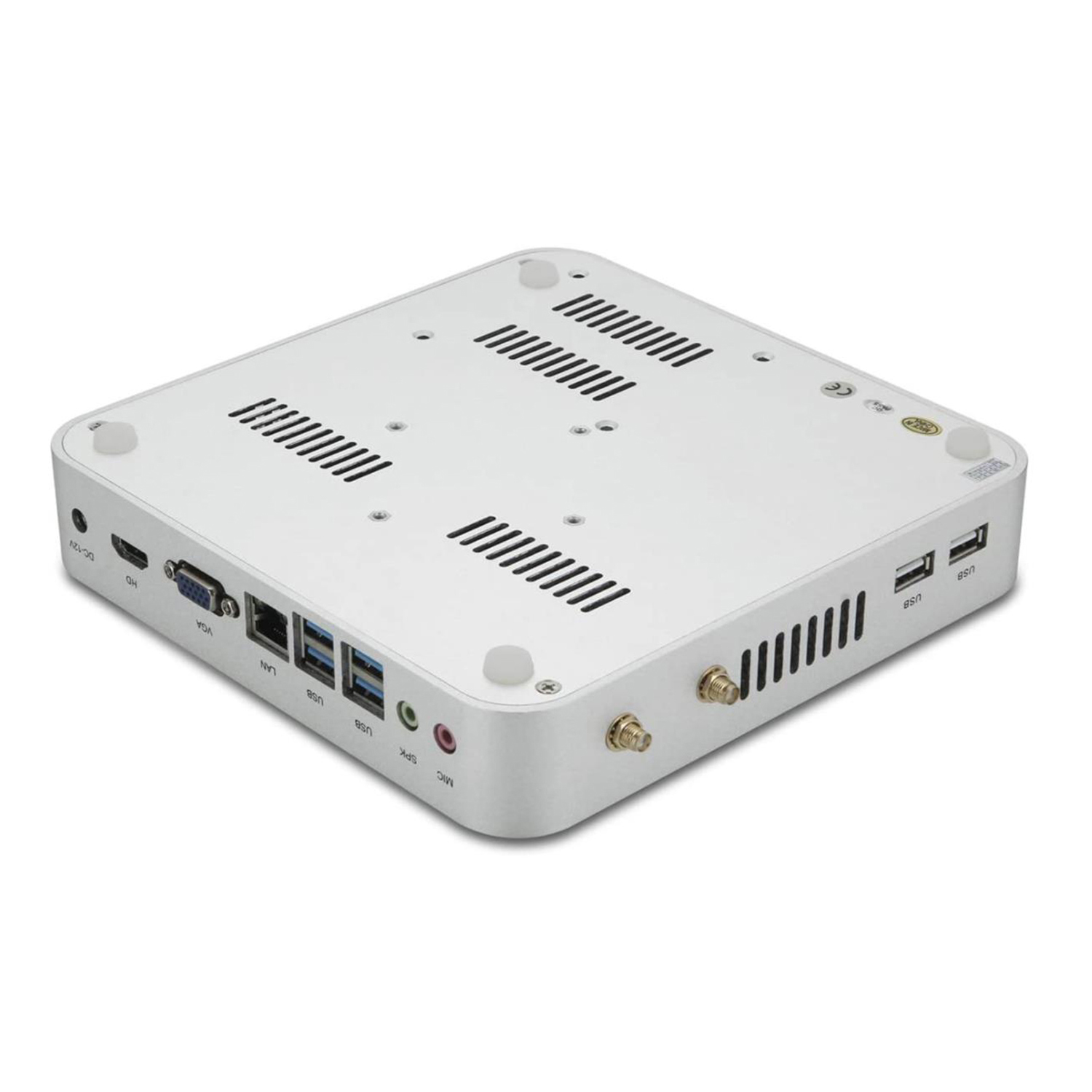

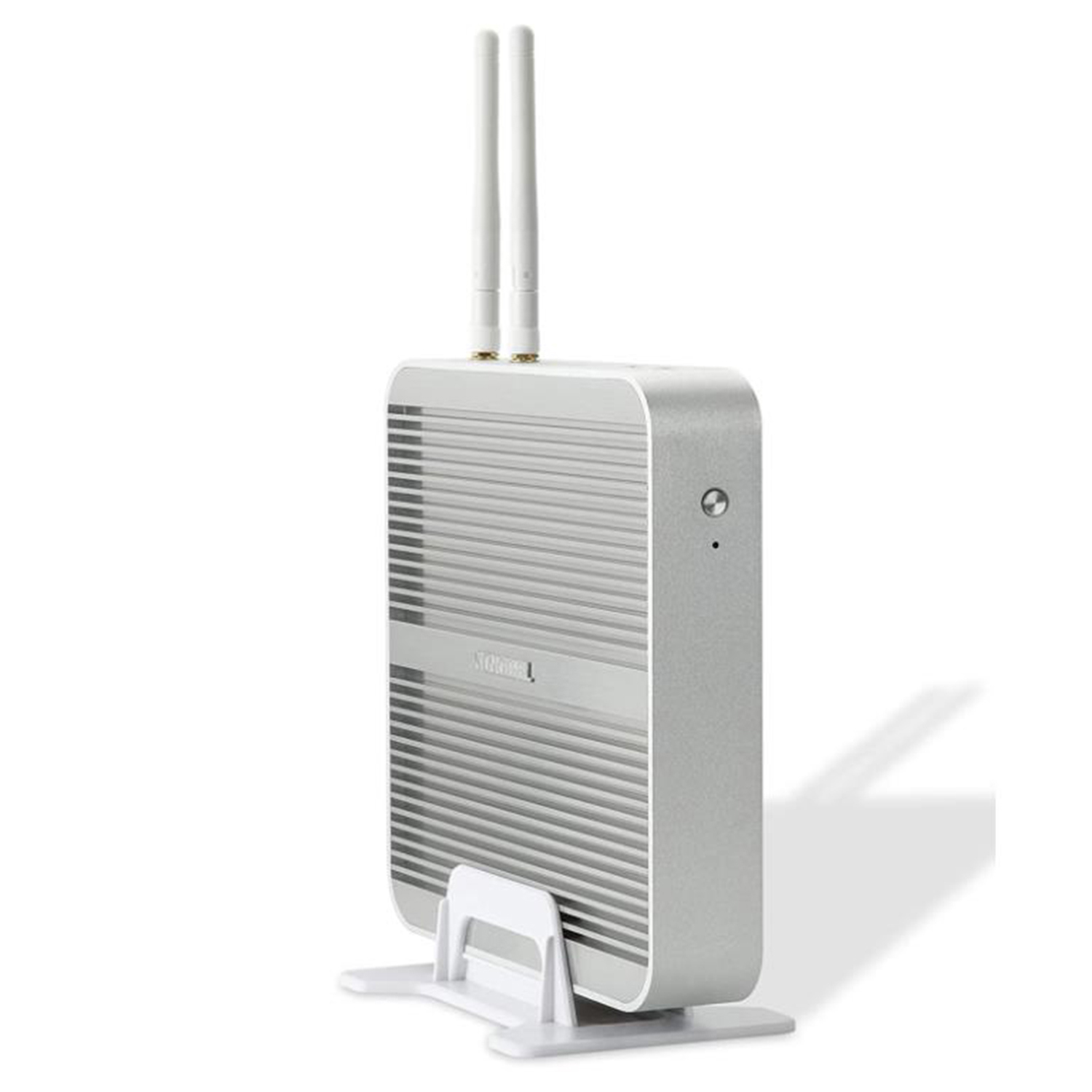

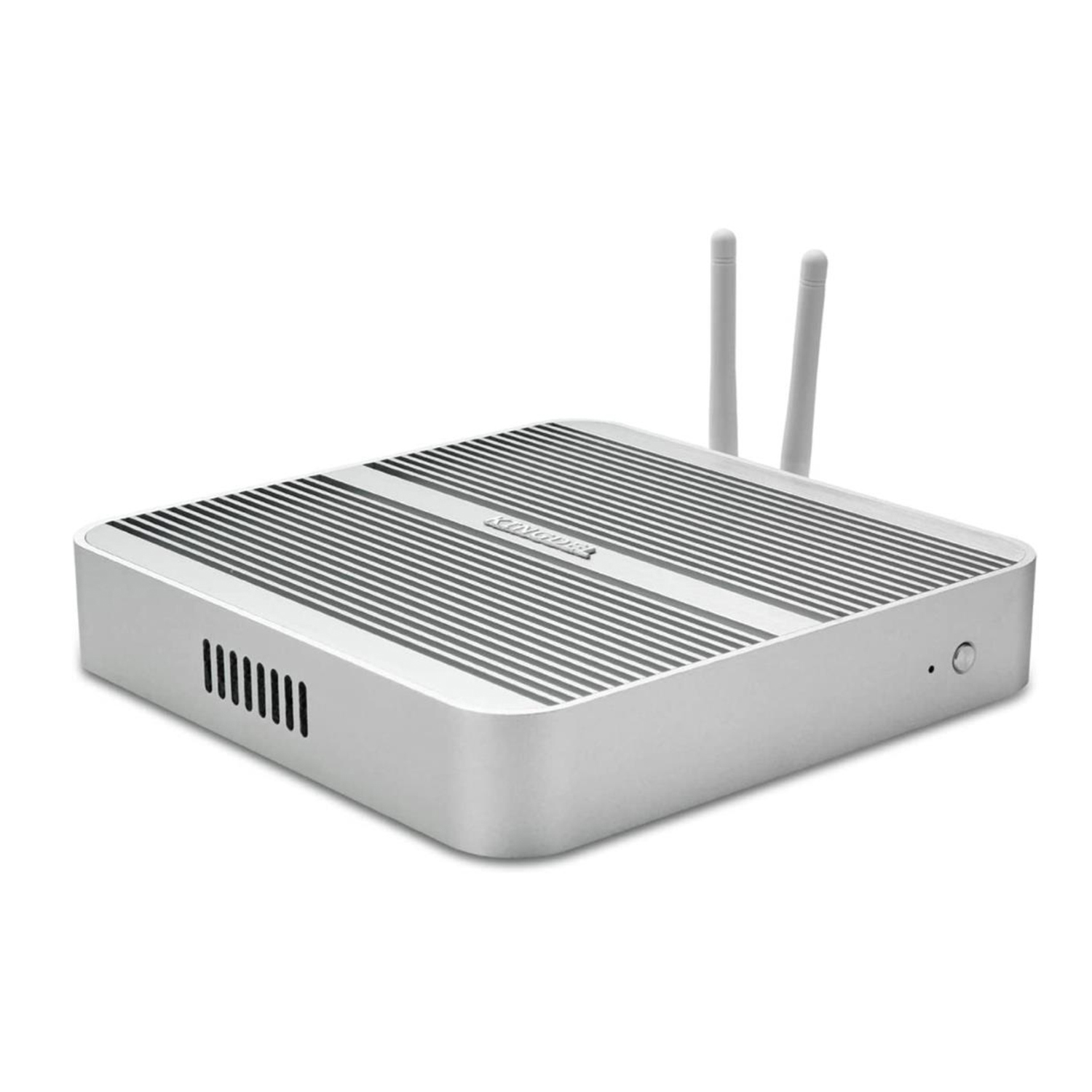

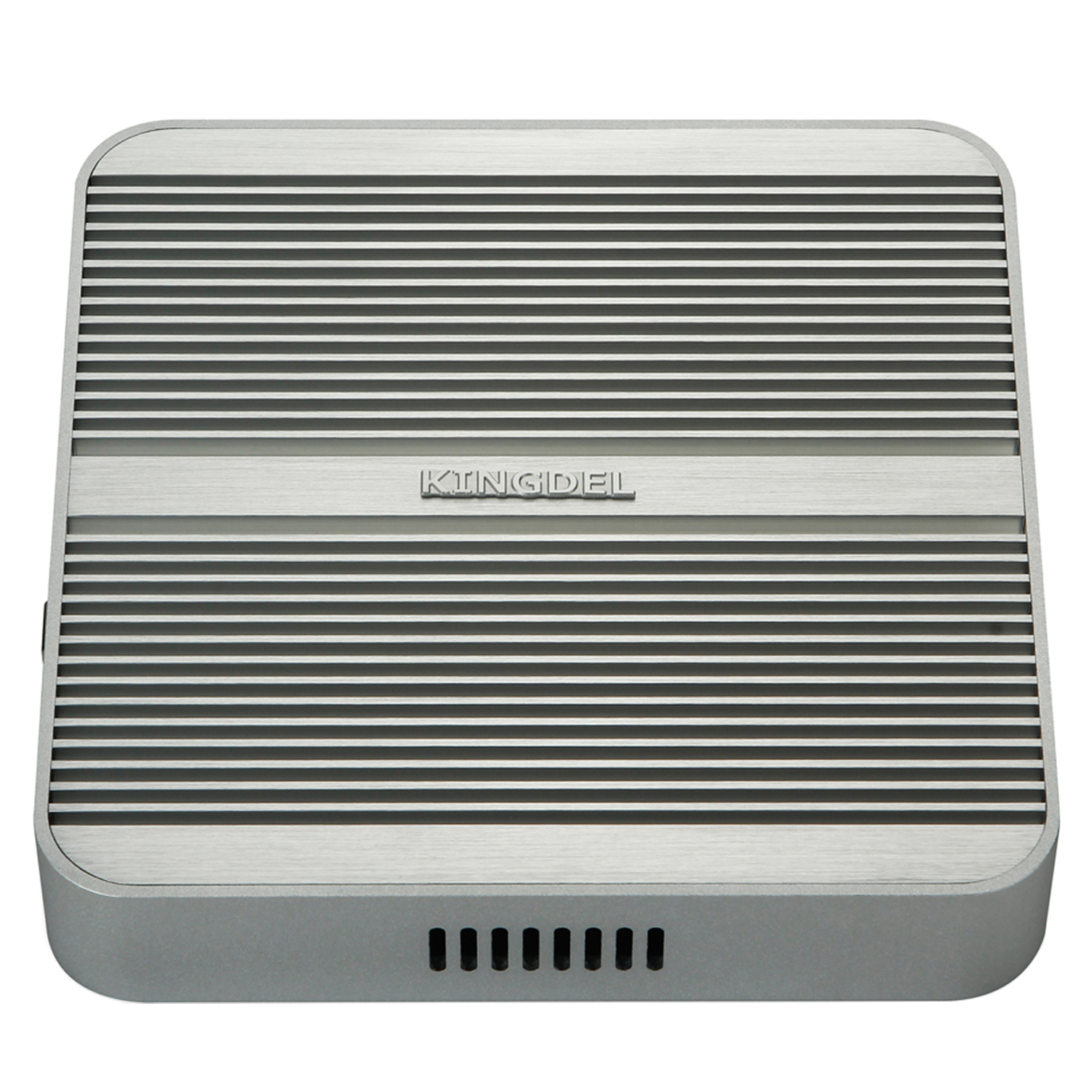

| Model Number: NC240 Type: Fanless, Silent Working Material: Metal Case |
1. Intel i3-5005U 2. Intel i5-4200U, i5-5250U |
MMX, SSE, SSE2, SSE3, SSSE3, SSE4.1, SSE4.2, EM64T, EIST |
| RAM Memory | SSD Storage | Network |
| 2 x DDR3 RAM Slots, Max to 16G | Support both mSATA and SATA Drives |
RTL8111DL PCI-E Gigabit Ethernet NIC Ethernet: 10/100/1000 BaseT LAN |
| Input/output port | Power & Working Environment | Wi-Fi |
| Switch: 1 x Power On/Off Power: 1 x DC IN; LED: 1 x LED USB: 2 x USB2.0, 4 x USB3.0 Display: 1 x HDMI, 1 x VGA LAN: 1 x RJ45 Gigabit LAN Audio: 1 x MIC, 1 x SPK |
Input: DC100-240V AC/50-60Hz Output: DC 12V/3A Operating Temperature: 0°C-70°C(32°F~140°F) Storage Temperature: -20°C-80°C(-68°F~176°F) Relative Humidity: 10%~90%(non-condensing) |
Dual antenna, 802.11.b/g/n(150M or 300M) |
| Product Dimension | Other Features | What's in Box |
| Size: 197mm x 197mm x 29mm Weight: 1.3kg |
Audio Card: ALC662 sound chip, 6-channel Anti-shocking, Zero noise |
1 x Mini PC, 1 x Power
Adapter, 1 x Power Cord, 1 x HDMI Cable, 1 x Stand Bracket, Wi-Fi Antennas, 1 x Screws Bag |
