NC1037
Product Information
Description CPU Motherboard
Model Number: NC1037
Type: Fanless, Industrial
Material: Metal Case
1. Intel i5-3317U
2. Celeron 1007U/1037U
170 x 120mm customized size
RAM Memory SSD Storage Network
1 x SO-DIMM DDR3L Slot
Support 4GB/8GB DDR3L,
DDR3L-1600, DD3L-1333,
LPDDR3-1600, LPDDR3-1333
1 x M-SATA3.0 slot for MSATA SSD, support 6Gb/s;
1 x SATA3.0 slot for SATA HDD or SSD, support 6Gb/s
Onboard Realtek
RTL8168/8111/8112 PCI-E Gigabit Ethernet NIC
10/100Mbps/1000Mbps
BaseT LAN Adaptive

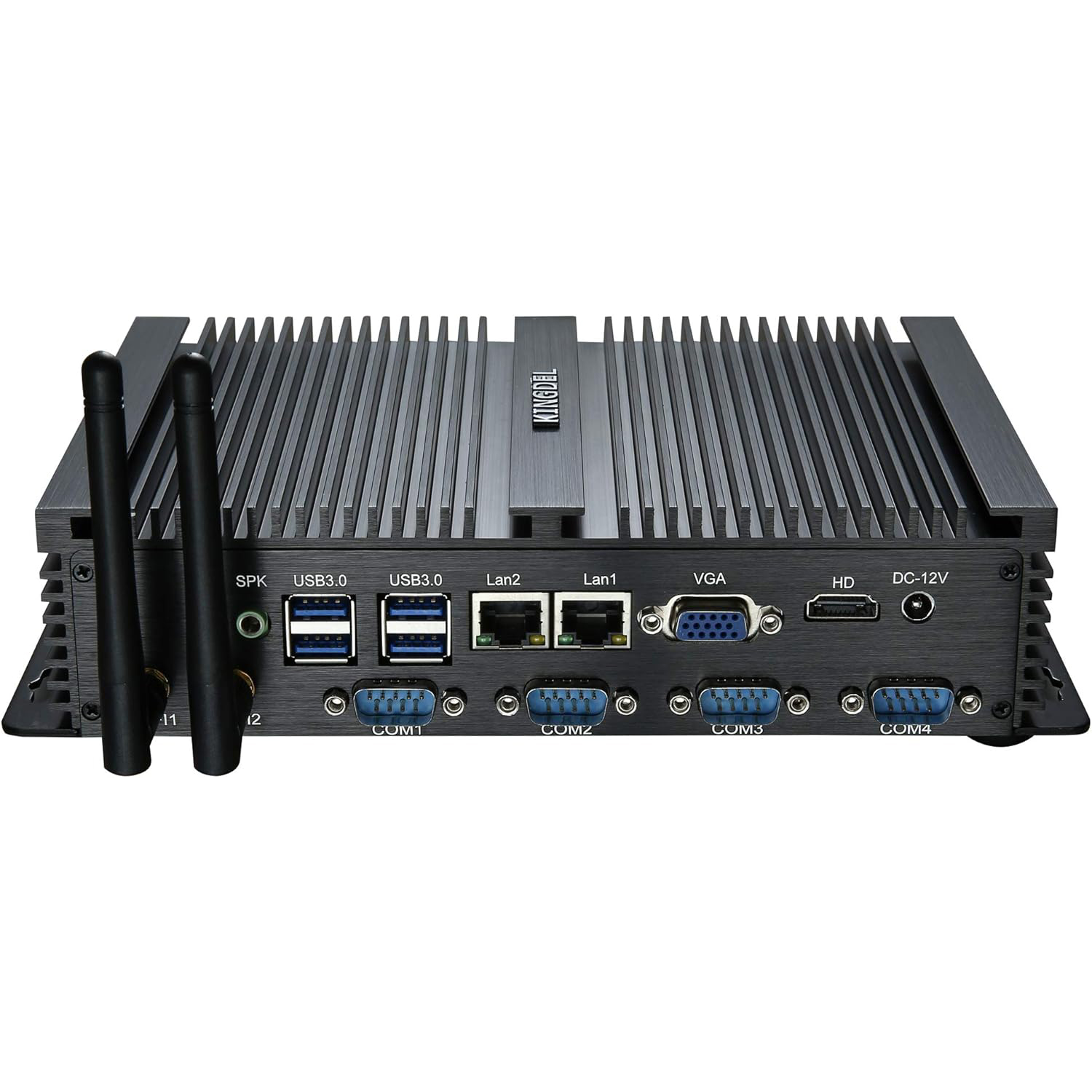

Input/output port Power & Working Environment Wi-Fi
Switch: 1 x Power On/Off
Power: 1 x 12V DC In; LED: 1 x LED
USB: 4 x USB2.0, 4 x USB3.0
Display: 1 x VGA, 1 x HDMI
LAN: 2 x RJ45 Giga LAN
COM: 4 x RS232 COM
Audio: 1 x MIC, 1 x SPK
Input: DC100-240V AC/50-60Hz
Output: DC 12V/5A
Operating Temperature: 0°C-70°C(32°F~140°F)
Storage Temperature: -20°C-85°C
Relative Humidity: 10%~85%(non-condensing)
Module: 1 x mini PCIE-half port for Wi-Fi module
Antenna: 2 x inner RF cables and 2 x external antennas
Product Dimension Other Features What's in Box
Size: 234*150*50mm
Weight: Net 1.8kg, Gross 2.1kg
Calls on function automatically, Wake-On-LAN 1 x Mini PC, 1 x Power Adapter, 1 x Power Cord,
Wi-Fi Antennas, 1 x HDMI Cable, 1 x Screws Bag
Product Application
Industrial Mini PC Business Mini PC Office Mini PC School Mini PC Mini PC
