M6S
Product Information
Description CPU GPU
Model Number: M6S
Type: Cooling Fan
Intel Celeron Processor N Series N5105,
4 Cores/4 Threads, 4M Smart Cache,
10W TDP, 10nm Lithography.
Intel UHD Graphics, Support 4K at 60Hz,
450MHz Graphics Base Frequency,
800MHz Graphics Burst Frequency.
RAM Memory SSD Storage Network
1 x Memory Channel, Max Memory Size (dependent on memory type) 8GB; DDR4 Memory Types 1 x SSD Slot, Support M.2 2242 (PCIE/NVMe/Sata). Built in Intel AC7265/2.4G/5G(WiFi5), BT4.2.

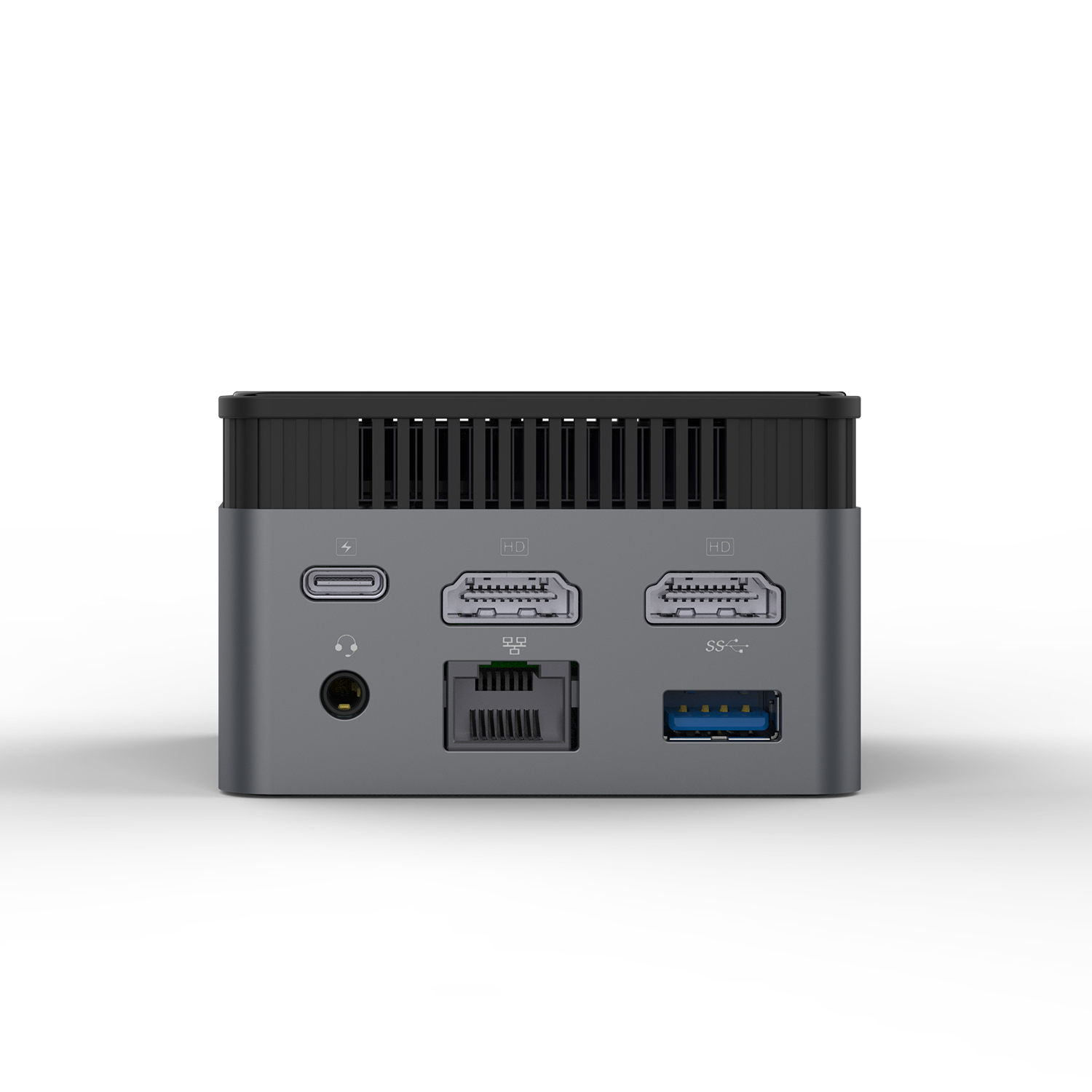

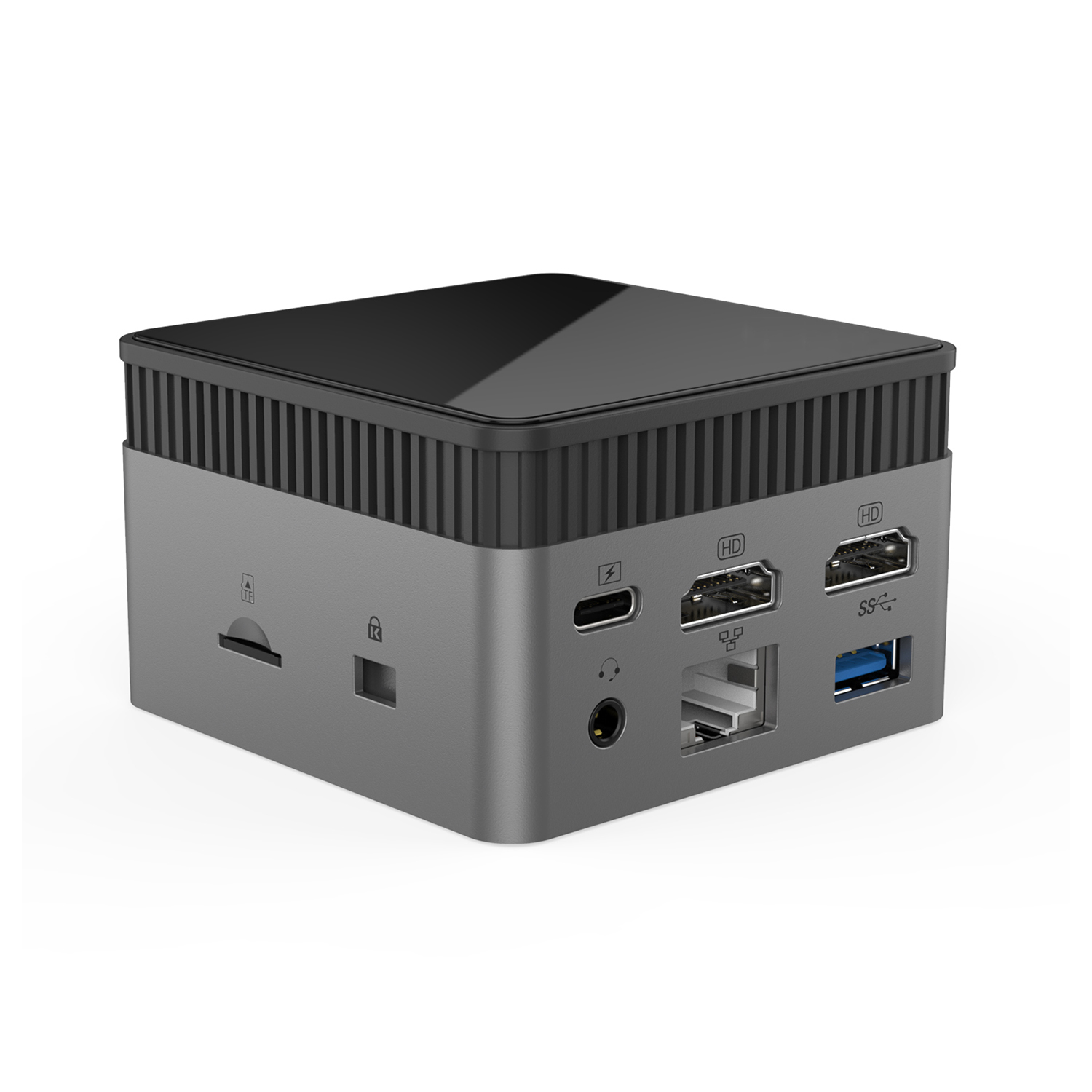

Input/output port Power Supply Dual Display
Switch: 1 x Power On/Off
Power: 1 x DC IN
USB: 3 x USB3.0
Display: 2 x HDMI
LAN: 1 x RJ45 LAN
Audio: 1 x MIC/SPK
Other: 1 x Type-C, 1 x TF
Input: DC100-240V AC/50-60Hz
Output: DC 12V/2A
Support 4K at 60Hz,
Max Resolution(HD): 4096x2160@60Hz.
Product Dimension Other Features What's in Box
Size: 72mm x 72mm x 45mm
Weight: 125g
Small Size, Lightweight, Fashionable 1 x Mini PC, 1 x Power Adapter,
1 x Power Cord, 1 x HDMI Cable, 1 x Screws Bag
Product Application
Desktop Computer Business Mini PC Office Mini PC School Mini PC Mini PC
