| Description | CPU | Other Function |

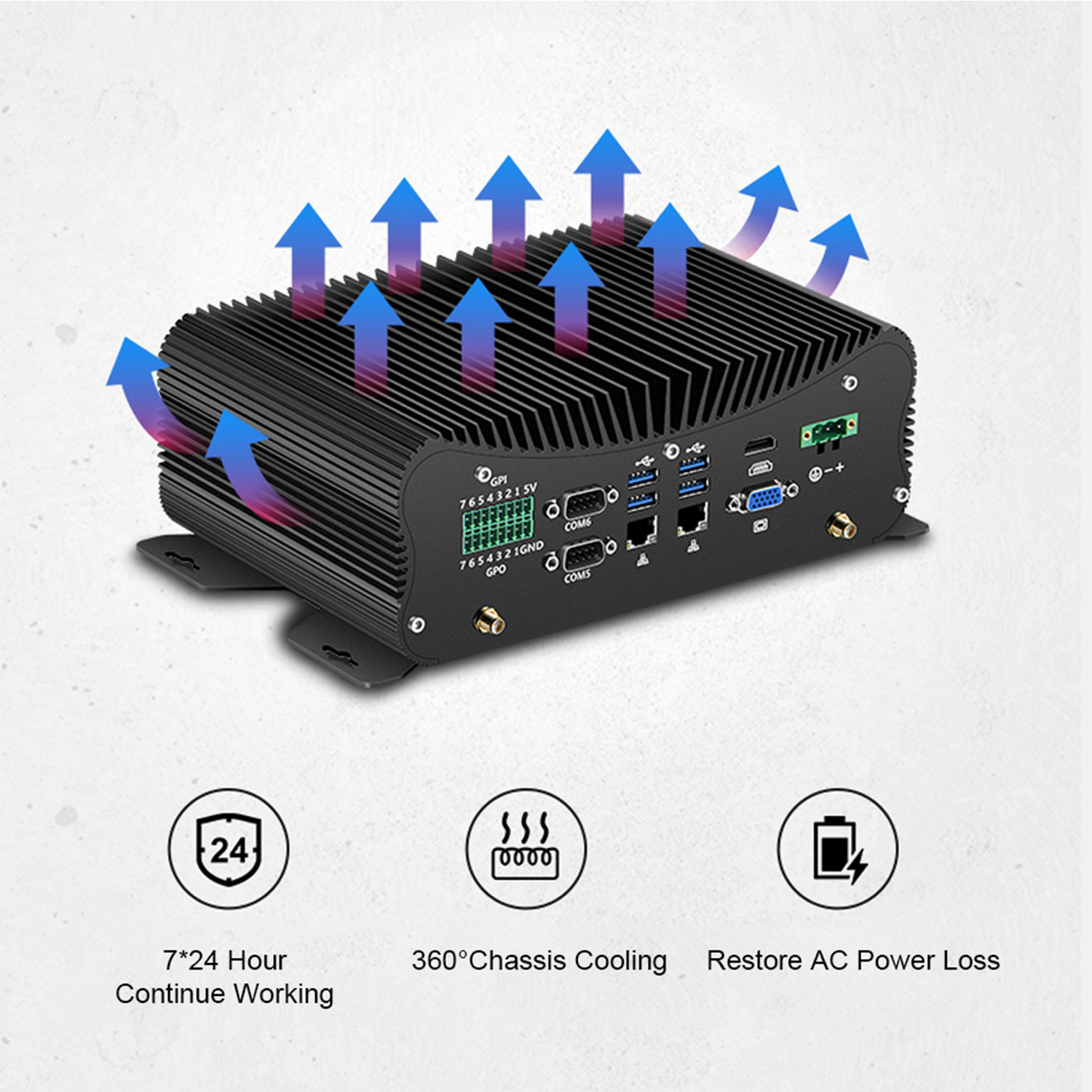

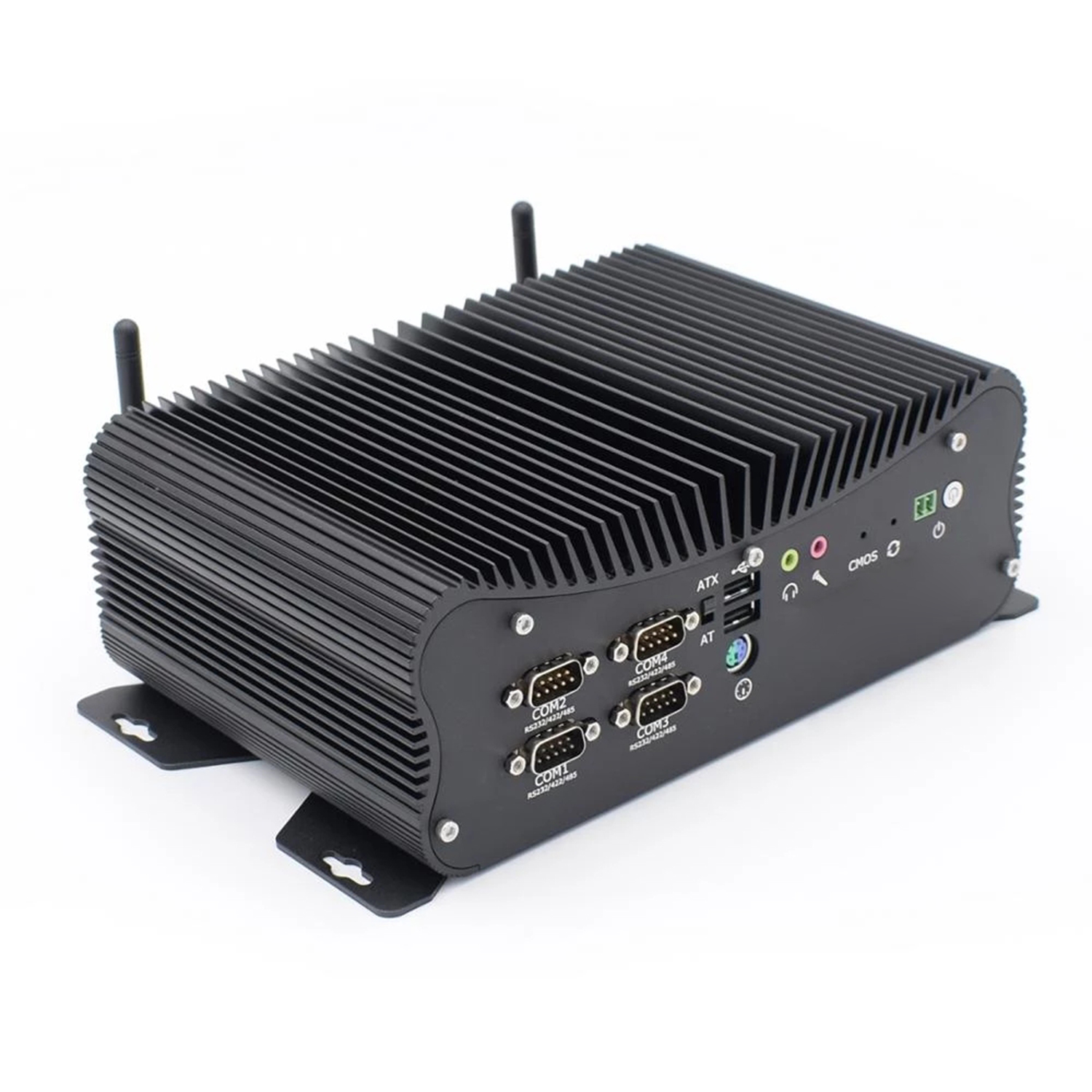

| Model Number: K9 Type: Fanless, Silent Working, Industrial Material: Aluminum Alloy Structure Case |
1. Intel Core i5-7267U, i5-8250U 2. Intel Core i7-8565U/i7-8569U 3. Intel Core i7-10510U |
Watch dog, one key restore, non-disk booting, wake up on LAN, automatically power on after power restore. |
| RAM Memory | SSD Storage | Product Dimension |
i5-7267U/i5-8250U: 2 x SO-DDR4 SDRAM memory slots, up to 16GB; i7-8565U/i7-8569U: 2 x SO-DDR4 SDRAM memory slots, up to 32GB; i7-10510U: 2 x SO-DDR4 SDRAM memory slots, up to 64GB. |
1 x mSATA SSD, 1 x M.2 NVME 2280 ( PCIe ), 1 x 2.5 inch HDD/SSD. |
Size: 249mm x 150mm x 86mm Weight: 2.2kg |
| Input/output port | Power & Working Environment | What's in Box |

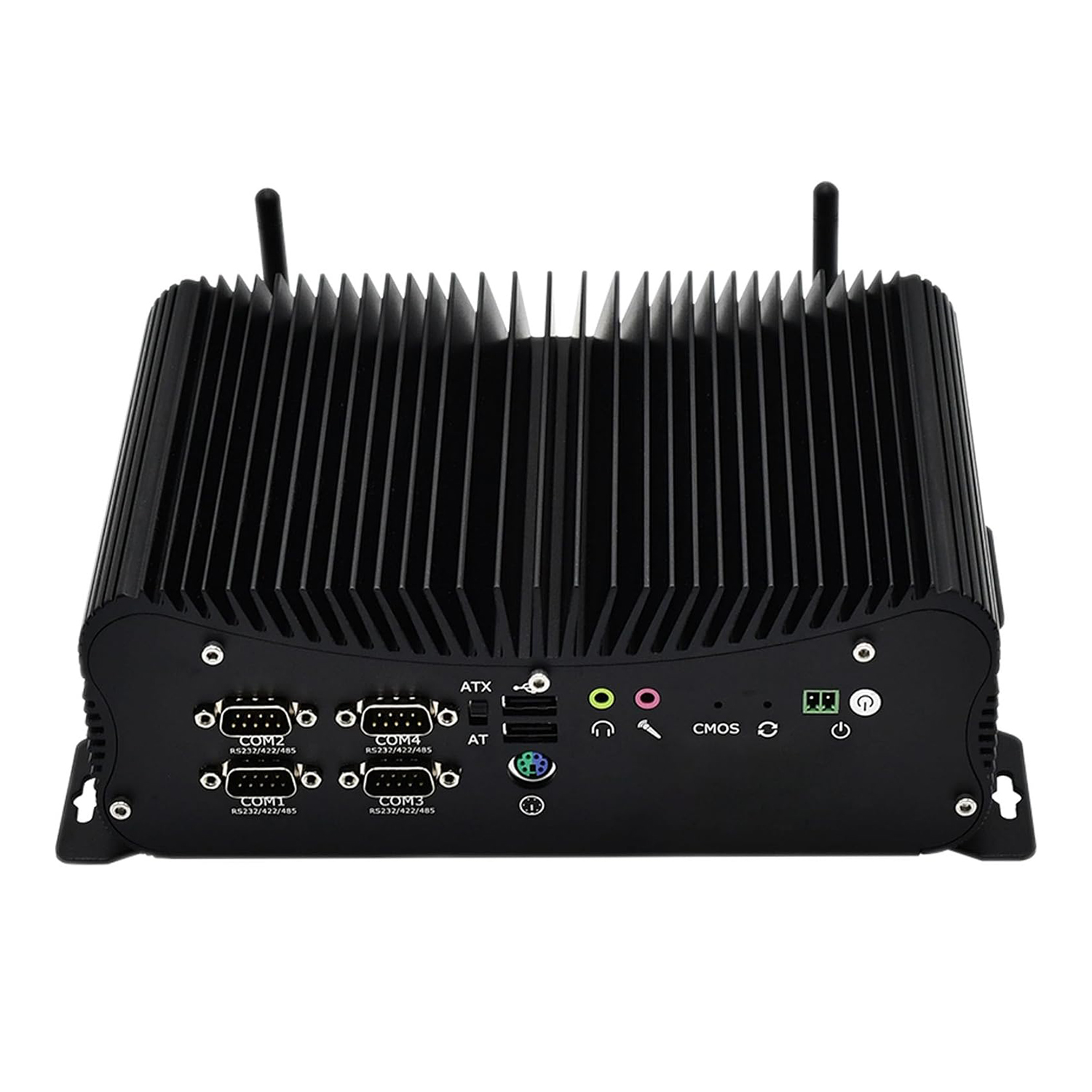

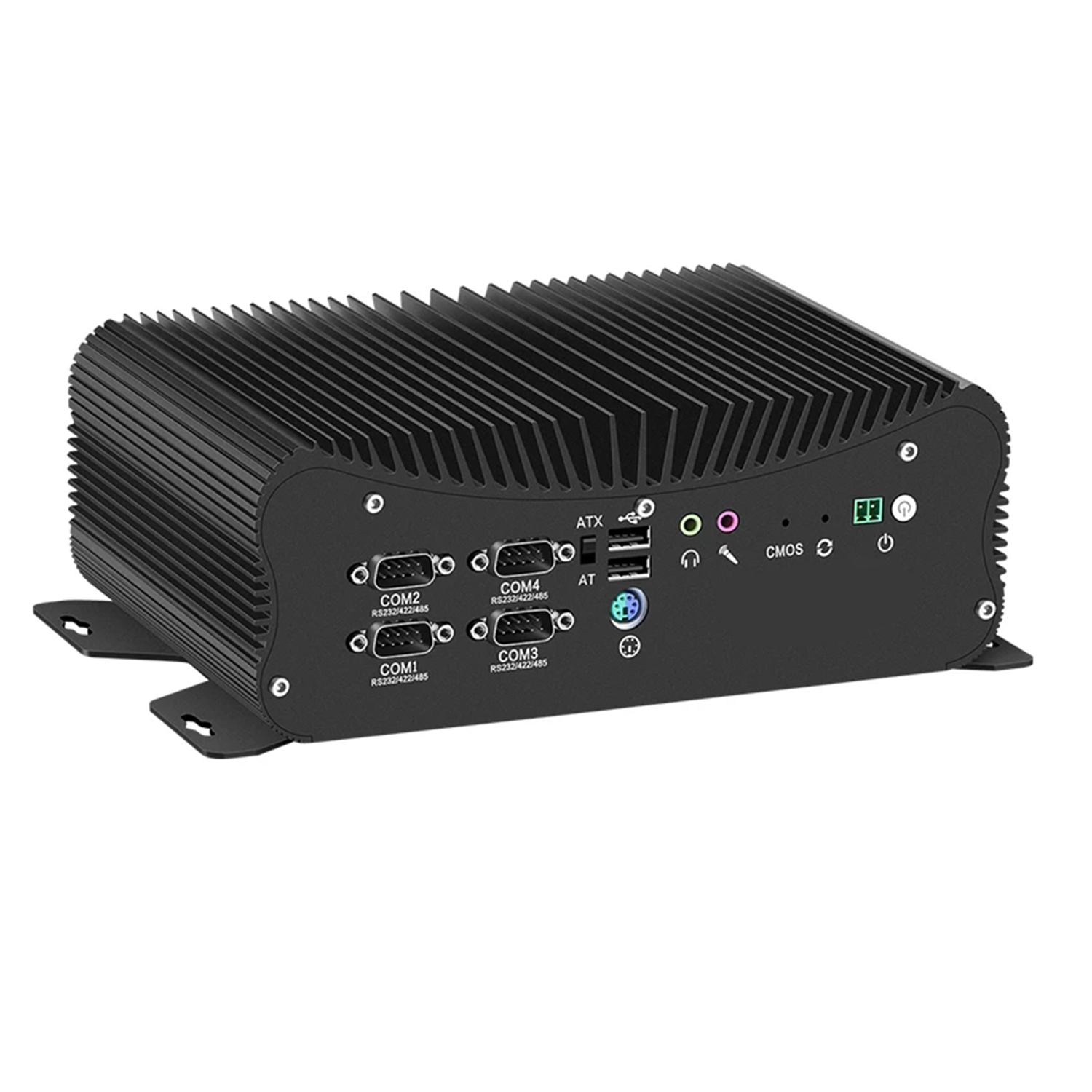

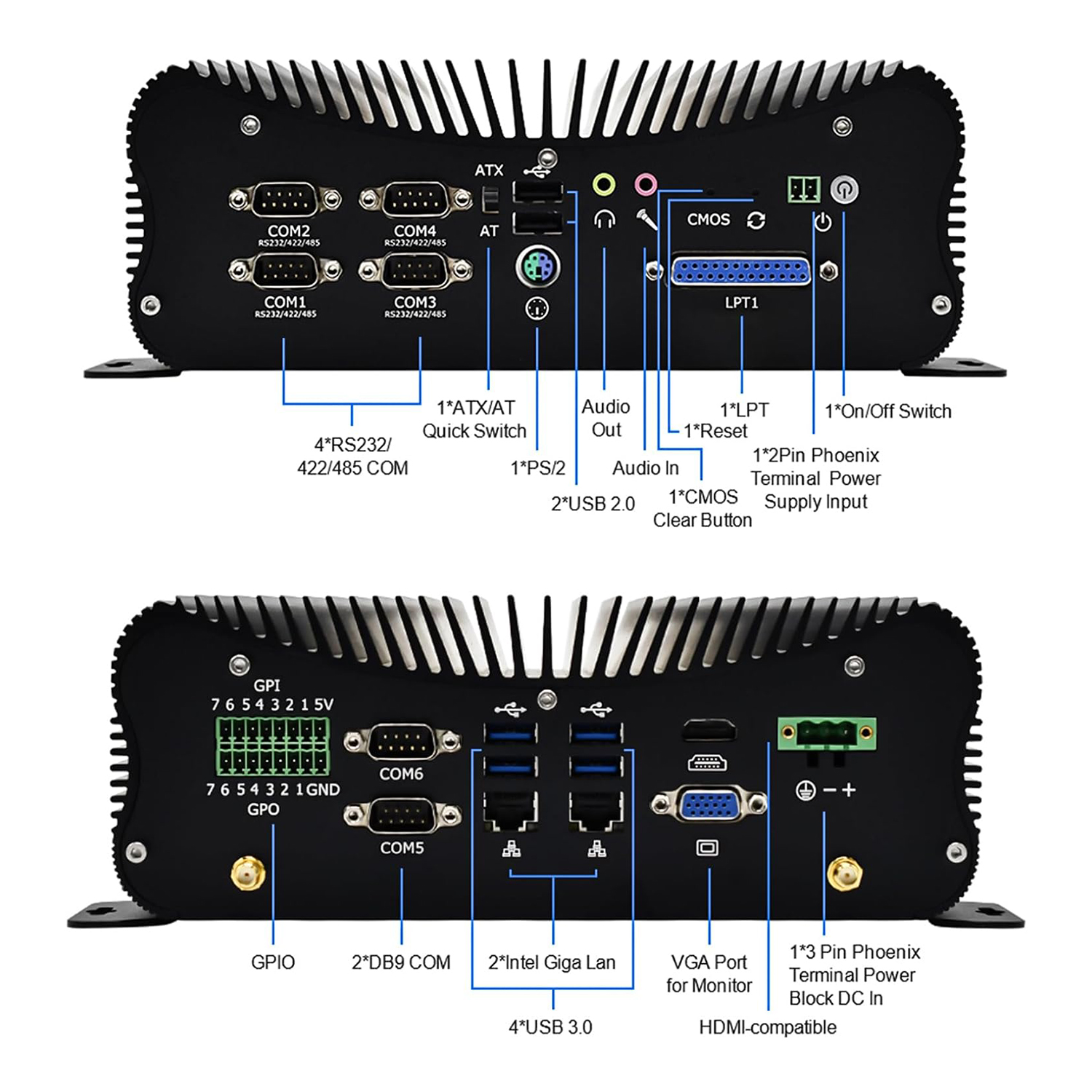

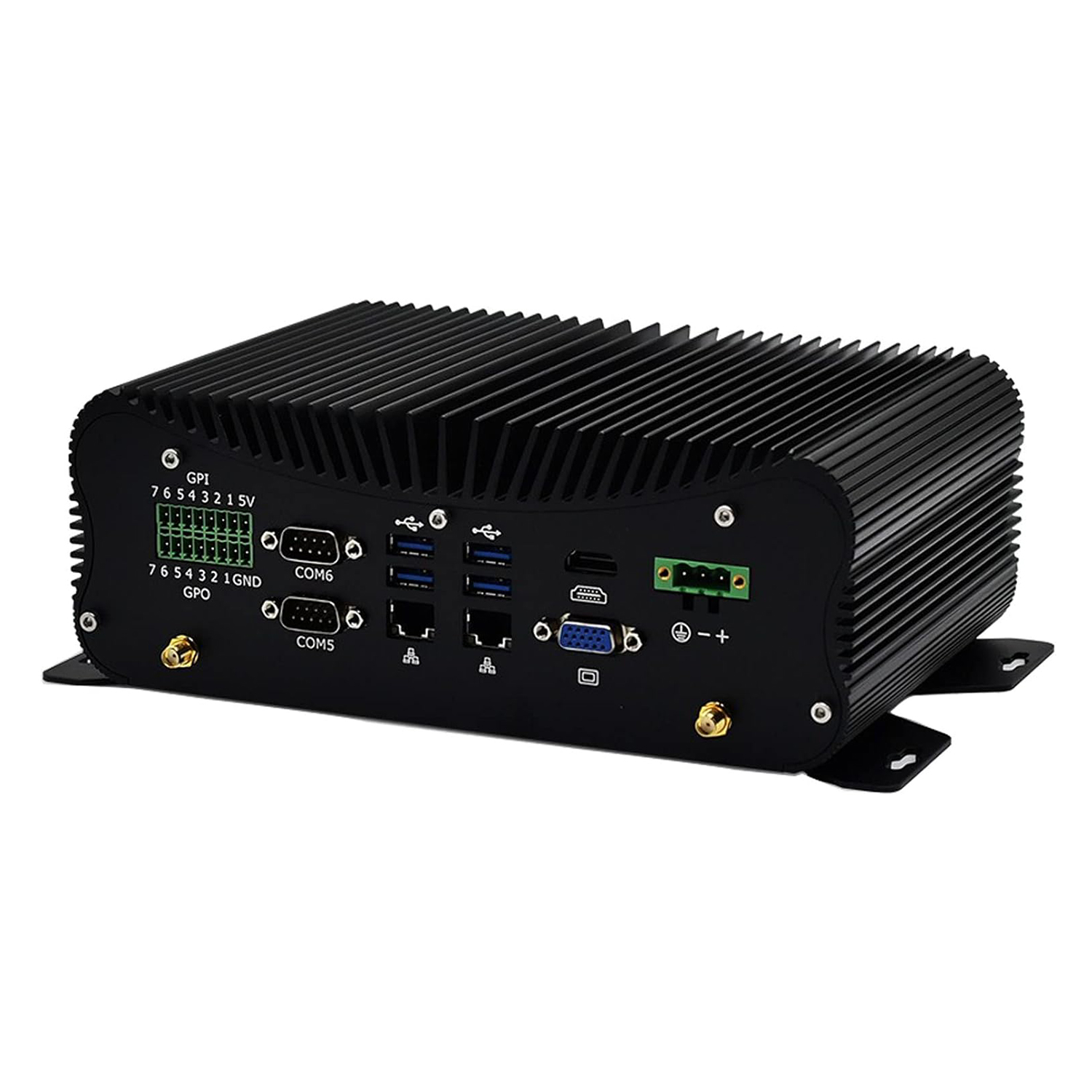

Front-Panel: 1xSwitch Extend Pin, 1xAT/ATX,4xCOM (RS485/422/232), 1xPS/2 (support keybaord and mouse), 2xUSB2.0, 1xMIC/SPK, 1xClear CMOS Button, 1xPower Switch Back-Panel: 14xGPIO (7 input, 7 output), 2xCOM (RS232), 2xLAN, 1x3 Pin Phoenix, 4xUSB 3.0, 1xHD, 1xVGA, 2xAntennas |
Input: DC100-240V AC/50-60Hz Output: DC 12V/5A Operating Temperature: 0°C-70°C(32°F~140°F) Storage Temperature: -20°C-80°C(-68°F~176°F) Relative Humidity: 10%~90%(non-condensing) |
1 x Mini PC, 1 x Power
Adapter, 1 x Power Cord, 1 x HDMI Cable, 2 x Antennas, 1 x Bracket Mount, 1 x Screws Bag |
