| Description | CPU | Other Function |

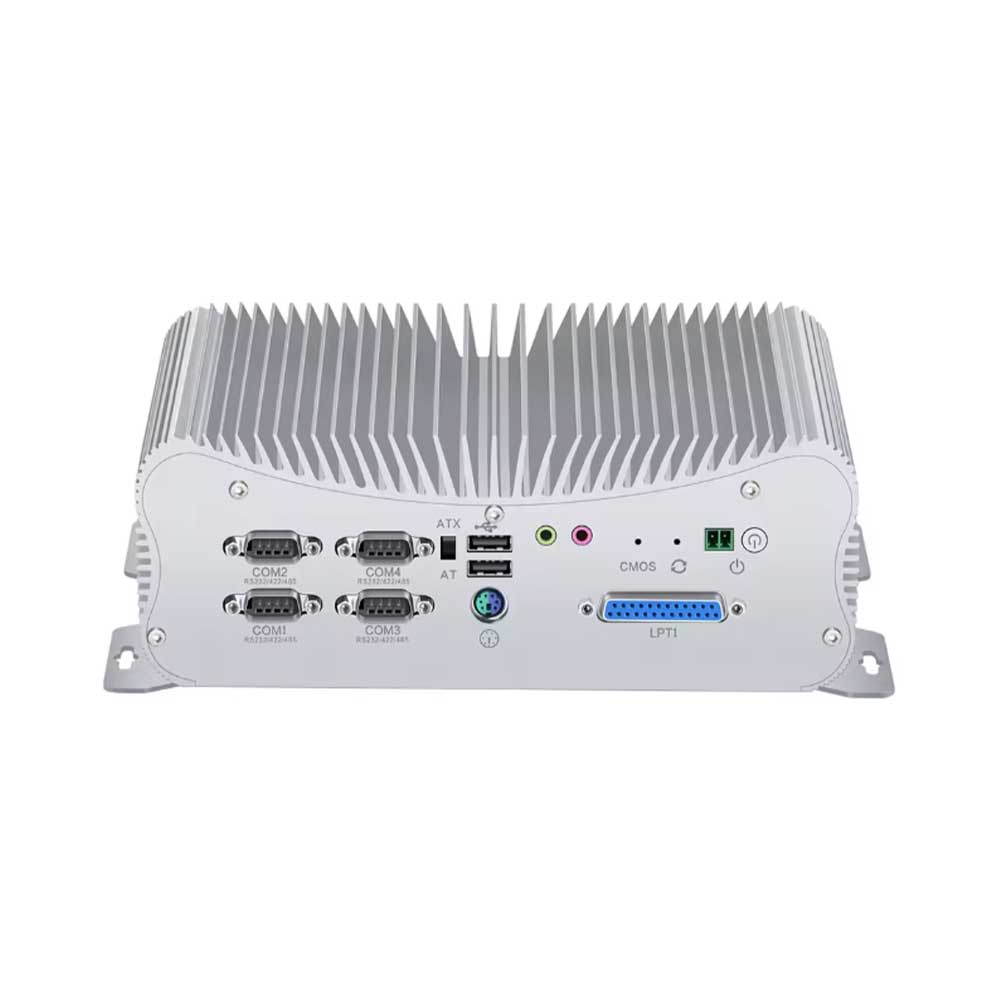

| Model Number: K9-S Type: Fanless, Silent Working, Industrial Material: Brushed Aluminum Alloy Case |
1. Intel Core i5-1135G7, i5-1235U, i5-1335U 2. Intel Core i7-1165G7, i7-1255U, i7-1260P 3. Intel Core i7-1370P |
Watch dog, one key restore, non-disk booting, wake up on LAN, automatically power on after power restore. |
| RAM Memory | SSD Storage | Product Dimension |
2 x 260-pin SODIMM DDR5 slots, up to 32GB. |
1 x mSATA SSD, 1 x M.2 NVME 2280 ( PCIe ), 1 x 2.5 inch HDD/SSD. |
Size: 249mm x 150mm x 86mm Weight: 2.2kg |
| Input/output port | Power & Working Environment | What's in Box |

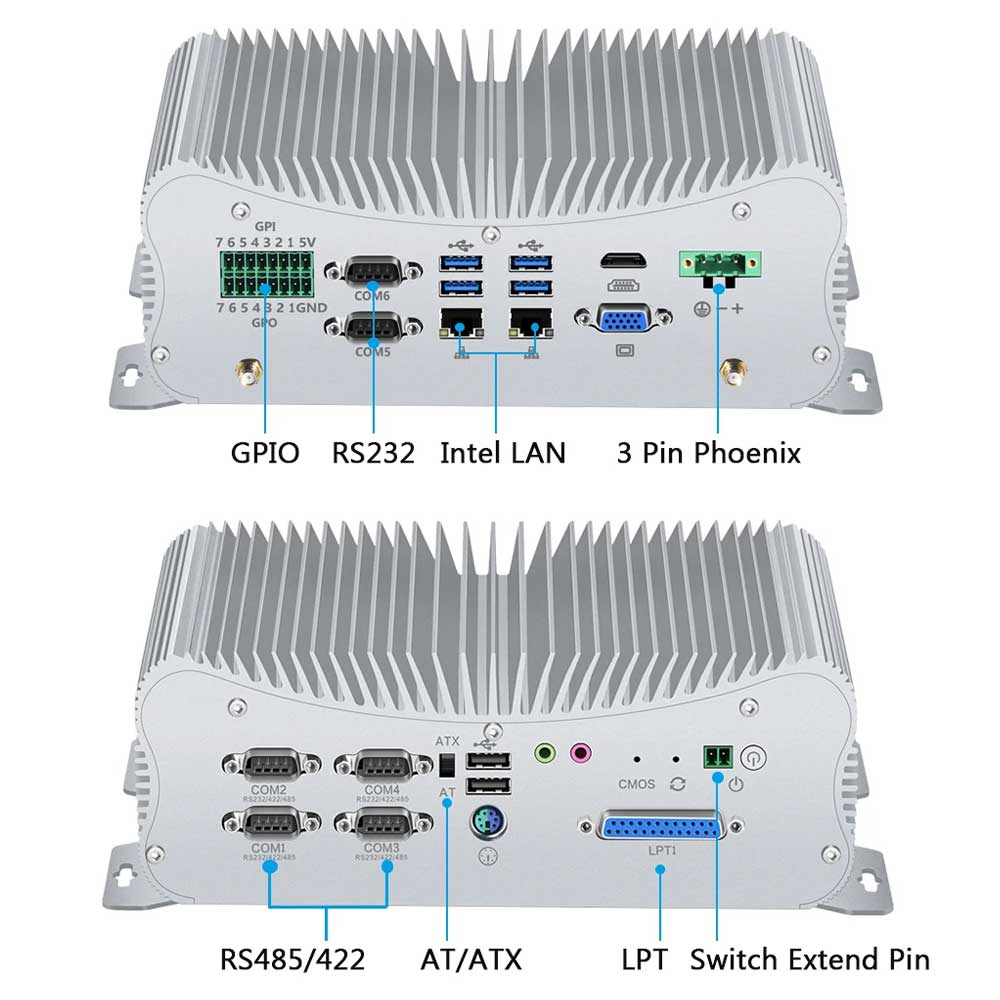

Front-Panel: 1xSwitch Extend Pin, 1xAT/ATX, 4xCOM (RS485/422/232), 1xPS/2 (support keybaord and mouse), 2xUSB2.0, 1xMIC/SPK, 1xClear CMOS Button, 1xPower Switch Back-Panel: 14xGPIO (7 input, 7 output), 2xCOM (RS232), 2xLAN, 1x3 Pin Phoenix, 4xUSB 3.0, 1xHD, 1xVGA, 2xAntennas |
Input: DC100-240V AC/50-60Hz Output: DC 12V/5A Operating Temperature: -20°C-60°C Storage Temperature: -30°C-70°C Relative Humidity: 10%~90%(non-condensing) |
1 x Mini PC, 1 x Power
Adapter, 1 x Power Cord, 1 x HDMI Cable, 2 x Antennas, 1 x Bracket Mount, 1 x Screws Bag |
