| Description | CPU | GPU |
| Model Number: K8-1 Type: Cooling Fan |

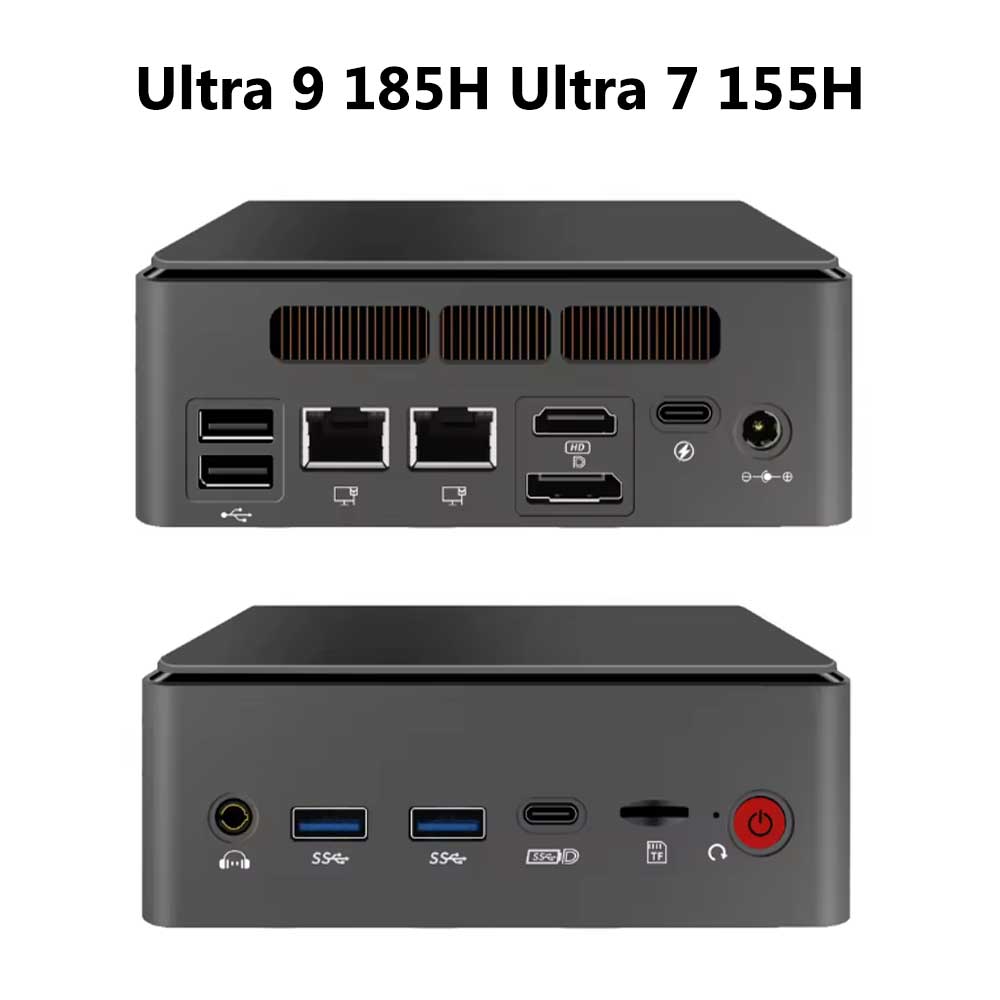

16 Cores, 22 Threads, 24 MB Smart Cache, 28W TDP. Frequency: Intel Core Ultra 7 155H: 3.80GHz-4.80GHz, Intel Core Ultra 9 185H: 2.50GHz-5.10GHz. |
Intel Arc graphics, Base Frequency: 600 MHz, Max Dynamic Frequency: Intel Core Ultra 7 155H: 2.25GHz, Intel Core Ultra 9 185H: 2.35GHz. |
| RAM Memory | SSD Storage | Wireless |
| 2 x DDR5 SODIMM slots, support max 96GB 5600MHz. |
1 x M.2 2280 NVME/PCIE4.0x4, 1 x M.2 2280 NVME/PCIE4.0x4/SATA. |
802.11 AX WiFi6 with Bluethooth5.2 |
| Input/output port | Power Supply | 4K HD Triple Display |

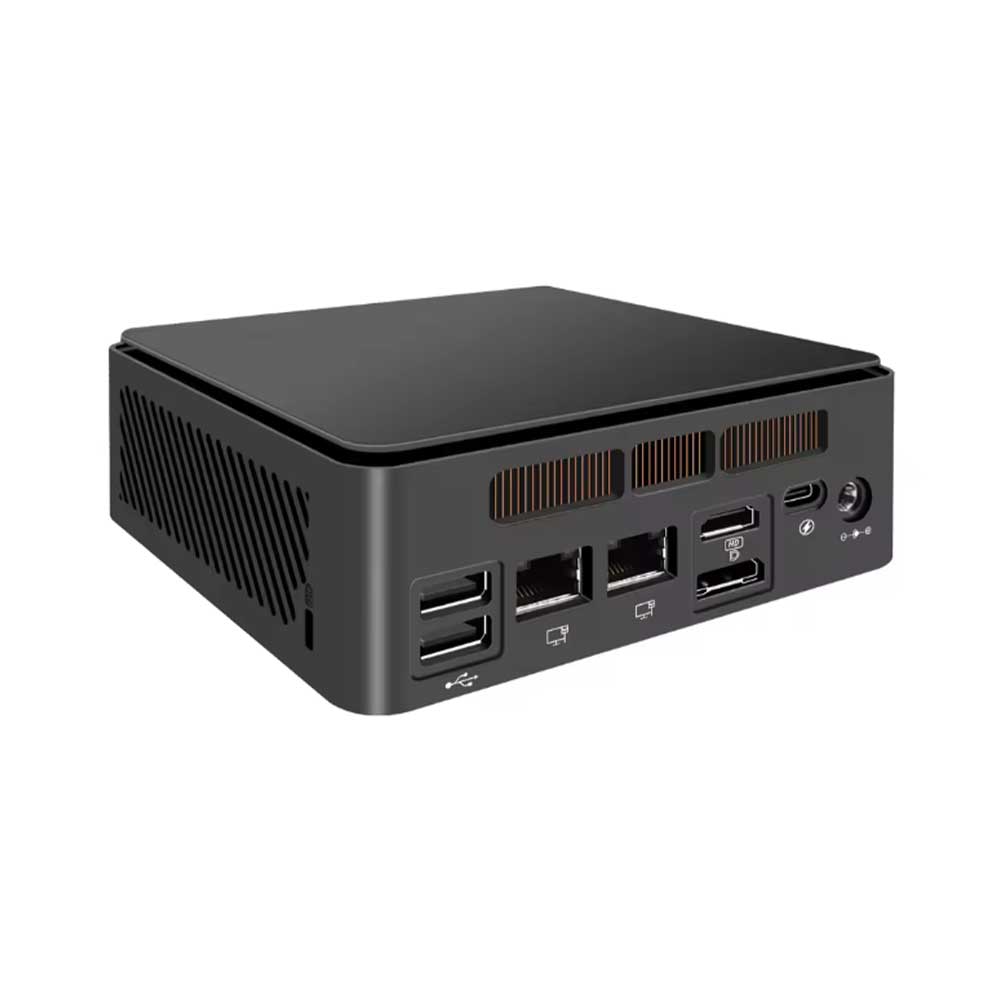

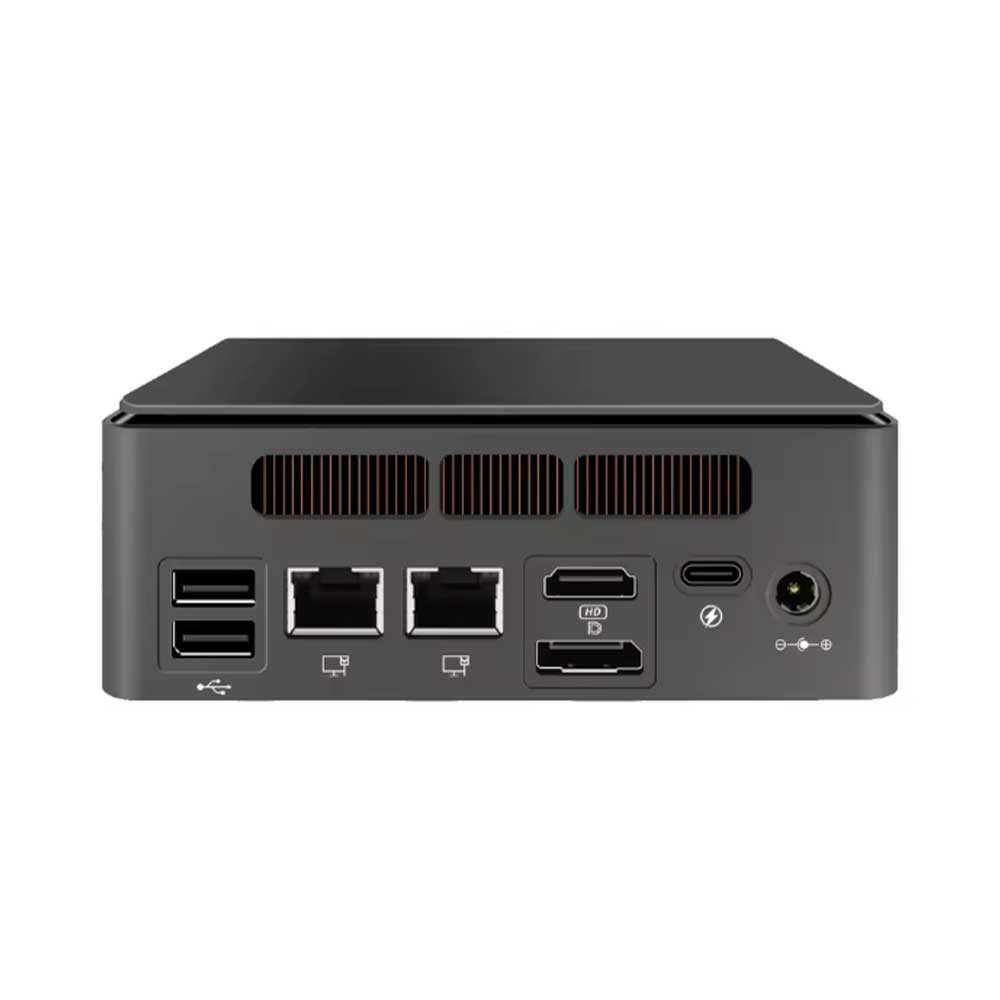

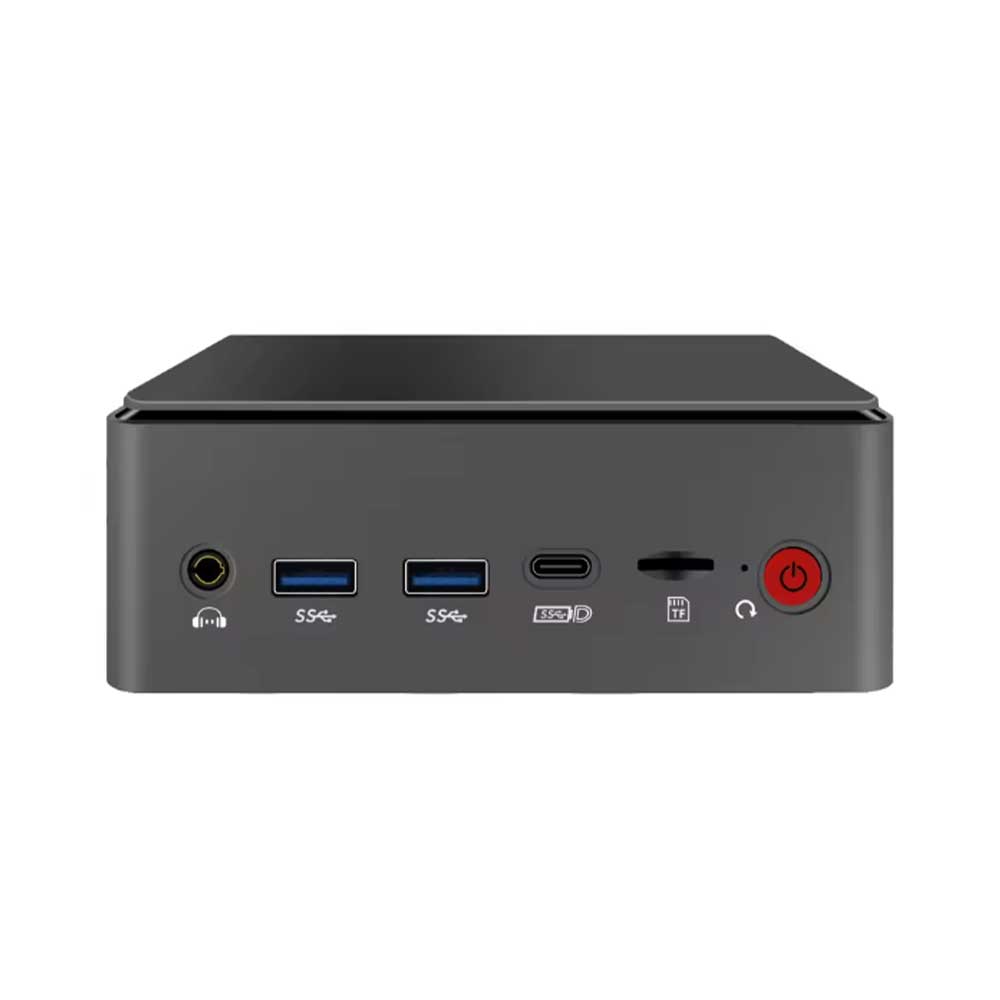

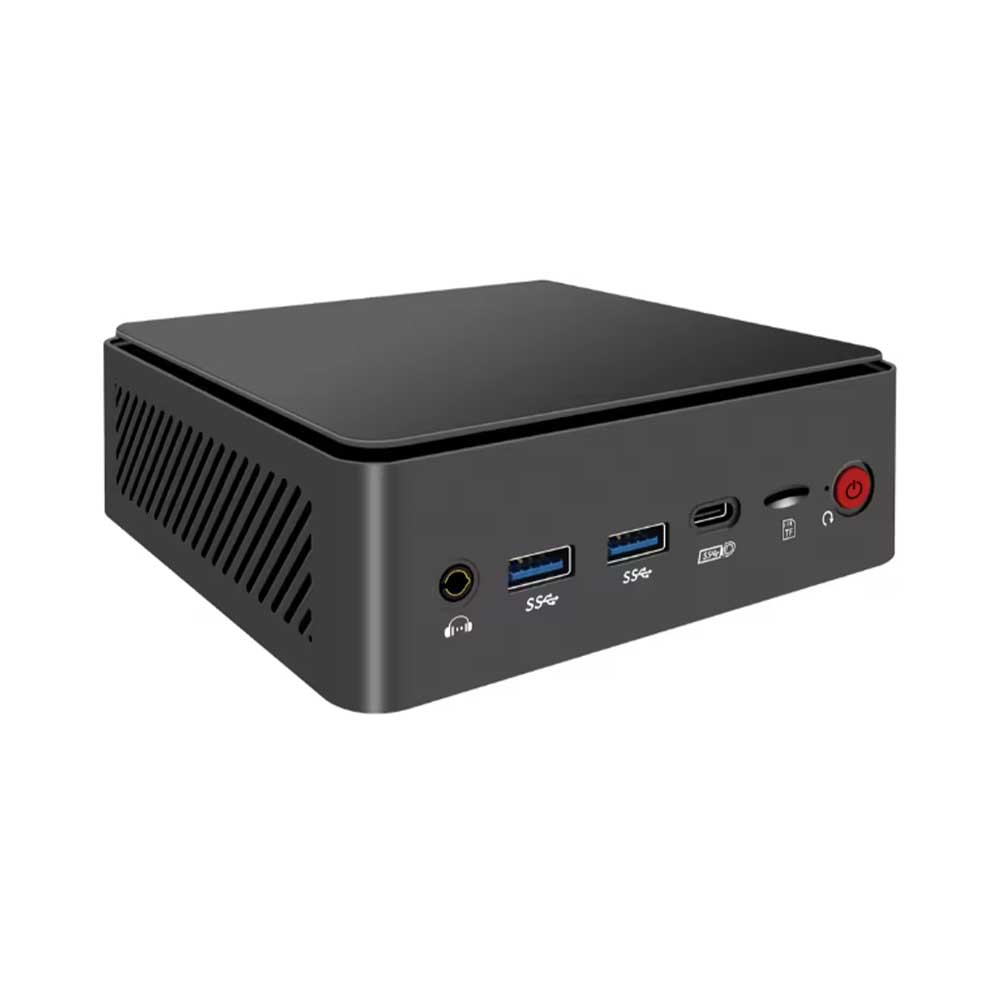

Switch: 1 x Power On/Off， Power: 1 x DC IN USB: 2 x USB 3.2(10Gbps), 2 x USB 2.0 Display: 1 x HDMI2.0, 1 x DP1.4, 1 x Type-C USB4.0(Thunderbolt 4, 40Gbps) LAN: 2 x 2.5G i226V RJ45 LAN Audio: 1 x Audio Jack, Other: 1 x TF Card Slot |
Input: DC100-240V AC/50-60Hz Output: DC 12-19V |
1 x HD2.0 (4K@60Hz), 1 x DP1.4 (4K@144Hz), 1 x Type-C (4K@144Hz). |
| Product Dimension | Other Features | What's in Box |
| Size: 127.5mm x 127.5mm x 47mm Weight: 1.0kg |
1. USB4 easily connect to eGPU. 2. Dual Cooling Copper Tube and a Silent Fan. |
1 x Mini PC, 1 x Power
Adapter, 1 x Power Cord, 1 x HDMI Cable, 1 x Screws Bag |
