| Description | CPU | GPU |

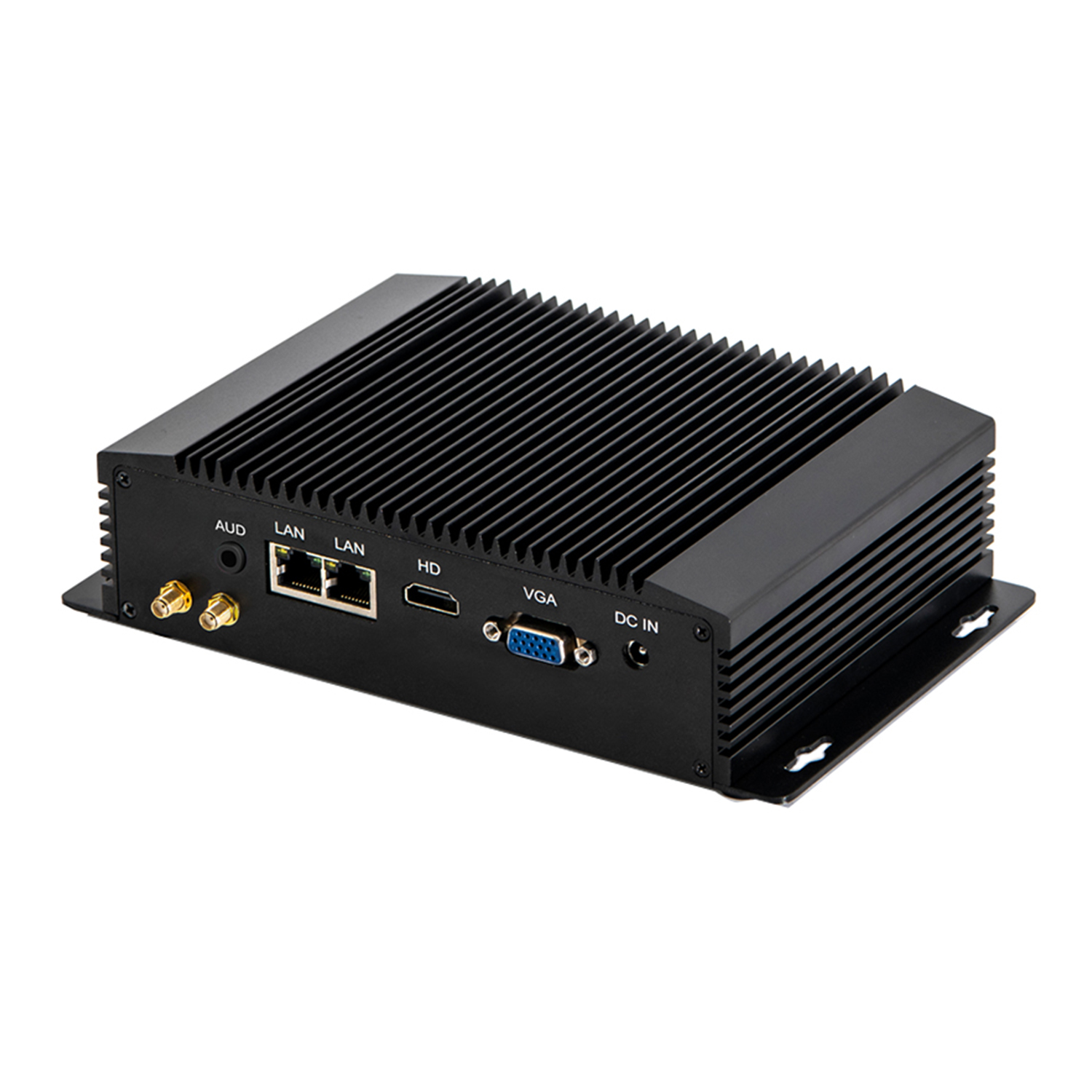

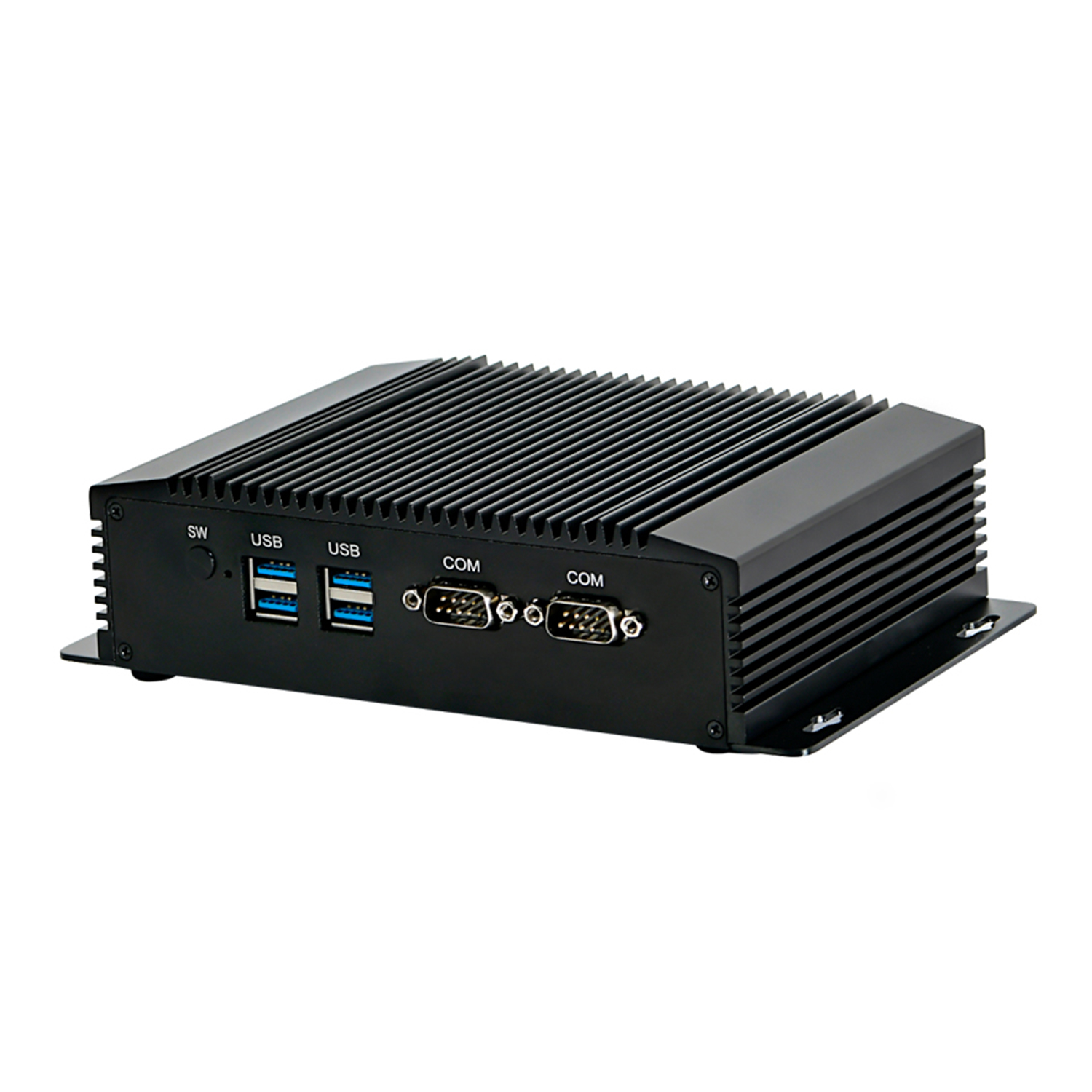

| Model Number: K590 Type: Fanless, Silent Working, Industrial Material: Aluminum Alloy Structure Case |
Intel Processor 2000 Series (2955U), 2 Cores/2 Threads, 2MB Cache, Base Frequency: 1.4GHz, 15W TDP, 22nm Lithography. |
Intel HD Graphics for 4th Generation Processors, 200MHz Graphics Base Frequency, 1.00 GHz Graphics Max Dynamic Frequency, 2 Displays Supported. |
| RAM Memory | SSD Storage | Network |
| 1 x SO-DDR4 SDRAM memory slot, up to 8GB | 1 x NGFF/NVMe M.2 Size | 2 x LAN Ports |
| Input/output port | Power & Working Environment | System Supported |
| Switch: 1 x Power On/Off Power: 1 x DC IN; LED: 1 x LED USB: 4 x USB3.0 Display: 1 x HDMI, 1 x VGA LAN: 2 x RJ45 LAN COM: 2 x COM Audio: 1 x MIC/SPK |
Input: DC100-240V AC/50-60Hz Output: DC 12V/7A Operating Temperature: 0°C-70°C(32°F~140°F) Storage Temperature: -20°C-80°C(-68°F~176°F) Relative Humidity: 10%~90%(non-condensing) |
Windows / Linux / Centos / Ubuntu / pfSense / OPNsense. |
| Product Dimension | Other Features | What's in Box |
| Size: 160mm x 150mm x 65mm Weight: 1.0kg |
Support Wake On Lan. Support Auto restart after power outage restoration. |
1 x Mini PC, 1 x Power
Adapter, 1 x Power Cord, 1 x HDMI Cable, 2 x Antennas, 1 x Bracket Mount, 1 x Screws Bag |
