| Description | CPU | BIOS |
| Model Number: K3 Type: Fanless, Silent Working Material: Brushed Aluminum Alloy Case |
1. Intel N100 2. Intel N200 3. Intel i3-N305 |
AMI uEFI BIOS, Auto power on, WOL, GPIO, Watchdog, PXE |
| RAM Memory | SSD Storage | Network |
| 1 x DDR5 4800MHz SO-DIMM Slot, Max to 16G | M.2 M key NVMe/PCle3.0 x 2 signal supports 2280/2242 size, 2 x 12 pin non-standard SATA3.0 seats, support 2.5 inch hard disk |
Onboard dual i226-V 2.5G network ports |
| Input/output port | Power & Working Environment | Wi-Fi |

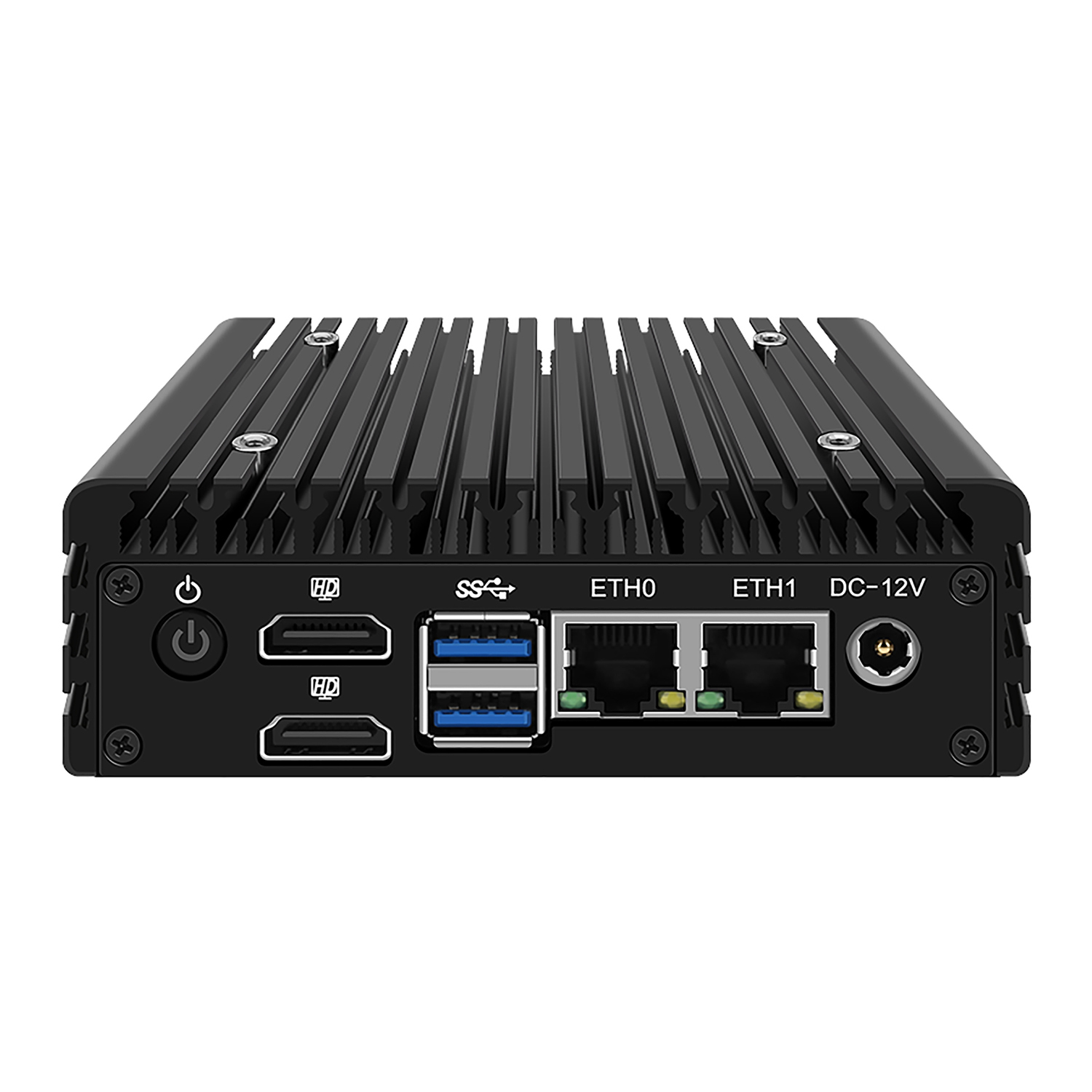

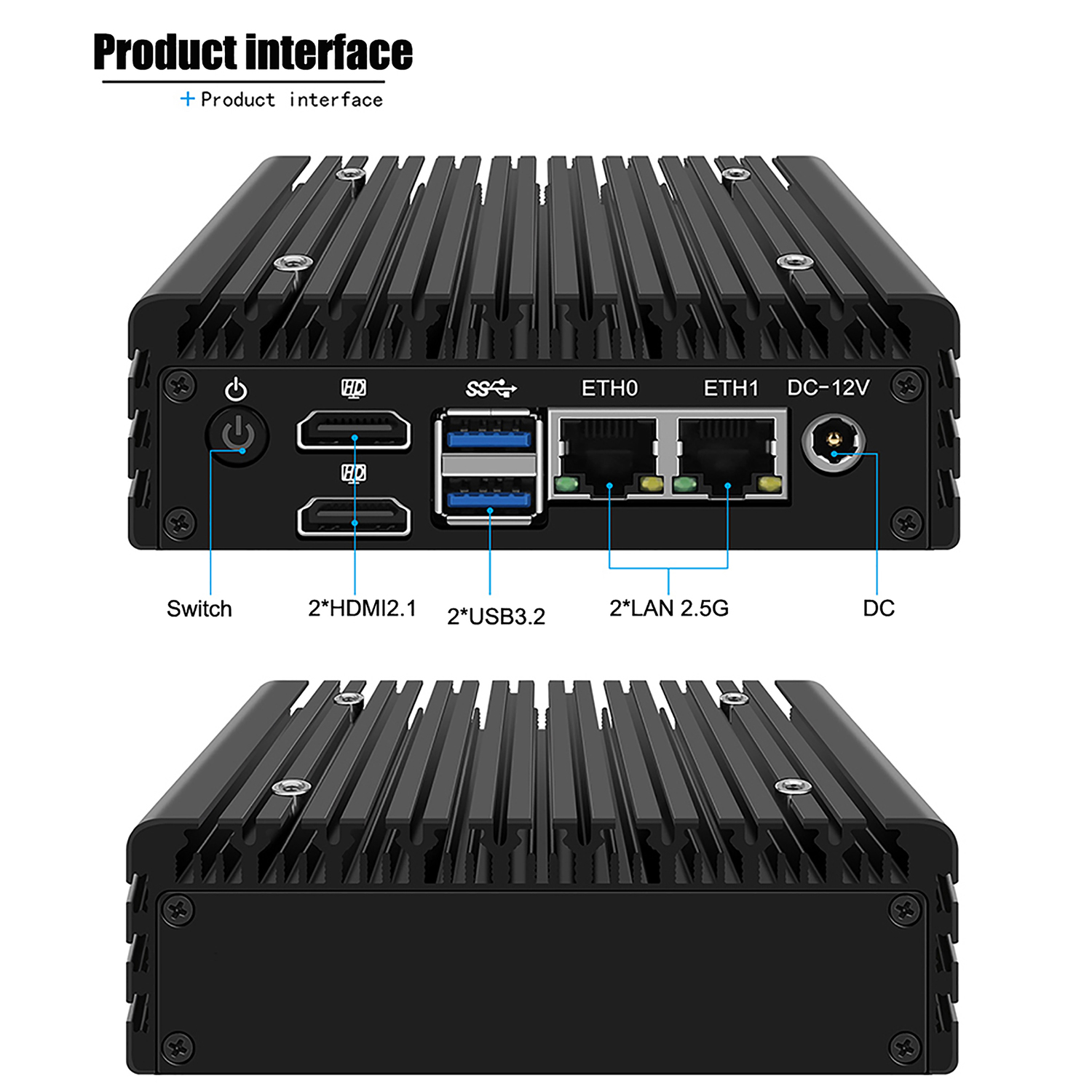

| Switch: 1 x Power On/Off Power: 1 x DC IN USB: 2 x USB3.2 Gen3 10Gbps Display: 2 x HDMI2.1 LAN: 2 x i226-V 2.5G LAN |
Input: DC100-240V AC/50-60Hz Output: DC 12V Operating Temperature: 0°C-70°C(32°F~140°F) Storage Temperature: -20°C-80°C(-68°F~176°F) Relative Humidity: 5%~90%(non-condensing) |
1*M.2 E key (2230) supports WiFi6/Bluetooth module optional |
| Product Dimension | Other Features | What's in Box |
| Size: 112mm x 100mm x 40mm Weight: 0.65kg |
1. Noiselessness, dustproof and durability fit for industrial grade field, work as long as 24 hours. 2. Low consumption TDP and can be mounted back of monitor by VESA bracket. |
1 x Mini PC, 1 x Power
Adapter, 1 x Power Cord, 1 x HDMI Cable, 1 x Screws Bag |
