| Description | CPU | GPU |
| Model Number: K3-6L-3 Type: Fanless, Silent Working Material: Brushed Aluminum Alloy Case |
Intel Core i7-1265U, 10 Cores, 12 Threads, 1.80GHz Base Frequency, 4.80GHz Max Frequency, 12MB L3 Cache, 15W TDP. |
Intel Iris Xe Graphics 96; 350 MHz Graphics Base Frequency; 1.25 GHz Graphics Burst Frequency; 8K Support: Yes, at 60Hz. |
| RAM Memory | SSD Storage | Network |
| 2 x DDR4 3200MHz SO-DIMM Slots, Max to 64G | 1 x M.2 slot supports expension to NVMe hard disk signal; 1 x M.2 NVMe x4 signal pedestal supports 2280 size SSD. |
6 x i226-V 2.5G network cards |
| Input/output port | Power & Working Environment | Wi-Fi |

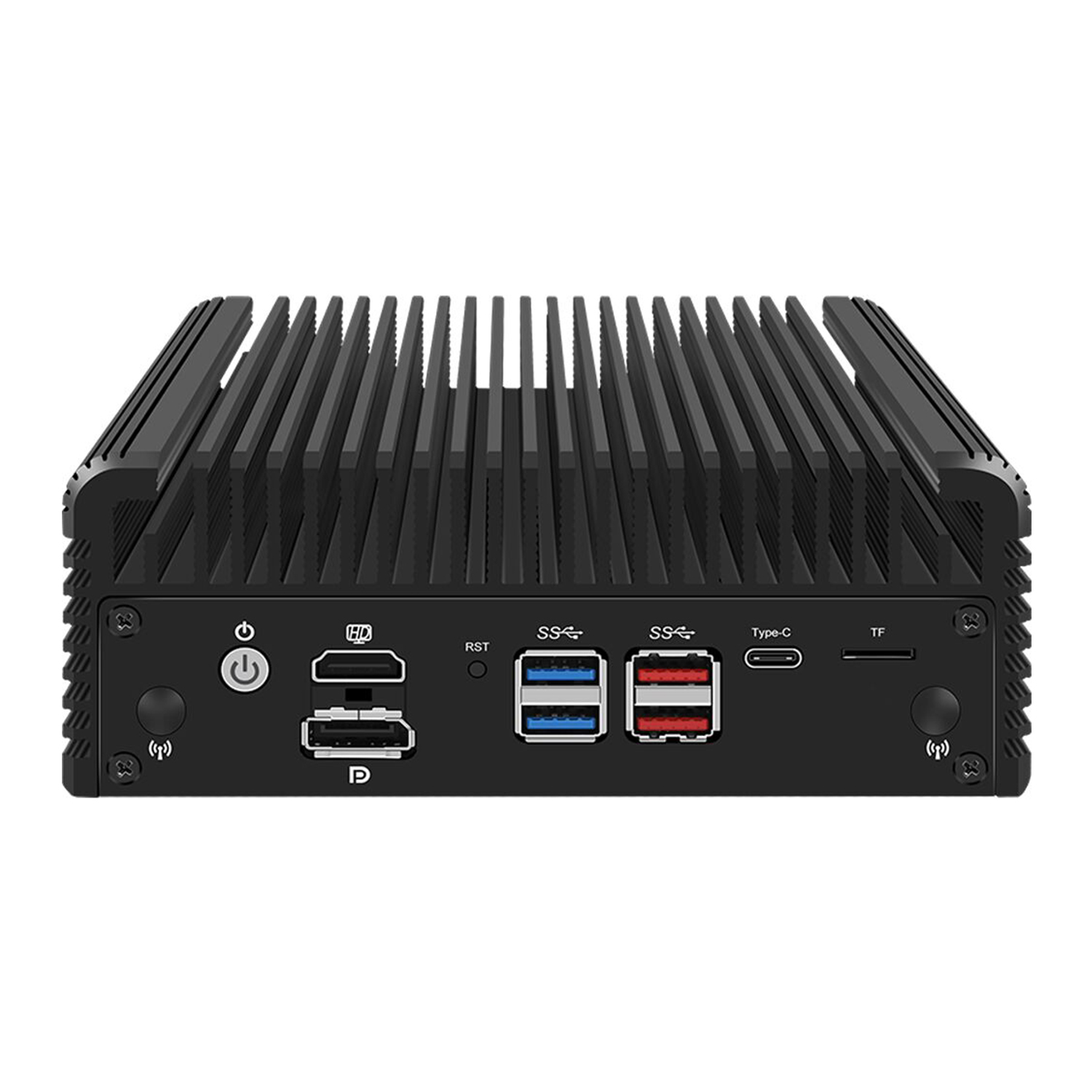

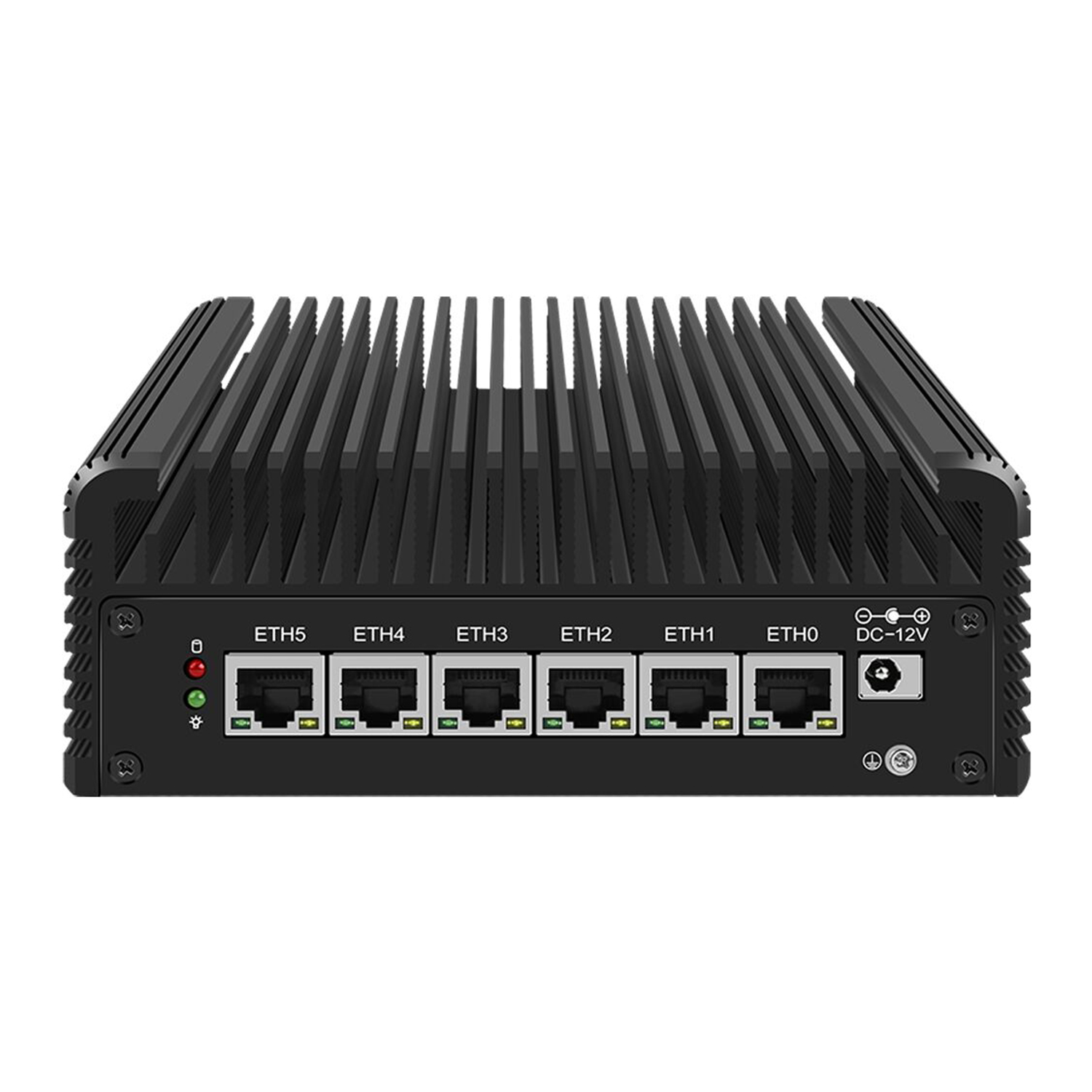

| Switch: 1 x Power On/Off Power: 1 x DC IN LED: 1 x Hard disk indicator, 1 x Power indicator USB: 2 x USB3.0, 2 x USB3.2 Display: 1 x HDMI, 1 x DP LAN: 6 x i226-V 2.5G LAN Others: 1 x Type-C, 1 x TF, 1 x Reset |
Input: DC100-240V AC/50-60Hz Output: DC 12V Operating Temperature: 0°C-70°C(32°F~140°F) Storage Temperature: -20°C-80°C(-68°F~176°F) Relative Humidity: 5%~90%(non-condensing) |
M.2 Wifi seat supports WiFi6 wireless receiving module |
| Product Dimension | Other Features | What's in Box |
| Size: 145.6mm x 145.4mm x 53.6mm Weight: 0.80kg |
Triple Display: HD2.1 up to 4096*2304@60Hz Display, DP1.4a supports 7680*4320@60Hz Display at most, Type-C. |
1 x Mini PC, 1 x Power
Adapter, 1 x Power Cord, 1 x HDMI Cable, 1 x Bracket Mount, 1 x Screws Bag |
