| Description | CPU | GPU |
| Model Number: K3-6 Type: Fanless, Silent Working Material: Brushed Aluminum Alloy Case |
Intel Alder Lake N100, 4 Cores/4 Threads, 6MB L3 Cache, Base Frequency: 0.8GHz, Max. Turbo Frequency: 3.4GHz, 6W TDP. |
Intel UHD Graphiacs, Graphics Base Frequency: 300MHz; Graphics Burst Frequency: 750MHz; 4K Support: Yes, at 60Hz; Max Resolution (HD): 4096x2160@60Hz; Max Resolution (DP): 4096x2160@60Hz. |
| RAM Memory | SSD Storage | Network |
| 1 x SODIMM Slot, single-channel 4800MHz DDR5 memory support up to 16GB. | 1 x M.2 Key-M 2280 PCIE/SATA Adaptive Slot; 1 x SATA3.0 hard disk interface and power supply interface. |

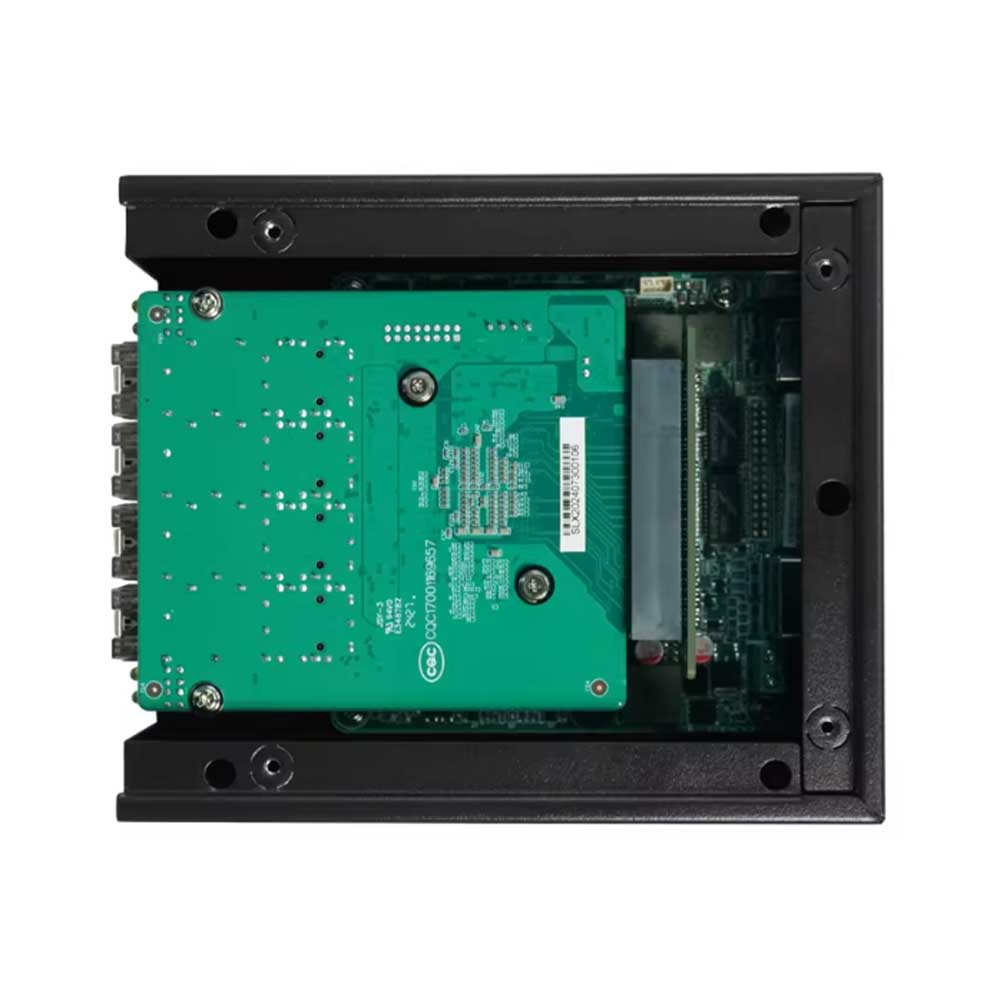

2 x intel i226 NIC, can be extended with 10 boards with 4*inteli226 ports |
| Input/output port | Power & Working Environment | System Supported |

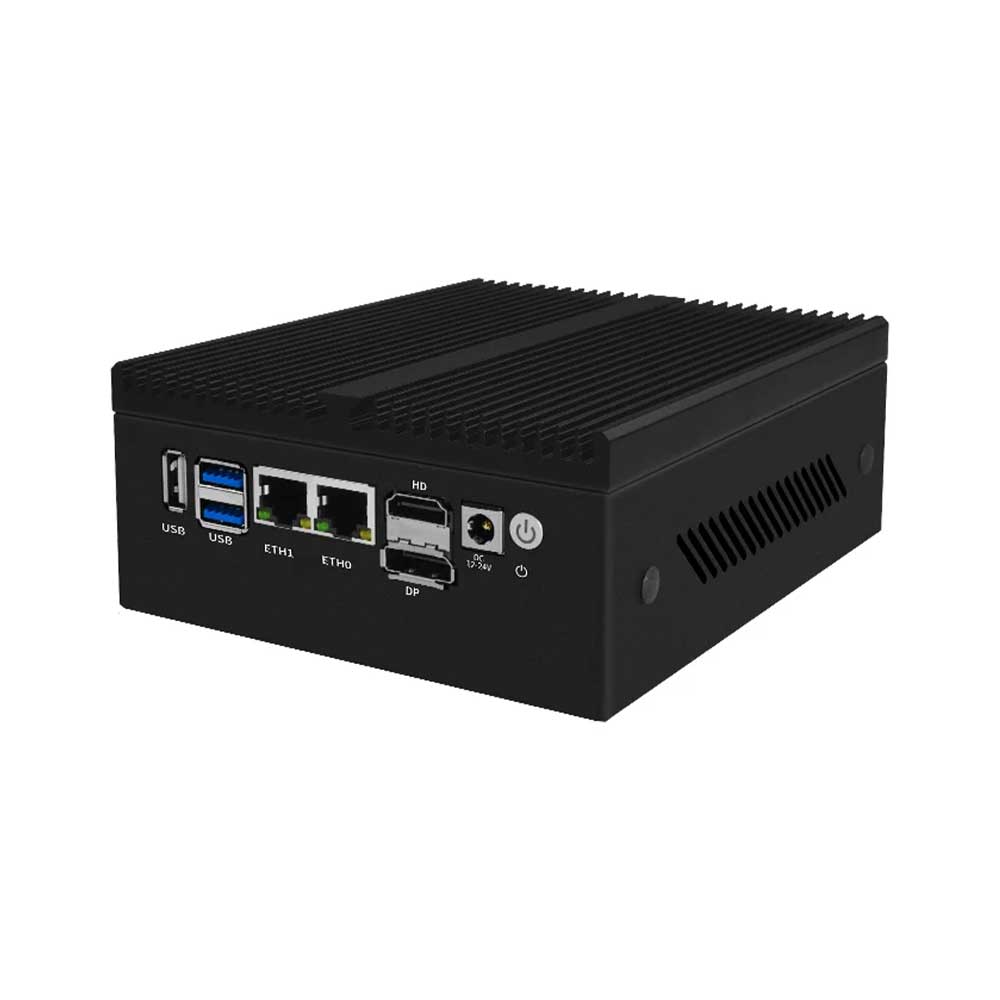

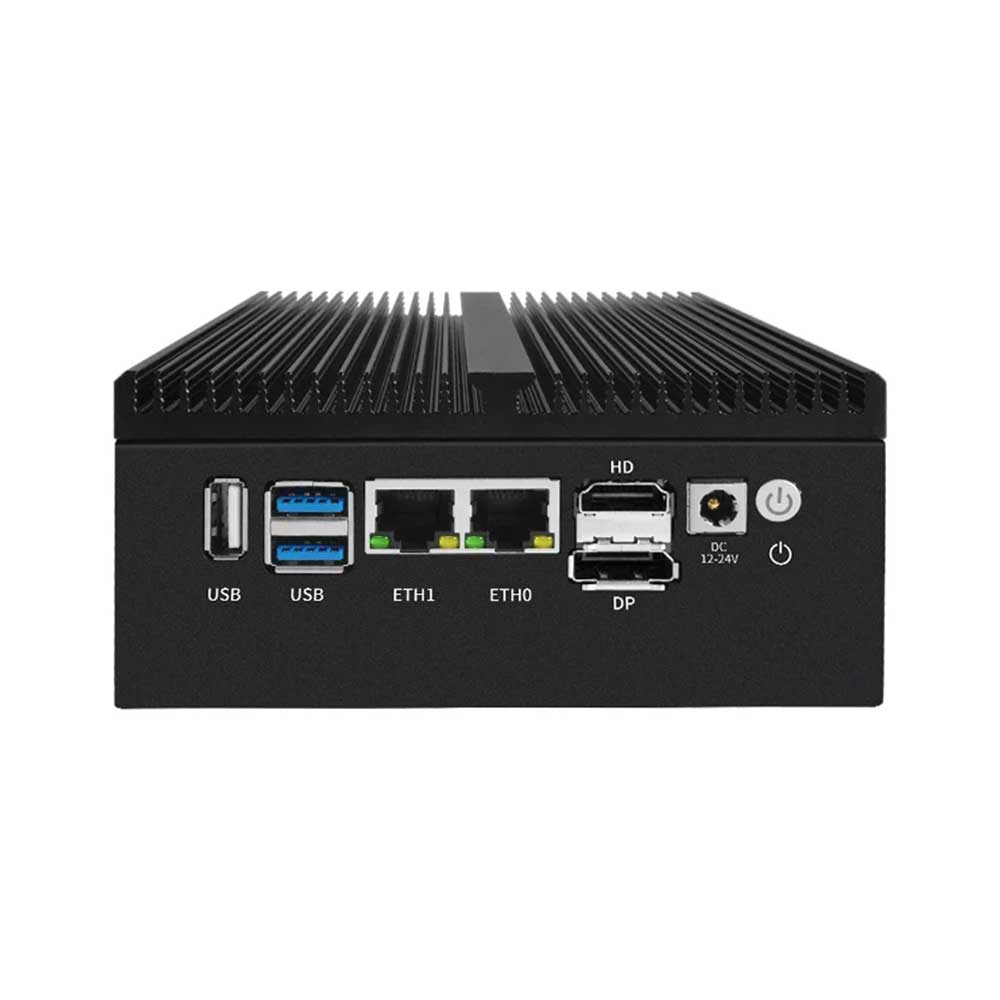

| Switch: 1 x Power On/Off; Power: 1 x DC IN USB: 1 x USB2.0, 1 x USB3.0 Display: 1 x HDMI2.1, 1 x DP1.4 LAN: 2 x 2.5G LAN COM: 2 x COM RS232 (J6412: 2xRS232/RS485) Audio: 1 x MIC/SPK |
Input: 100-240V AC/50-24Hz Output: 12V, 3/5A DC IN Working Temperature: -0°C-50°C(Commercial HDD); -20°C-50°C(Industrial SSD). Work Humidity: 5%~90%(non-condensing) |
Windows / Linux / Centos / Ubuntu / pfSense / OPNsense. |
| Product Dimension | Other Features | What's in Box |
| Size: 101mm x 101mm x 45mm Weight: 1.0kg |
Power-on Boot, Scheduled Boot, Wake-up on LAN, PXE Boot, Watchdog. |
1 x Mini PC, 1 x Power
Adapter, 1 x Power Cord, 1 x HDMI Cable, 1 x Screws Bag |
