| Description | CPU | GPU |
| Model Number: K3-6-1 Type: Full Aluminum Shell (include a 4pins external fan) |
Intel Core Ultra 7 155H, 16 Cores, 22 Threads, 24 MB Intel Smart Cache, Base Frequency: 3.80GHz; Max Turbo Frequency: 4.80GHz, 28W TDP. |
Intel Arc graphics, Base Frequency: 600 MHz, Max Dynamic Frequency: 2.25GHz. HD: 4096x2304@60Hz+DP: 7680x4320@60Hz Resolution supported. |
| RAM Memory | SSD Storage | Network |
| 2 x DDR5 SODIMM non-ecc laptop ram slot, support max 96GB 4800/5600MHz. |
2 x M.2 NVME/PCIEx4 2280 SSD, 1 x SATA3.0. | 1 x M.2_E Key 2230 slot, support only CNVI WiFi signal, 1 x M.2_B Key slot, support 4G/5G LTE signal, 1 x Mini PCIE slot, support 4G LTE signal. |
| Input/output port | Power & Working Environment | Expansion Slot Optional |

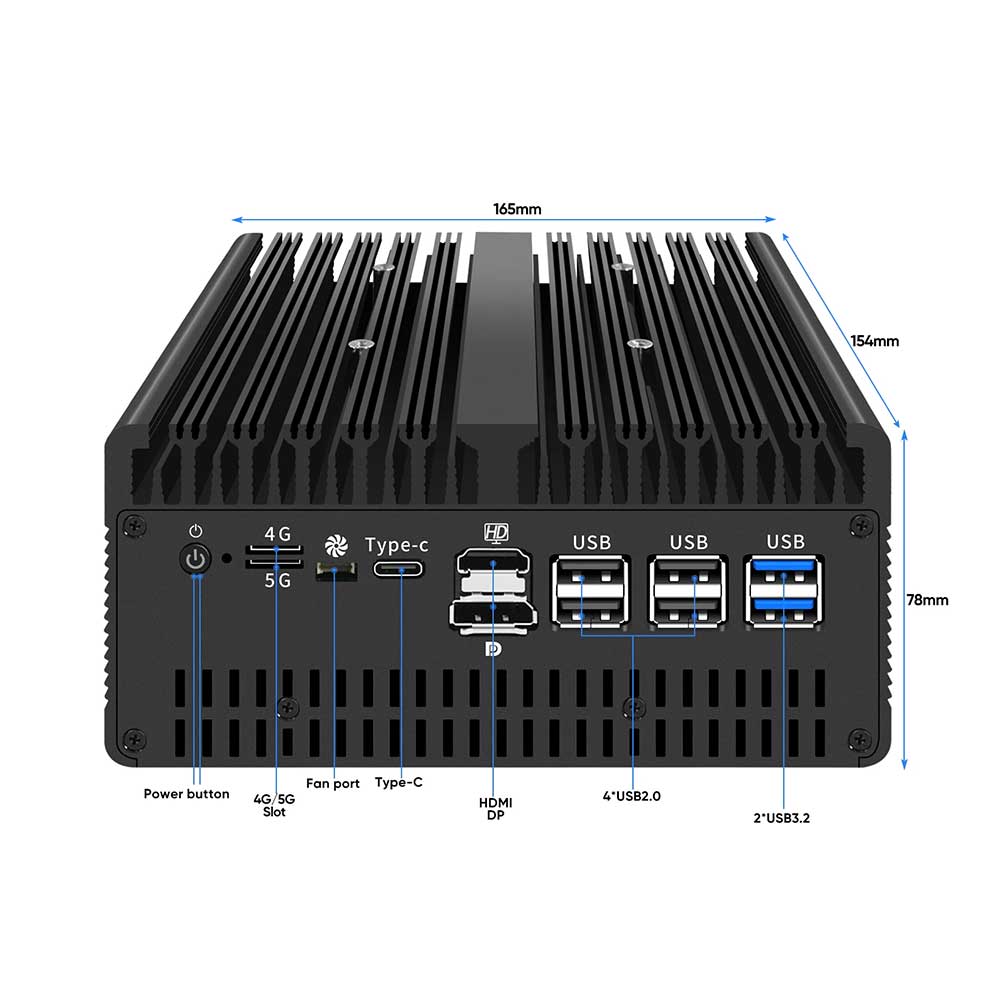

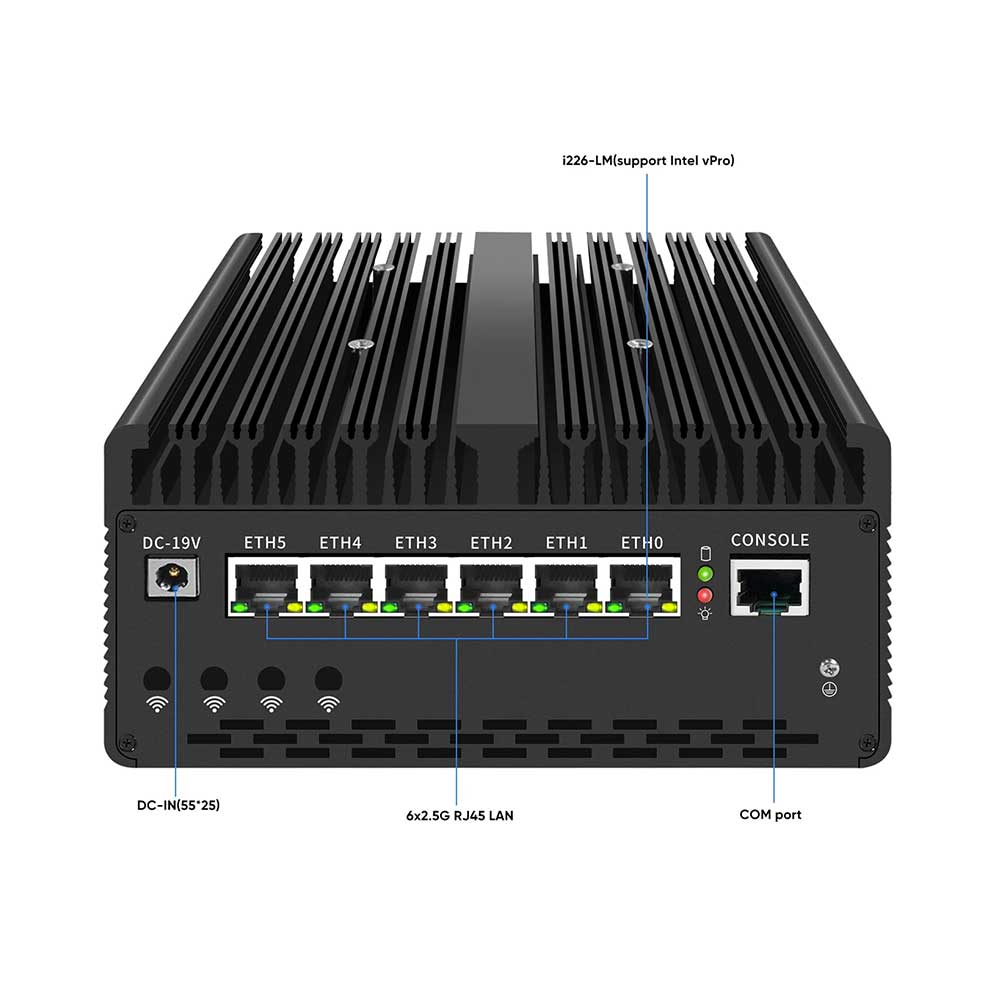

Switch: 1 x Power On/Off, Power: 1 x DC IN USB: 2 x USB3.2 Gen2(10Gbps), 4 x USB2.0 Display: 1 x HDMI, 1 x DP, 1 x Type-C LAN: 6 x Intel 2.5G RJ45 LANs (5xi226-V+1xi226-LM support Intel vPro) Others: 1 x SIM_5G slot, 1 x SIM_4G slot, 1 x RJ45 CONSOLE |

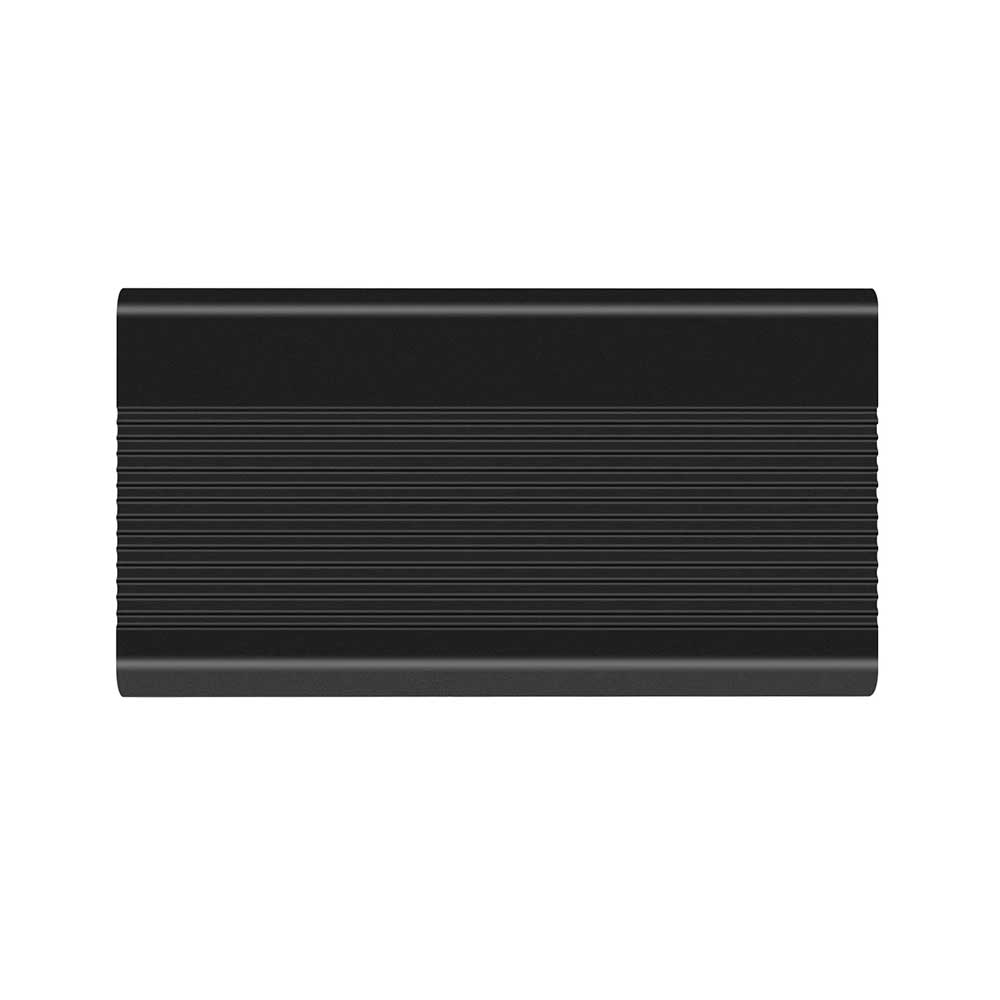

Input: DC100-240V AC/50-60Hz Output: DC 19V Solid-built full aluminum shell with high tooth fins as heat-sink, efficient cooling performance, exquisite production craft on outside design. Also we include a 4pins external fan as gift if you still worry heat. |

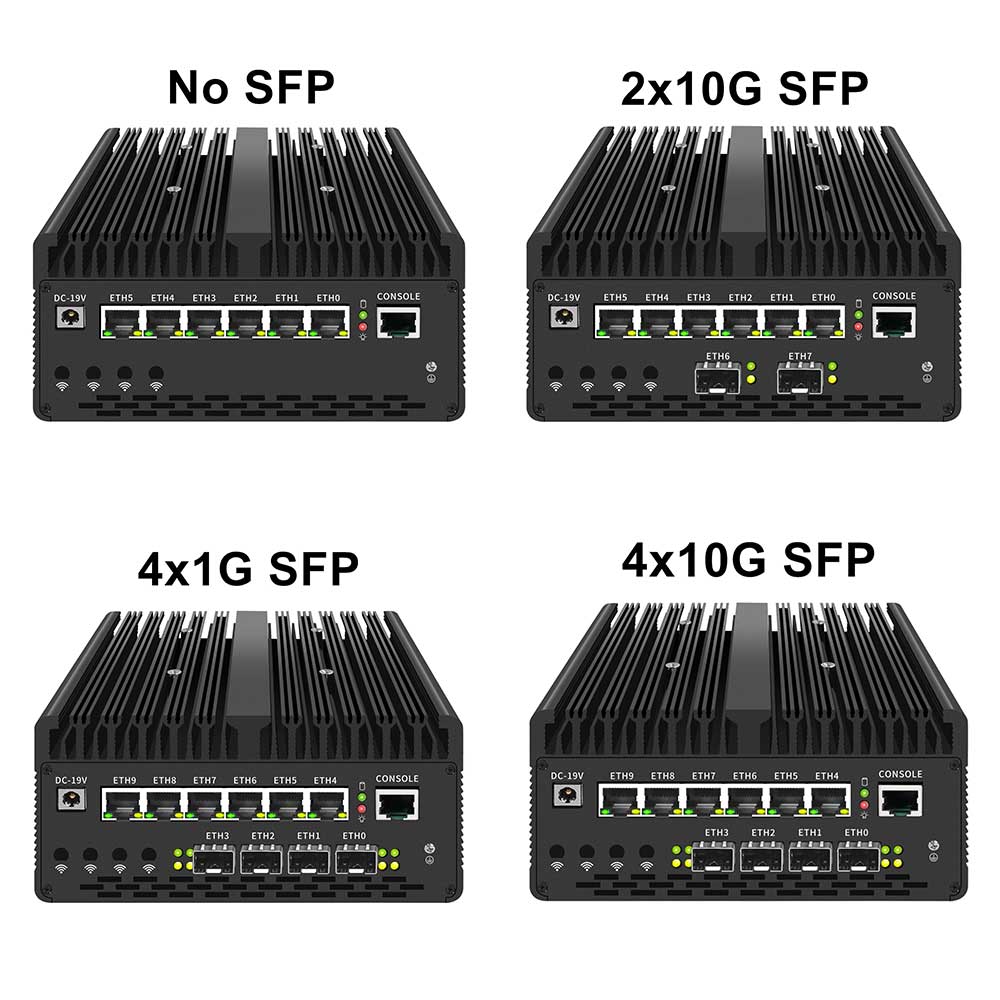

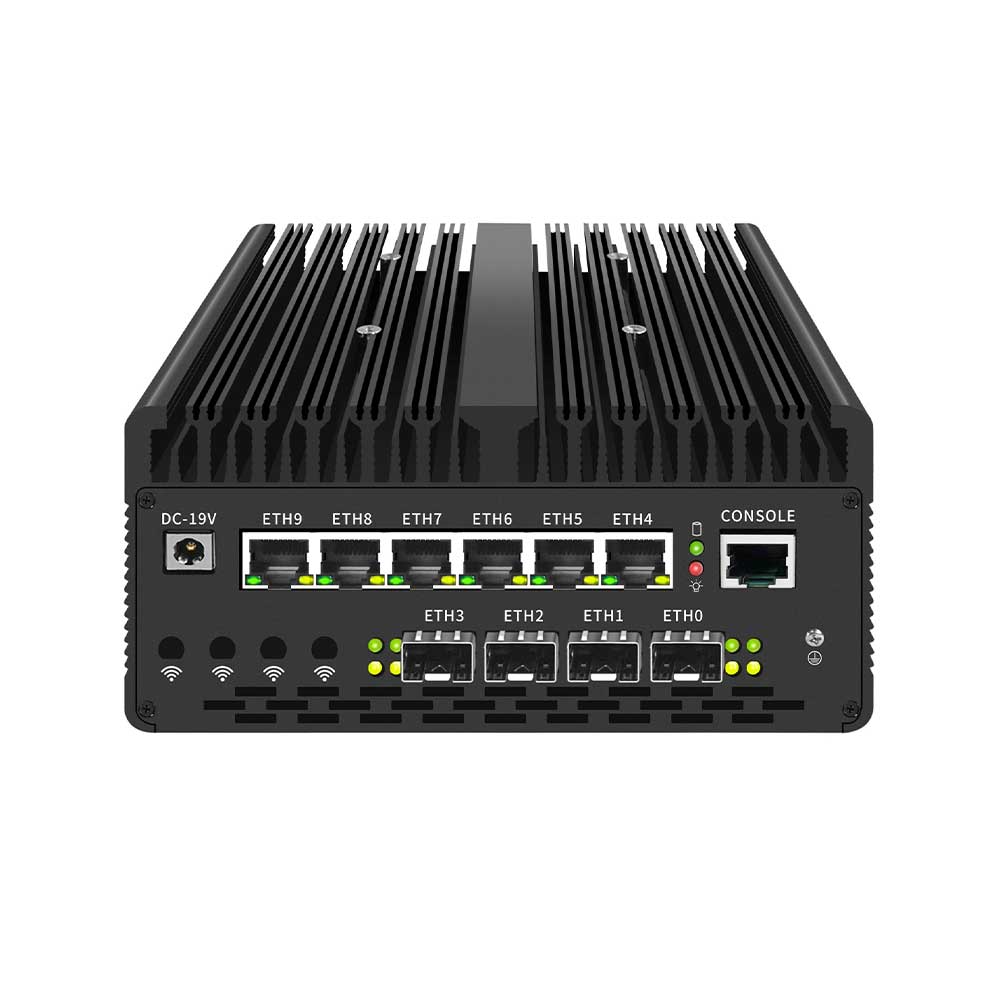

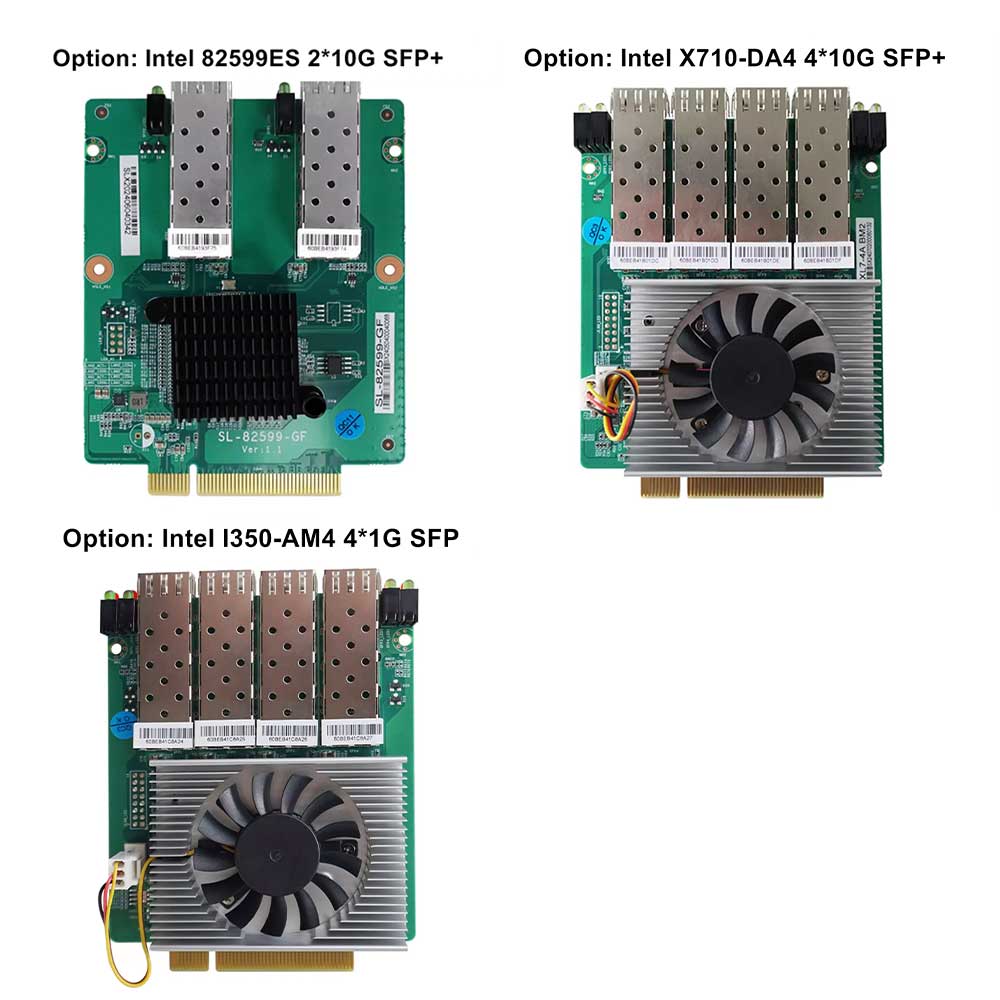

1 x PClEx8 expansion slot optional: 1. Intel 82599ES 2*10G SFP+ module 2. Intel X710-DA4 4*10G SFP+ module 3. Intel I350-AM4 4*1G SFP module |
| Product Dimension | Other Features | What's in Box |
| Size: 165mm x 154mm x 78mm Weight: 1.5kg |
Support AES-NI, ESXI, PVE, Watchdog, Auto power on, RTC, PXE boot, Wake-on-LAN etc. |
1 x Mini PC, 1 x Power
Adapter, 1 x Power Cord, 1 x HDMI Cable, 1 x Screws Bag |
