| Description | CPU | GPU |
| Model Number: K3-5 Type: Fanless, Silent Working Material: Aluminum Alloy Structure Case |
Intel Celeron N5105, 4 Cores/4 Threads, 4MB L3 Cache, Base Frequency: 2.0GHz, Max. Turbo Frequency: 2.9GHz, 24W TDP, 10nm Lithography. |
Intel UHD Graphics, Graphics Base Frequency: 450MHz; Graphics Burst Frequency: 800MHz; 4K Support: Yes, at 60Hz; Support via HD & DP. |
| RAM Memory | SSD Storage | Network |
| 2 x DDR4 260PIN SO-DIMM Slot( RAM Support 1.2V), up to 16GB | 1 x SATA, 1 x M.2(2280) NVMe only | 4 x i225-2.5G LAN Ports |
| Input/output port | Power & Working Environment | System Supported |

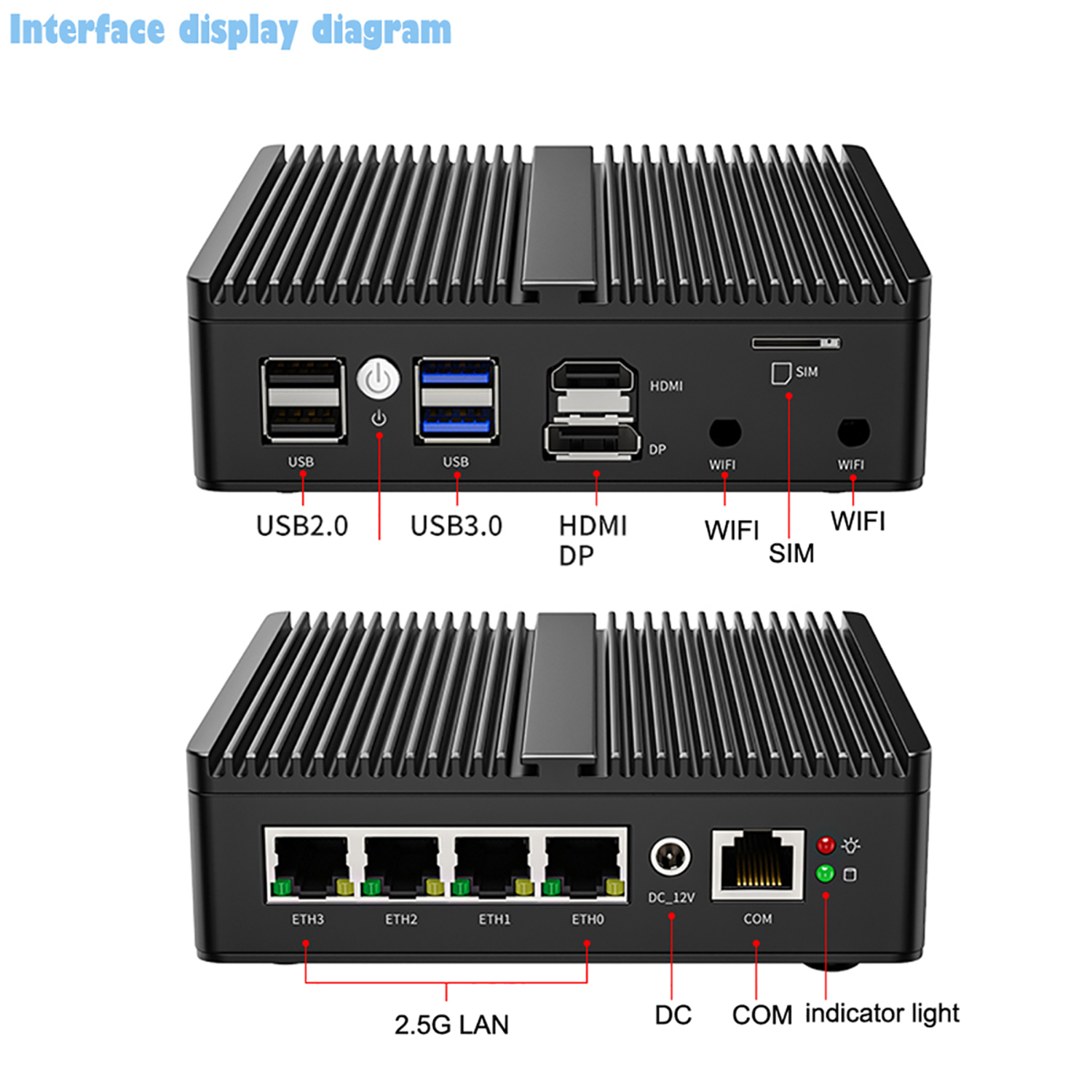

| Switch: 1 x Power On/Off Power: 1 x DC IN; LED: 1 x LED USB: 2 x USB2.0, 2 x USB3.0 Display: 1 x HDMI, 1 x DP LAN: 4 x 2.5G LAN COM: 1 x RJ45 COM Other: 1 x SIM Slot |
Input: DC100-240V AC/50-60Hz Output: DC 12V Operating Temperature: 0°C-70°C(32°F~140°F) Storage Temperature: -20°C-80°C(-68°F~176°F) Relative Humidity: 10%~90%(non-condensing) |
Windows / Linux / Centos / Ubuntu / pfSense / OPNsense. |
| Product Dimension | Other Features | What's in Box |
| Size: 137mm x 127mm x 44mm Weight: 1.0kg |
Support Firewall, VPN, Network Server, Network Security, Router and other fields. | 1 x Mini PC, 1 x Power
Adapter, 1 x Power Cord, 1 x HDMI Cable, 2 x Antennas, 1 x Screws Bag |
