| Description | CPU | Triple Display |
| Model Number: K3-5-2 Type: Fanless, Silent Working Material: Aluminum Alloy Structure Case |
1. Intel N5105 2. Intel N6000 3. Intel Alder Lake N100 |
Support 2xHD2.0 and 1xDP dual 4K@60Hz video display. Simultaneously displaying on three screens. |
| RAM Memory | SSD Storage | Network |
| N100: 1 x DDR4 SO-DIMM RAM Slot N5105/N6000: 2 x DDR4 SO-DIMM RAM Slots |
1 x M.2 NVMe/PCIe3.0 2280 SSD, 1 x 2.5''SATA3.0 SSD/HDD. |
2 x Realtek RTL8111 RJ45 Gigabit Ethernet ports |
| Input/output port | Power & Working Environment | System Supported |

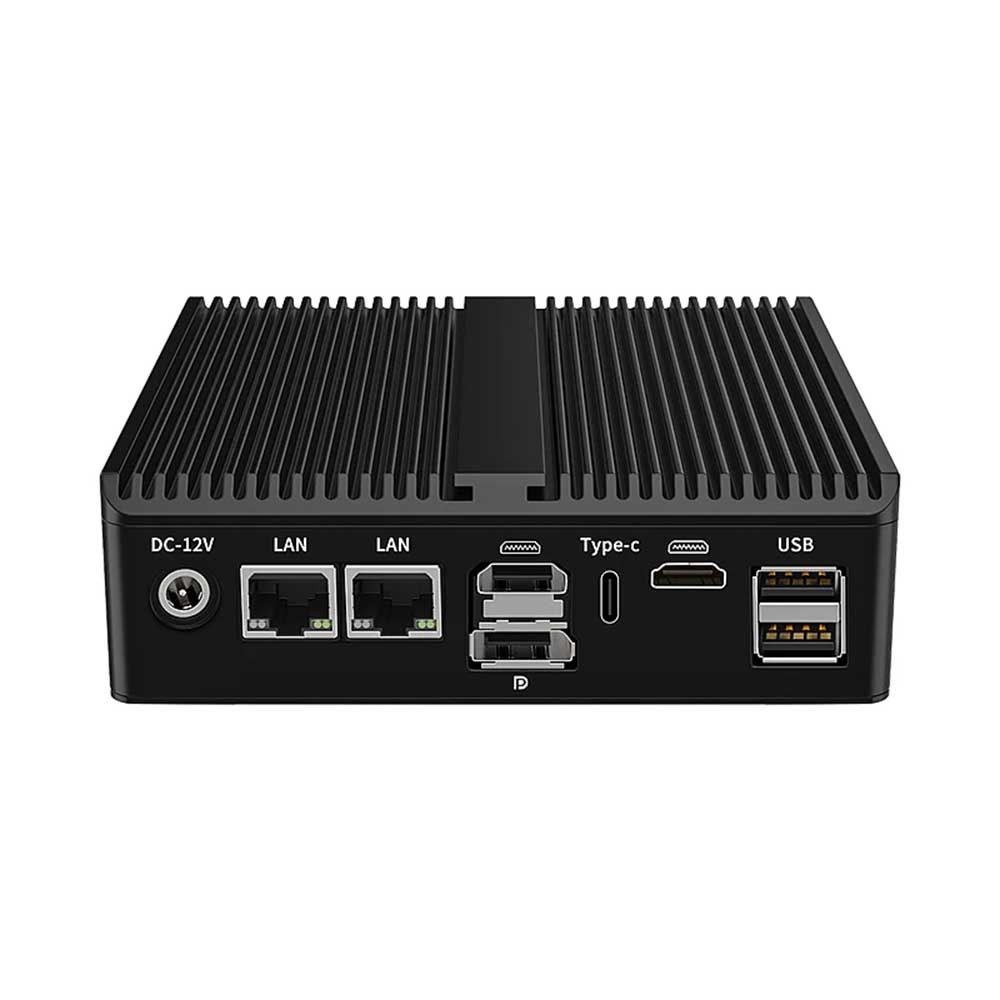

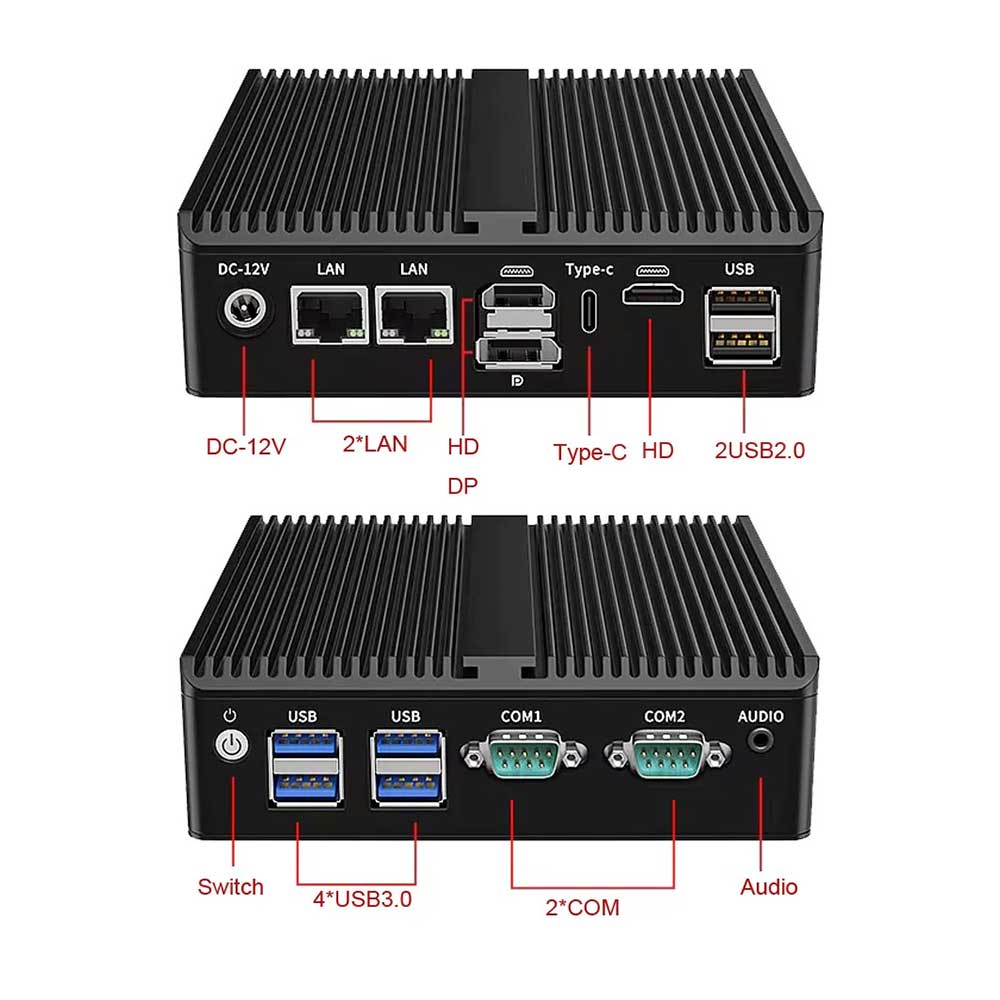

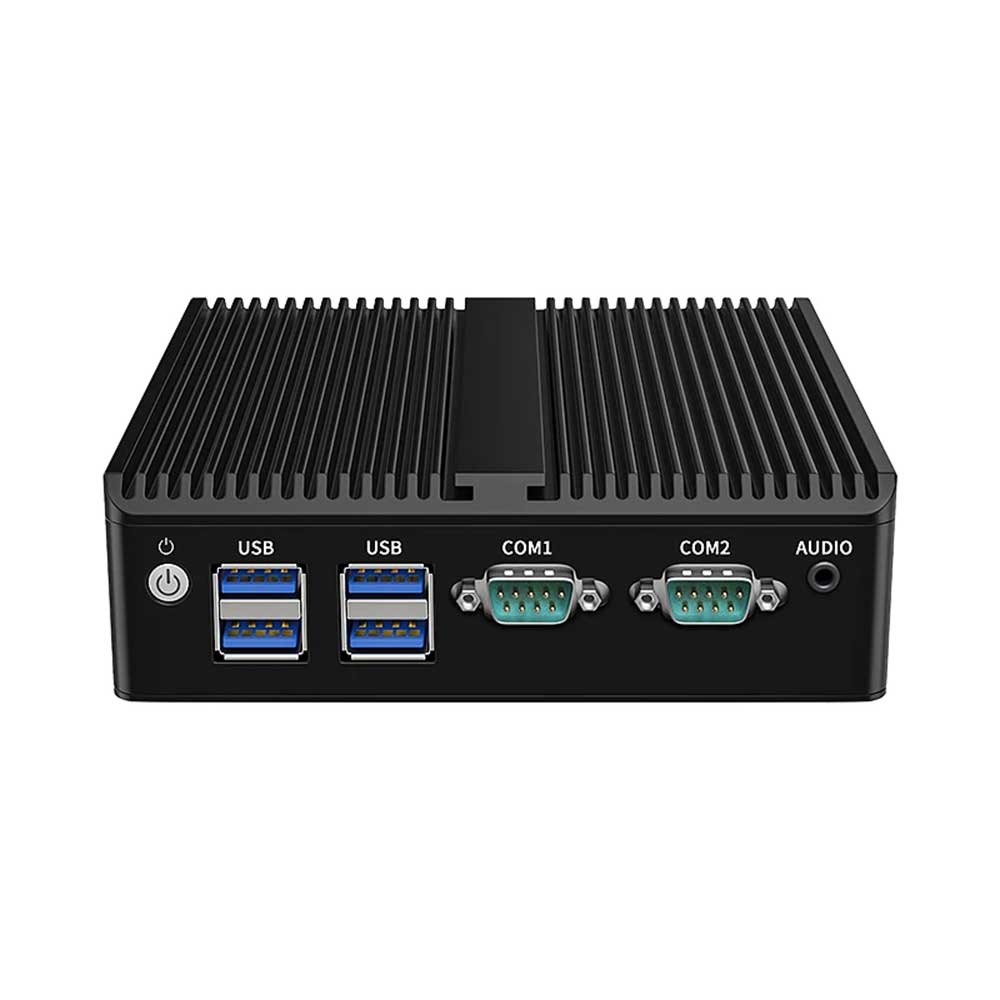

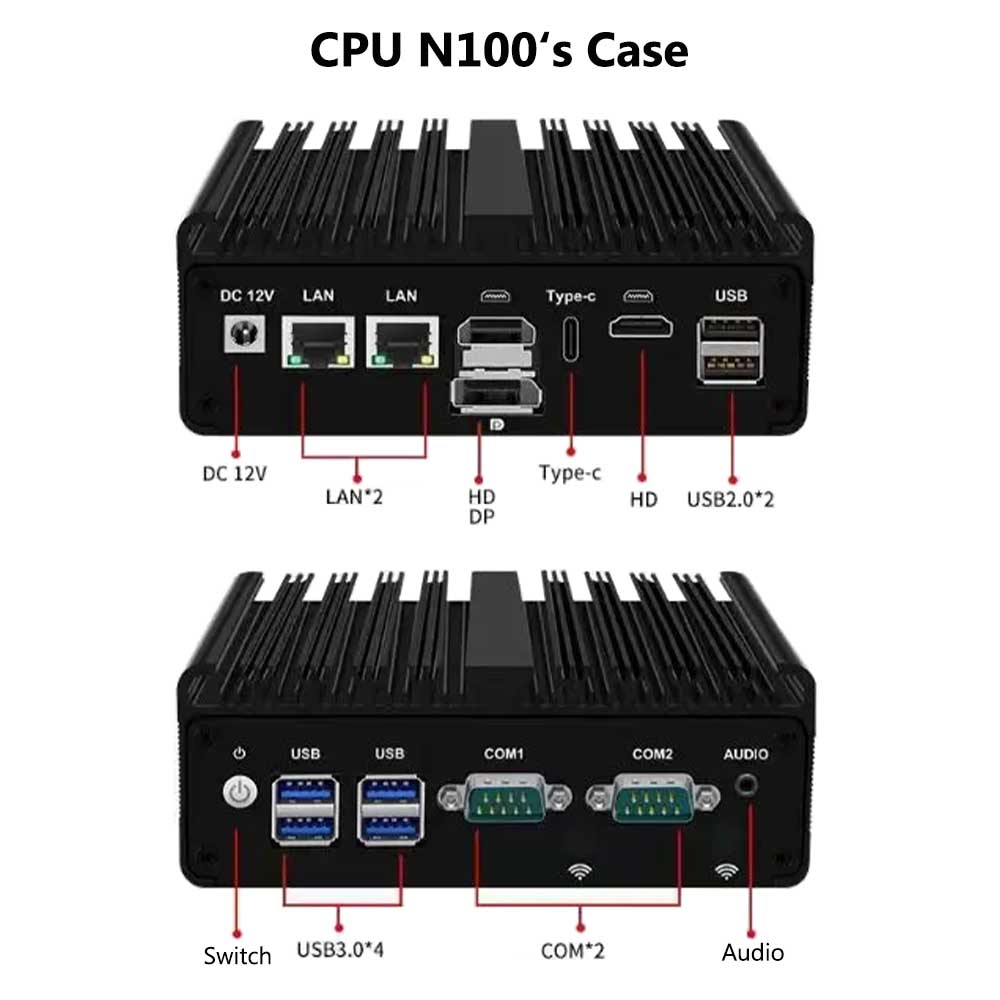

| Switch: 1 x Power On/Off Power: 1 x DC IN USB: 2 x USB2.0, 4 x USB3.0 Display: 2 x HDMI, 1 x DP LAN: 4 x Realtek RTL8111 RJ45 LAN COM: 2 x COM Others: 1 x Type-C, 1 x Audio |
Input: DC100-240V AC/50-60Hz Output: DC12V-4A 5.5*2.5 Operating Temperature: -0~+50°C (commercial HDD), -20°C~+50°C (industrial SSD), surface air flow. Relative Humidity: 5~90°C, non Condensing. |
Windows / Linux / Centos / Ubuntu / pfSense / OPNsense. |
| Product Dimension | Other Features | What's in Box |

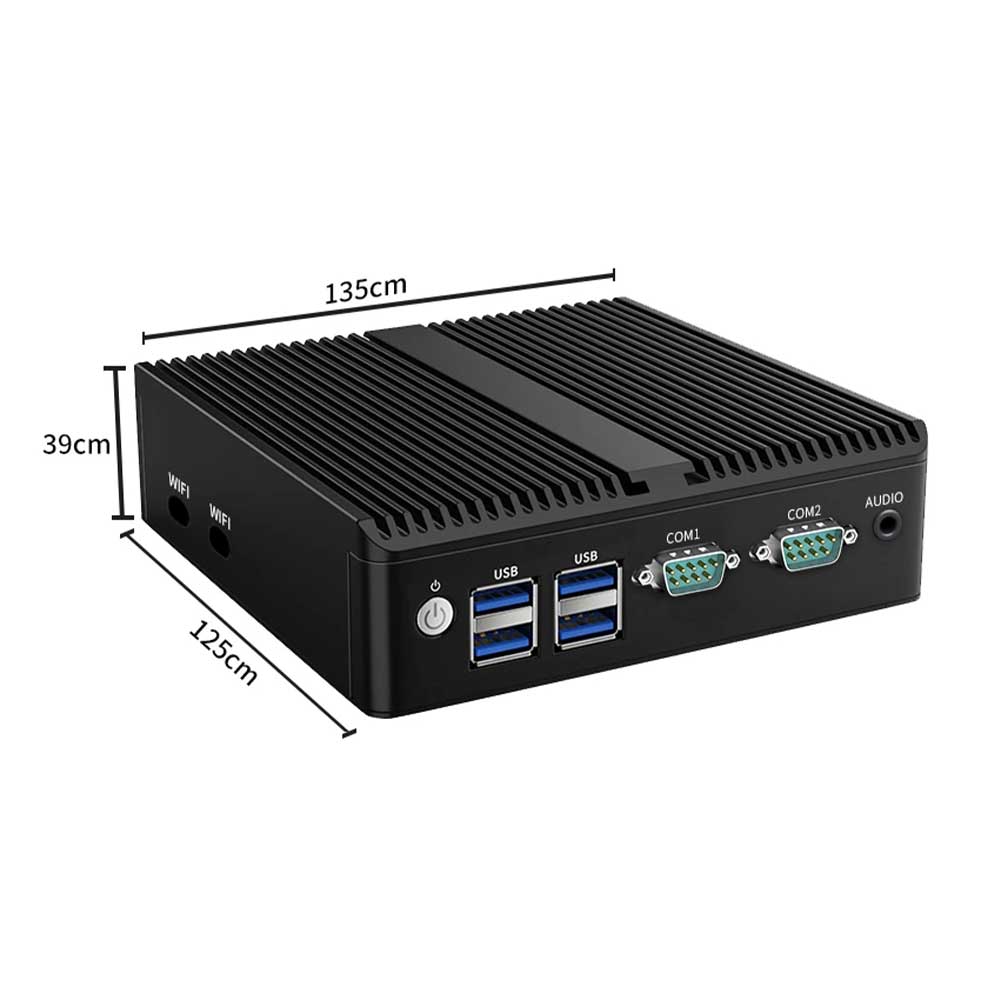

| Size: 136mm x 126mm x 40mm Weight: 2.0kg |
Support AES-NI, ESXI, PVE, Watchdog, Auto power on, RTC, PXE boot, Wake-on-LAN etc. | 1 x Mini PC, 1 x Power Adapter, 1 x Power Cord, 1 x HDMI Cable, 1 x Screws Bag |
