| Description | CPU | 4K Triple Screen Display |
| Model Number: K18-5 Type: Fanless or with Fan Material: Brushed Aluminum Alloy Case |
1. Intel Core i5-4308U, i7-4600U 2. Intel Core i3-1215U 3. Intel Core i5-1345U, i7-13620H |
2 x HD interface+1 x DP interface |
| RAM Memory | SSD Storage | Network |
| i5-4308U, i7-4600U: 1 x DDR3 SO-DIMM RAM Slot, support 8GB Max. i3-1215U, i5-1345U, i7-1362H: 1 x DDR5 SO-DIMM RAM Slot, support 32GB Max. |
1 x M.2 2280 NVMe/PCIEx4/SATA SSD Slot, 1 x 7mm 2.5''SATA SSD/HDD Slot. |
2 x Intel i226-V 2.5G RJ45 LAN |
| Input/output port | Power Supply | System Supported |

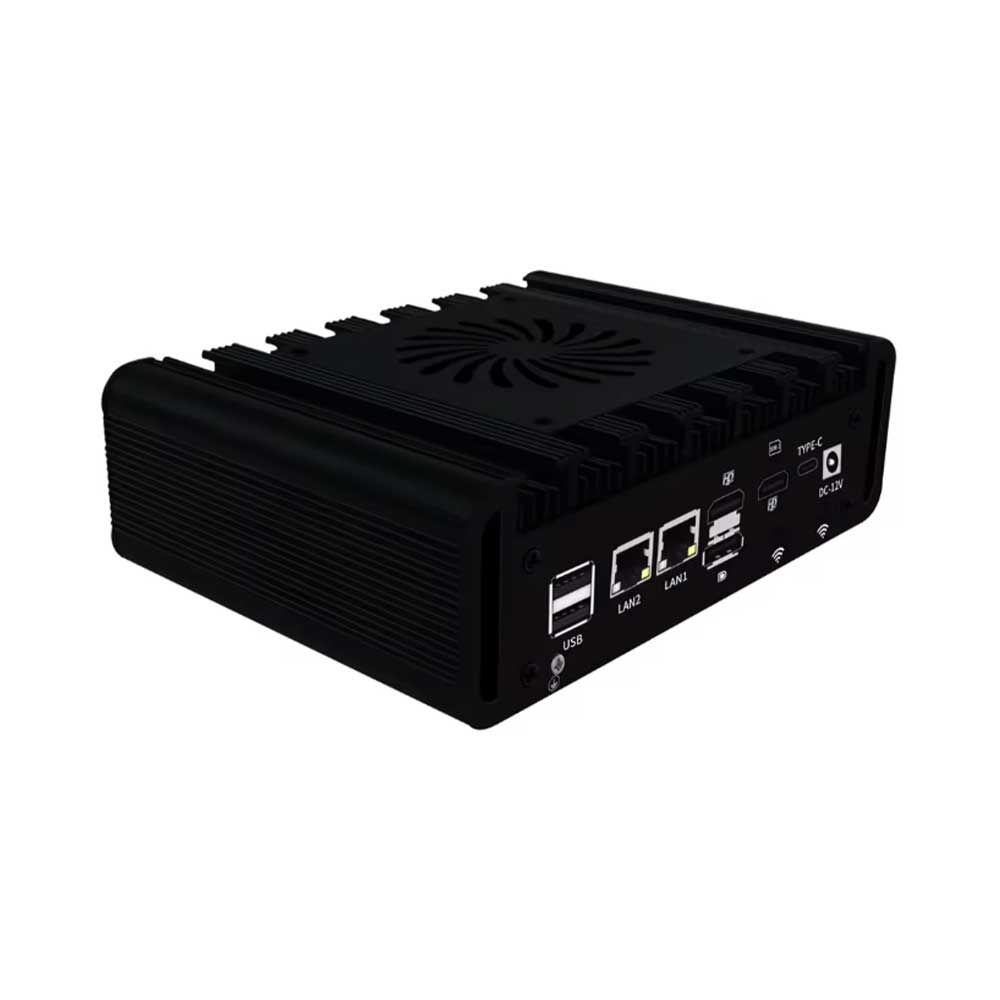

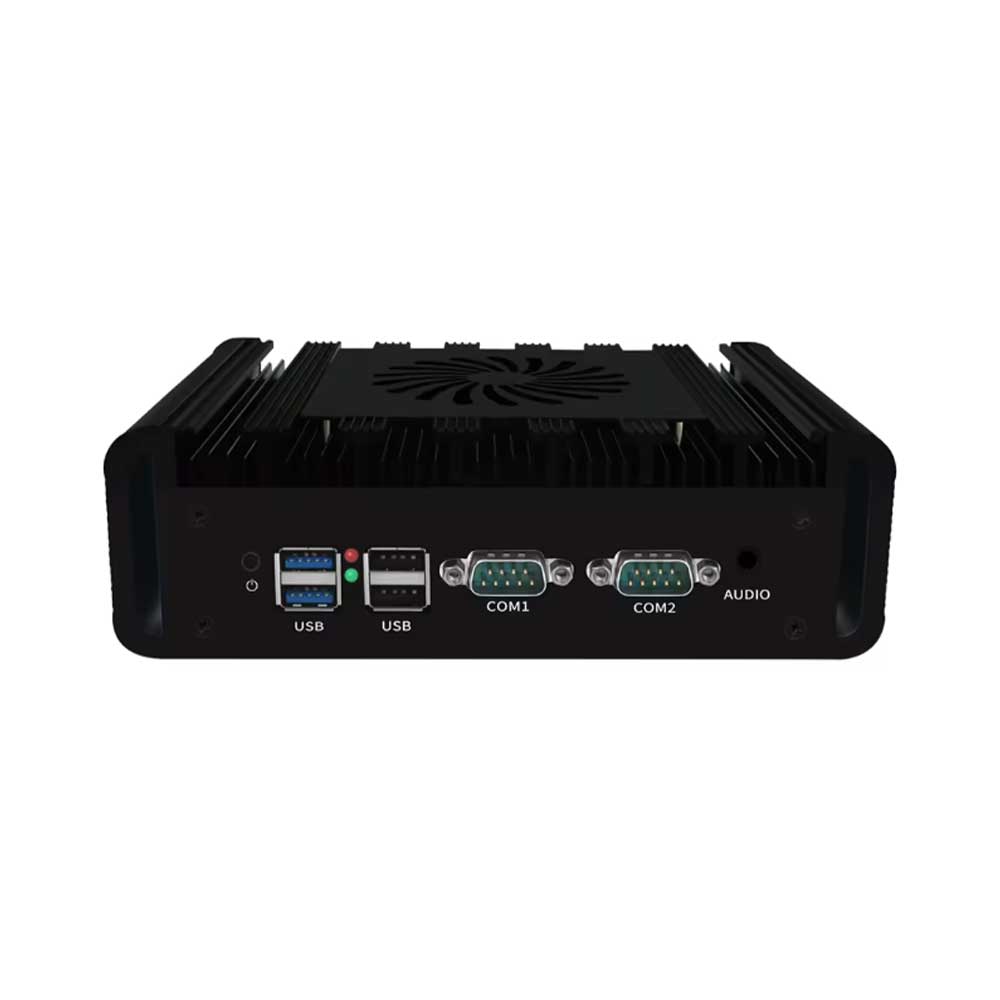

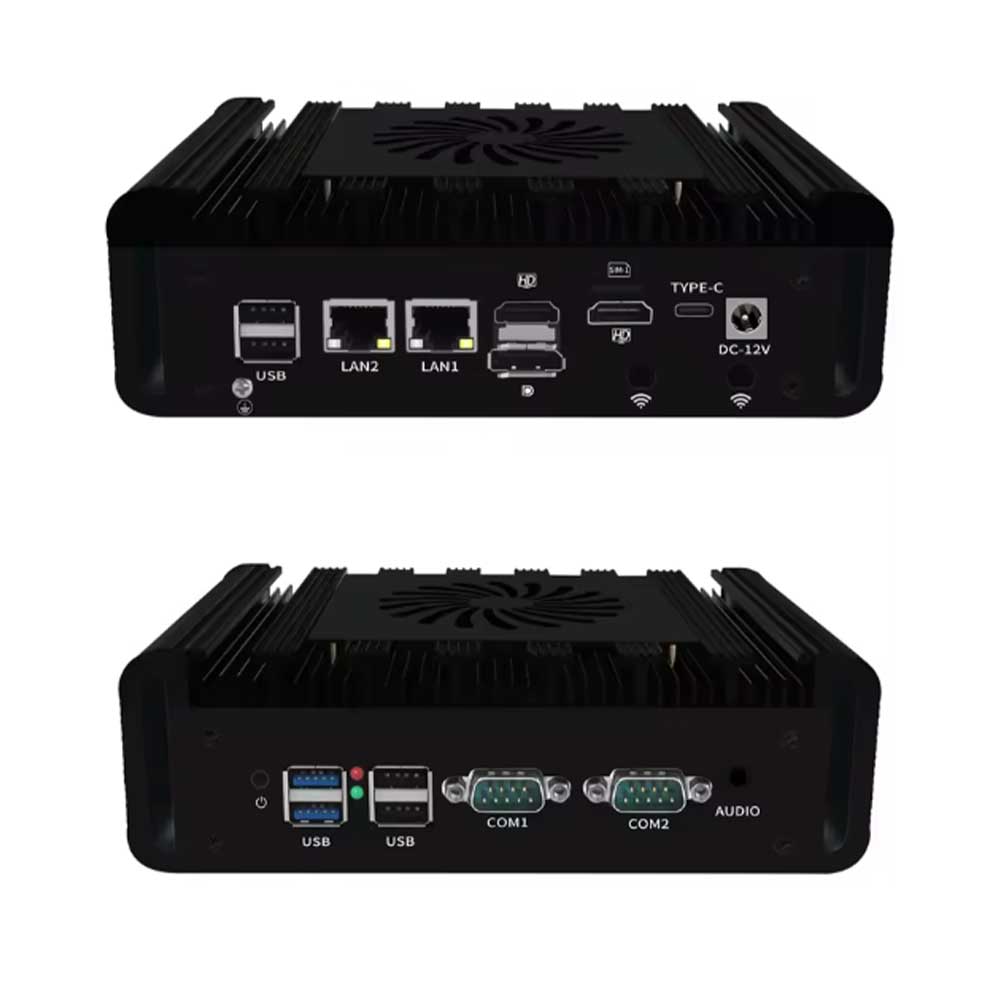

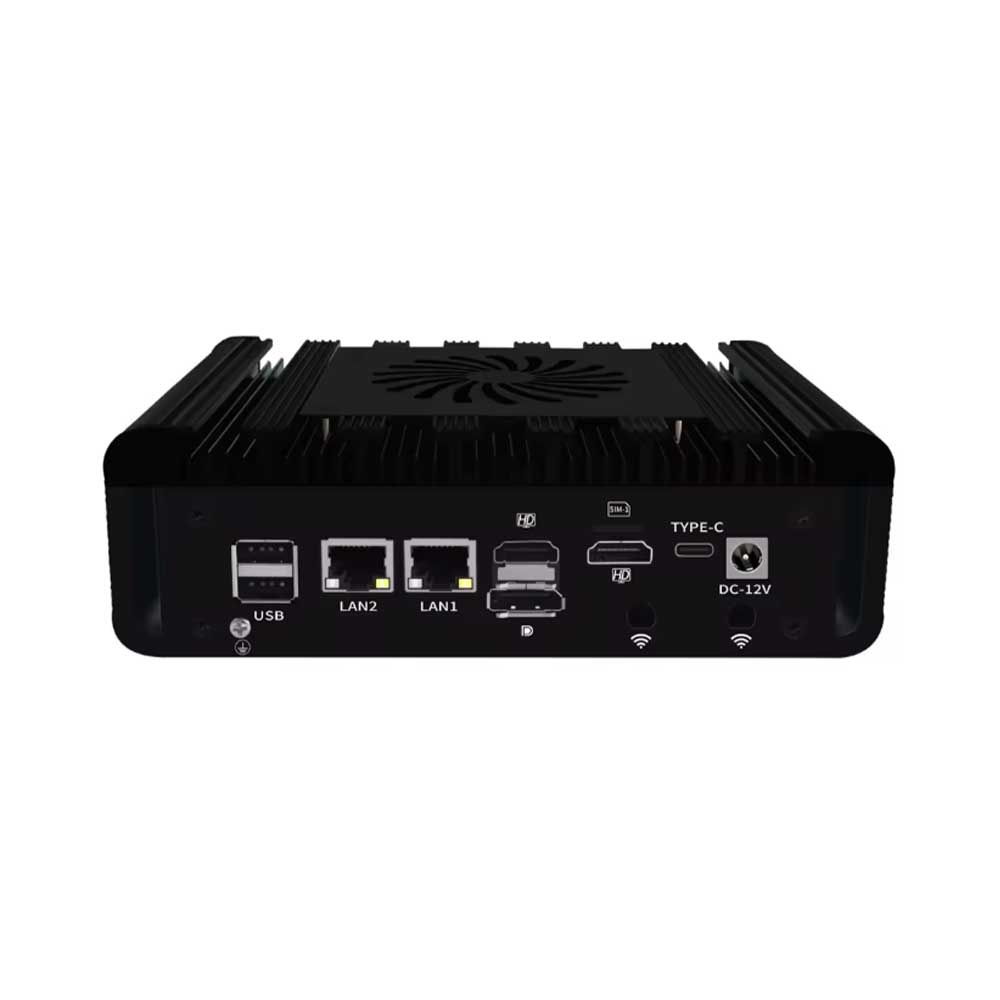

| Switch: 1 x Power On/Off Power: 1 x DC IN USB: 4 x USB 2.0, 2 x USB 3.0 Display: 2 x HDMI, 1 x DP LAN: 2 x 2.5G LAN COM: 2 x RJ45 COM Other: 1 x Type-C |
Input: DC100-240V AC/50-60Hz Output: DC 12V/3-5A |
Windows / Linux / ikuai / pfsense . |
| Product Dimension | Features | What's in Box |

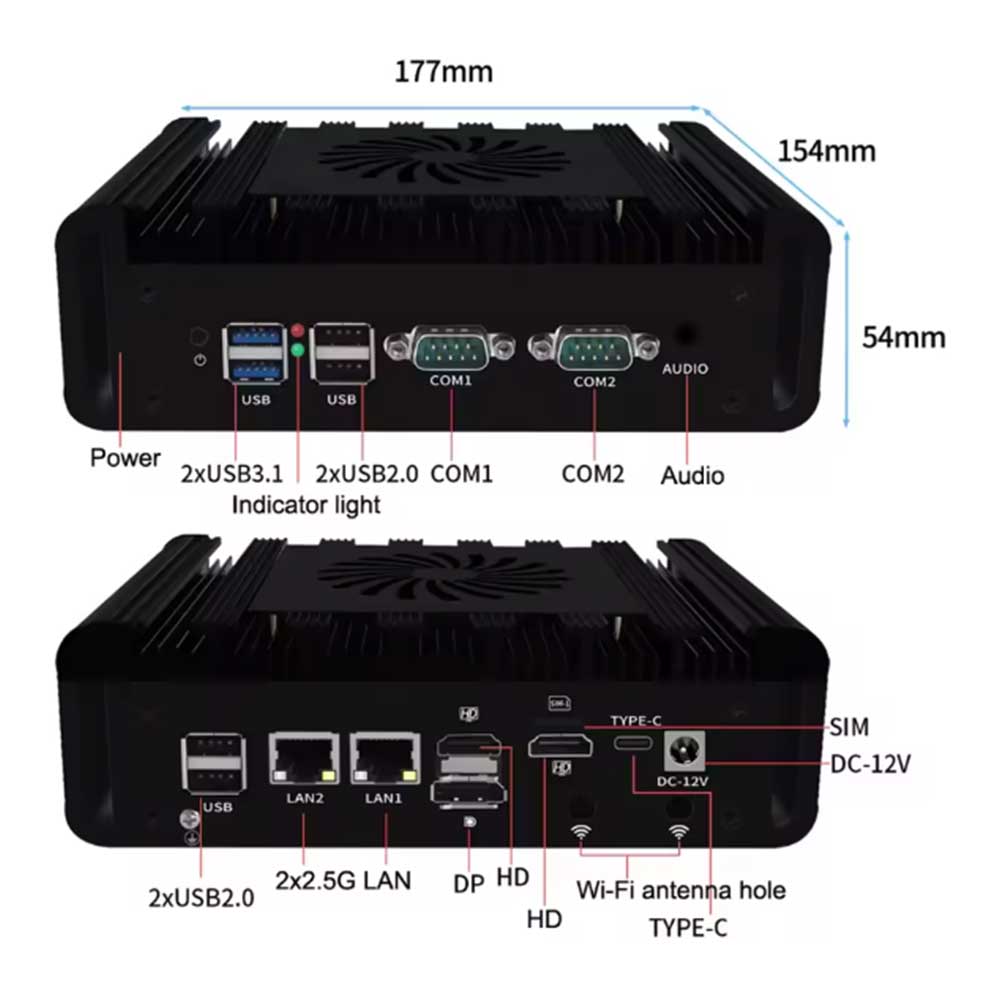

| Size: 177mm x 154mm x 54mm Weight: 1.5kg |

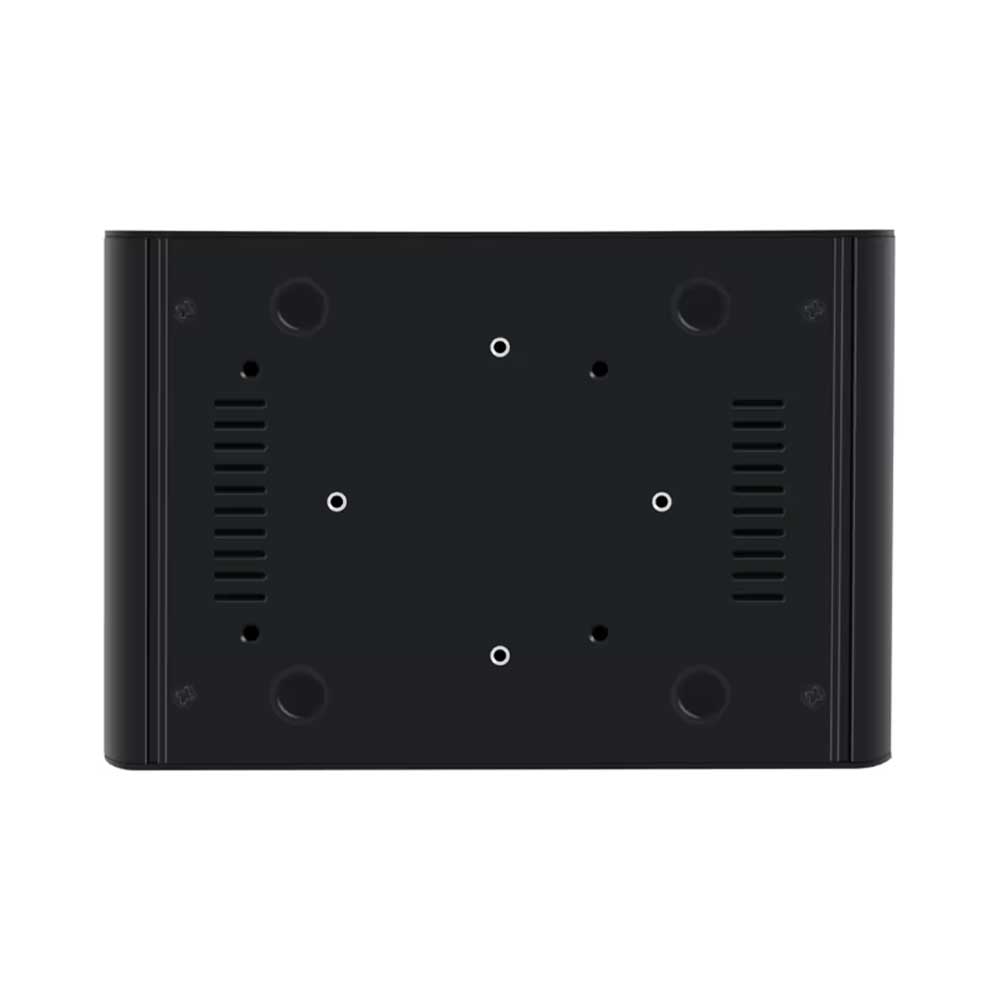

1. 1 x M.2 B Key support 5G connection, 1 x MPCIE slot, support WiFi/4G(2 choose 1) connection. 2. All aluminum shell fins passive heat-sink + intelligent fan cooling. 3. Low consumption TDP and can be mounted back of monitor by VESA bracket(optional). |
1 x Mini PC, 1 x Power Adapter, 1 x Power Cord, 1 x HDMI Cable, 1 x Screws Bag |
