| Description | CPU | Dual 4K UHD Video Display |
| Model Number: K18-4 Type: Fan or Fanless |
1. Intel Alder Lake N150 2. AMD Ryzen Embedded R2314 |
1 x HDMI + 1 x DP |
| RAM Memory | SSD Storage | Network |
| 1 x DDR4 SODIMM RAM Slot, up to 16GB. | 1 x M.2 2280 NVMe/PCIEx4/SATA SSD, 1 x 7mm 2.5'' SATA SSD/HDD. |
4 x Intel i226-V 2.5G RJ45 LAN. 1 x M.2 B Key support 5G connection, 1 x MPCIE Slot, support WiFi/4G(2 choose 1) connection. |
| Input/output port | Power Supply | Other Feature |

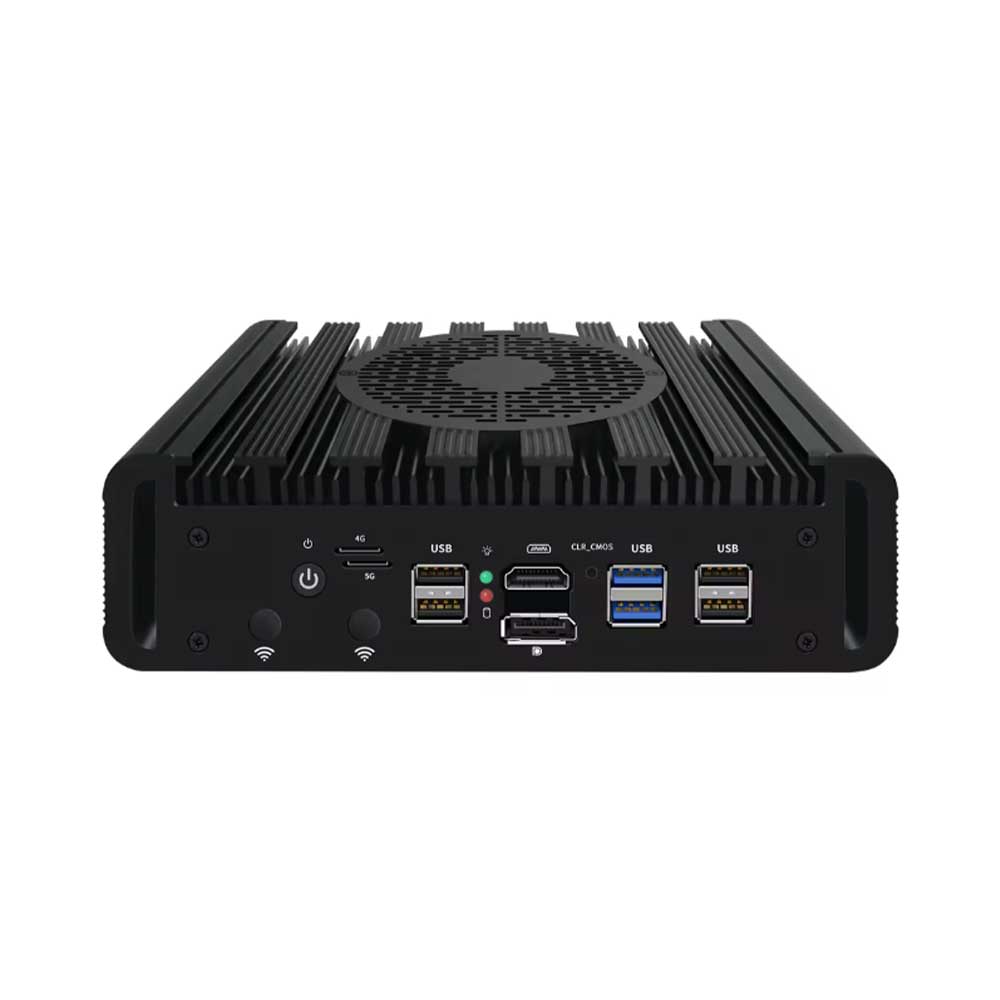

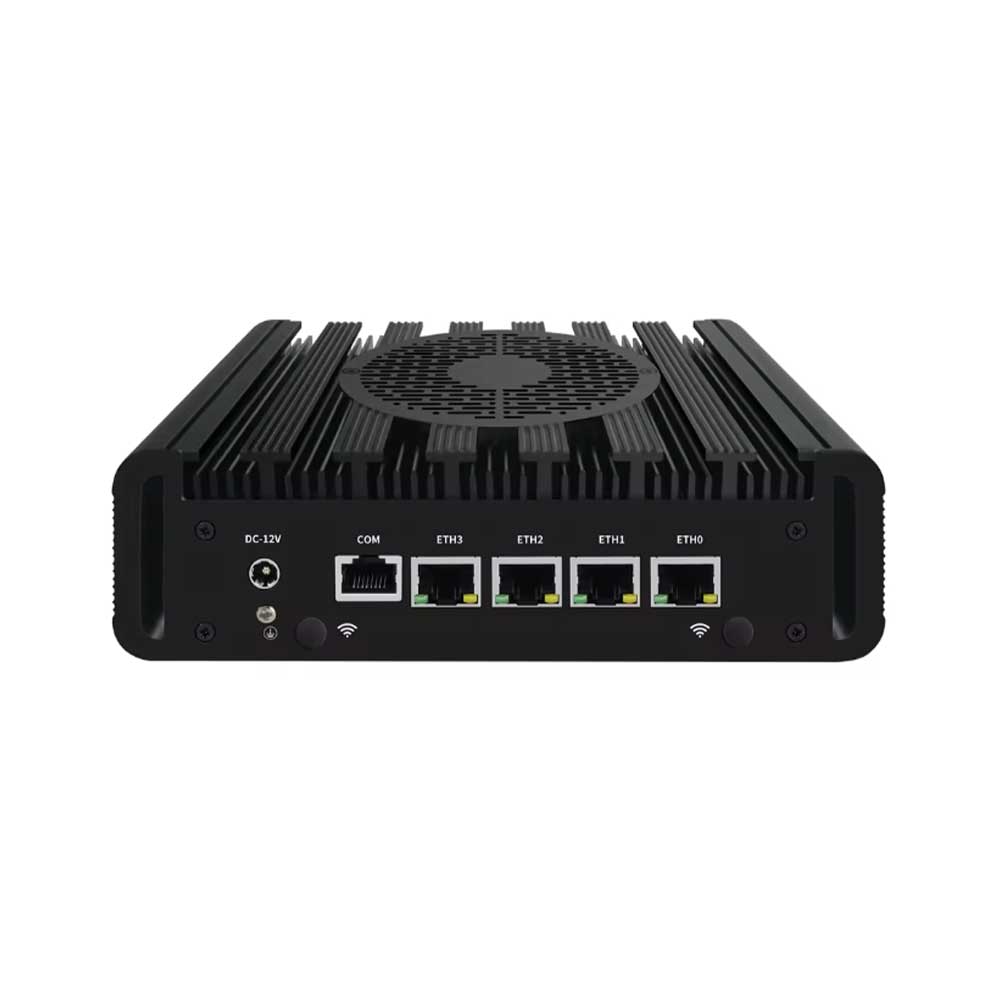

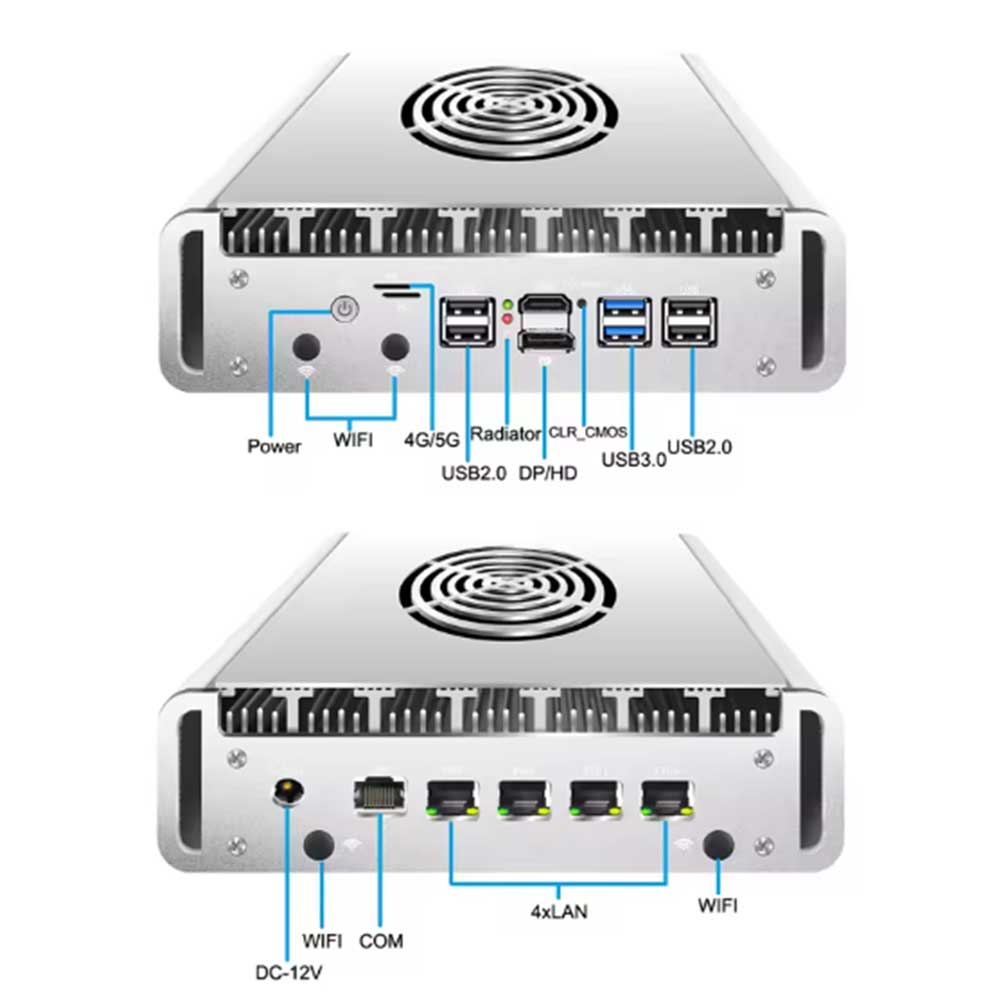

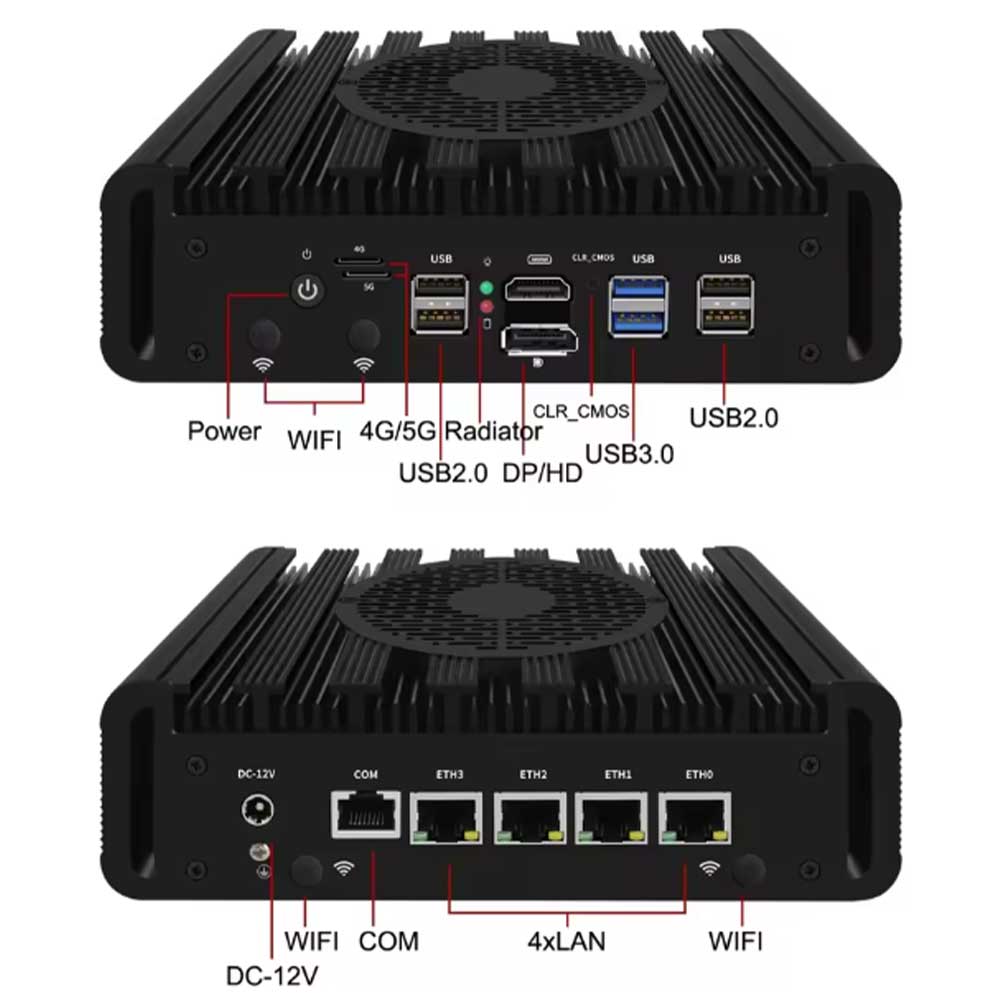

Switch: 1 x Power On/Off Power: 1 x DC IN USB: 2 x USB 3.0, 4 x USB 2.0 Display: 1 x HDMI, 1 x DP LAN: 4 x 2.5G LAN COM: 1 x RJ45 COM SIM Slot: 1 x 4G, 1 x 5G |
Input: DC100-240V AC/50-60Hz Output: DC 12V/3-5A |
-Innovation: All aluminum shell fins passive heat-sink + intelligent fan cooling,
using fan and motherboard isolation technology to achieve dust and corrosion prevention.
It is flexible to change between fanless system and fan system. -Low consumption TDP and can be mounted back of monitor by VESA bracket(optional). |
| Product Dimension | System Supported | What's in Box |

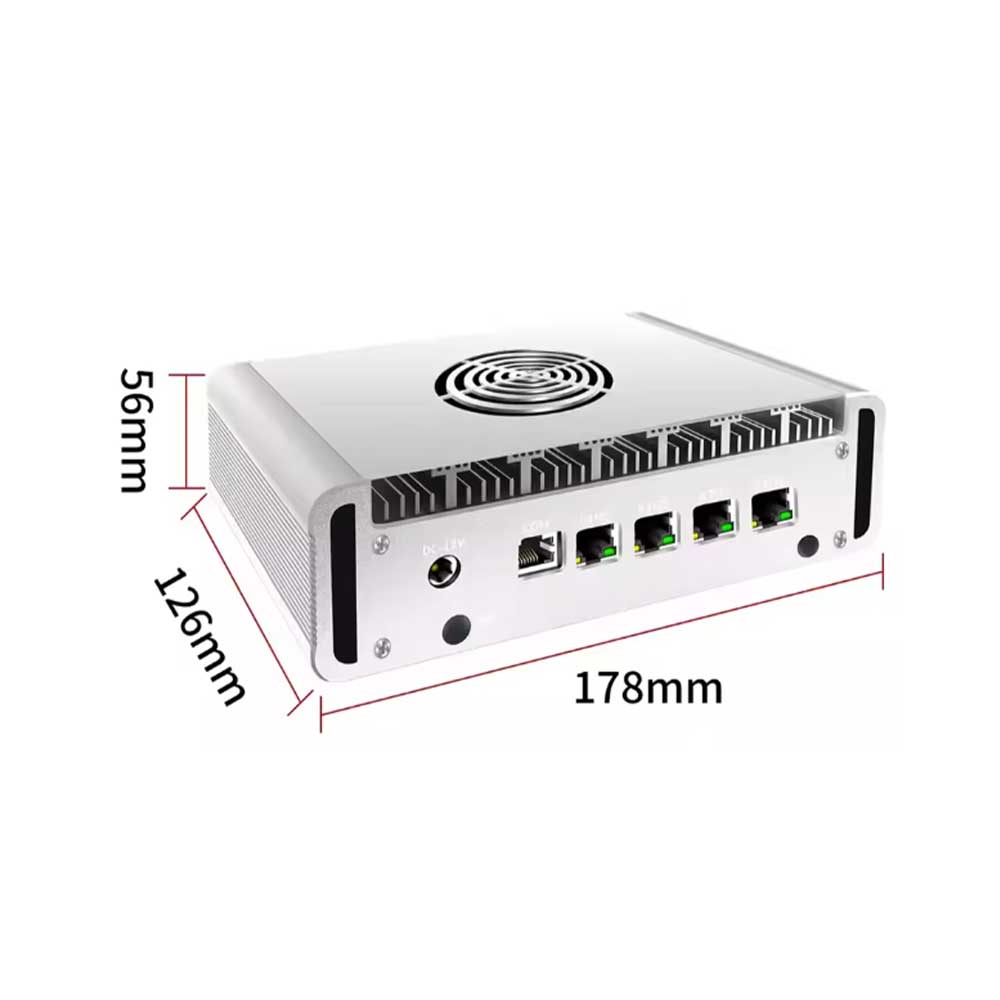

| Size: 178mm x 126mm x 56mm Weight: 2.0kg |
Windows 10 / Windows 11 | 1 x Mini PC, 1 x Power Adapter, 1 x Power Cord, 1 x HDMI Cable, 1 x Screws Bag |
