Description | CPU | Computing Supported |

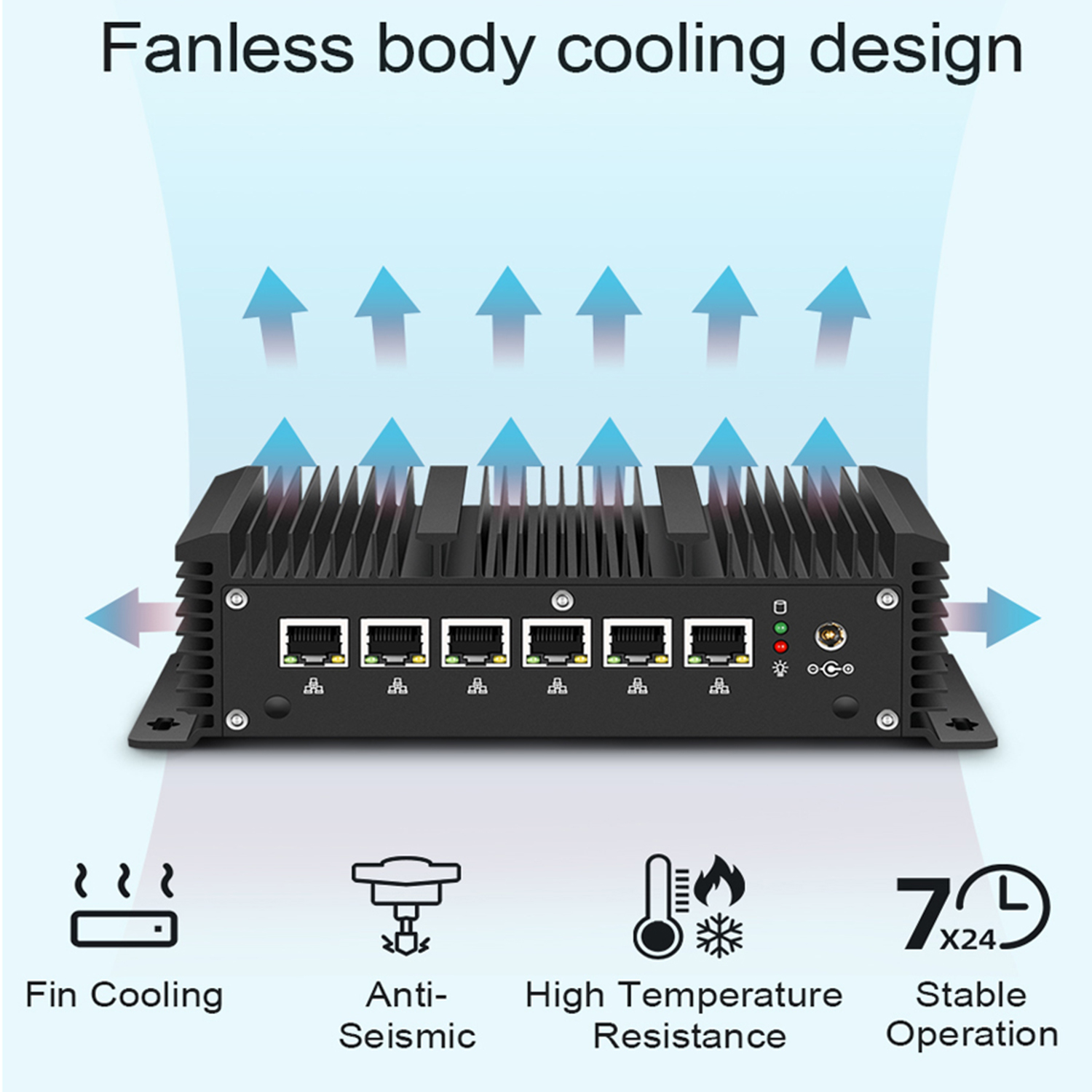

Model Number: K121 Type: Fanless, Silent Working, Industrial Material: Brushed Aluminum Alloy Case |
1. Intel Celeron 2955U/3865U/3965U 2. Intel Core i3-7100U/i3-7167U |
Support 64 bit computing. |
RAM Memory | SSD Storage | Ethernet |
1 x SO-DIMM Slot, support up to 8GB | 1 x mSATA SSD Socket, Support 1 x SATA 2.5 inches HDD (highest data conversion rate SATA 3.0) |
6 x 10/100/1000/Mbps 211AT, support timing on, wake on network. |
Input/output port | Power & Working Environment | System Supported |
Switch: 1 x Power On/Off Power: 1 x DC IN; LED: 1 x LED USB: 2 x USB2.0, 2 x USB3.0 Display: 1 x HDMI LAN: 6 x RJ45 Gigabit LAN COM: 1 x COM RS232, 1 x RJ45 COM Other: 1 x RST |
Input: DC100-240V AC/50-60Hz Output: DC 12V 5A / 60W Operating Temperature: 0°C-70°C Storage Temperature: -20°C-65°C Relative Humidity: 10%~90%(non-condensing) |
Windows / Linux / Centos / Ubuntu / pfSense / OPNsense. |
Product Dimension | Other Features | What's in Box |
Size: 170mm x 150mm x 45mm Weight: 2.5kg |
Support Energy-saving technology, Speedstep. | 1 x Mini PC, 1 x Power
Adapter, 1 x Power Cord, 1 x HDMI Cable, 2 x Antennas, 1 x Screws Bag |
