| Description | CPU | GPU |
| Model Number: K10 Type: Fanless, Silent Working, Industrial Material: Full Metal Case |
Intel Core i5-8265U, 4 Cores/8 Threads, 6MB Cache, Base Frequency: 1.6GHz, Max. Turbo Frequency: 3.9GHz, 15W TDP. |
Intel UHD Graphics for 8th Generation Processors, Support 4K at 60Hz, 200MHz Graphics Base Frequency. |
| RAM Memory | SSD Storage | Audio Card |
| 2 x DDR4 SO-DIMM Slot, up to 64GB | 1 x mSATA, 1 x SATA3.0 | ALC892 HiFi, 6 channel sound |
| Input/output port | Power & Working Environment | System Supported |

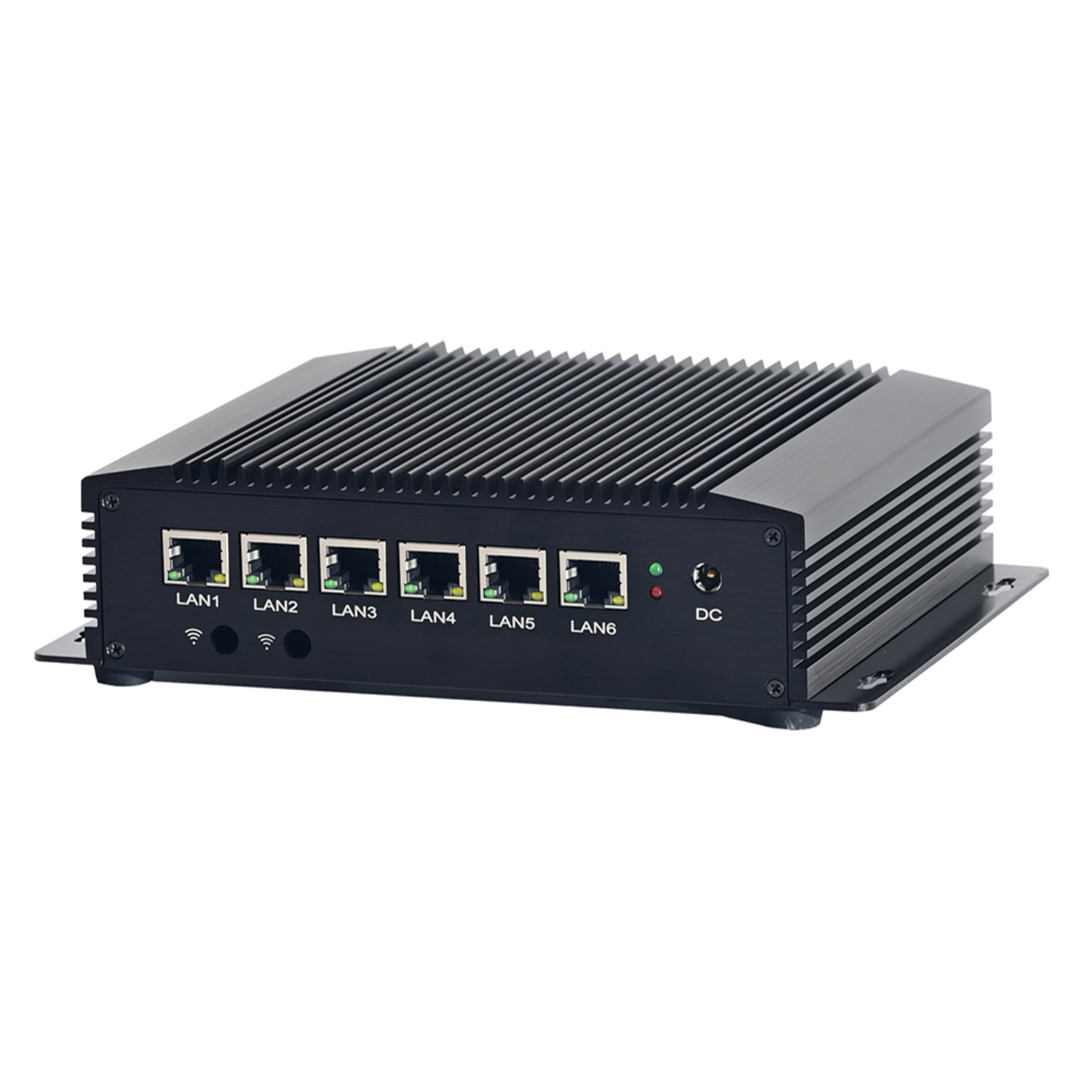

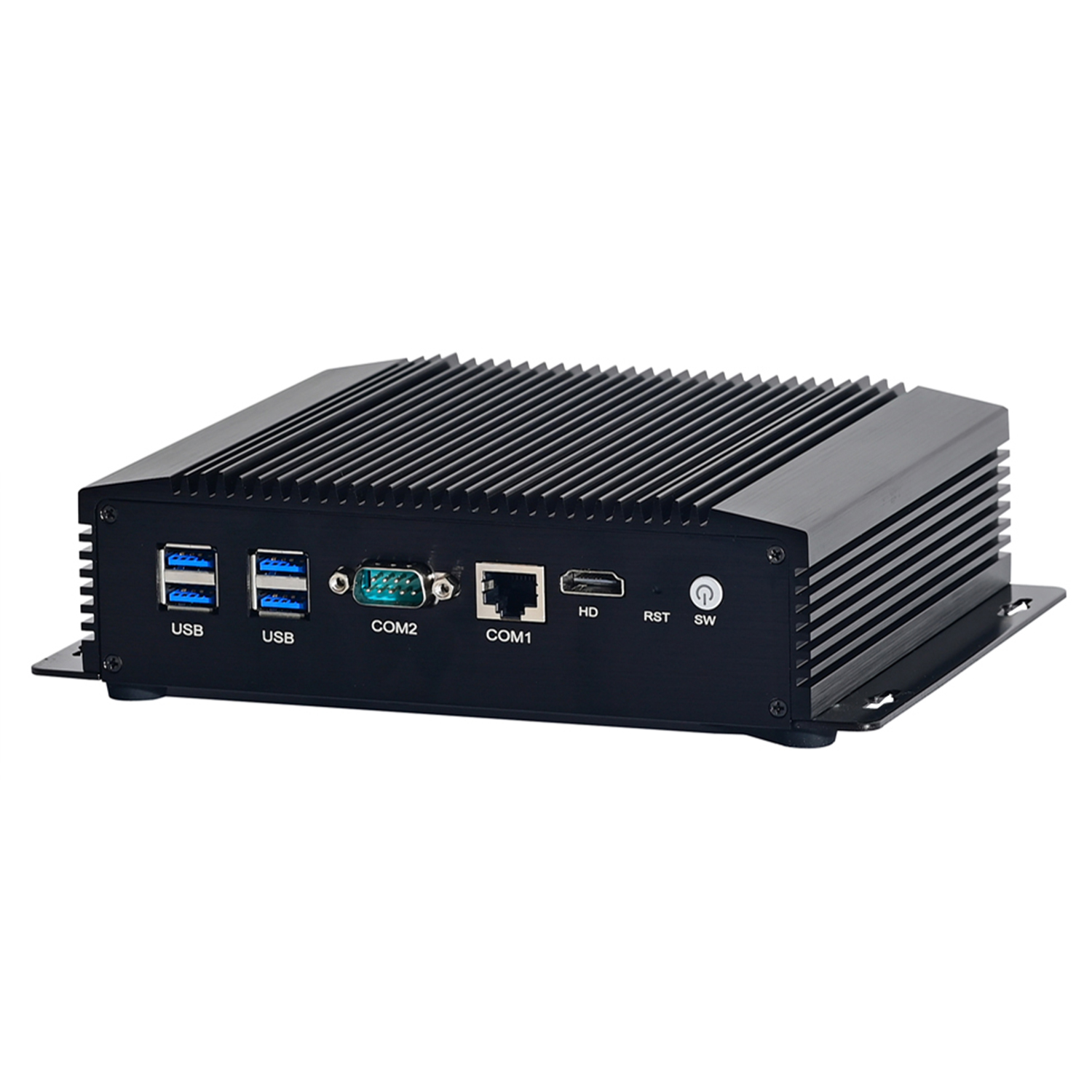

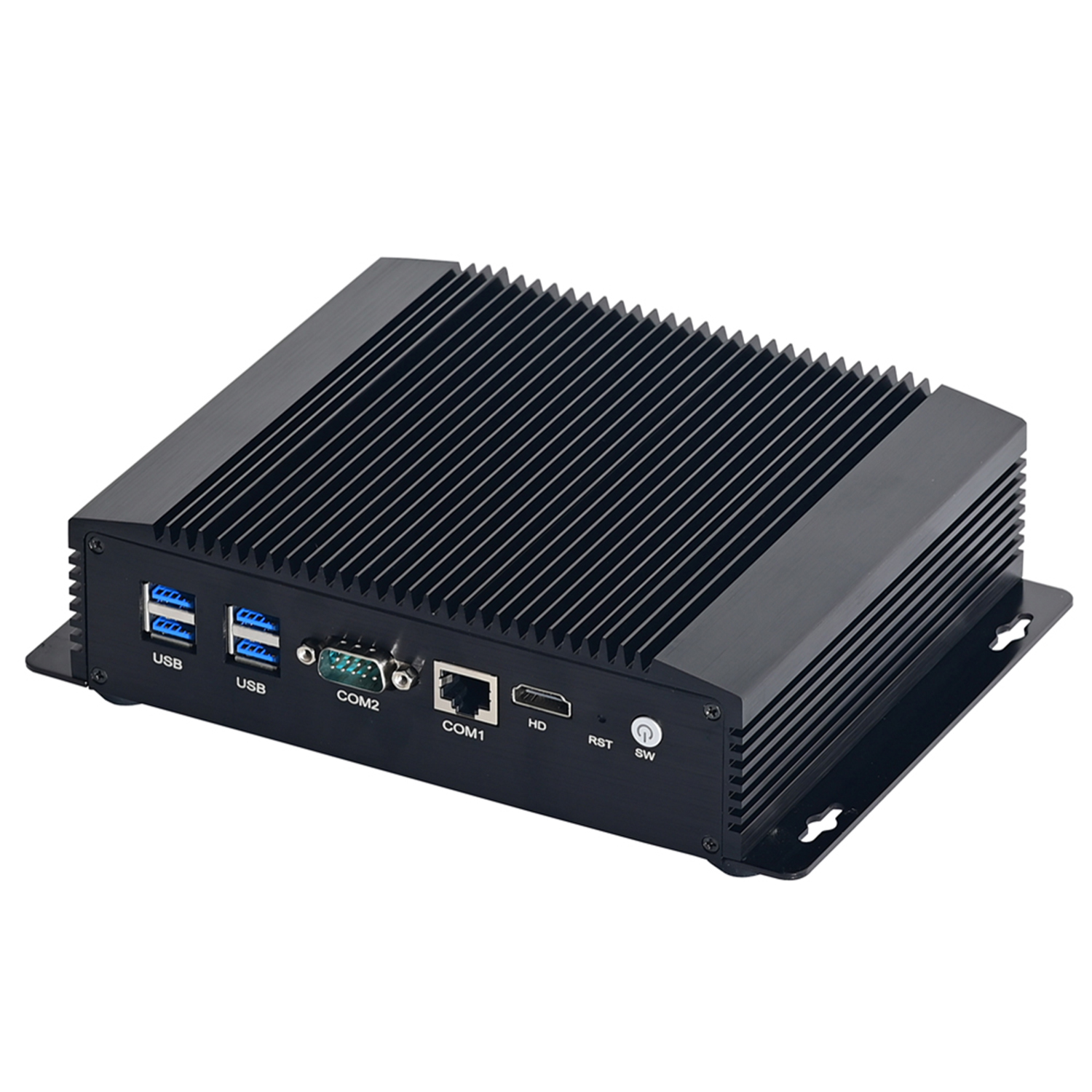

| Switch: 1 x Power On/Off Power: 1 x DC IN; LED: 1 x LED USB: 4 x USB3.0 Display: 1 x HDMI LAN: 6 x RJ45 Gigabit LAN COM: 1 x COM RS232, 1 x RJ45 COM Other: 1 x RST |
Input: DC100-240V AC/50-60Hz Output: DC 12V~19V/6A Operating Temperature: 0°C-70°C(32°F~140°F) Storage Temperature: -20°C-80°C(-68°F~176°F) Relative Humidity: 10%~90%(non-condensing) |
Windows / Linux / Centos / Ubuntu / pfSense / OPNsense. |
| Product Dimension | Other Features | What's in Box |
| Size: 170mm x 150mm x 45mm Weight: 2.5kg |
Support Firewall, VPN, Network Server, Network Security, Router and other fields. | 1 x Mini PC, 1 x Power
Adapter, 1 x Power Cord, 1 x HDMI Cable, 2 x Antennas, 1 x Screws Bag |
