| Description | CPU | GPU |
| Model Number: J3160 Type: Fanless, Silent Working Material: Metal Case |
Intel Celeron J3160, 4 Cores/4 Threads, 2 MB L2 Cache, Base Frequency: 1.6GHz, Max. Turbo Frequency: 2.24GHz |
Intel HD Graphic, Graphics Base Frequency: 320MHz; Graphics Burst Frequency: 700MHz. |
| RAM Memory | SSD Storage | Network |
| 1 x DDR3L SDRAM Memory Slot, Up to 8GB, DDR3L 1333/1600 LPDDR 1333/1600 |
1 x Mini-PCIE(support wifi/bluetooth) 1 x Mini-PCIE(support MSATA) |

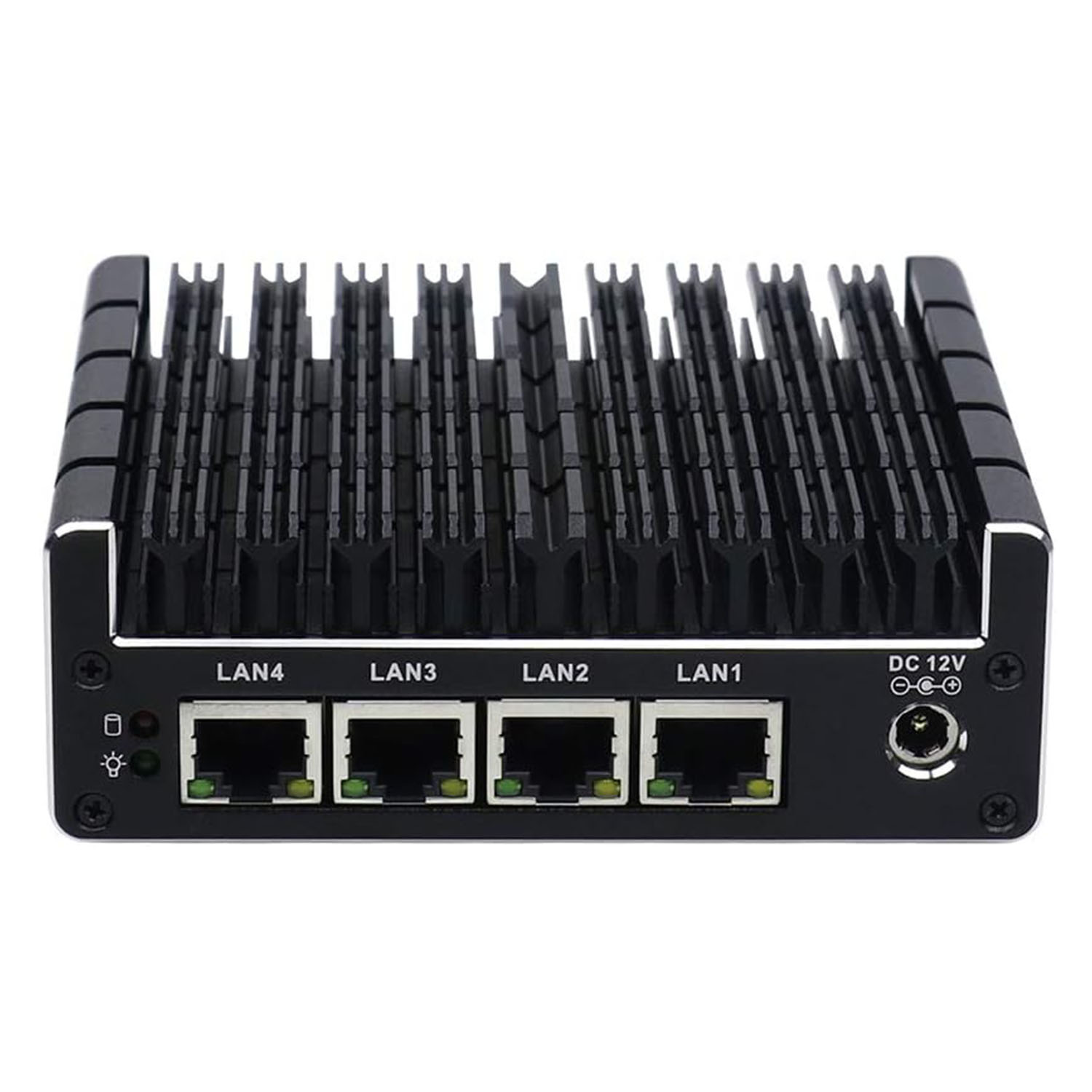

4 x Realtek 8111E Lan, support Wake on LAN |
| Input/output port | Power & Working Environment | Audio |

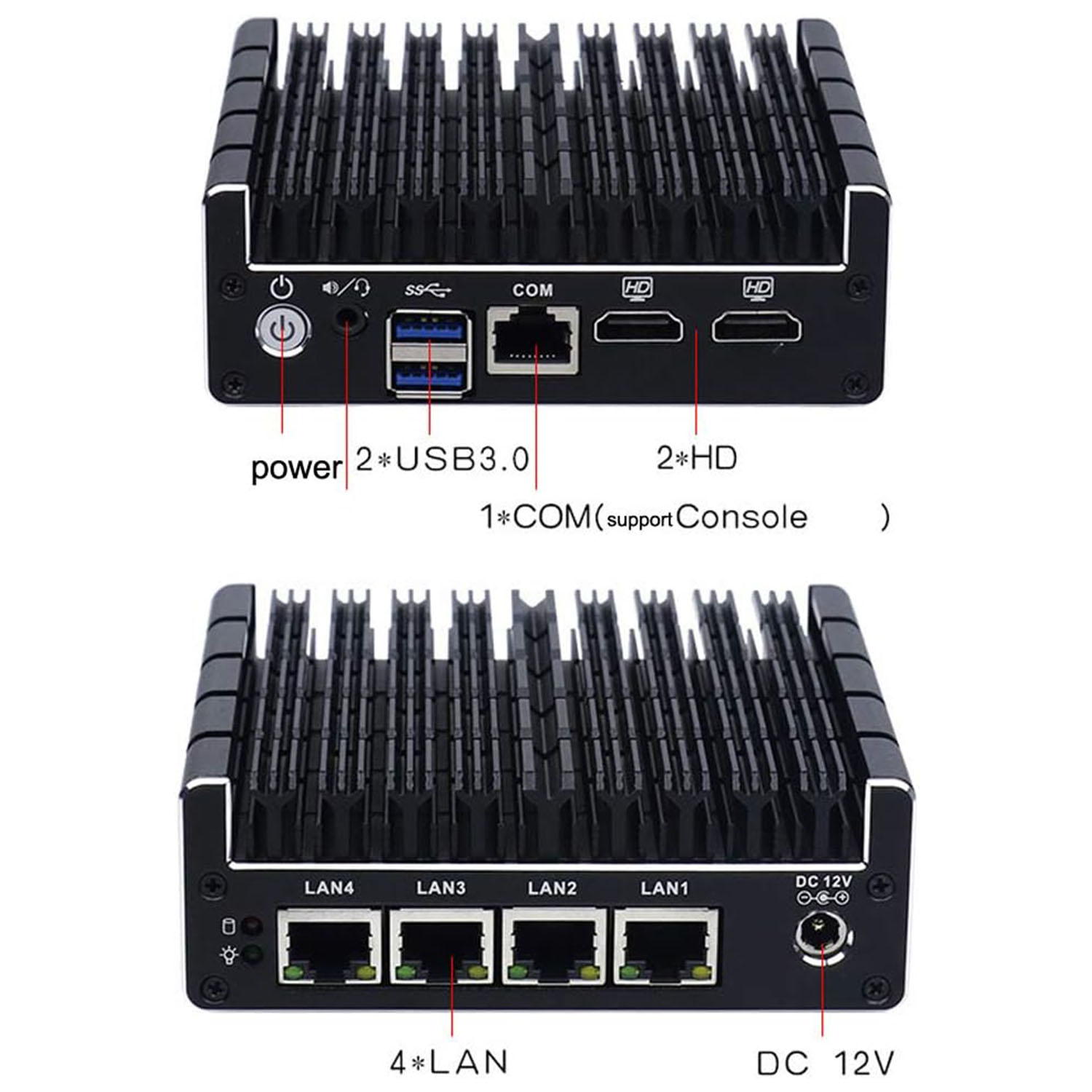

| Switch: 1 x Power On/Off Power: 1 x DC IN; LED: 1 x LED USB: 2 x USB3.0 Display: 2 x HDMI LAN: 4 x RJ45 LAN COM: 1 x COM Audio: 1 x MIC/SPK |
Input: DC100-240V AC/50-60Hz Output: DC 12V/4A Operating Temperature: 0°C-70°C(32°F~140°F) Storage Temperature: -20°C-80°C(-68°F~176°F) Relative Humidity: 10%~90%(non-condensing) |
Integrated Realtek ALC662 6 sound channel |
| Product Dimension | Other Features | What's in Box |

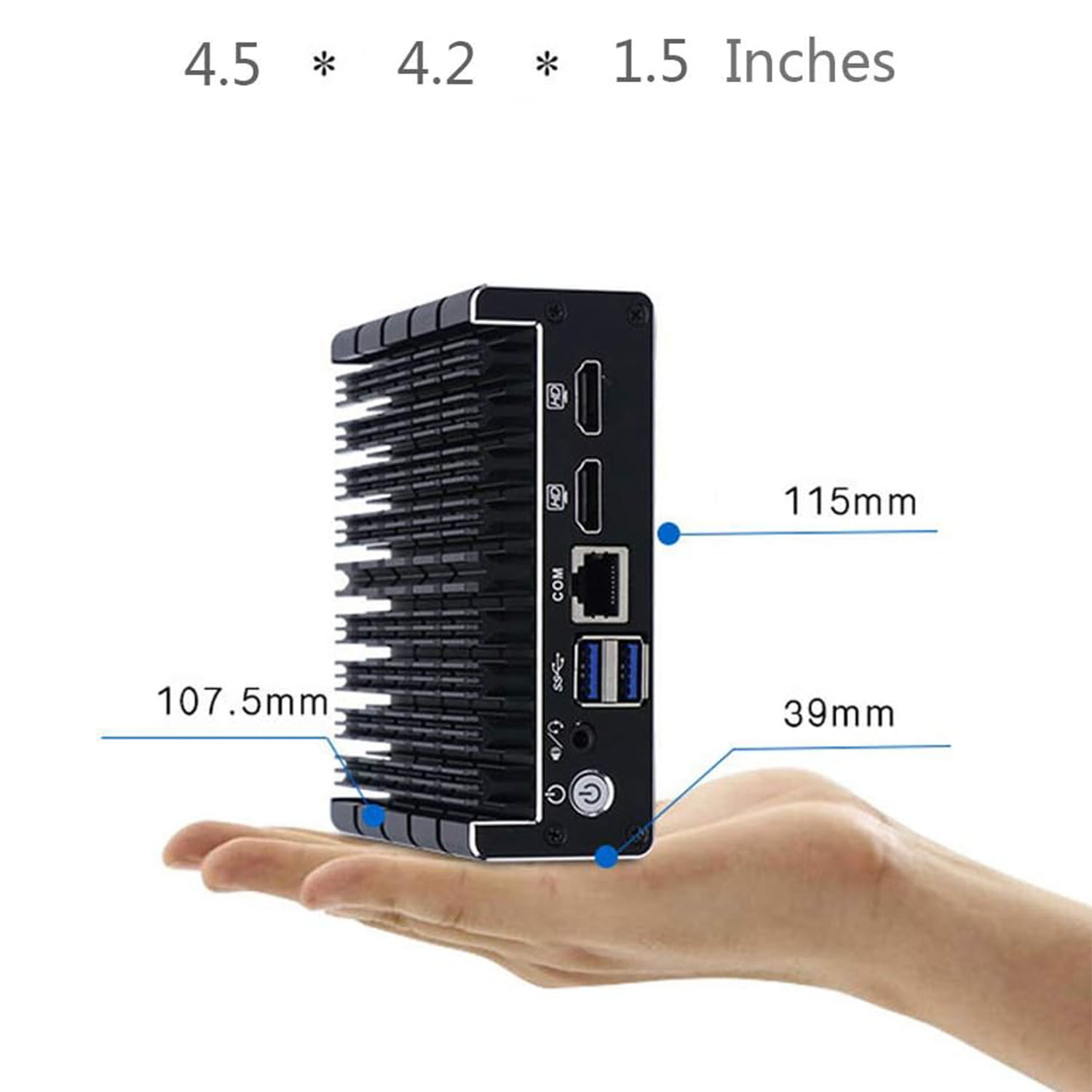

| Size: 115mm x 107.5mm x 39mm Weight: 0.65kg |
Fanless System, Smart Design, Zero Noise, Work 24hrs working. BIOS: AMI 64M DPI Flash ROM. |

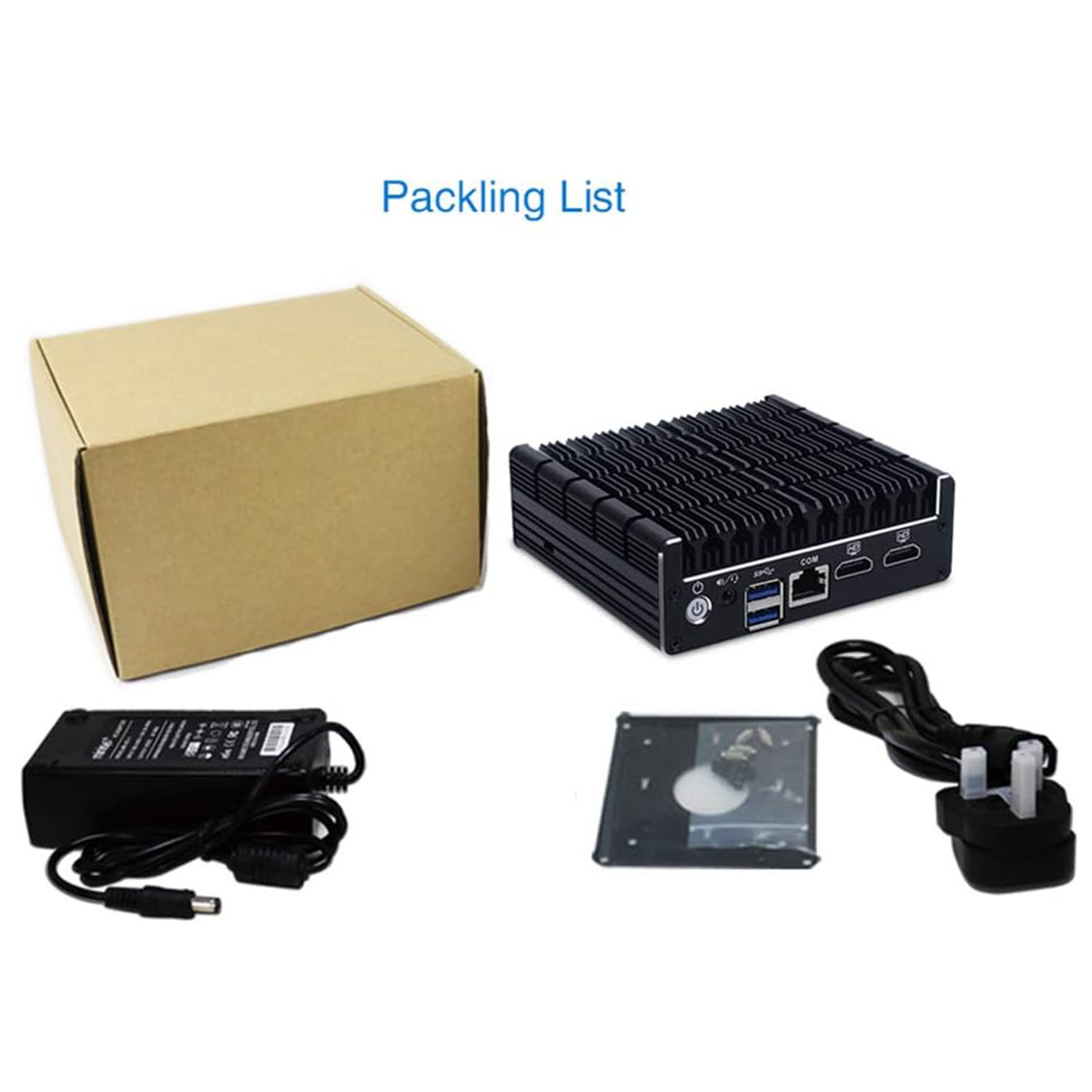

1 x Mini PC, 1 x Power
Adapter, 1 x Power Cord, 1 x HDMI Cable, 1 x Screws Bag |
