| Description | CPU | Application |
| Model Number: HT690-5 Type: Fanless, Silent Working Material: Aluminum Alloy Structure Case |
1. Intel Celeron J6412, J6413 2. Intel N100 |
Home, Office, School, Digital signage, Advertising machine, Elctronic whiteboard, ATM etc. |
| RAM Memory | SSD Storage | Network |
| 1 x SODIMM DDR4 3200MHz, support up to 32GB. | 1 x M.2 2280NVMe, 1 x 2.5inch HDD/SSD, 1 x mSATA. | Dual Band AC WiFi5 with Bluethooth4.2(except barebone bundle) |
| Input/output port | Power & Working Environment | System Supported |

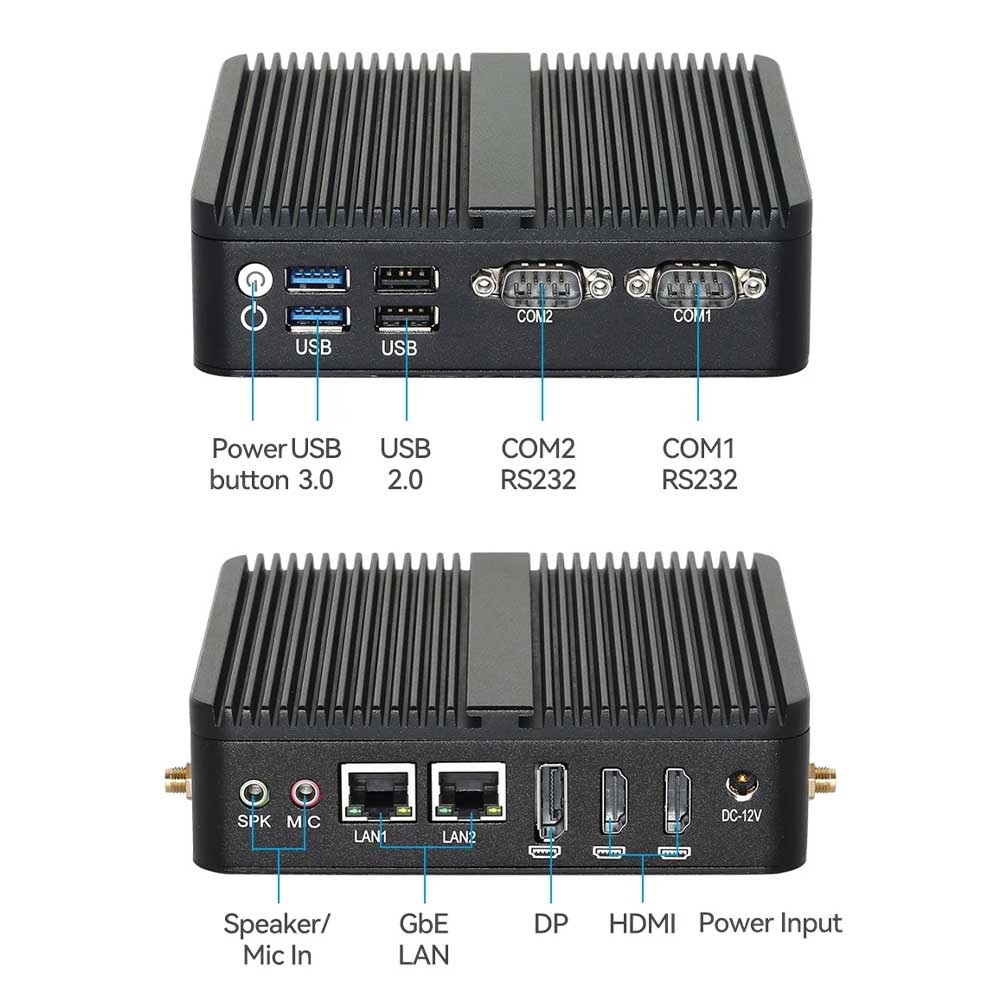

| Switch: 1 x Power On/Off; Power: 1 x DC IN USB: 4 x USB2.0, 2 x USB3.0 Display: 1 x HDMI, 1 x DP LAN: 2 x RJ45 LAN COM: 2 x DB9 COM SIM: 1 x 4G Sim Slot, 1 x 5G Sim Slot Others: 1 x CLR-CMOS Port |
Input: 100-240V AC/50-24Hz Output: 12V, 3/5A DC IN Operating Temperature: -10°C-60°C Storage Temperature: -20°C-70°C Work Humidity: 0%~90%(non-condensing) |
Windows / Linux / Centos / Ubuntu / pfSense / OPNsense. |
| Product Dimension | Other Features | What's in Box |
| Size: 135mm x 127mm x 38.7mm Weight: 1.0kg |
Triple Display: HD+HD+DP | 1 x Mini PC, 1 x Power
Adapter, 1 x Power Cord, 1 x HDMI Cable, 1 x Screws Bag |
