| Description | CPU | Application |
| Model Number: HT690-4-2 Type: Fanless, Silent Working Material: Aluminum Alloy Structure Case |
1. Intel N2840 N2930 2. Intel J1900 J4125 |
Home, Office, School, Digital signage, Advertising machine, Elctronic whiteboard, ATM etc. |
| RAM Memory | SSD Storage | Network |
| 1 x SODIMM DDR4 Slot, Max 16GB. | 1 x mSATA(Optional MPCIE), 1 x 2.5inch HDD/SSD. | 2 x Gigabit LAN 10M/100M/1000M |
| Input/output port | Power & Working Environment | System Supported |

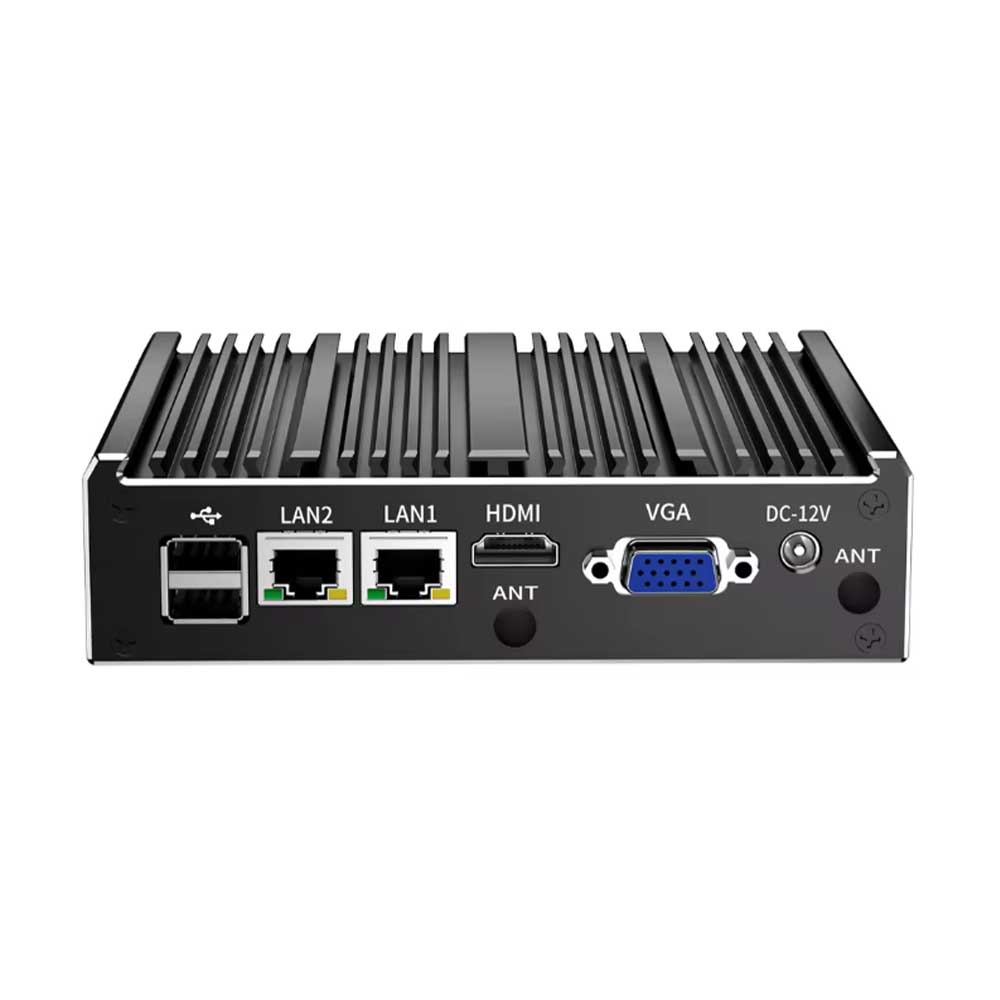

| Switch: 1 x Power On/Off; Power: 1 x DC IN USB: 2 x USB2.0, 4 x USB3.0 Display: 1 x HDMI, 1 x VGA LAN: 2 x 100/1000Mbps LAN COM: 2 x COM RS232 (Both Support RS485) Audio: 1 x MIC/SPK(3.5mm) |
Input: 100-240V AC/50-24Hz Output: 12V, DC Connector 5.5*2.5mm Operating Temperature: -20°C-60°C Storage Temperature: -20°C-70°C Work Humidity: 5%~95%(non-condensing) |
Windows / Linux / Centos / Ubuntu / pfSense / OPNsense. |
| Product Dimension | Other Features | What's in Box |

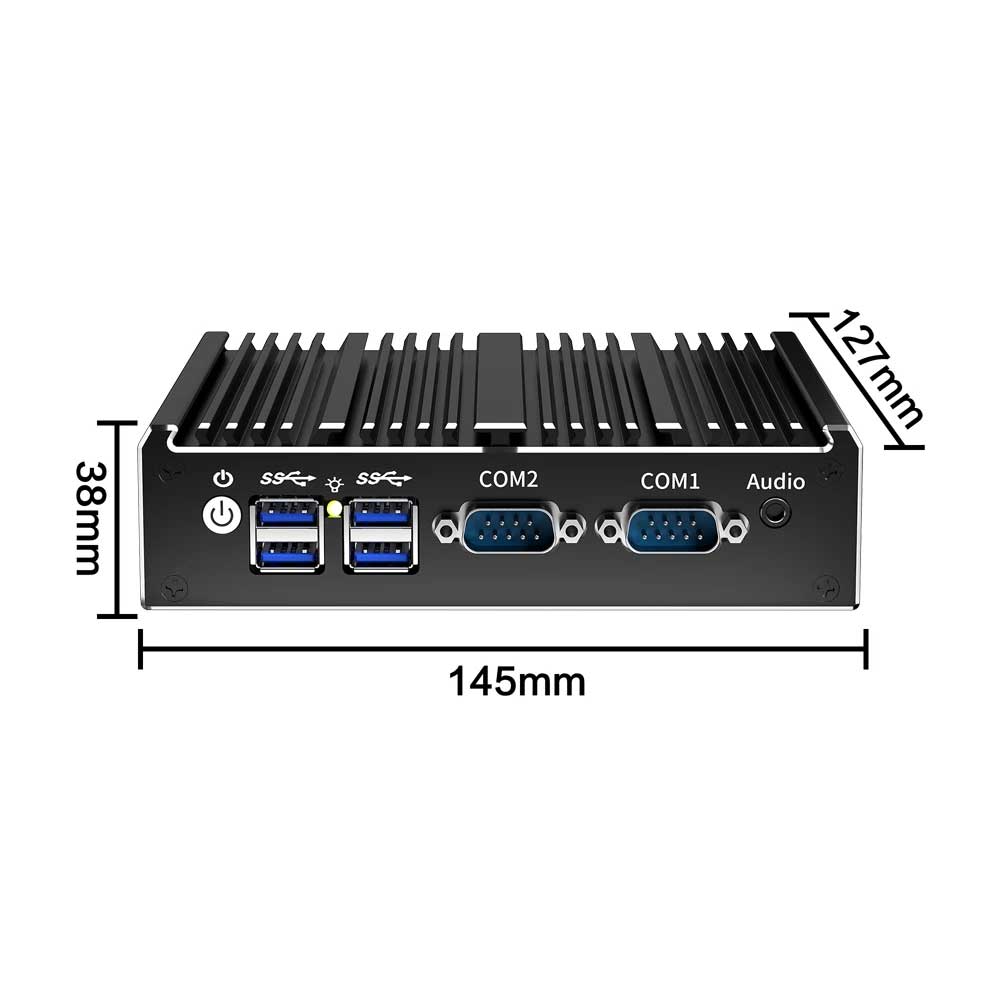

| Size: 145mm x 127mm x 38mm Weight: 1.0kg |
BIOS: AMI 64M BIOSs, Support Wake-on-LAN, PXE, Automatic Power On | 1 x Mini PC, 1 x Power Adapter, 1 x Power Cord, 1 x HDMI Cable, 1 x Screws Bag |
