| Description | CPU | Application |

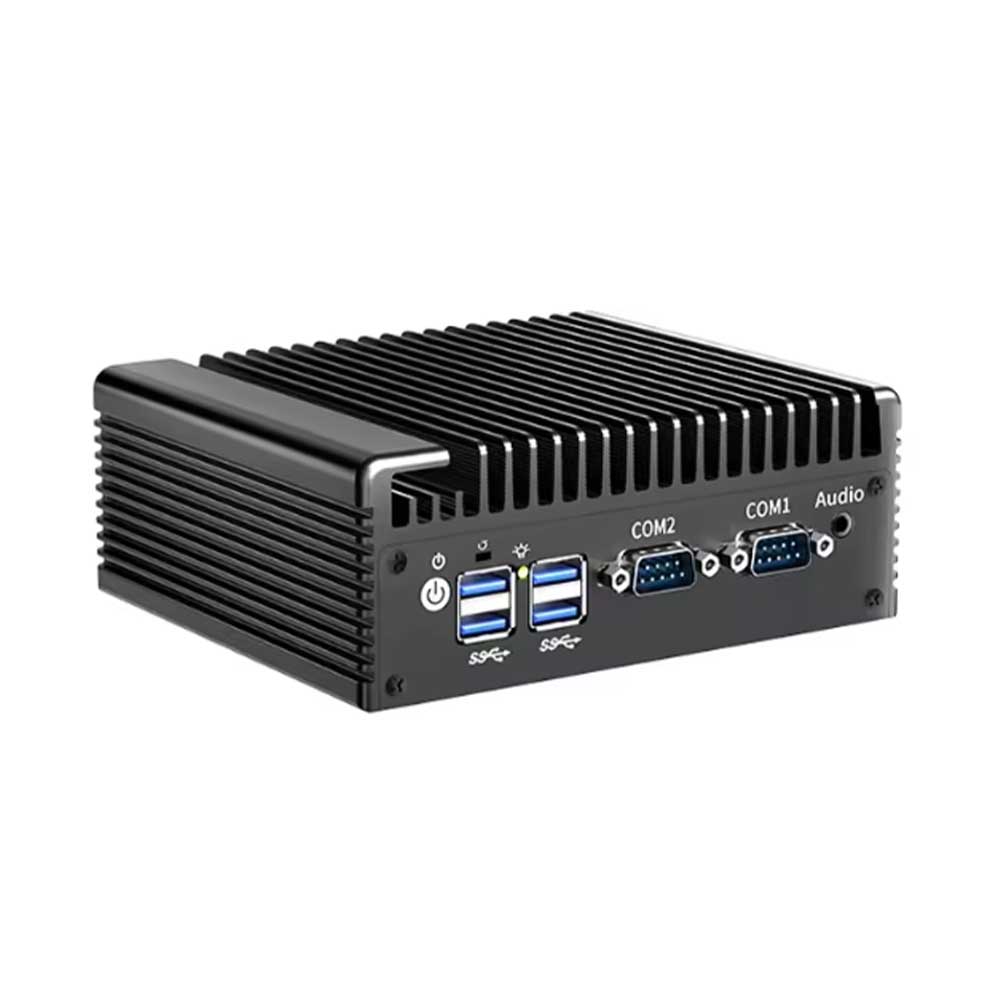

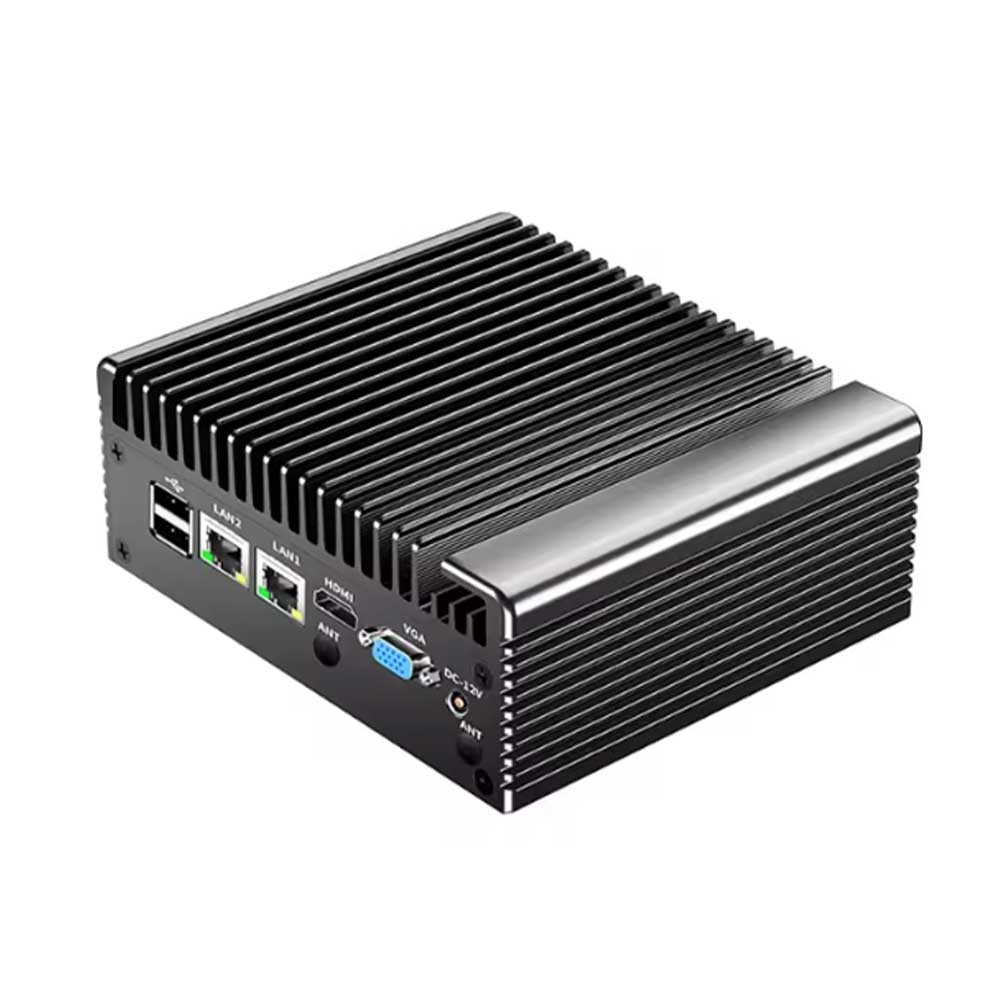

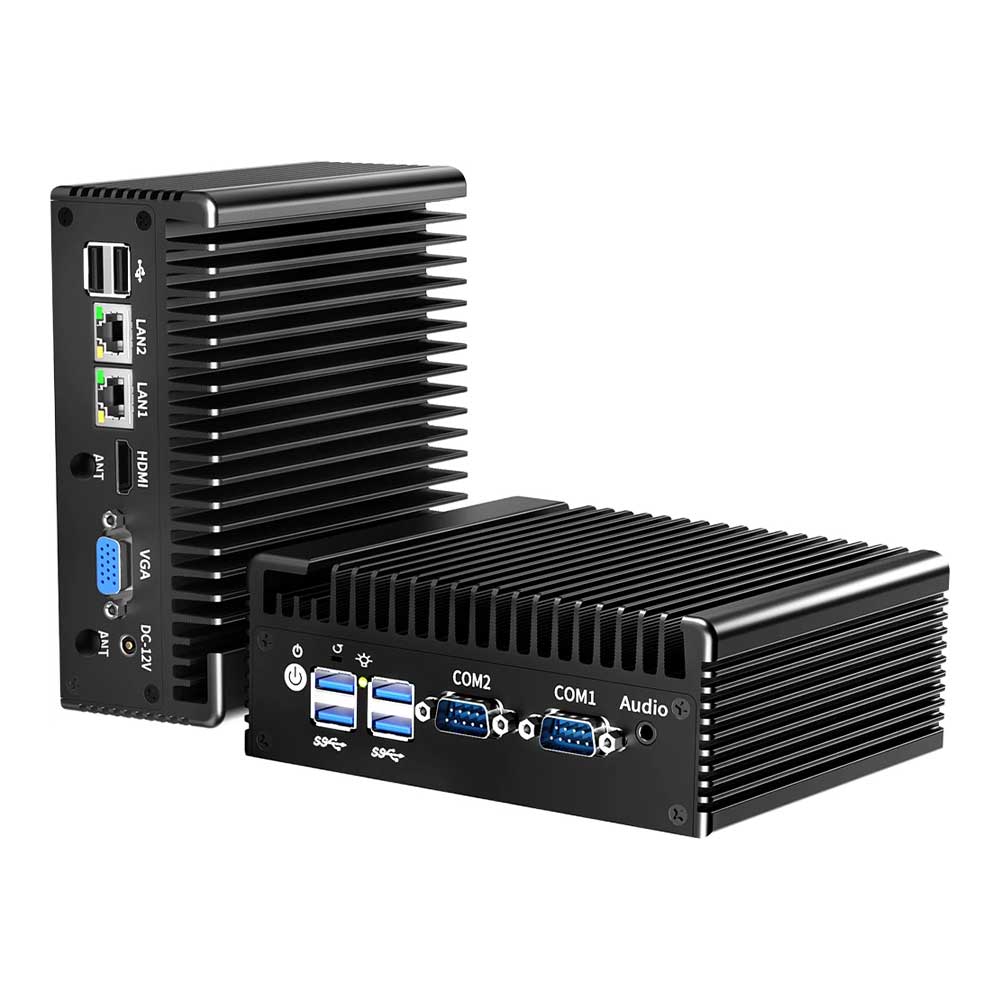

| Model Number: HT690-4-1 Type: Fanless, Silent Working Material: Aluminum Alloy Structure Case |
1. Intel Core i3-5005U/8130U/1215U 2. Intel Core i5-4200U/8250U/1235U 3. Intel Core i7-4500U/1255U |
Home, Office, School, Digital signage, Advertising machine, Elctronic whiteboard, ATM etc. |
| RAM Memory | SSD Storage | Network |
| i3-5005U/i5-4200U/i7-4500U: 1 x DDR3L Slot, Max 8GB; i3-8130U/i3-1215U/i5-8250U/i5-1235U/i7-1255U: 1 x SODIMM DDR4 Slot, Max 16GB. |
i3-5005U/i5-4200U/i7-4500U: 1 x mSATA, 1 x 2.5inch HDD/SSD; i3-8130U/i3-1215U/i5-8250U/i5-1235U/i7-1255U: 1 x M.2 NVME/SATA 2280 SSD, 1 x 2.5inch HDD/SSD. |
2 x Gigabit LAN 10M/100M/1000M |
| Input/output port | Power & Working Environment | System Supported |

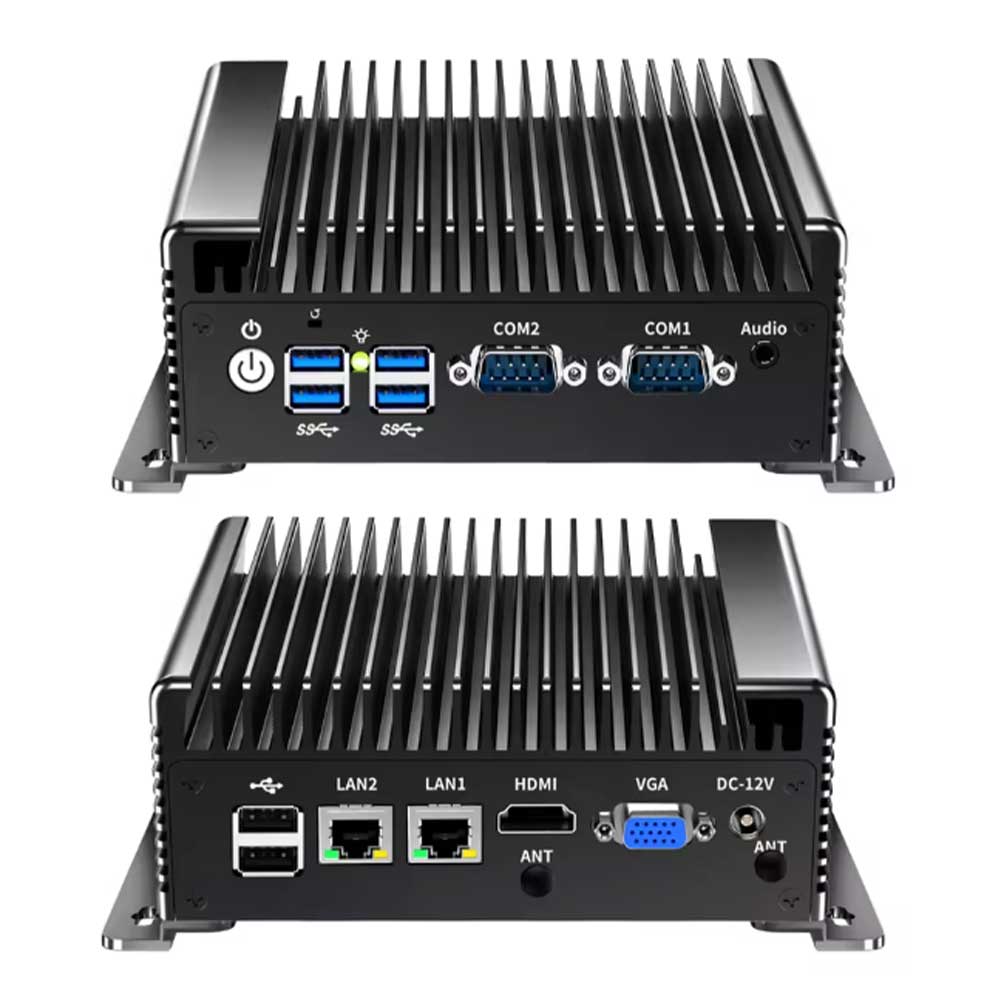

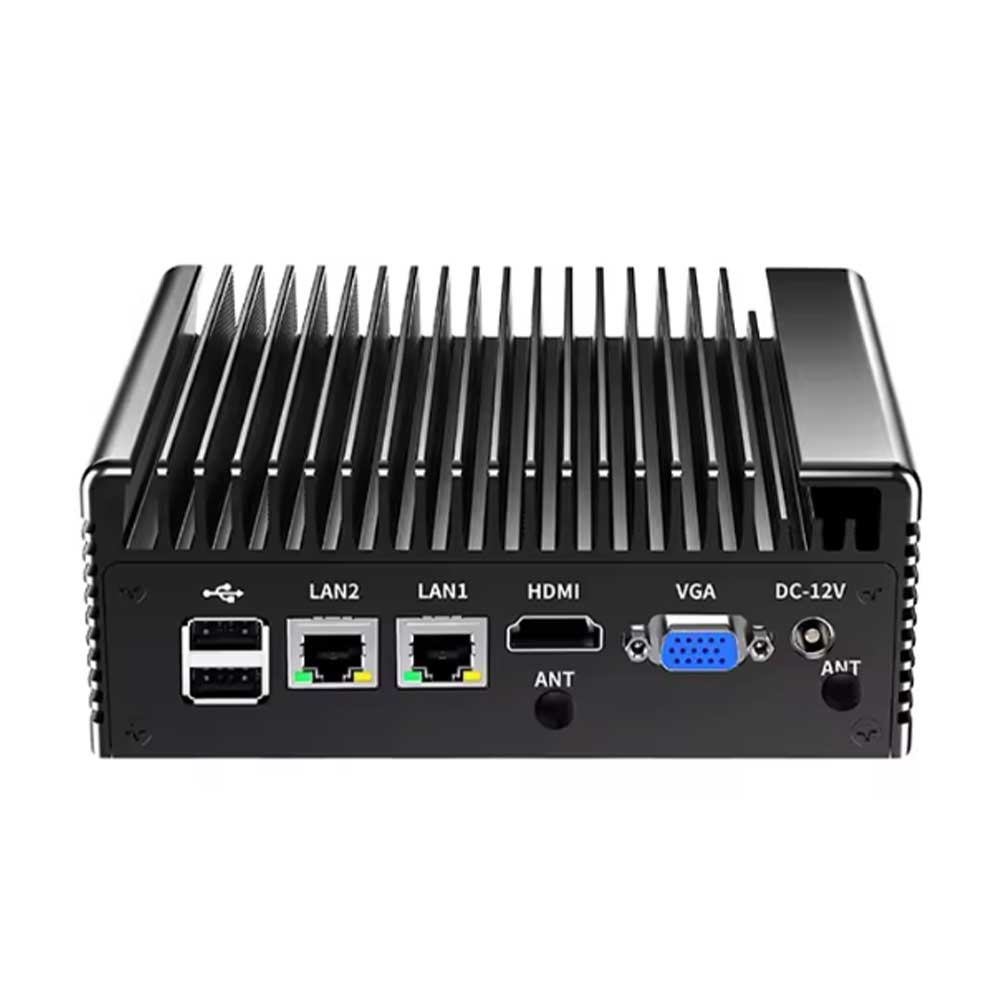

| Switch: 1 x Power On/Off; Power: 1 x DC IN USB: 2 x USB2.0, 4 x USB3.0 Display: 1 x HDMI, 1 x VGA LAN: 2 x 100/1000Mbps LAN COM: 2 x COM RS232 (Jumper optional for RS485) Audio: 1 x MIC/SPK |
Input: 100-240V AC/50-24Hz Output: 12V, DC Connector 5.5*2.5mm Operating Temperature: -20°C-60°C Storage Temperature: -20°C-70°C Work Humidity: 5%~95%(non-condensing) |
Windows / Linux / Centos / Ubuntu / pfSense / OPNsense. |
| Product Dimension | Other Features | What's in Box |

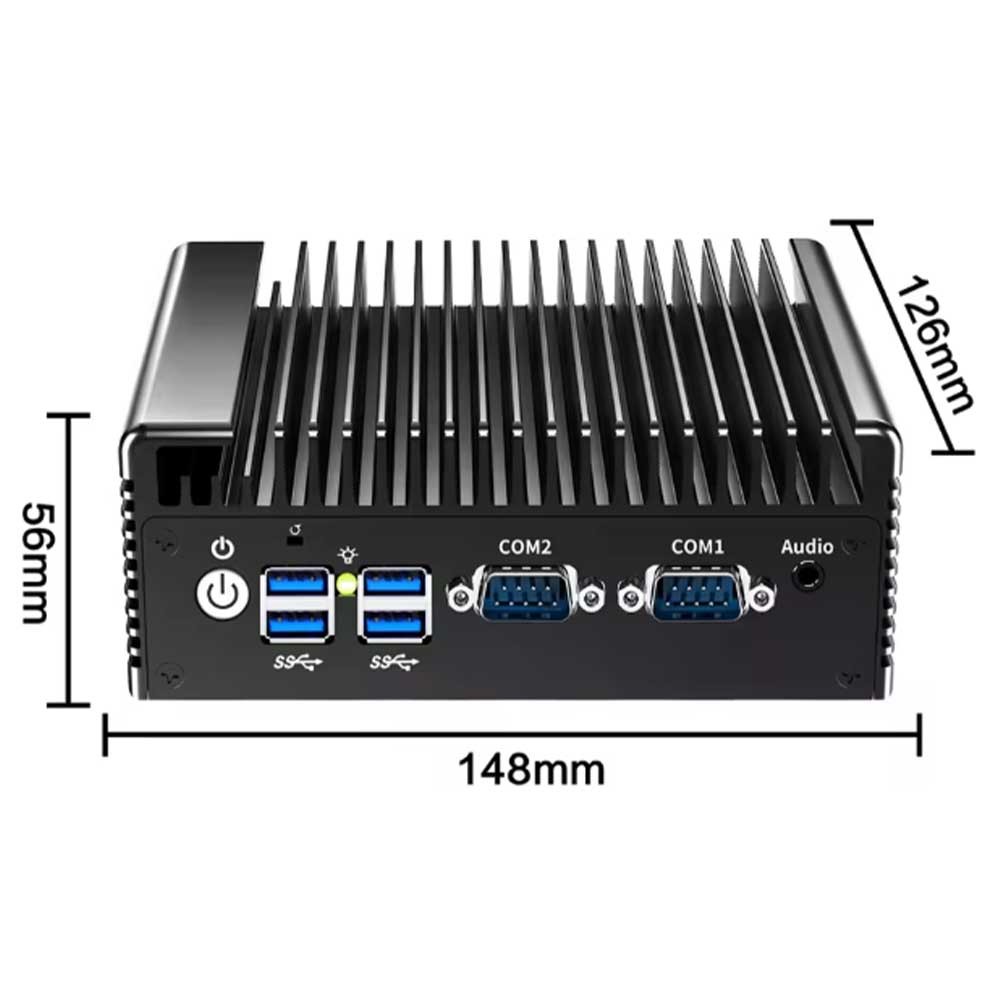

| Size: 148mm x 126mm x 56mm Weight: 1.0kg |
BIOS: AMI 64M BIOSs, Support Wake-on-LAN, PXE, Automatic Power On | 1 x Mini PC, 1 x Power Adapter, 1 x Power Cord, 1 x HDMI Cable, 1 x Screws Bag |
