| Description | CPU | Application |

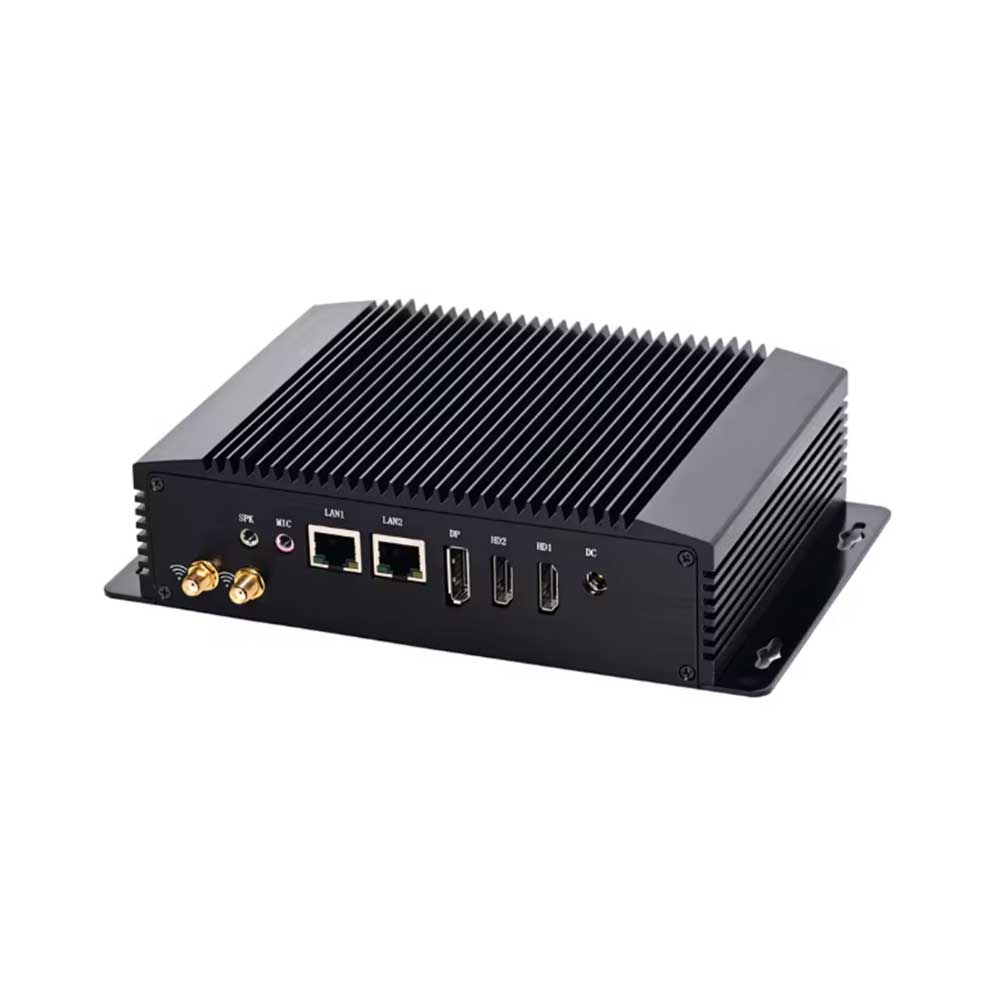

| Model Number: HT690-3 Type: Fanless, Silent Working Material: Aluminum Alloy Structure Case |
1. Intel N95 2. Intel N100 |
Industrial automation, health care, logistics and transportation, warehousing, electronic education, robotics, Internet of Things, monitoring and other fields. |
| RAM Memory | SSD Storage | Network |
| 1 x SODIMM DDR4 Slot, Max 16GB. | 1 x mSATA, 1 x M.2 NVME SSD, 1 x 2.5inch SATA 3.0. | 2 x Gigabit Ethernet LAN |
| Input/output port | Power & Working Environment | System Supported |
| Switch: 1 x Power On/Off; Power: 1 x DC IN USB: 2 x USB2.0, 2 x USB3.0 Display: 2 x HDMI, 1 x DP LAN: 2 x RJ45 LAN COM: 2 x COM RS232 Audio: 1 x MIC/SPK |
Input: 100-240V AC/50-24Hz Output: 12V, 5A Operating Temperature: -20°C-60°C Storage Temperature: -20°C-70°C Work Humidity: 5%~95%(non-condensing) |
Windows / Linux / Centos / Ubuntu / pfSense / OPNsense. |
| Product Dimension | Other Features | What's in Box |
| Size: 170mm x 125mm x 50mm Weight: 1.5kg |
BIOS: AMI UEFI BIOS | 1 x Mini PC, 1 x Power Adapter, 1 x Power Cord, 1 x HDMI Cable, 1 x Screws Bag |
