F500
Product Information
Description CPU GPU
Model Number: F500
Type: Cooling Fan
Intel Core i7-6700HQ CPU:
6th Generation Skylake Code, 4 Cores, 8 Threads;
6M Smart Cache; Base Frequency: 2.6GHz,
Max Turbo Frequency: 3.5GHz, Turbo Boost Technology 2.0.
Integrated:
Intel HD Graphics 530, Graphics Base Frequency: 350MHz; Graphics Max Dynamic Frequency: 1.05GHz; Graphics Video Max Memory: 64GB; Max Resolution: 4096x2304.
Dedicated:
GTX 960M, VRAM 4G: CUDA Cores: 640; Base Clock: 1096MHz + Boost; Memory Clock: 2500MHz; Memory Interface: GDDR5; Memory Bandwidth: 80GB/sec.
RAM Memory SSD Storage Audio
2 x DDR4 SO-DIMM Slots, Support up to 32GB 2 x M.2 22*80 SSD Slots, 1 x 2.5 inch 7.0mm HDD. Realtek MIC-in Line-out /Azalia Codec

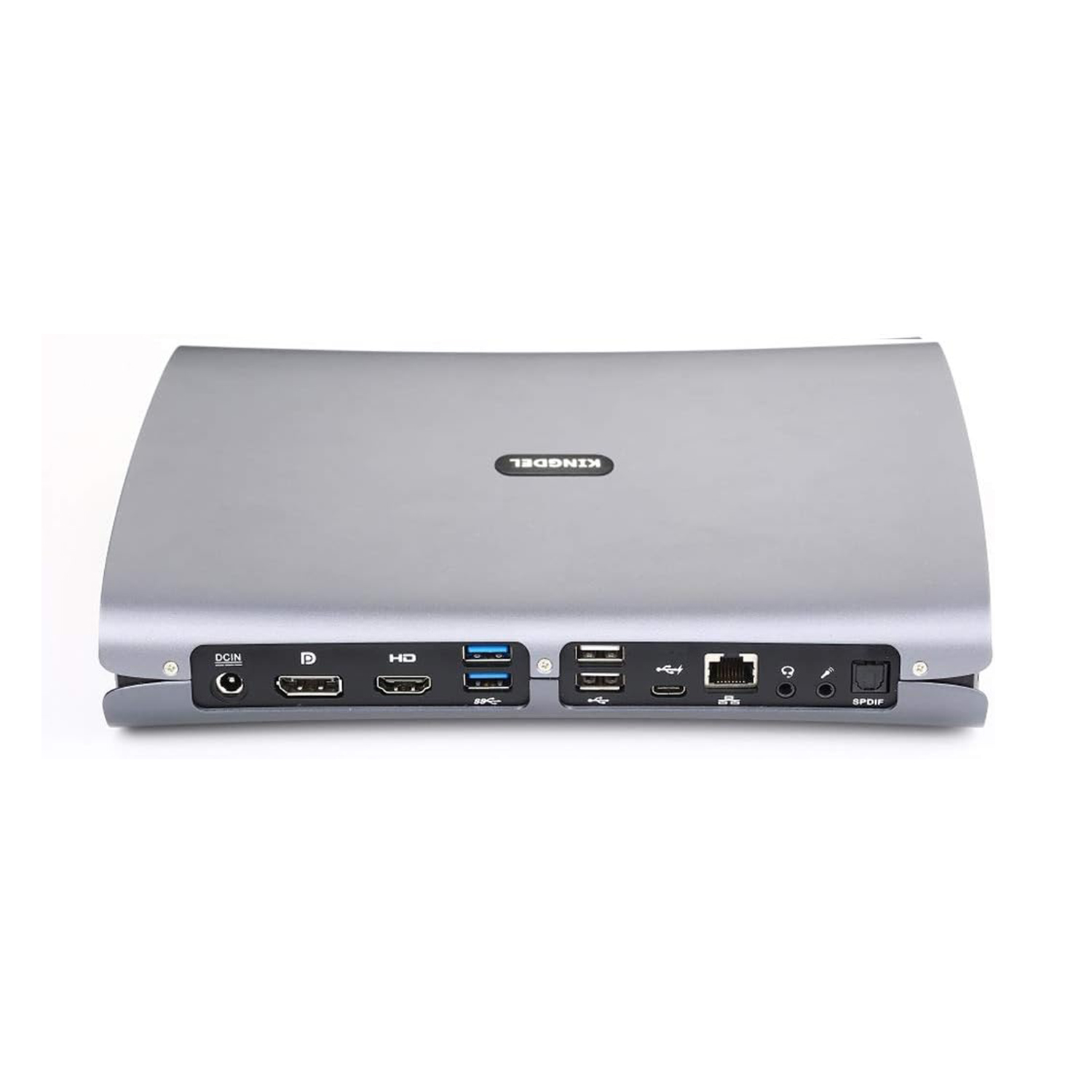

Input/output port Power Supply Computer Rating Power Consumption
Switch: 1 x Power On/Off
Power: 1 x DC IN
USB: 4 x USB2.0, 2 x USB3.0
Display: 1 x HDMI, 1 x DP
LAN: 1 x RJ45(100M/1000M)LAN
Audio: 2 x Jack: Mic Jack, Headphone Jack
Input: DC100-240V AC/50-60Hz
Output: DC 19V/6.3A
65W(UMA model), 120W (Nvidia GPU model)
Product Dimension Other Features What's in Box
Size: 250mm x 194mm x 49.5mm
Weight: 1.0kg

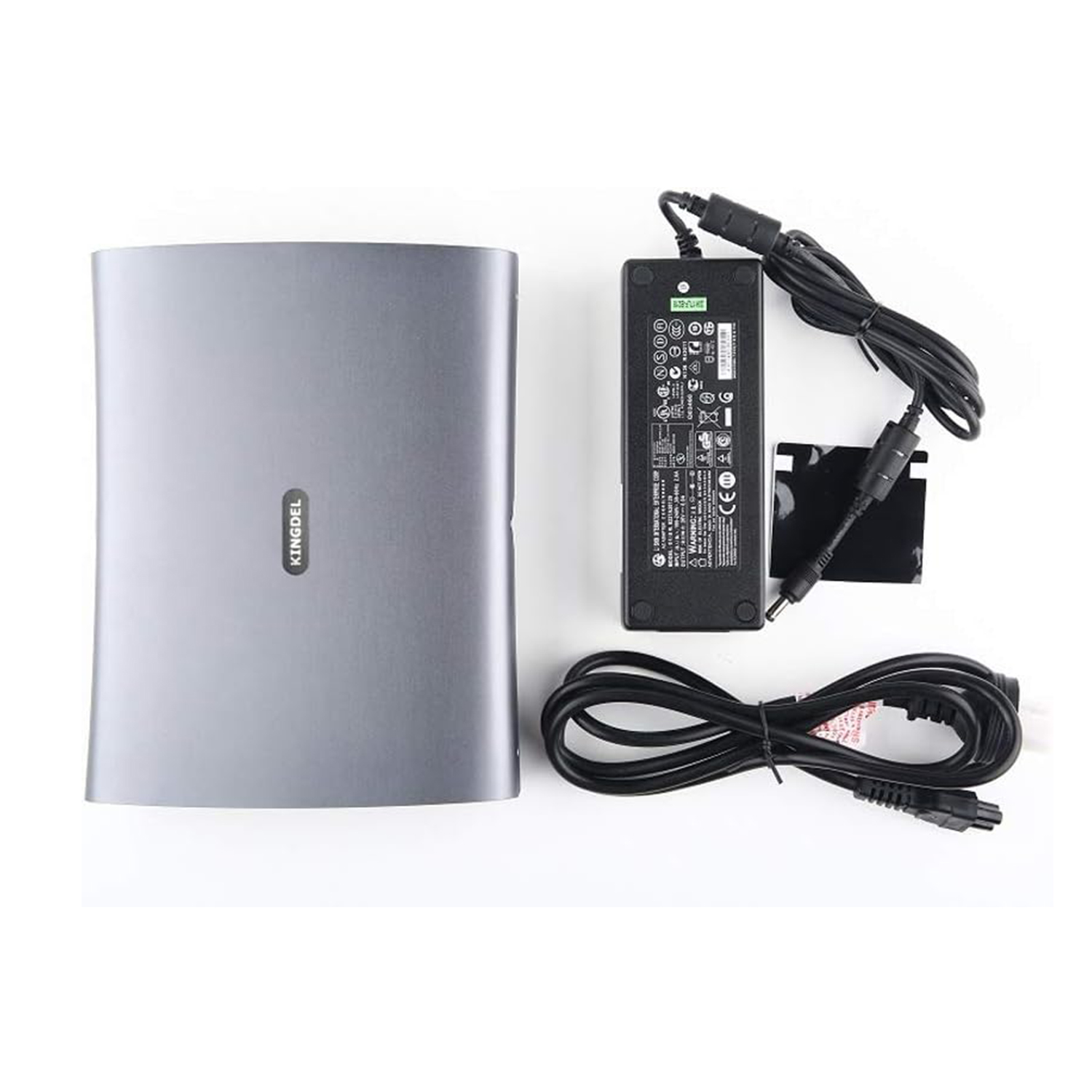

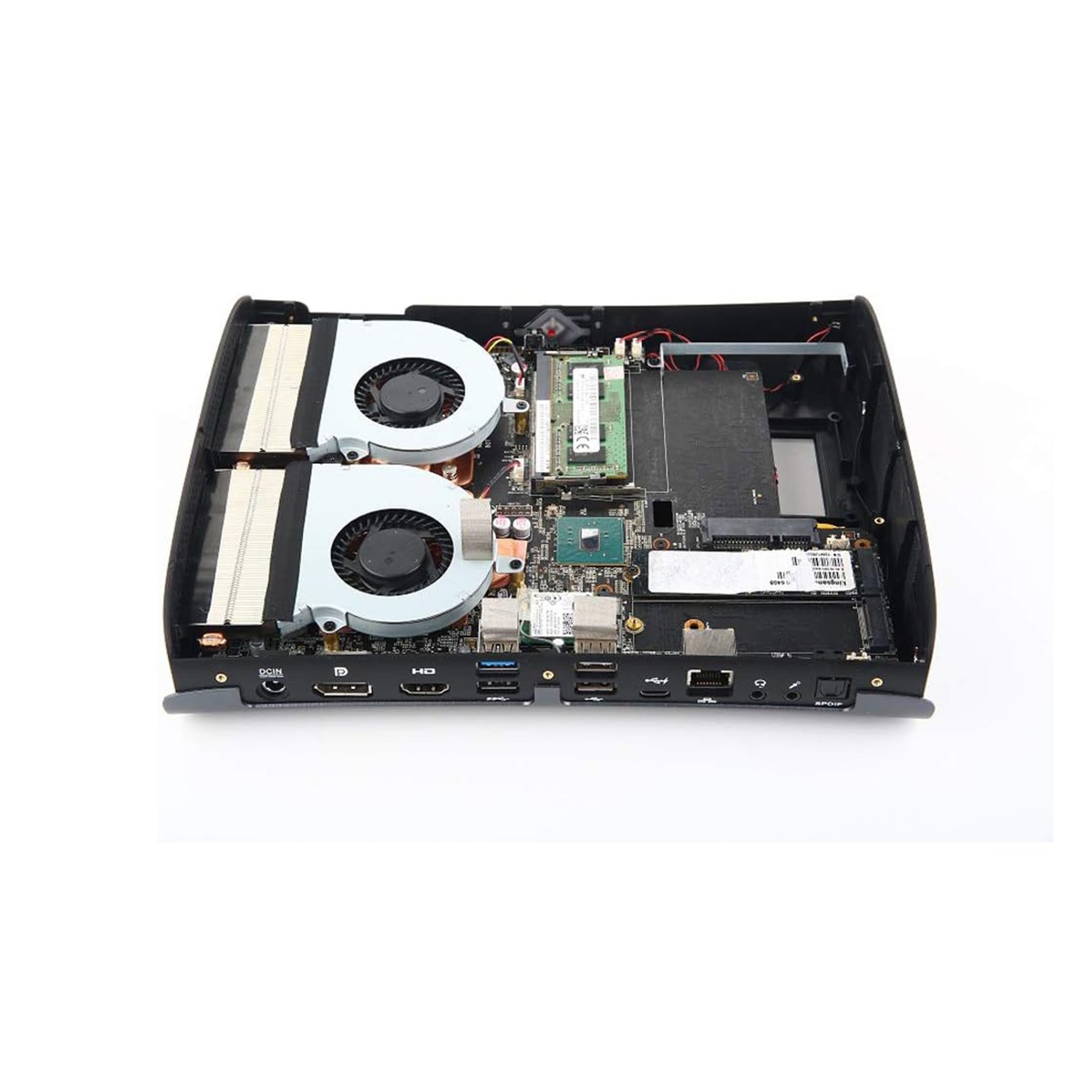

Thermal design: Silent Working Fan. 1 x Mini PC, 1 x Power Adapter,
1 x Power Cord, 1 x HDMI Cable, 1 x Screws Bag
Product Application
Desktop Computer Business Mini PC Office Mini PC School Mini PC Mini PC
